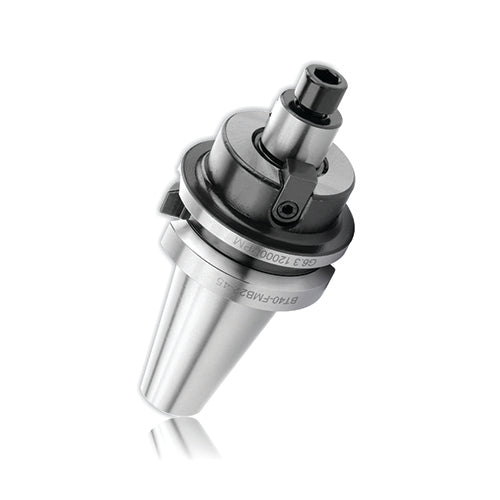

BT-40 FM Stub Milling Arbour

BT40 facemill holder also called facemill arbour and facemill adaptor

BT40 FMA22 Is mainly used to hold Modular Indexable Cutter with Internal hole of 16 mm any cutter can come with a 22 mm Internal thread but normally 50 mm AND 63 mm Cutters are common in this range.

Made from alloy steel hardened to 54 – 56rc
Balanced to G6.3 at 12,000 rpms
Concentricity is less than .005 micron upto 100 Length and 0.012 upto 200 Length
All critical tool holder surfaces precision ground
Gage length is 50MM,100MM,150MM,200MM,250MM,300MM
Rear thread for pull stud is M16 X 2.0
