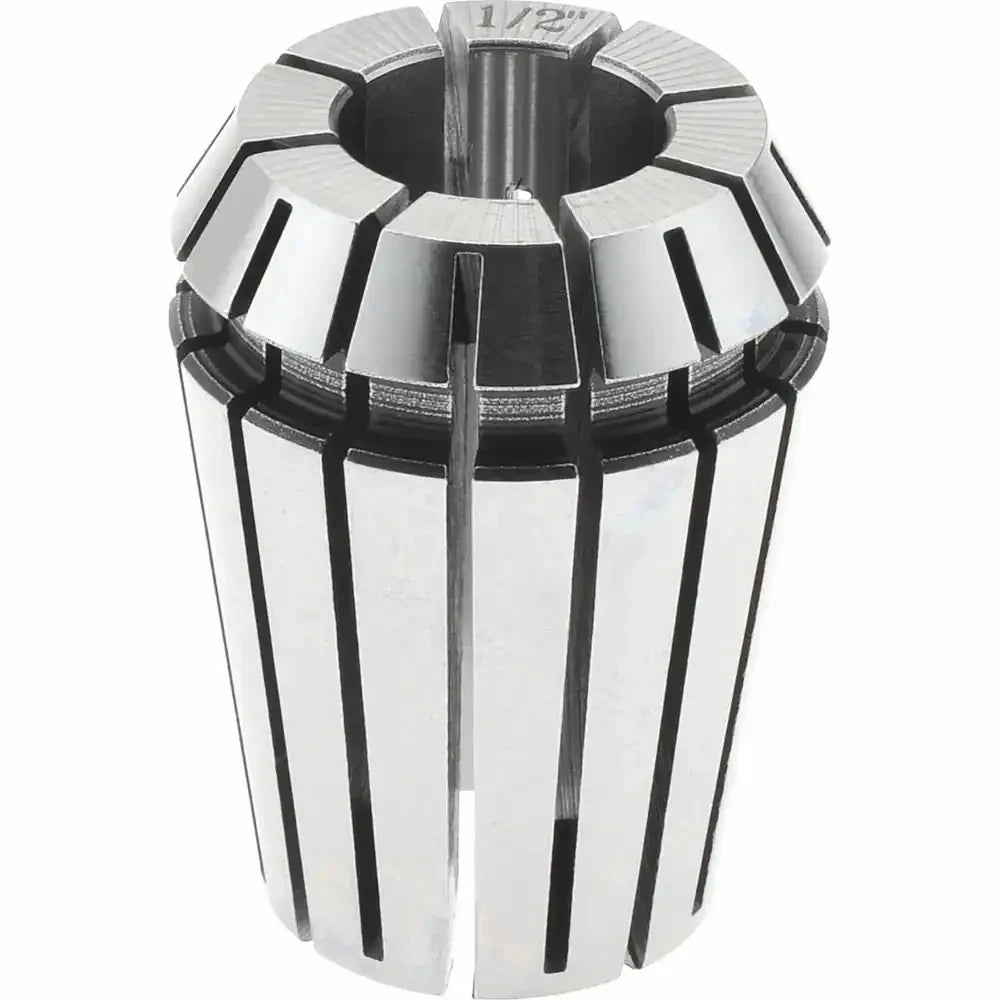

Collet ER

DESCRIPTION

  • ER16 Collet follows DIN 6499 standard
  • The standard ER collet is the most widely used clamping system in the world
  • Made from EN-47 Alloy spring steel for spring action and fully hardened
  • ER-16 Standard Precision Collet with 10 microns run out
  • Install into an ER collet chuck or holder to tightly grip round-shank tool bits in milling machines



    The proper way to fit RR ER16 Collet to a suitable nut:

    • The Collet must always be inserted into the nut before setting the tool into the collet
    • The collet is fitted inside the nut by applying slight pressure A
    • It is removed by applying Pressure B to the collet
    • Never tighten the chuck without a correct size tool shank being present in the collet

    Application: ER16 collets are ideal for many machining operations such as

    • Boring
    • Milling
    • Reaming
    • Tapping
    • Grinding

    Suitable Products:

    • Carbide End Mills
    • ER Collet Chucks (BT/CAT/HSK/ISO/MT/R8/SK/Straight Shank)
    • ER Collet Chuck Nuts
    • ER Collet Chuck Spanners
    • Pull Stud (Retention Knob)
    • Locking Fixtures
