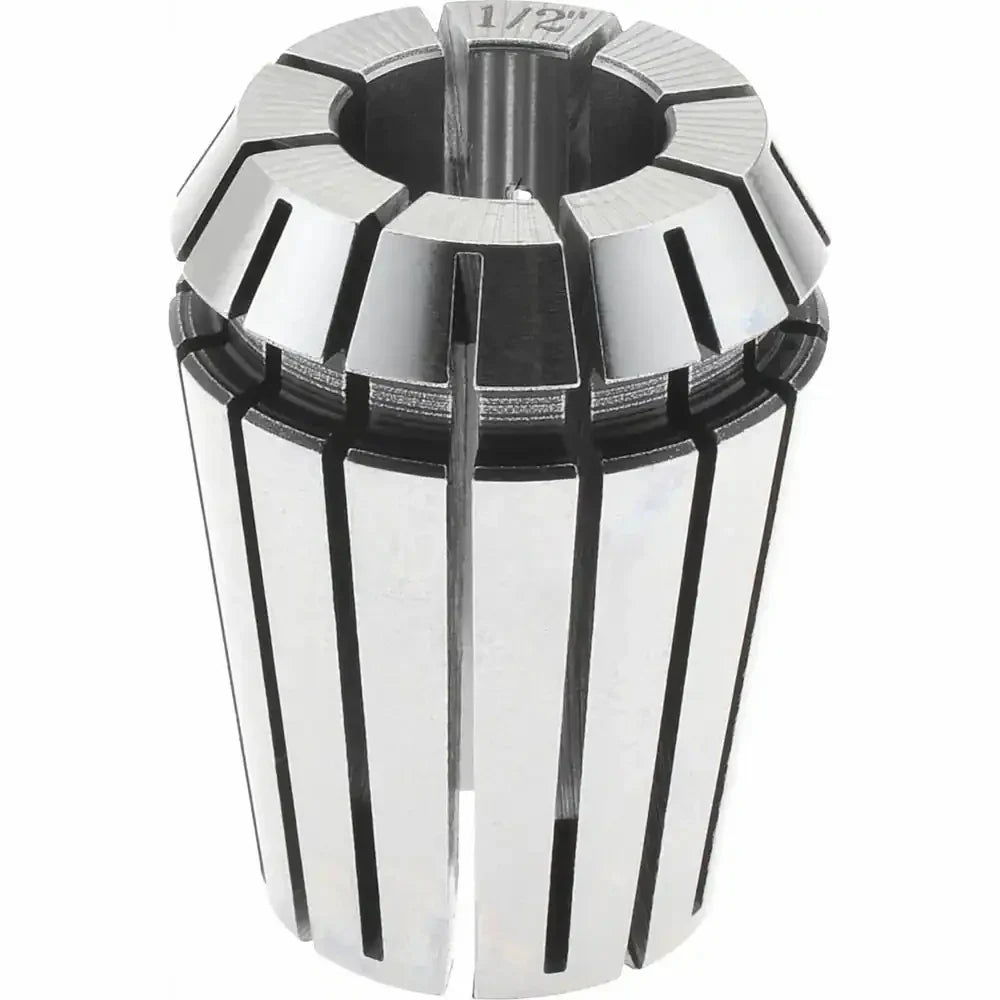

Collet ER 16

Collet ER 16

Rs. 250.00
Rs. 250.00
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION

  • ER16 Collet follows DIN 6499 standard
  • The standard ER collet is the most widely used clamping system in the world
  • Made from EN-47 Alloy spring steel for spring action and fully hardened
  • ER-16 Standard Precision Collet with 10 microns run out
  • Install into an ER collet chuck or holder to tightly grip round-shank tool bits in milling machines

The proper way to fit RR ER16 Collet to a suitable nut:

  • The Collet must always be inserted into the nut before setting the tool into the collet
  • The collet is fitted inside the nut by applying slight pressure A
  • It is removed by applying Pressure B to the collet
  • Never tighten the chuck without a correct size tool shank being present in the collet

Application: ER16 collets are ideal for many machining operations such as

  • Boring
  • Milling
  • Reaming
  • Tapping
  • Grinding

Suitable Products:

  • Carbide End Mills
  • ER Collet Chucks (BT/CAT/HSK/ISO/MT/R8/SK/Straight Shank)
  • ER Collet Chuck Nuts
  • ER Collet Chuck Spanners
  • Pull Stud (Retention Knob)
  • Locking Fixtures


ER DIA CLAMPING
16 0.5 0.1-0.5 MCT0028
16 1 0.5 - 1.0 MCT0029
16 1.5 1.5 - 1.0 MCT0030
16 2 1.0 - 1.5 MCT0031
16 2.5 2.5 - 2.0 MCT0032
16 3 3.0 - 2.5 MCT0033
16 3.175 3.175 - 2.5 MCT0034
16 3.5 2.5 - 3.0 MCT0035
16 4 3.0 - 3.5 MCT0036
16 4.5 3.5 - 4.0 MCT0037
16 5 4.0 - 5.0 MCT0038
16 5.5 4.5-5.5 MCT0039
16 6 5.0 - 6.0 MCT0040
16 6.35 5.35-6.35 MCT0041
16 6.5 5.5-6.5 MCT0042
16 7 6.0 - 7.0 MCT0043
16 7.5 6.5-7.5 MCT0044
16 8 7.0 - 8.0 MCT0045
16 9 8.0 - 9.0 MCT0046
16 10 9.0 - 10.0 MCT0047
16 11 10.0 - 11.0 MCT0048
16 12 12.0 - 11.0 MCT0049
Bore

1000 in stock
