Midland Tools
APMT Indexable Cutter Body 400R — APMT1604
APMT Indexable Cutter Body 400R — APMT1604
Regular price
Rs. 1,628
(Incl. of all taxes)
Regular price
Sale price
Rs. 1,628
(Incl. of all taxes)
Rs. 1,379.66 + Rs. 248.34 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Free delivery
On orders above Rs. 2,999
Bulk quote
Message us on WhatsApp

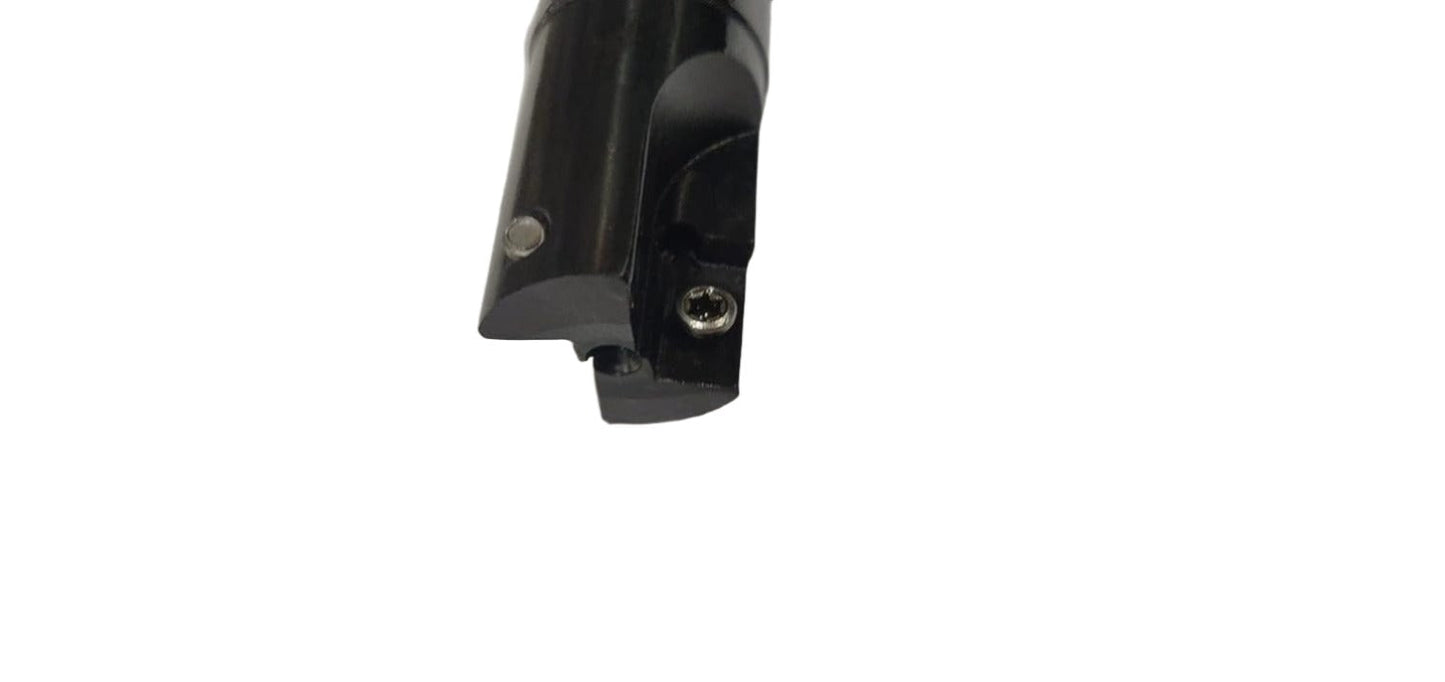

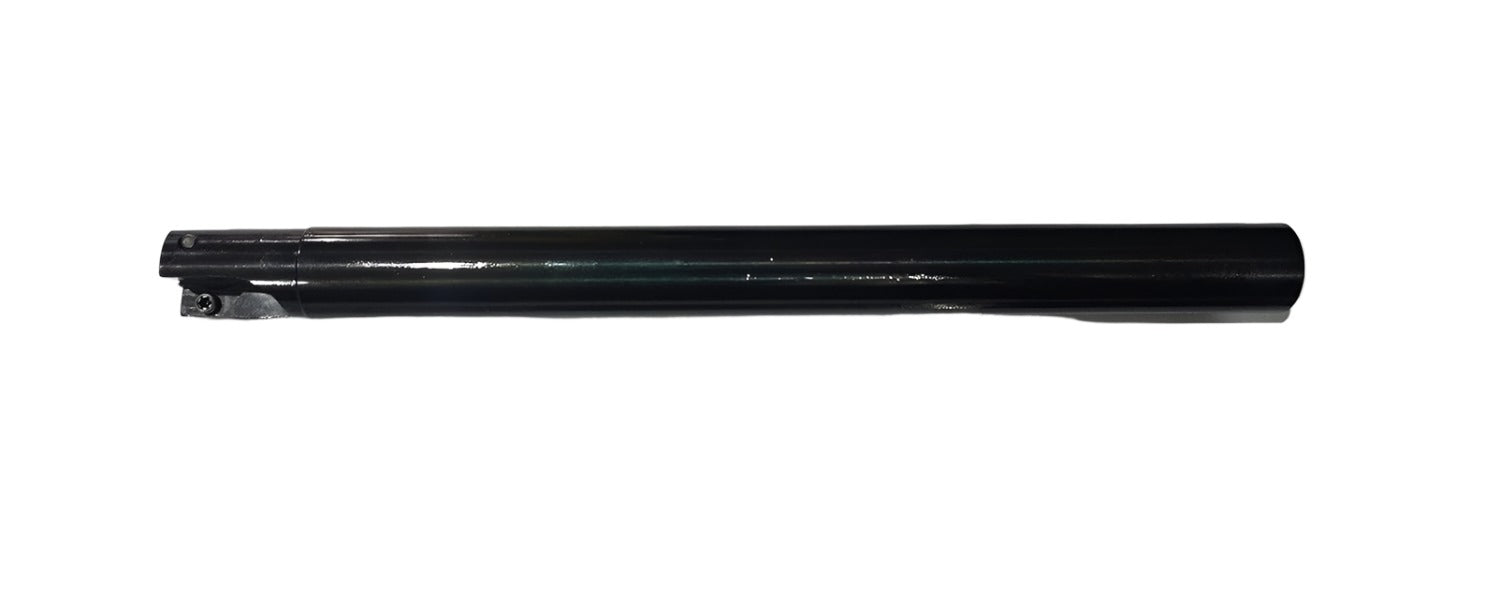

APMT Indexable Cutter Body 400R — APMT1604
Straight-shank 400R indexable cutter body listed for APMT1604 inserts. The size code identifies cutter diameter and shank diameter, while the second selector states overall length.
How to read the options
- Example: C24-25 / 150.
- C24 = 24 mm cutter diameter.
- 25 = 25 mm shank diameter.
- 150 = 150 mm overall length.
Variant guide
| Current size | Cutter diameter | Shank diameter | Overall length |
|---|---|---|---|
| C24-25 | 24 mm | 25 mm | 150 mm |
| C25-25 | 25 mm | 25 mm | 150 mm |
| C24.5-25 | 24.5 mm | 25 mm | 200 mm |
| C25-25 | 25 mm | 25 mm | 200 mm |
| C25-28 | 25 mm | 28 mm | 200 mm |
| C32-32 | 32 mm | 32 mm | 200 mm |
| C32-40 | 32 mm | 40 mm | 200 mm |
| C25-25 | 25 mm | 25 mm | 250 mm |
| C32-32 | 32 mm | 32 mm | 250 mm |
| C25-25 | 25 mm | 25 mm | 300 mm |
| C32-32 | 32 mm | 32 mm | 300 mm |
| C25-25 | 25 mm | 25 mm | 350 mm |
| C32-32 | 32 mm | 32 mm | 350 mm |
| C25-25 | 25 mm | 25 mm | 400 mm |
| C32-32 | 32 mm | 32 mm | 400 mm |
How to select
Choose cutter diameter for the required cut, then match the shank diameter to the toolholder and select the overall length needed for reach.
Confirm APMT1604 insert fit and package contents before ordering.
