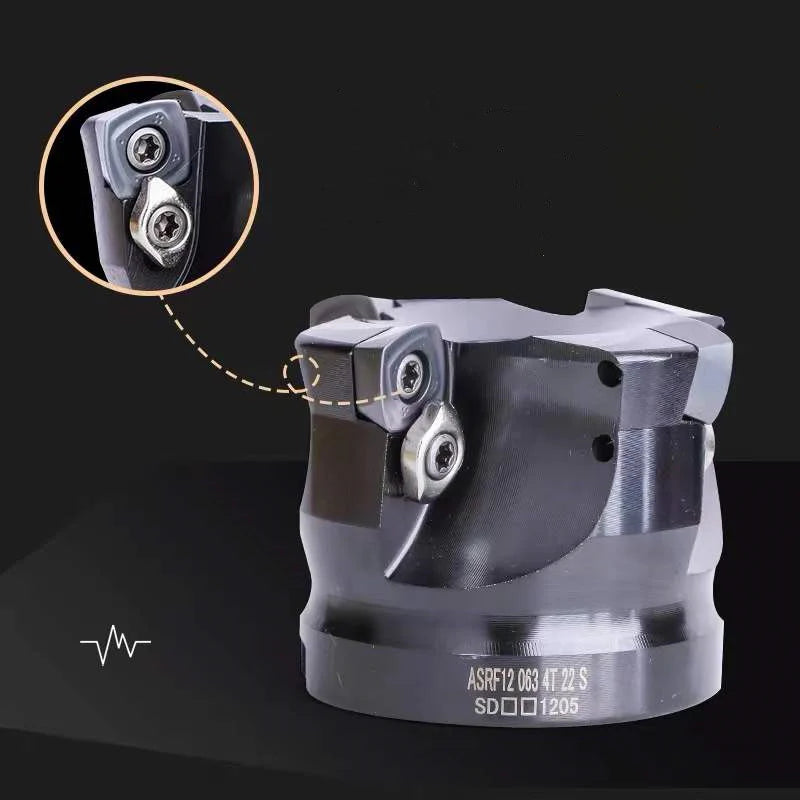

ASFR Series High-Feed Cutter — SDMT1205
ASFR high-feed cutter range listed for SDMT12/SDMT1205 inserts. The current selector combines face-mill bodies with one long straight-shank configuration.
How to read the option code
- Short options such as C63-S22-48L/SDMT12-5T use the second dimension as the mounting bore.
- The long C32-S32-200L/SDMT1205-2T option uses the second dimension as the shank diameter.
- The final T value states the number of insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Connection | Length | Insert | Pockets |
|---|---|---|---|---|---|---|

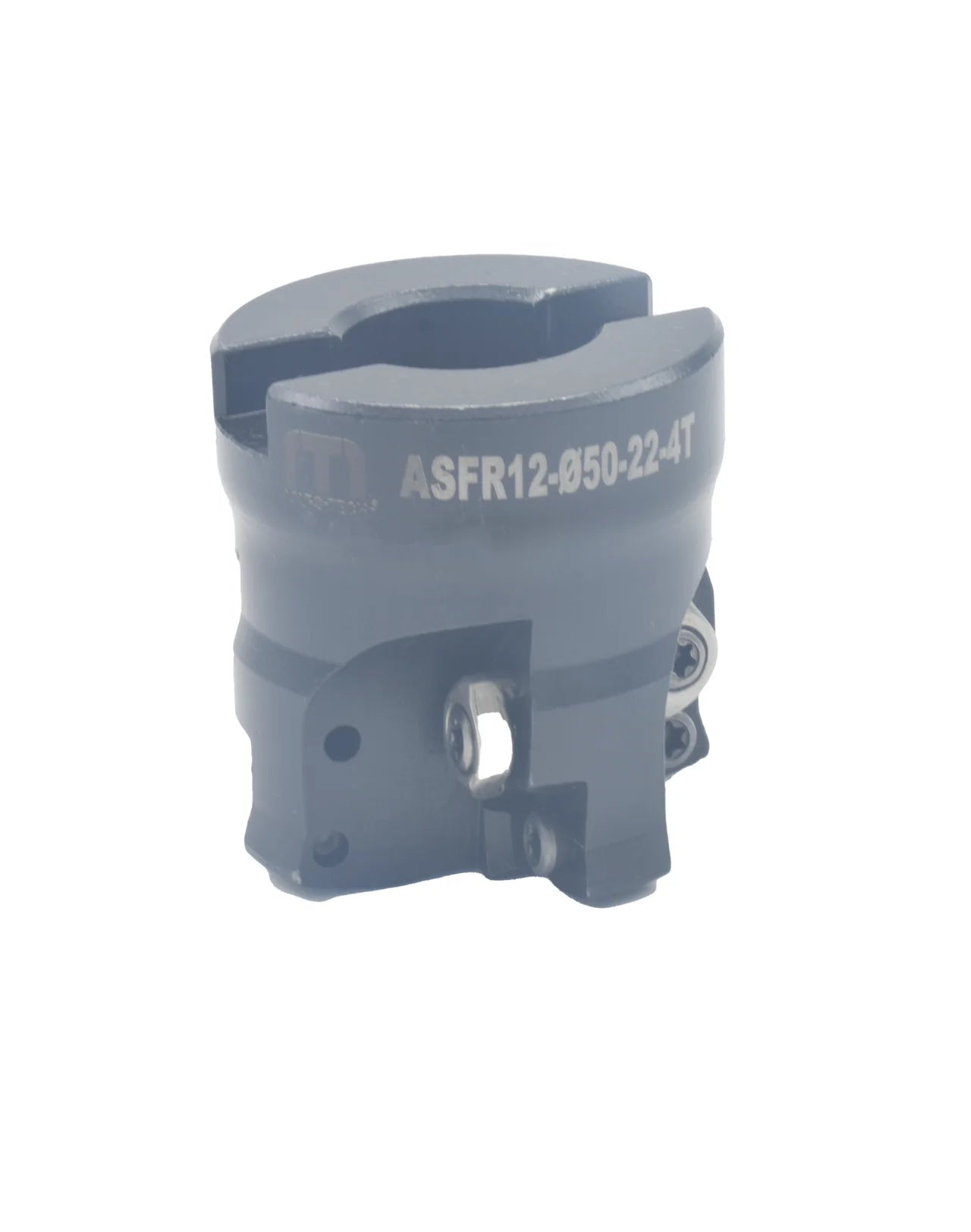

| C50-S22-48L/SDMT12-4T | Face-mill body | 50 mm | 22 mm mounting bore | 48 mm | SDMT12 | 4 |

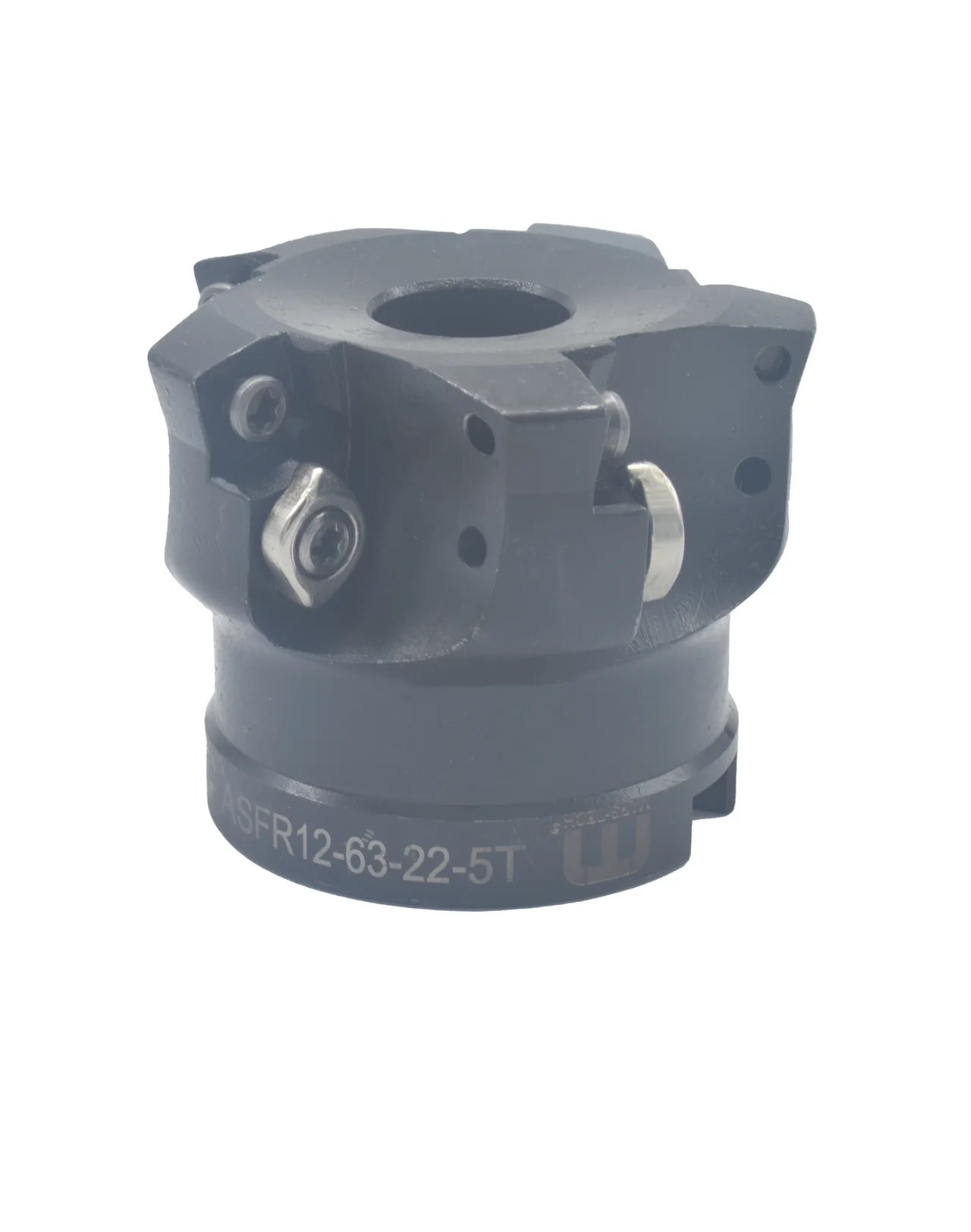

| C63-S22-48L/SDMT12-5T | Face-mill body | 63 mm | 22 mm mounting bore | 48 mm | SDMT12 | 5 |
| C32-S32-200L/SDMT1205-2T | Straight shank | 32 mm | 32 mm shank diameter | 200 mm | SDMT1205 | 2 |

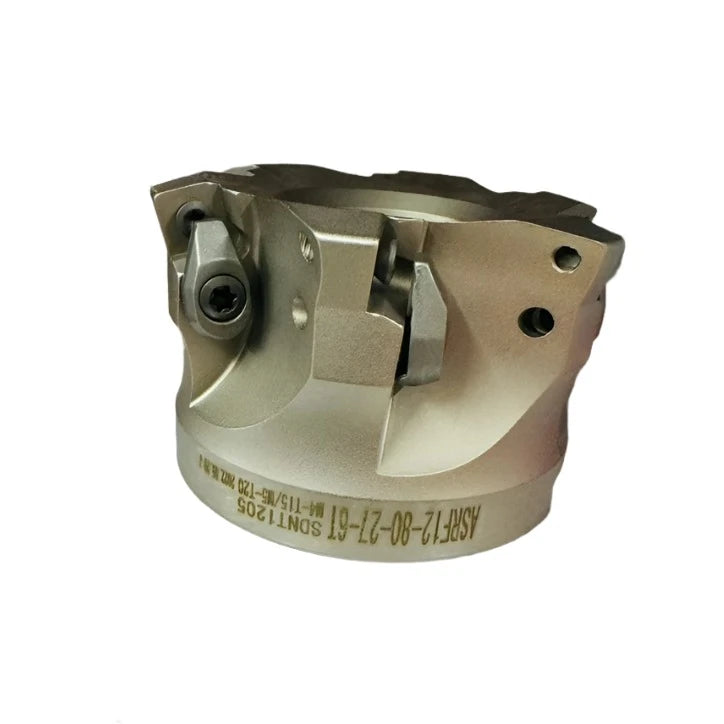

| C80-S27-48L/SDMT1205-5T | Face-mill body | 80 mm | 27 mm mounting bore | 48 mm | SDMT1205 | 5 |
How to select
Choose the construction first, then match the mounting bore or shank diameter and select the required cutter diameter.
Confirm the exact ASFR model, compatible insert suffix and package contents before ordering.
