Midland Tools

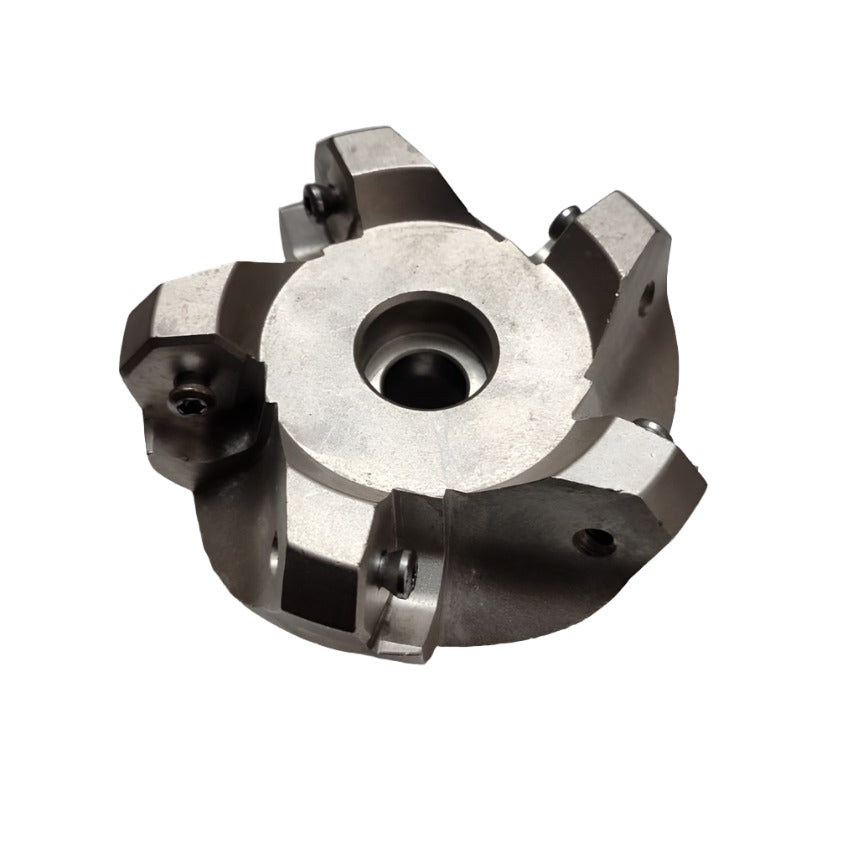

ASX640 Face Mill Cutter — NNMU2007/2008 16-Edge
ASX640 Face Mill Cutter — NNMU2007/2008 16-Edge
Regular price
Rs. 6,549
(Incl. of all taxes)
Regular price
Sale price
Rs. 6,549
(Incl. of all taxes)
Rs. 5,550 + Rs. 999 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Free delivery
On orders above Rs. 2,999
Bulk quote
Message us on WhatsApp
ASX640 Face Mill Cutter — NNMU2007/2008 16-Edge
ASX640 face-mill cutter range listed for NNMU20 / NNMU2007–2008 inserts and described in the title as a 16-edge system. Options state cutter diameter, mounting bore, listed body length and pocket count.
How to read the option code
- Example: C125-S40-65L/NNMU20-7T.
- C125 = 125 mm cutter diameter.
- S40 = 40 mm mounting bore or connection diameter.
- 65L = 65 mm listed length.
- NNMU20 / NNMU2007–2008 title family = listed insert or cutter-family designation.
- 7T/T7 = 7 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Connection | Length | Insert / series | Pockets |
|---|---|---|---|---|---|---|
| C63-S22-48L/NNMU20-4T | Face-mill body | 63 mm | 22 mm | 48 mm | NNMU20 / NNMU2007–2008 title family | 4 |

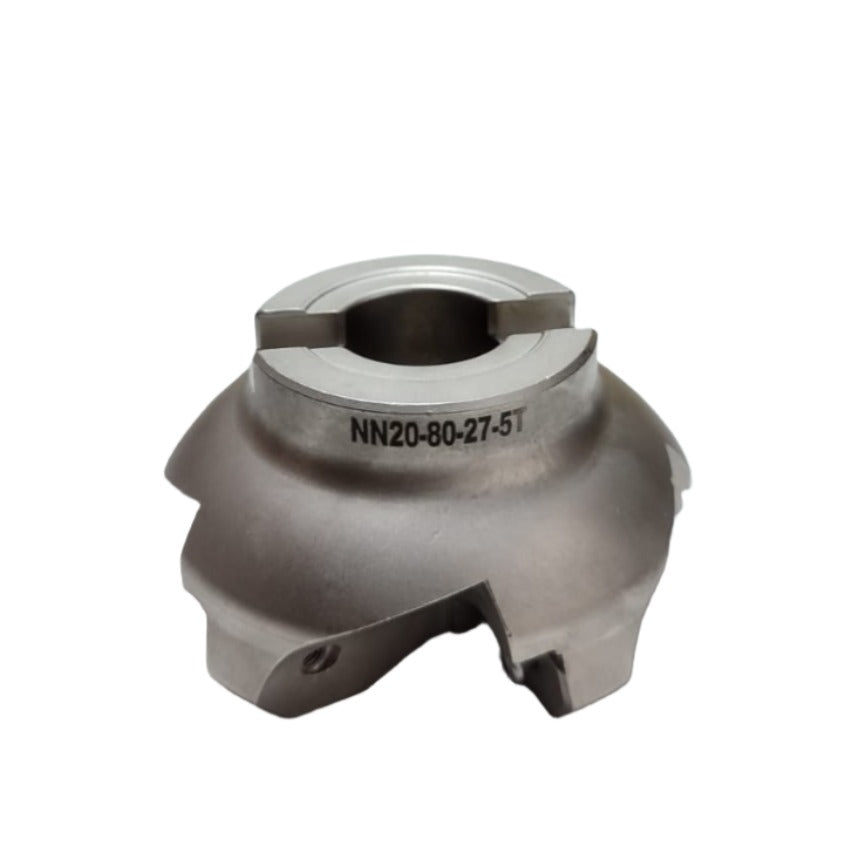

| C80-S27-48L/NNMU20-5T | Face-mill body | 80 mm | 27 mm | 48 mm | NNMU20 / NNMU2007–2008 title family | 5 |
| C100-S32-53L/NNMU20-6T | Face-mill body | 100 mm | 32 mm | 53 mm | NNMU20 / NNMU2007–2008 title family | 6 |
| C125-S40-65L/NNMU20-7T | Face-mill body | 125 mm | 40 mm | 65 mm | NNMU20 / NNMU2007–2008 title family | 7 |
| C160-S40-65L/NNMU20 8T | Face-mill body | 160 mm | 40 mm | 65 mm | NNMU20 / NNMU2007–2008 title family | 8 |
How to select
Match the mounting bore to the arbour, then select cutter diameter and pocket count.
Catalogue-label note
The current option C160-S40-65L/NNMU20 8T uses a space instead of the usual hyphen before 8T. The variant value has not been changed.
Confirm the exact Mitsubishi ASX640 model, NNMU insert geometry and package contents before ordering.
