APKT160408-PM Milling Insert — Atomix

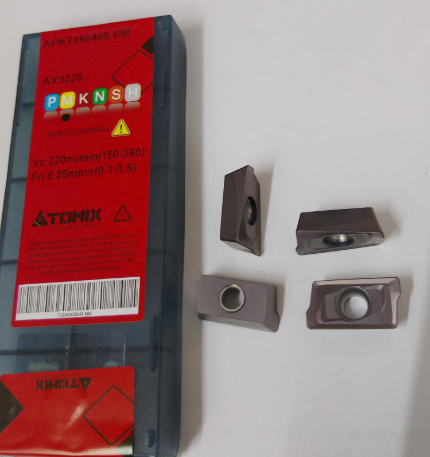

Atomix APKT160408-PM carbide milling insert (85° Parallelogram, 11° clearance) — designed for face milling, shoulder milling and profile machining on CNC machining centres. Positive rake geometry and precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Loose single insert piece.
Also searched as: APKT160408-PM insert, APKT160408-PM tip, carbide milling bit, APKT CNC tip.
Specifications
| ISO Code | APKT160408-PM |
| Shape | A — 85° Parallelogram |
| Clearance | P (11°) |
| Dimensions | IC 16 mm, thickness 4.76 mm, nose radius 0.8 mm |
| Pack size | Loose single insert piece |
| Brand | Atomix |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 180–280 | 0.08–0.20 | 0.5–3.0 |
| Stainless steel | 100–180 | 0.06–0.15 | 0.5–2.5 |
| Cast iron | 140–240 | 0.10–0.25 | 0.5–4.0 |
| Aluminium alloy | 400–1200 | 0.10–0.30 | 1.0–5.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
Cross-brand grade equivalents
| Atomix Grade (application) | Equivalents |
|---|---|
|
AX3220 M — Stainless steel, medium cuts, anti-BUE coating |
Korloy NC6210/PC8110 · Deskar LF9018 · Mitsubishi US735 · Widia WS40 |
Directional equivalents by ISO application class. For critical work, verify against current brand datasheets.
Chipbreaker suffix guide
| Suffix | Use case |
|---|---|
| HQ | High-quality finishing geometry — low feeds, best surface finish. |
| MV | Medium-versatile — forgiving on mixed steel/stainless shops. |
| WM | Wide-medium for heavy duty, deeper cuts. |
| EM | General medium cutting — good chip control over wide feed range. |
| FG / FM | Fine finishing — excellent surface finish at low feeds. |
| HM | Hard-material chipbreaker — short chips in HRC 40+ work. |
