MGMN150-G Grooving Insert — Atomix

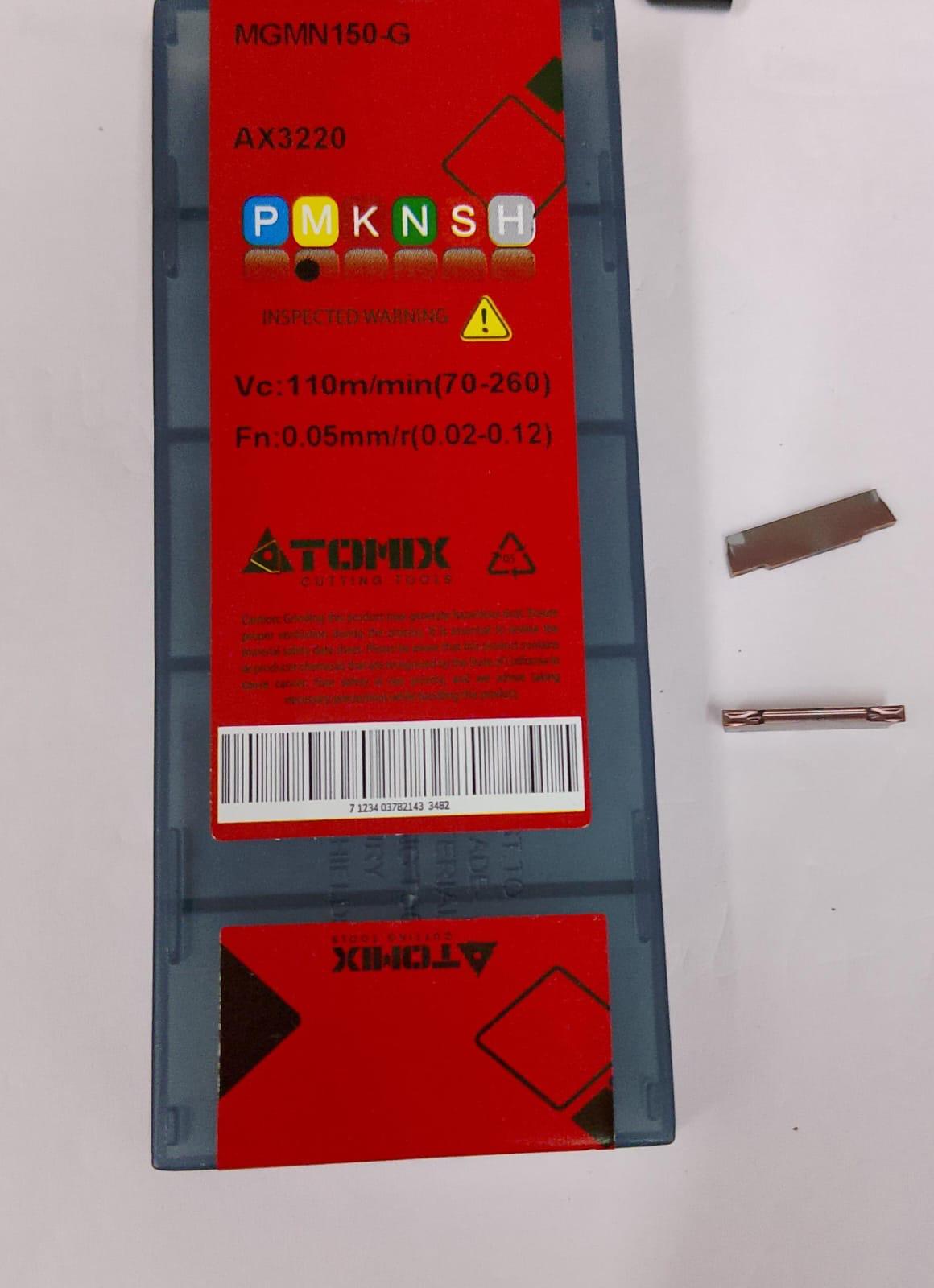

Atomix MGMN150-G carbide grooving insert — designed for external and internal grooving, parting off, and shallow profile cuts on CNC lathes. Positive rake geometry and precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Loose single insert piece.
Also searched as: MGMN150-G insert, MGMN150-G tip, carbide grooving tip, MGMN CNC tip.
Specifications
| ISO Code | MGMN150-G |
| Pack size | Loose single insert piece |
| Brand | Atomix |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 100–180 | 0.05–0.12 | 0.2–0.8 |
| Stainless steel | 60–140 | 0.04–0.10 | 0.2–0.8 |
| Cast iron | 80–160 | 0.06–0.15 | 0.3–1.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
Cross-brand grade equivalents
| Atomix Grade (application) | Equivalents |
|---|---|
|
AX3220 M — Stainless steel, medium cuts, anti-BUE coating |
Korloy NC6210/PC8110 · Deskar LF9018 · Mitsubishi US735 · Widia WS40 |
|
AX3200 P/K — General purpose, wide application range |
Korloy PC9030/NC3030 · Deskar LF6118 · Mitsubishi UE6020 · Widia WK10CT |
Directional equivalents by ISO application class. For critical work, verify against current brand datasheets.
Dispatch: Same day from Chandni Chowk, Delhi. India-wide shipping.
Need a grade not listed, cross-brand help, or a bulk quote? WhatsApp us at +91 70111 82829 — typical reply within 30 minutes during shop hours.
