SPGT140512-PM AX3200 Drilling Insert — Atomix
SPGT140512-PM AX3200 Drilling Insert — Atomix
Price shown is for 1 loose insert piece.
Couldn't load pickup availability
Sold loose: price shown is for 1 insert piece.
Buy any 20 or more eligible Atomix insert pieces priced Rs. 200+ in one order and get 10% off automatically at checkout. Lower-priced variants are excluded.

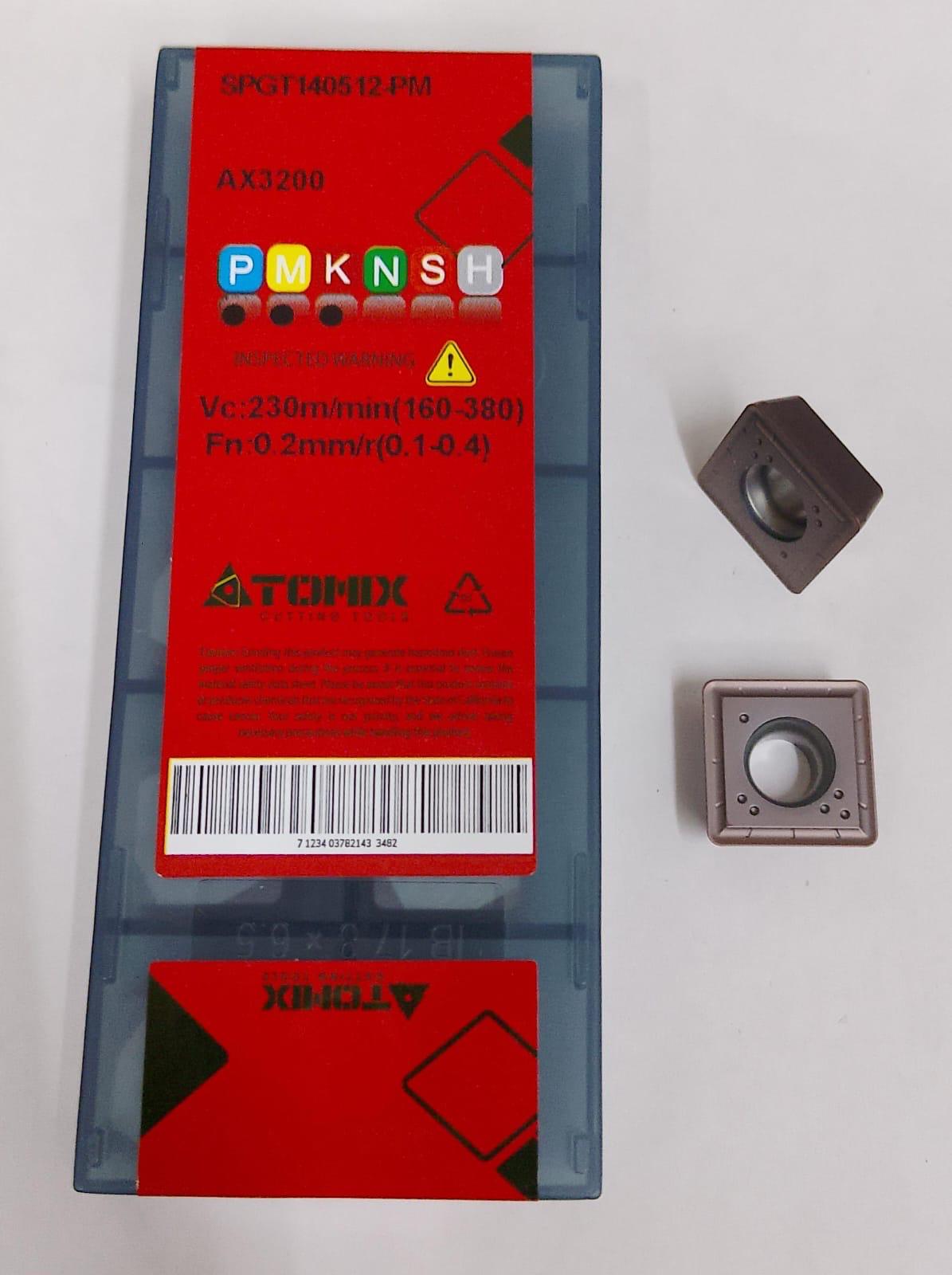

SPGT140512-PM AX3200 Drilling Insert — Atomix
Atomix SPGT140512-PM carbide drilling insert (Square, 11° clearance) — designed for indexable-insert drilling on CNC mills and lathes. Positive rake geometry and precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Loose single insert piece.
Also searched as: SPGT140512-PM insert, SPGT140512-PM tip, carbide drilling bit, SPGT CNC tip.
Specifications
| ISO Code | SPGT140512-PM |
| Shape | S — Square |
| Clearance | P (11°) |
| Dimensions | thickness 5.56 mm, nose radius 1.2 mm |
| Pack size | Loose single insert piece |
| Brand | Atomix |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | |
|---|---|---|---|
| Carbon steel | 80–150 | 0.08–0.20 | — |
| Stainless steel | 60–120 | 0.06–0.15 | — |
| Cast iron | 80–140 | 0.10–0.25 | — |
Starting values — adjust for rigidity, coolant, and finish requirement.
Cross-brand grade equivalents
| Atomix Grade (application) | Equivalents |
|---|---|
|
AX3200 P/K — General purpose, wide application range |
Korloy PC9030/NC3030 · Deskar LF6118 · Mitsubishi UE6020 · Widia WK10CT |
Directional equivalents by ISO application class. For critical work, verify against current brand datasheets.
Dispatch: Same day from Chandni Chowk, Delhi. India-wide shipping.
Need a grade not listed, cross-brand help, or a bulk quote? WhatsApp us at +91 70111 82829 — typical reply within 30 minutes during shop hours.
