Ballnose 4F HRC 45 ( standard shank )

Ballnose 4F HRC 45 ( standard shank )

Rs. 200.00
Rs. 200.00
Sale Sold out
Shipping calculated at checkout.

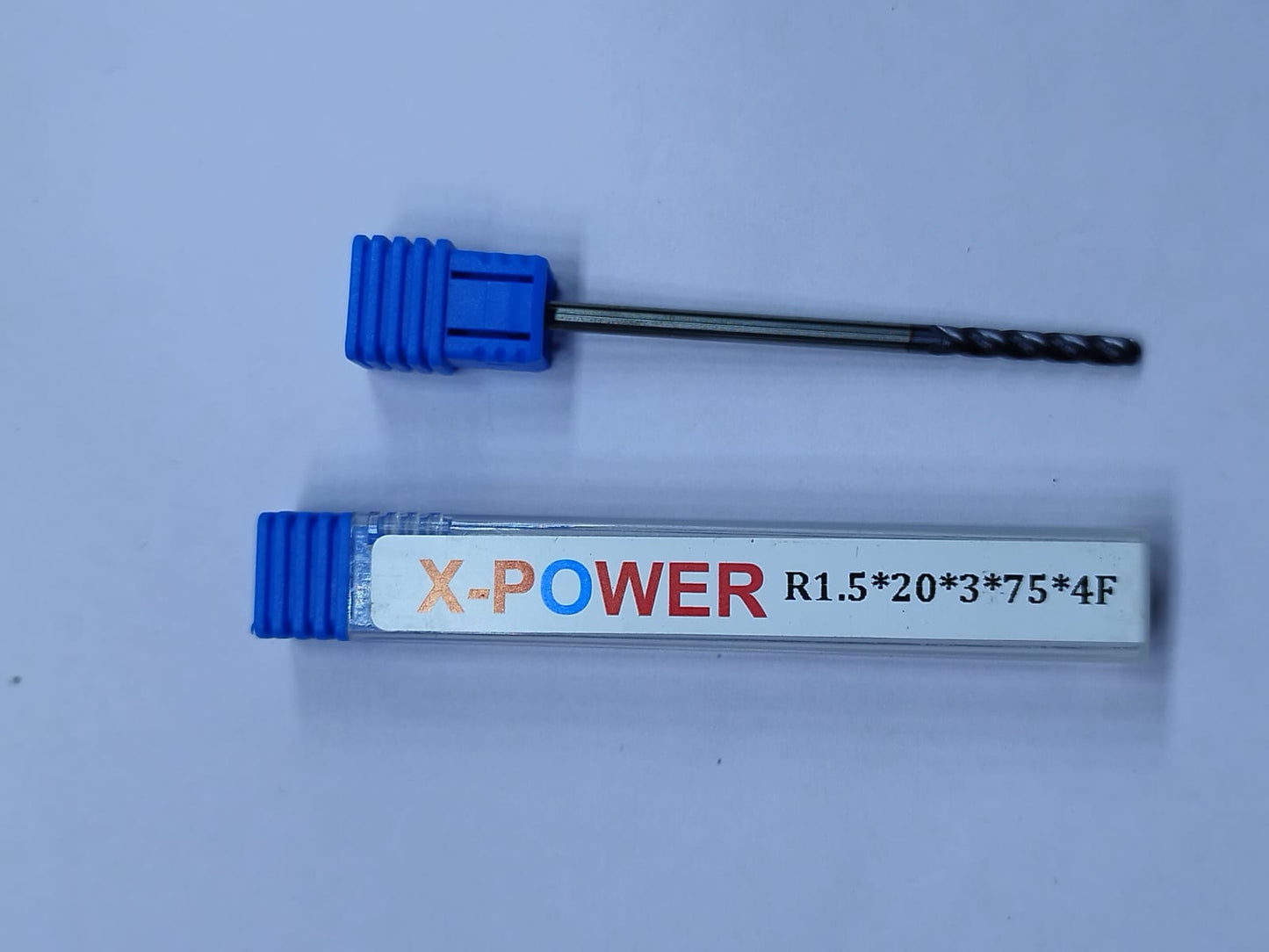

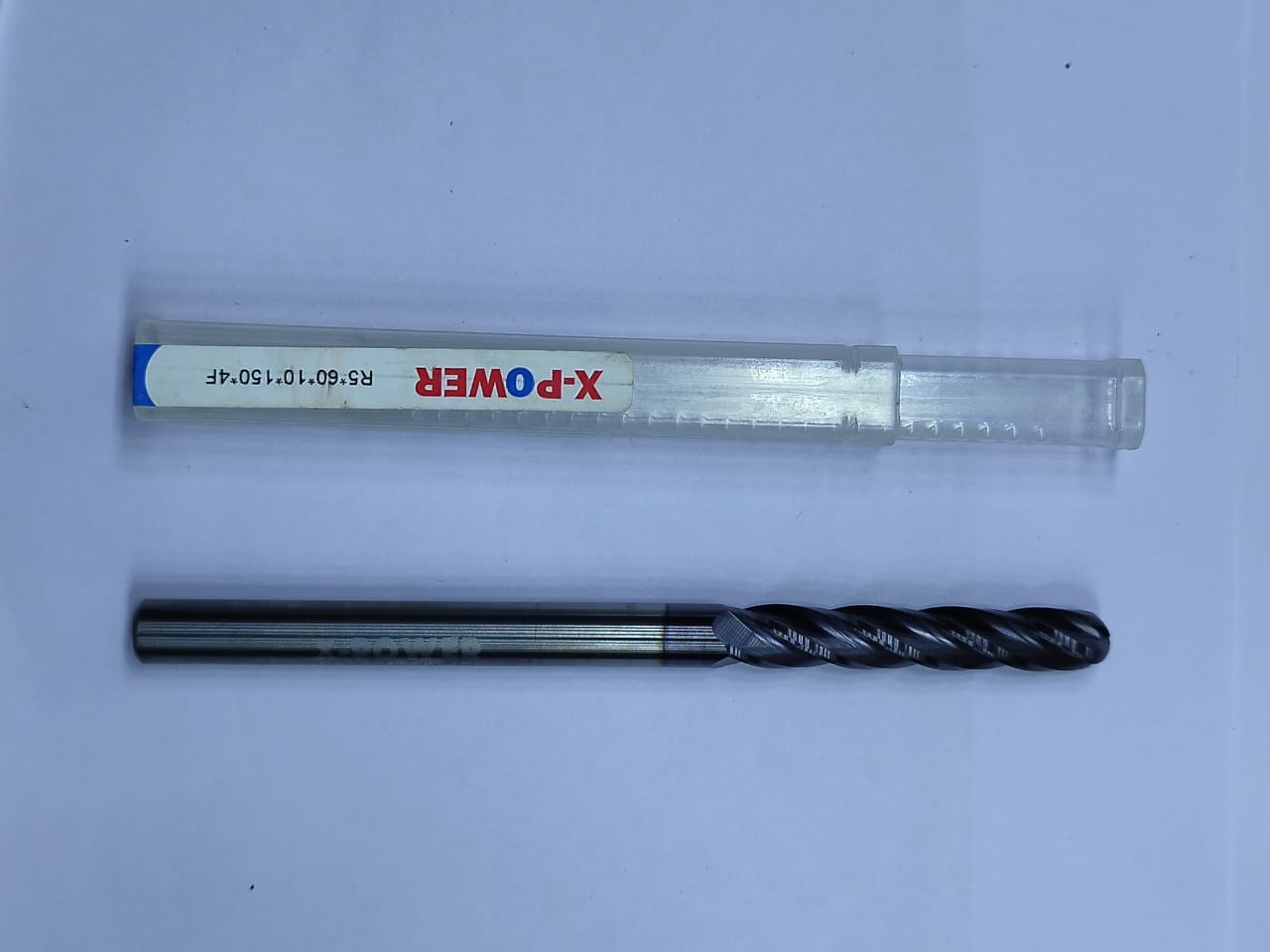

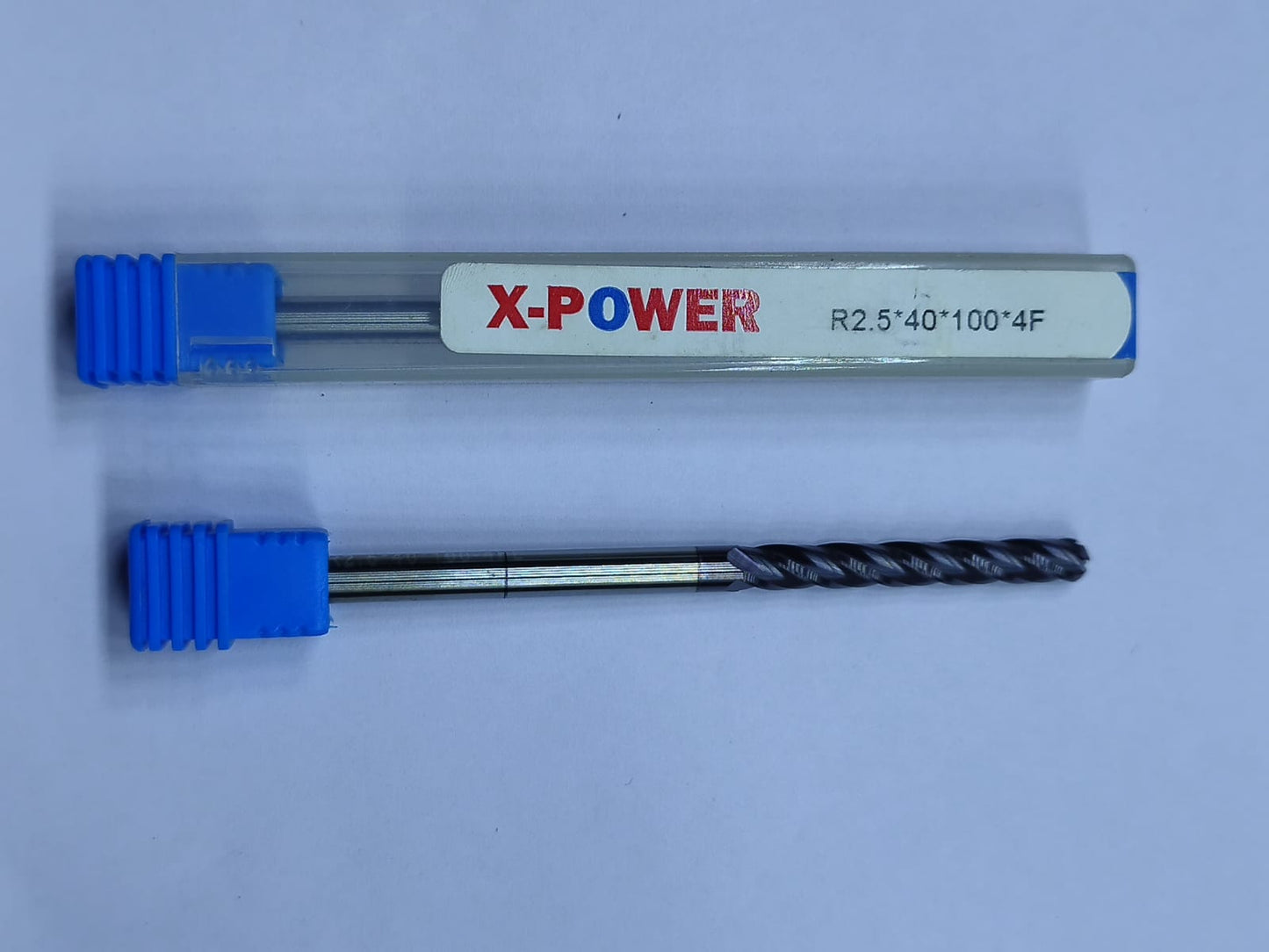

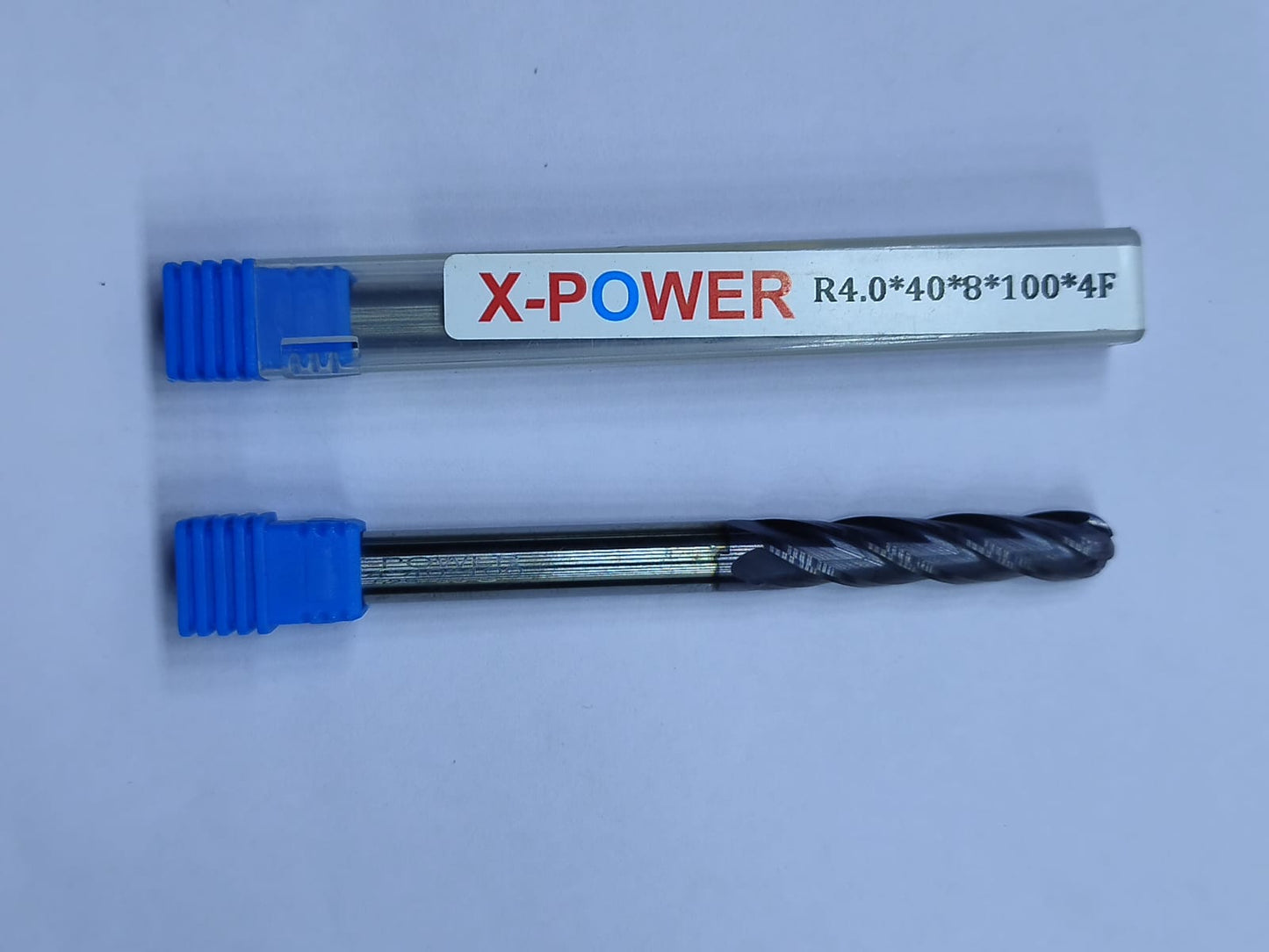

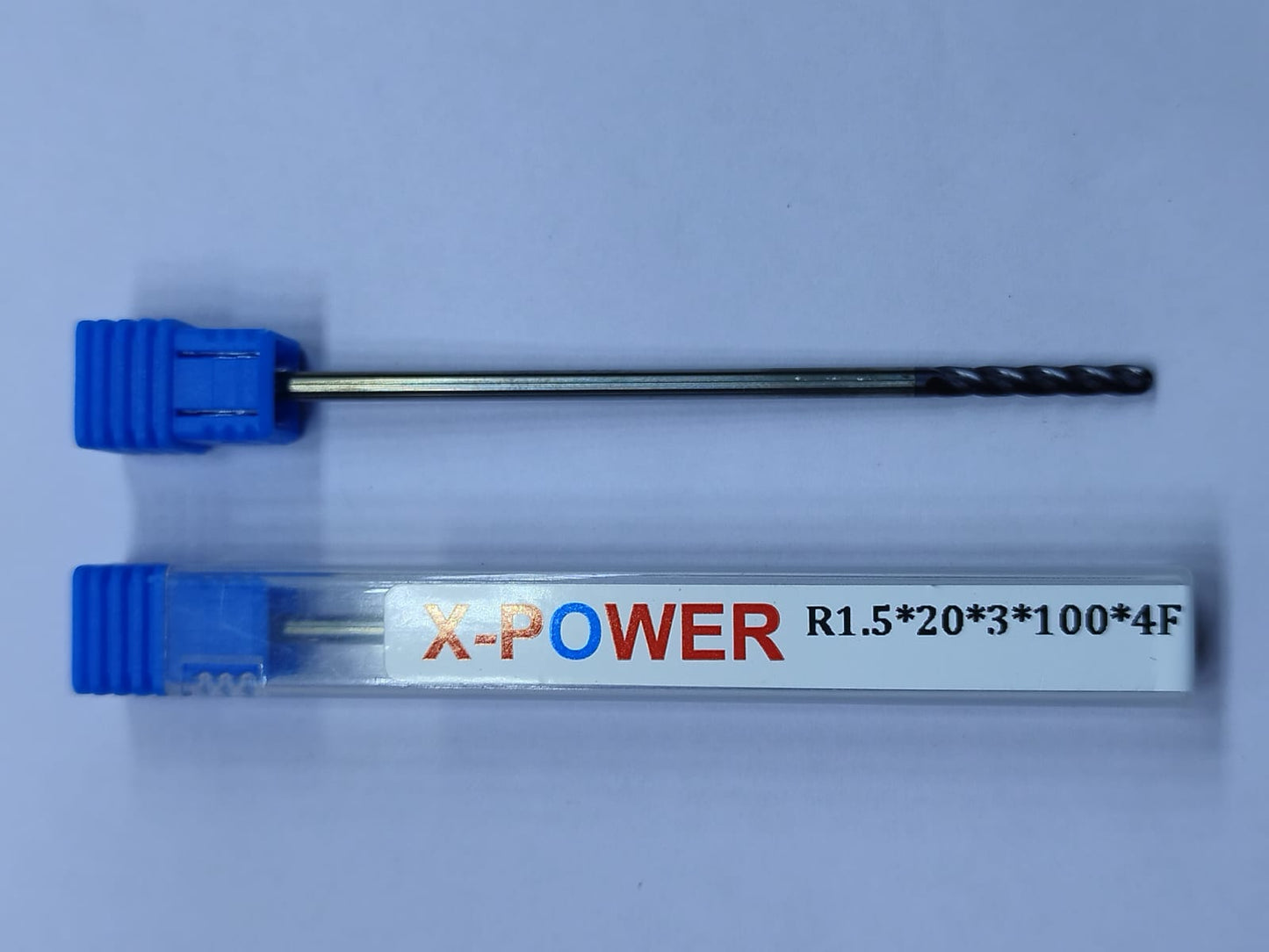

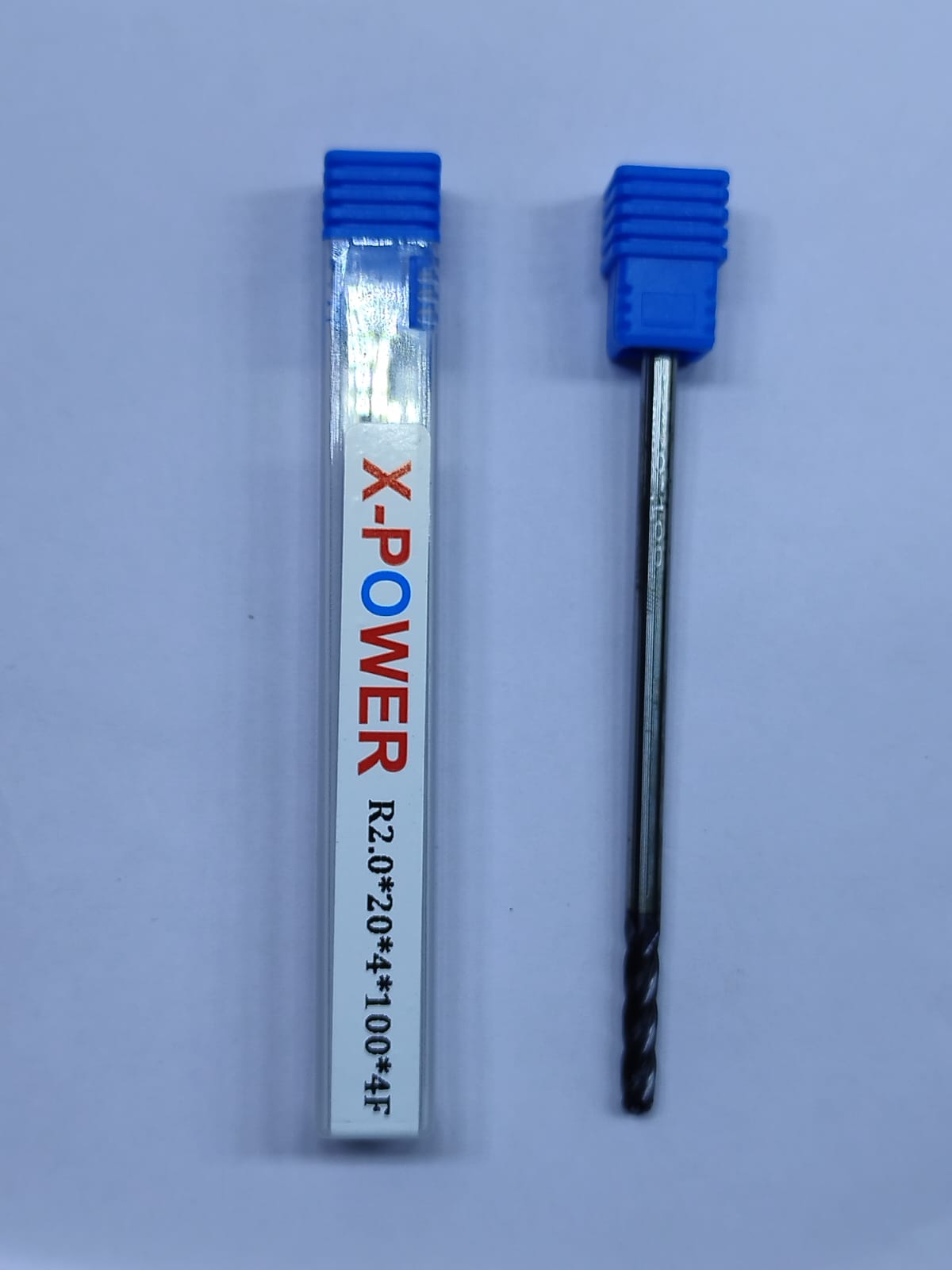

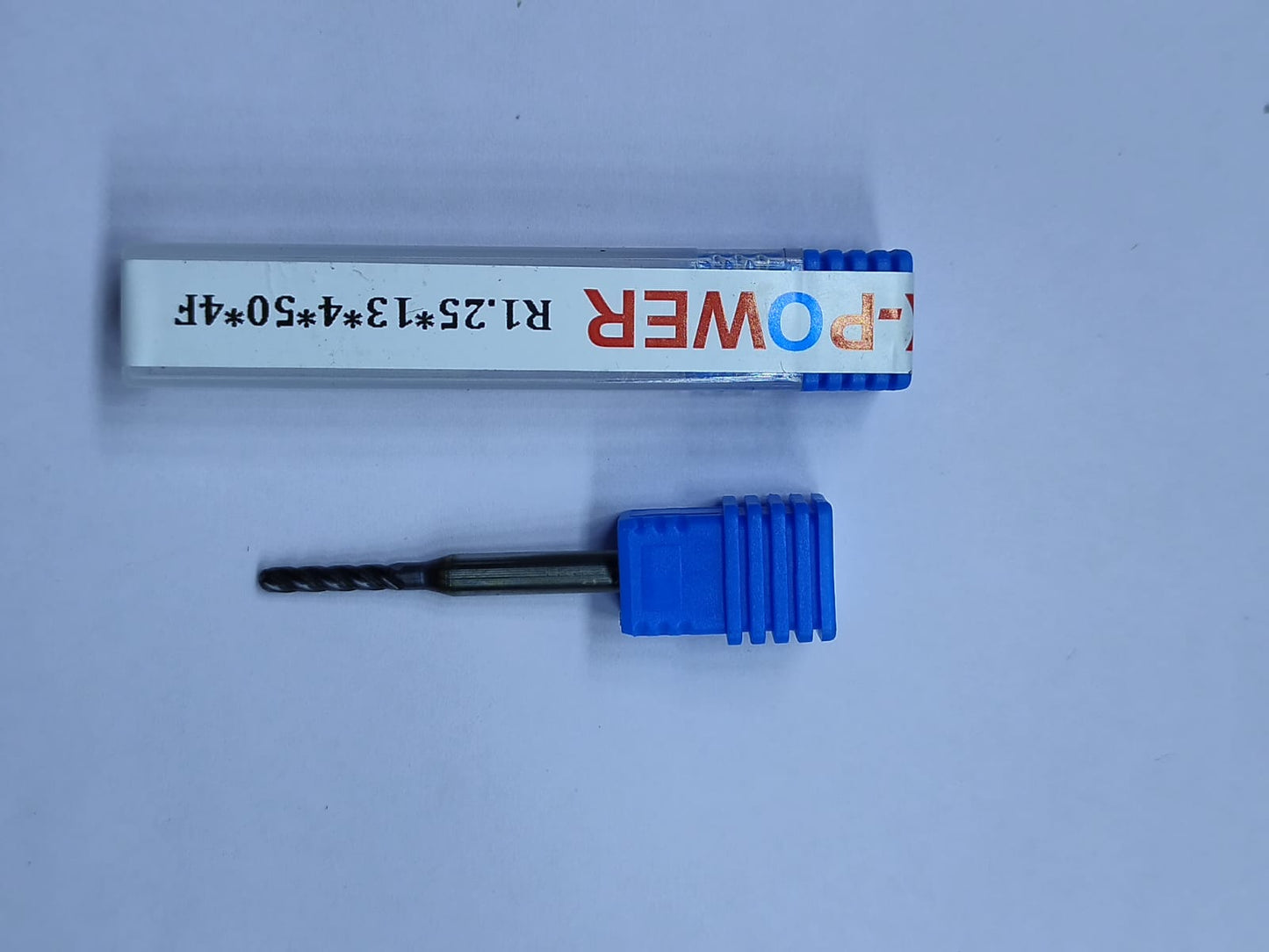

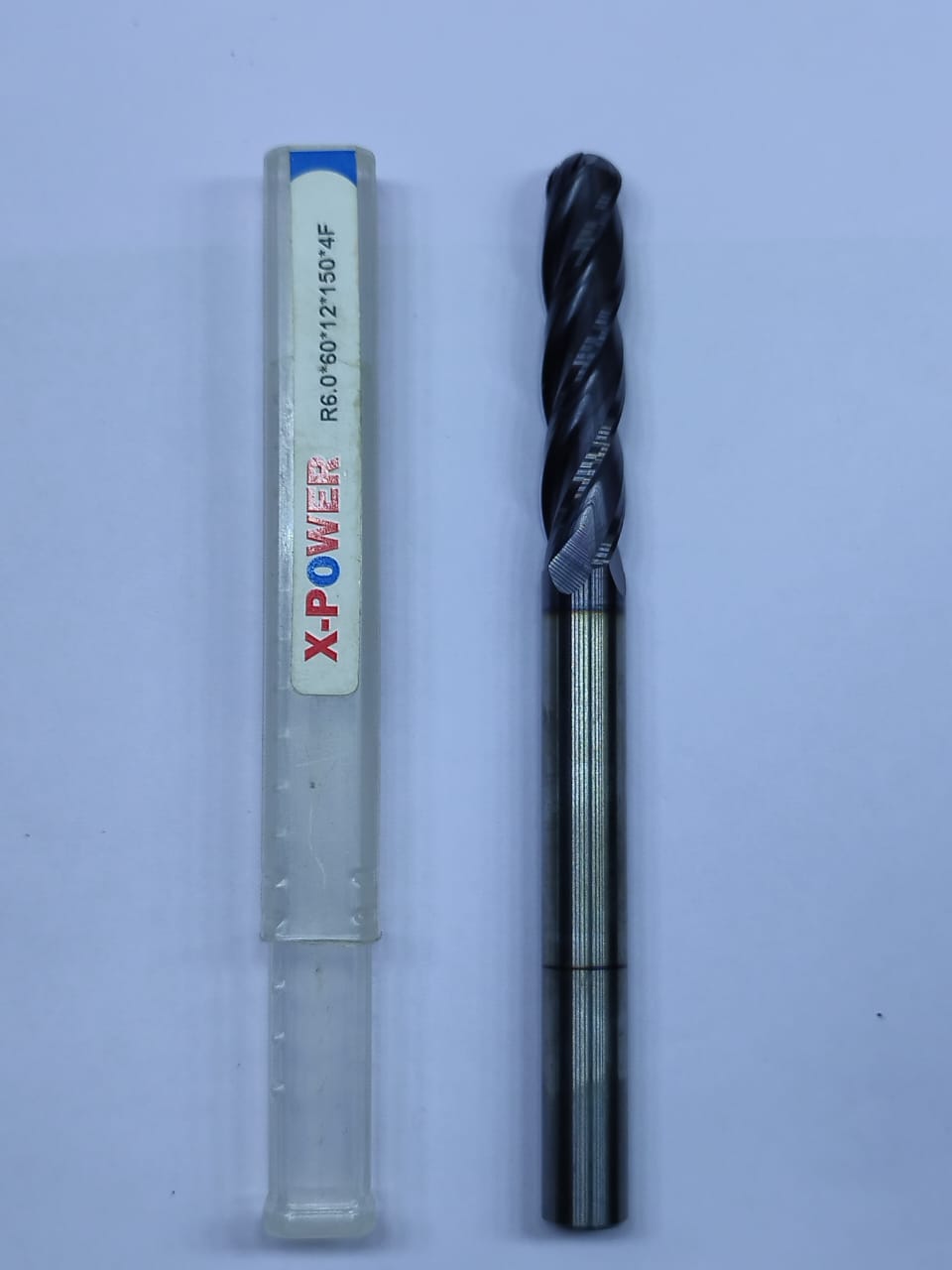

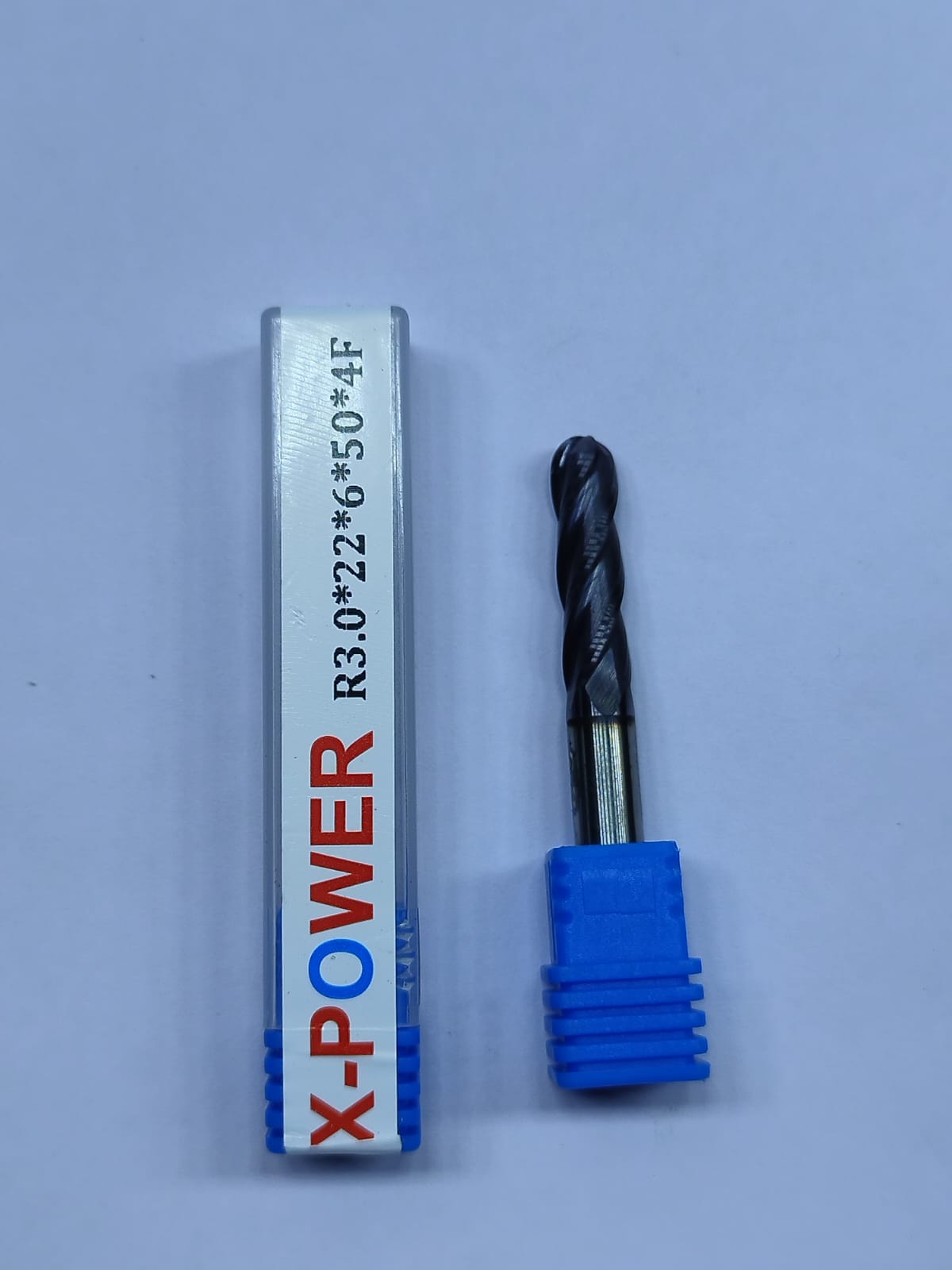

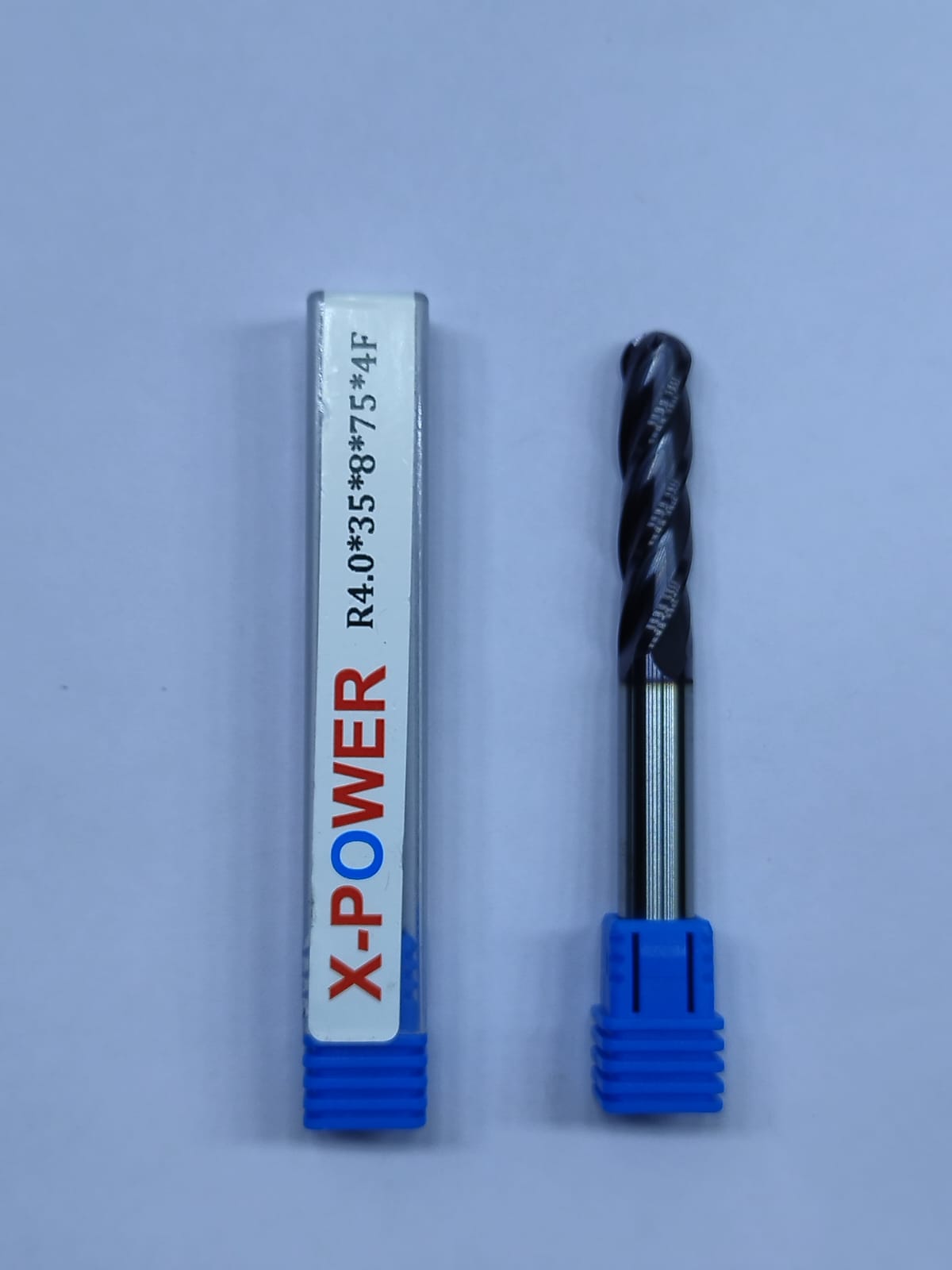

* Image shows 12mm Endmill

Select size as per need.

4 Flute Ballnose

Brand : X-power

HCR 45

Cutting Length : Standard for size.

For special cutting length -> search special size.

Diameter (D) Cutting Length (LC) Shank Diameter (d) Overall Length Flutes Code
1 3 4 50 4 MCT1551
1.5 4 4 50 4 MCT1552
2 5 4 50 4 MCT1553
2.5 8 4 50 4 MCT1554
3 13 3 50 4 MCT1555
3 13 3 75 4 MCT1556
3 20 3 100 4 MCT1557
4 16 4 50 4 MCT1558
4 20 4 75 4 MCT1559
4 20 4 100 4 MCT1560
5 20 5 50 4 MCT1561
5 25 5 75 4 MCT1562
5 40 5 100 4 MCT1563
6 22 6 50 4 MCT1564
6 30 6 75 4 MCT1565
6 50 6 100 4 MCT1566
6 50 6 1500 4 MCT1567
7 23 7 60 4 MCT1568
8 23 8 60 4 MCT1569
8 30 8 75 4 MCT1570
8 40 8 100 4 MCT1571
8 50 8 150 4 MCT1572
9 25 9 745 4 MCT1573
10 25 10 75 4 MCT1574
10 45 10 100 4 MCT1575
10 60 10 150 4 MCT1576
11 25 11 75 4 MCT1577
12 25 12 75 4 MCT1578
12 50 12 100 4 MCT1579
12 60 12 150 4 MCT1580
14 32 14 80 4 MCT1581
14 50 14 100 4 MCT1582
16 45 16 90 4 MCT1583
16 75 18 150 4 MCT1584
17 50 18 100 4 MCT1585
18 50 18 100 4 MCT1586
20 40 20 100 4 MCT1587
20 75 20 150 4 MCT1588

Extra Long Series HCR 45 ballnose
Diameter (D) Cutting Length (LC) Shank Diameter (d) Overall Length Flutes Code
8 100 8 200 4 MCT1589
10 100 10 200 4 MCT1590
12 100 12 200 4 MCT1591
16 100 16 200 4 MCT1592
20 100 20 200 4 MCT1593

Diameter
Length
