BAP400R Series APMT1604 Face Mill Cutter

BAP400R Series APMT1604 Face Mill Cutter

Rs. 2,089 (Incl. of all taxes)
Rs. 2,089 (Incl. of all taxes)
Rs. 1,770.34 + Rs. 318.66 GST
Sale Sold out
Taxes included. Shipping calculated at checkout.
GST invoice All prices include 18% GST
Delhi dispatch Ships from Chandni Chowk stock
Free delivery On orders above Rs. 2,999
Bulk quote Message us on WhatsApp

BAP400R Series APMT1604 Face Mill Cutter

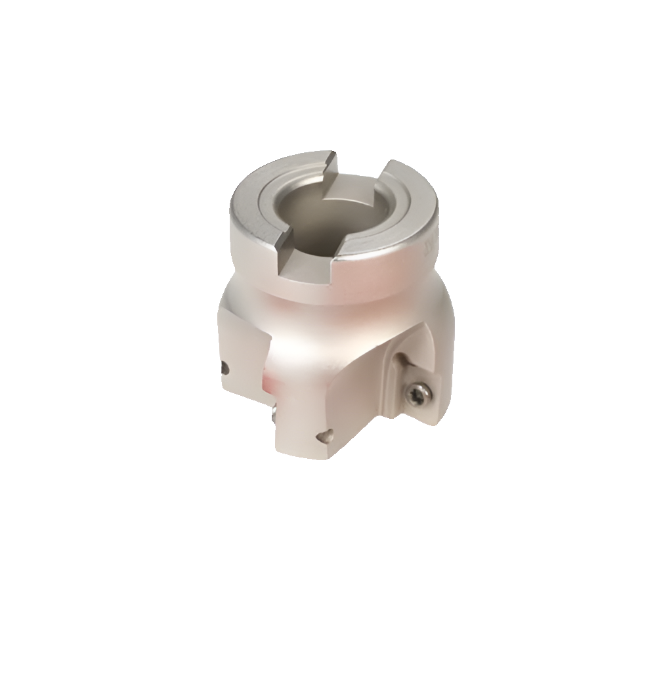

Indexable face-milling cutter body listed for APMT1604 inserts. Variants differ by cutter diameter, mounting bore, the listed L dimension and the number of insert pockets.

How to read the option code

  • Example: 63-22-48L-5T.
  • 63 = cutter diameter in millimetres.
  • 22 = mounting bore in millimetres.
  • 48L = the listed L dimension in millimetres.
  • 5T = five insert pockets.

Variant guide

Option code Cutter diameter Mounting bore Listed L Insert pockets
40-16-48L-4T 40 mm 16 mm 48 mm 4
40-22-48L-4T 40 mm 22 mm 48 mm 4
50-22-48L-4T 50 mm 22 mm 48 mm 4
63-22-48L-5T 63 mm 22 mm 48 mm 5
80-27-48L-6T 80 mm 27 mm 48 mm 6
100-32-53L-7T 100 mm 32 mm 53 mm 7
125-40-65L-8T 125 mm 40 mm 65 mm 8
160-40-65L-10T 160 mm 40 mm 65 mm 10
200-60-63L-10T 200 mm 60 mm 63 mm 10

How to select

Choose the cutter diameter required for the machining width, then match the mounting bore to the arbour or machine setup. The T value indicates how many APMT1604 inserts are fitted around the cutter body.

Confirm the selected cutter dimensions, machine compatibility and package contents before ordering.
