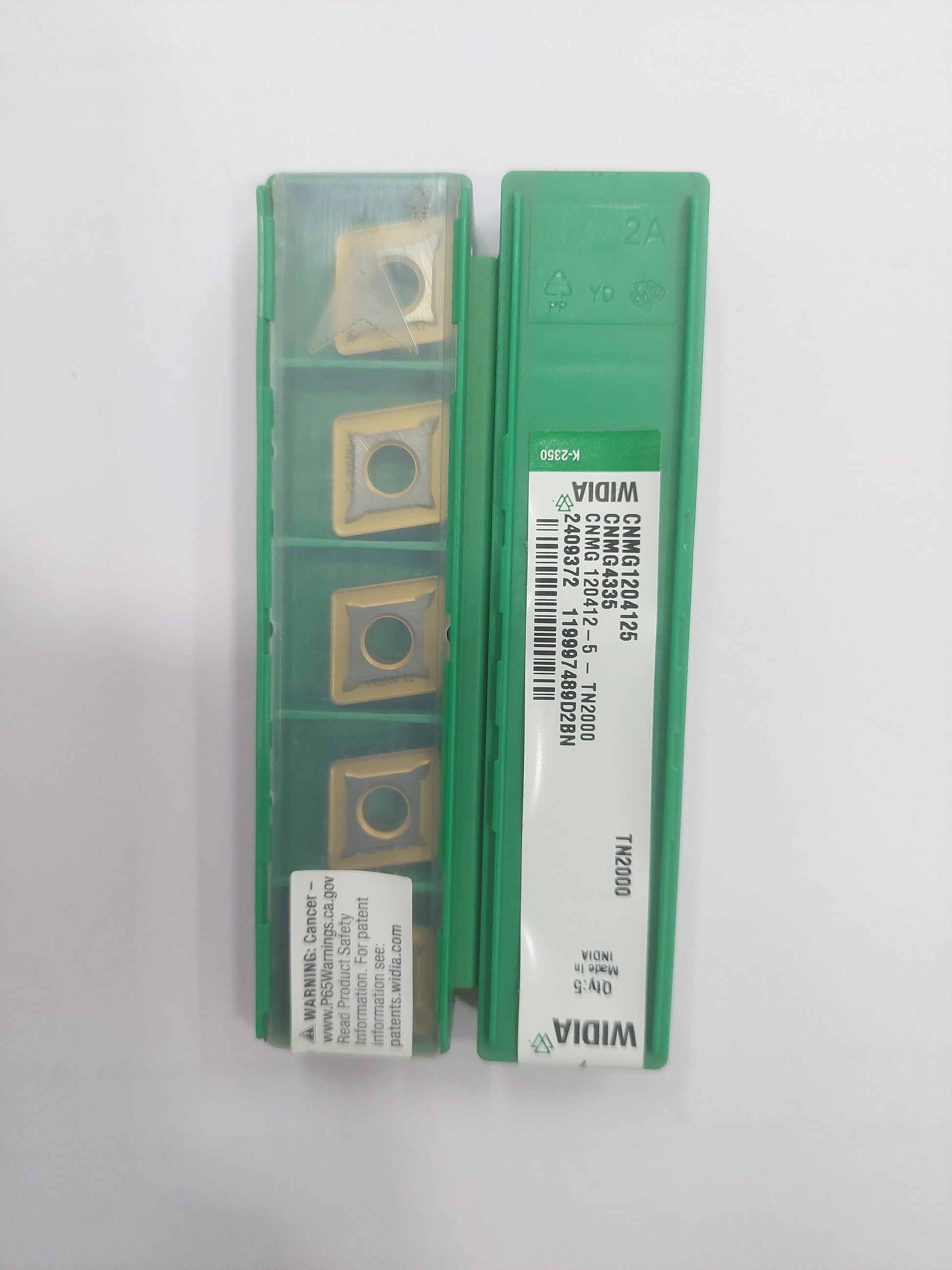

CNMG120412-5 TN2000 TURNING INSERT — Widia
Widia CNMG120412-5 carbide turning insert (80° Diamond, 0° clearance) — designed for CNC lathe turning, boring and facing on shafts, bushings and precision components. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.
Also searched as: CNMG120412-5 insert, CNMG120412-5 tip, carbide turning bit, CNMG CNC tip.
Specifications
| ISO Code | CNMG120412-5 |
| Shape | C — 80° Diamond |
| Clearance | N (0°) |
| Dimensions | IC 12.7 mm, thickness 4.76 mm, nose radius 1.2 mm |
| Pack size | Box of 10 pieces |
| Brand | Widia |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 140–220 | 0.08–0.25 | 0.3–2.0 |
| Stainless steel | 80–160 | 0.08–0.20 | 0.3–2.0 |
| Cast iron | 100–200 | 0.10–0.30 | 0.5–3.0 |
| Hardened steel (HRC 45) | 60–120 | 0.05–0.15 | 0.2–1.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
