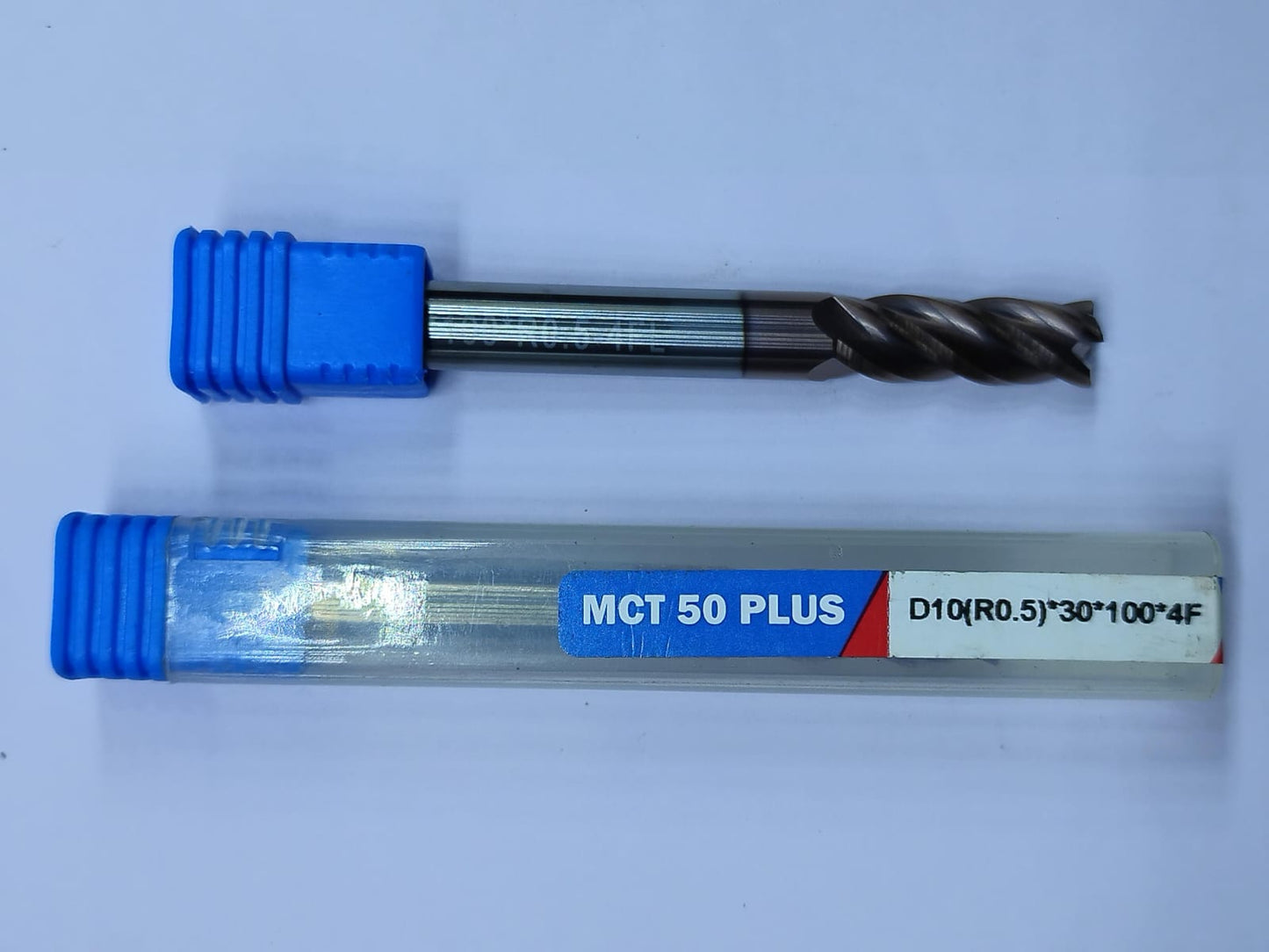

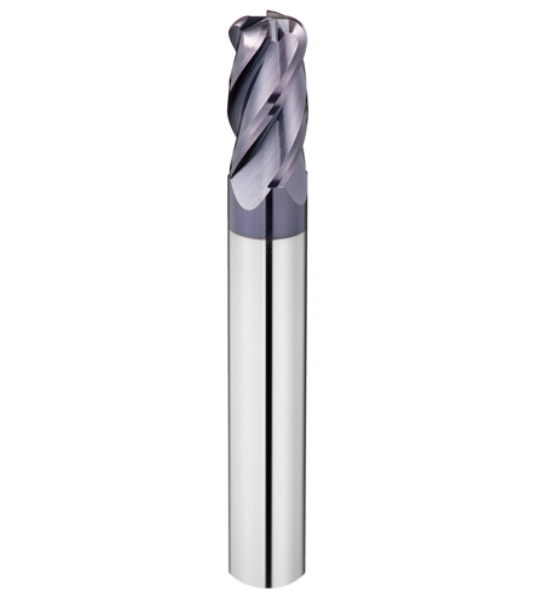

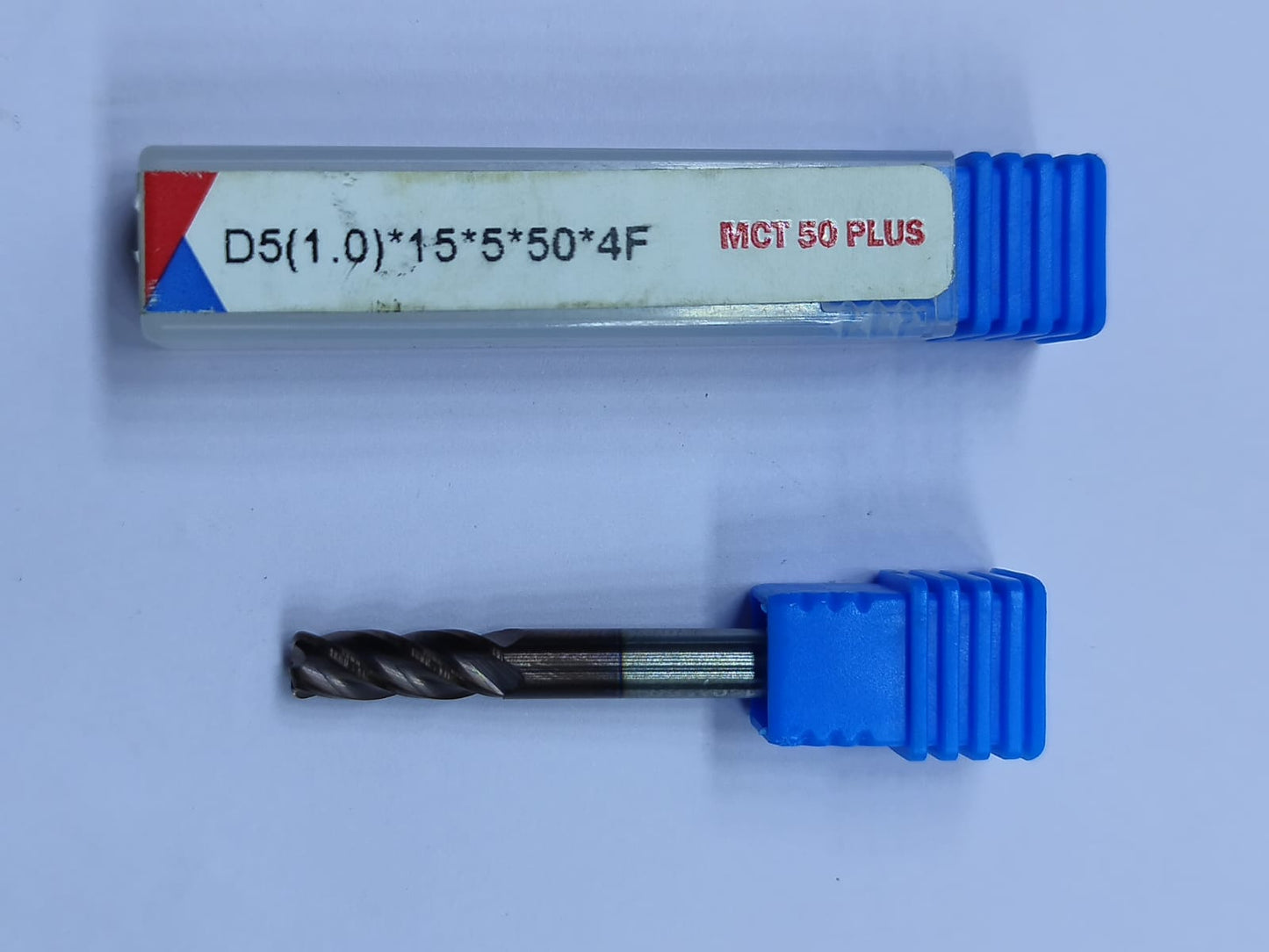

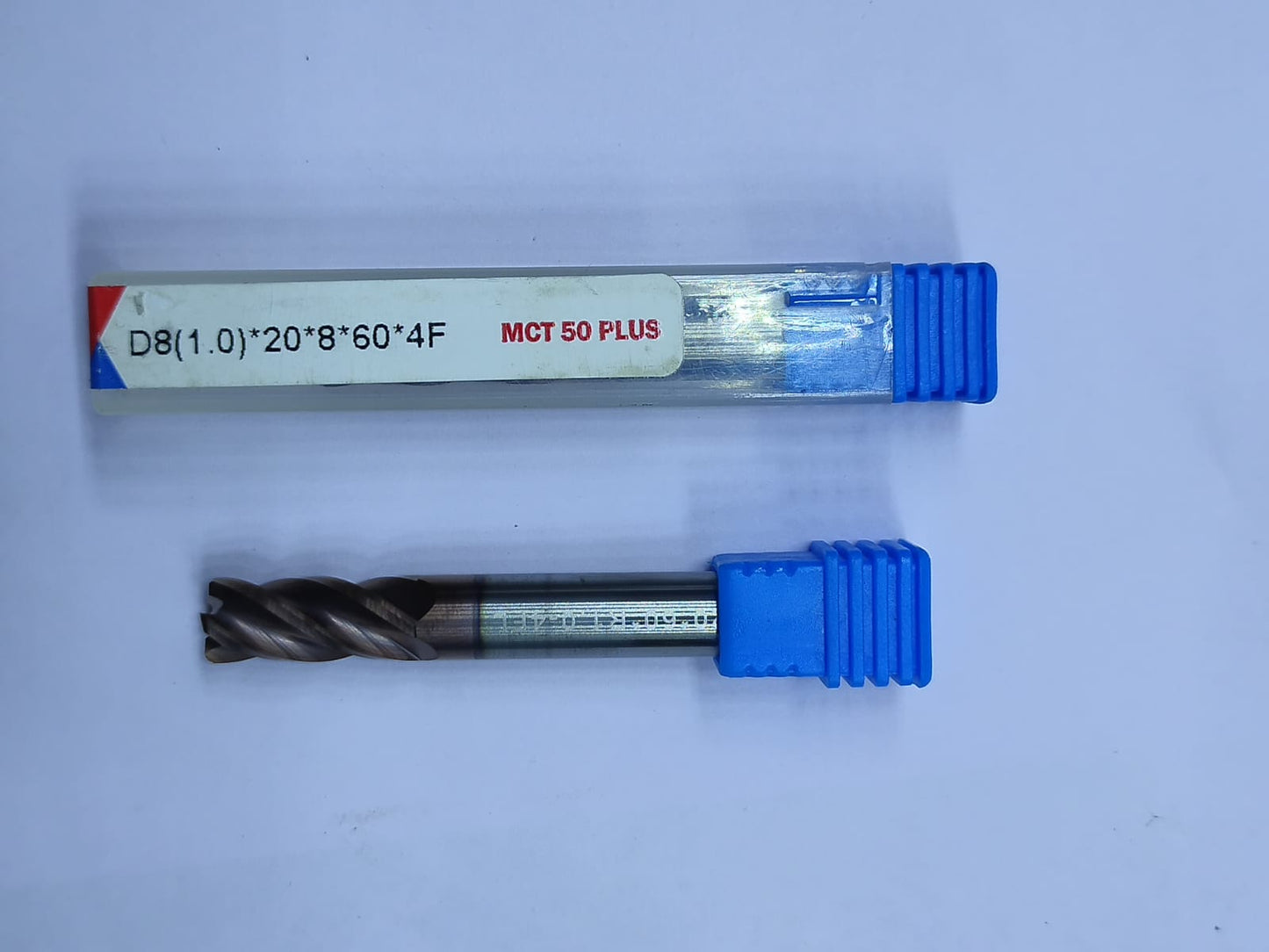

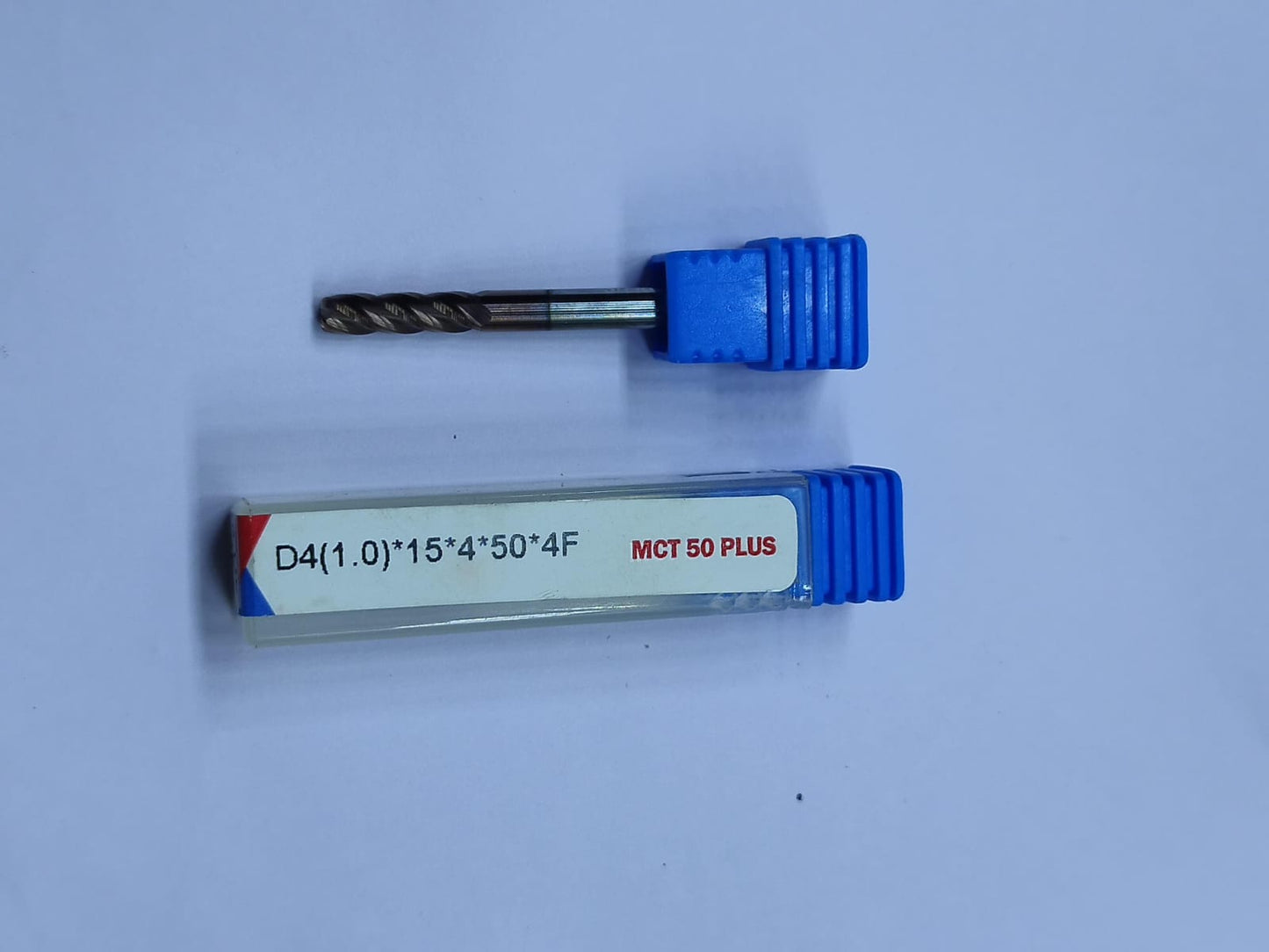

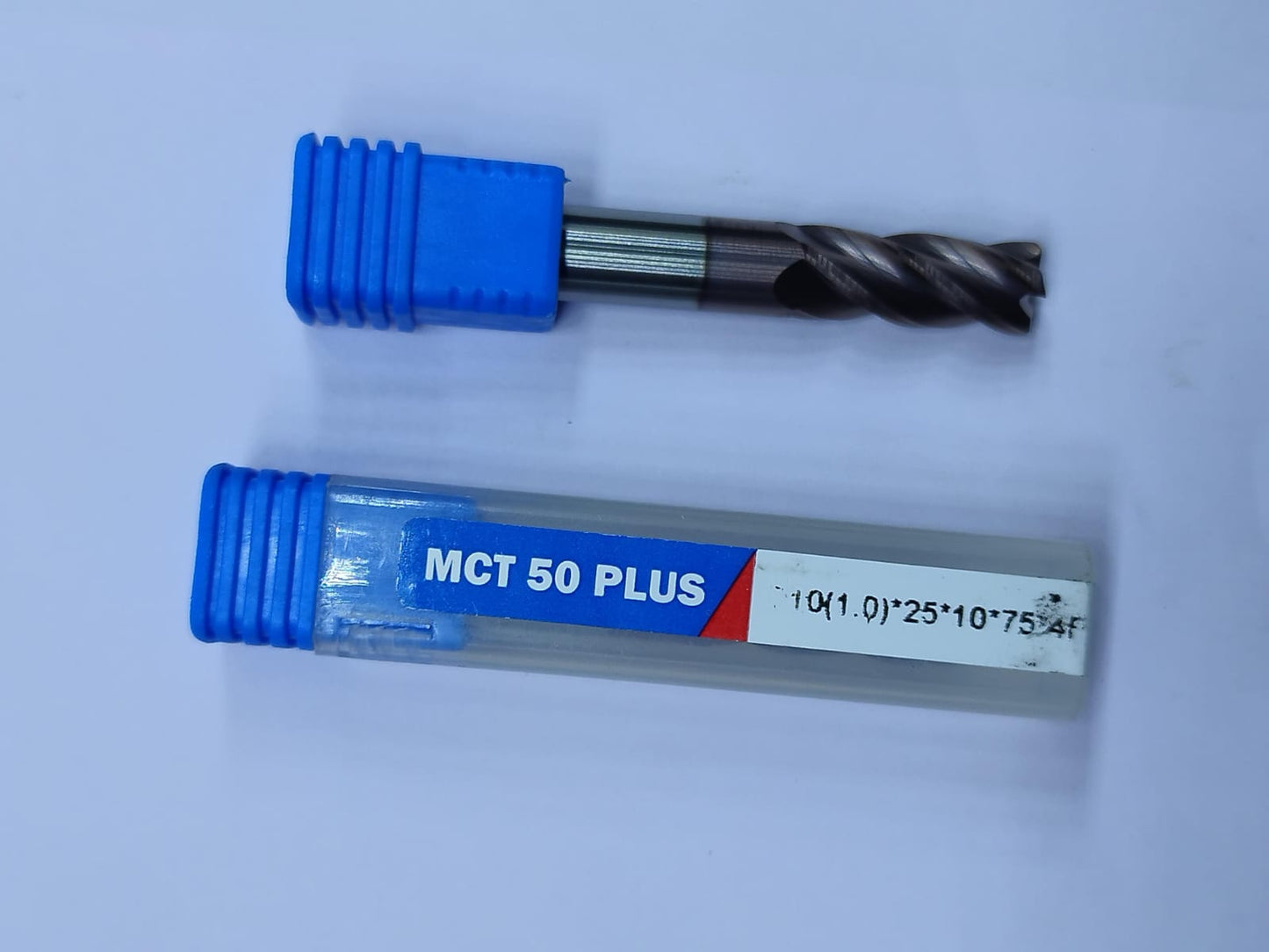

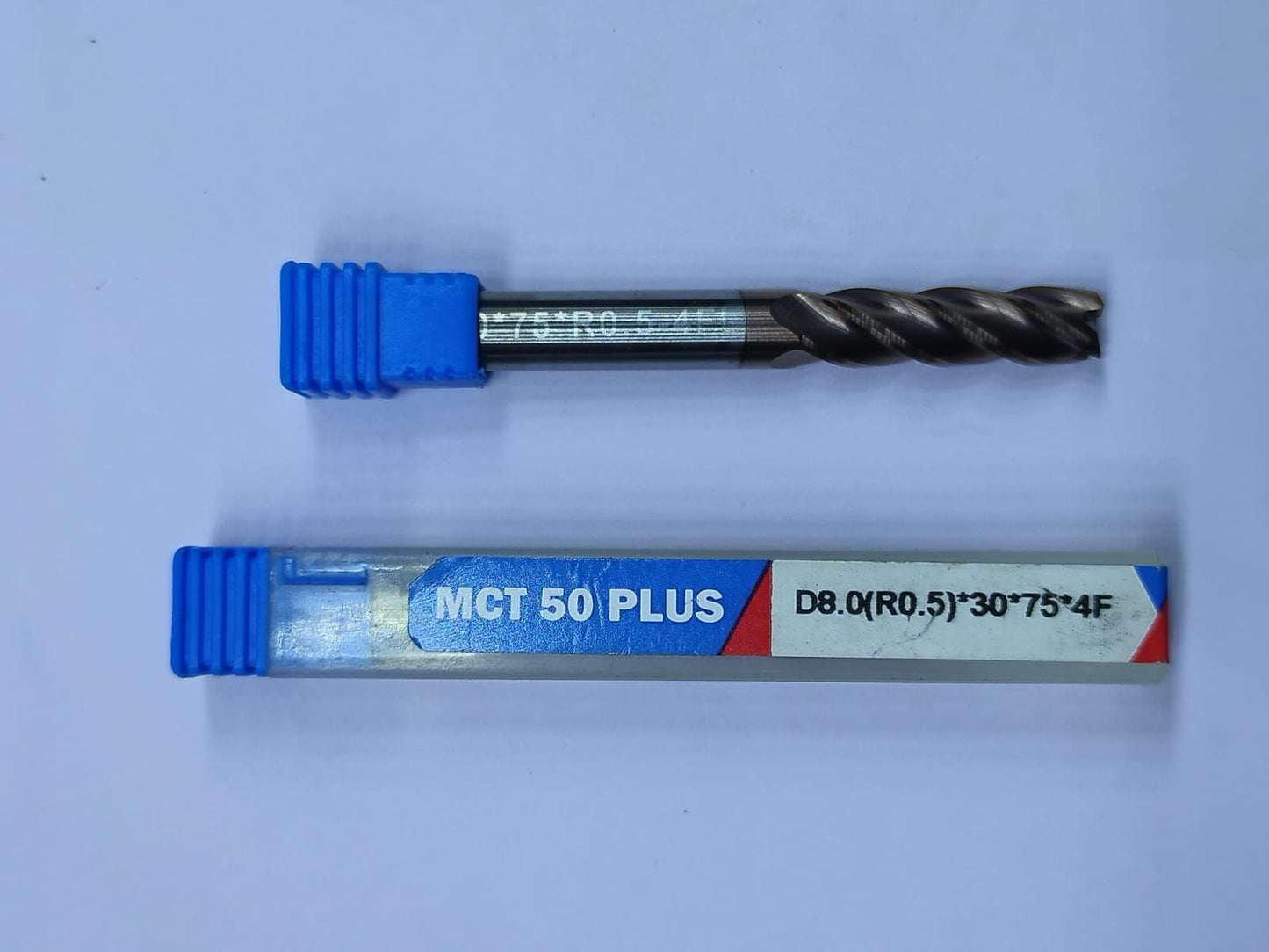

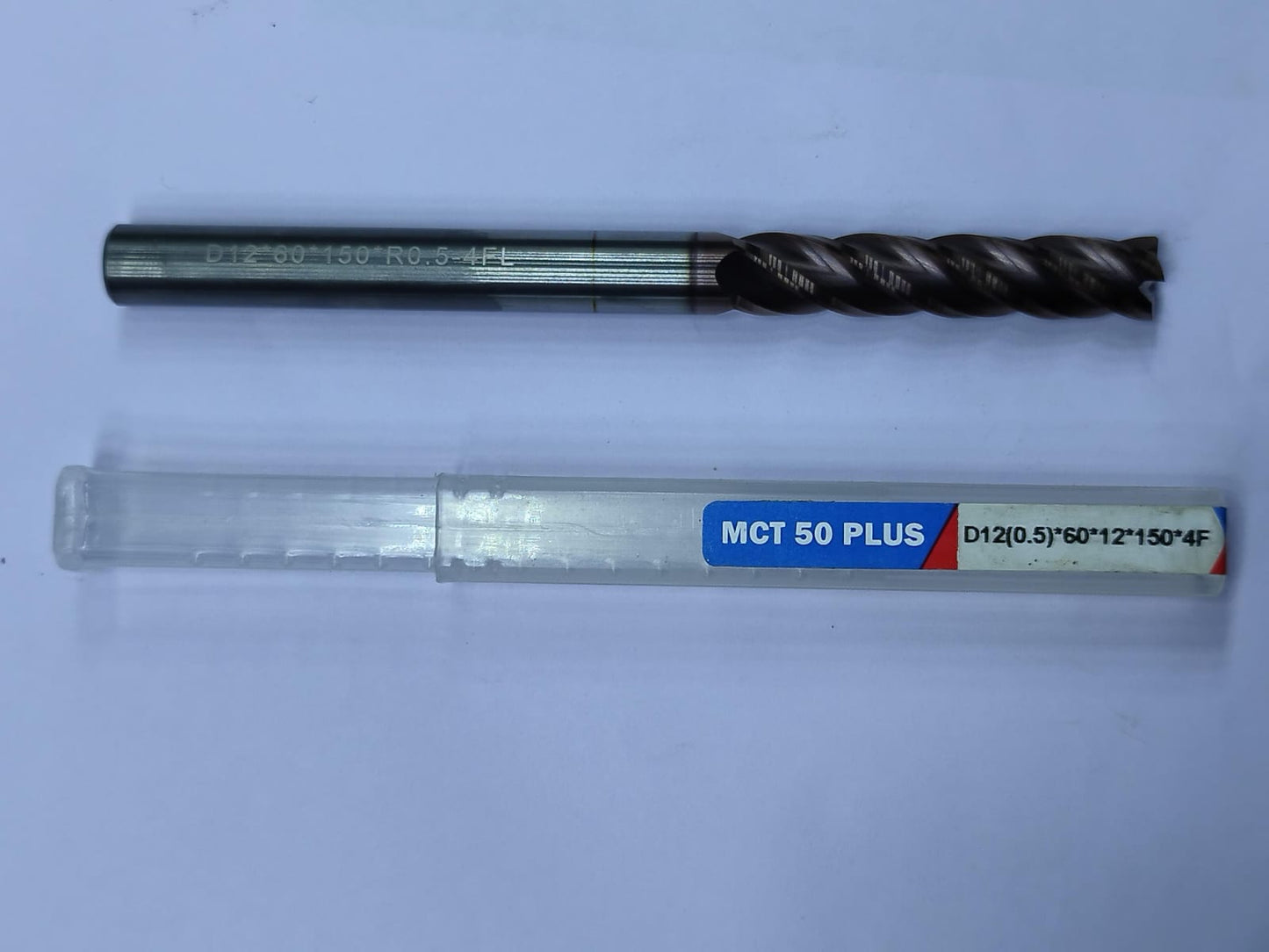

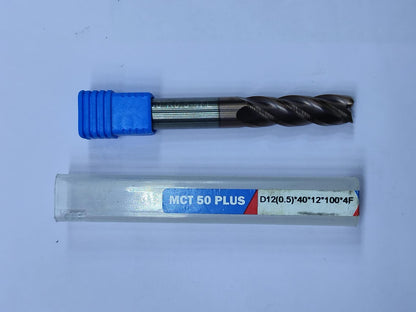

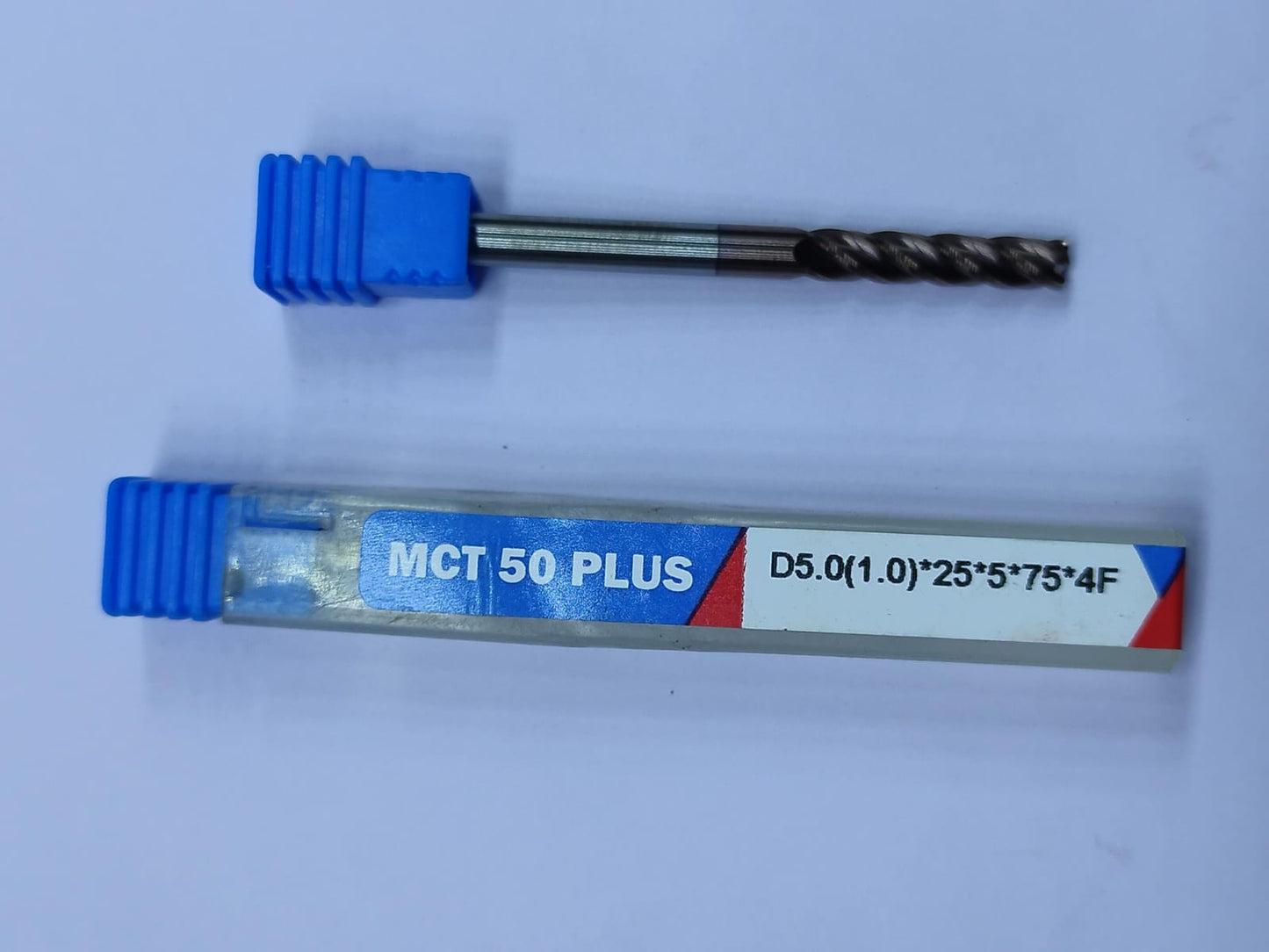

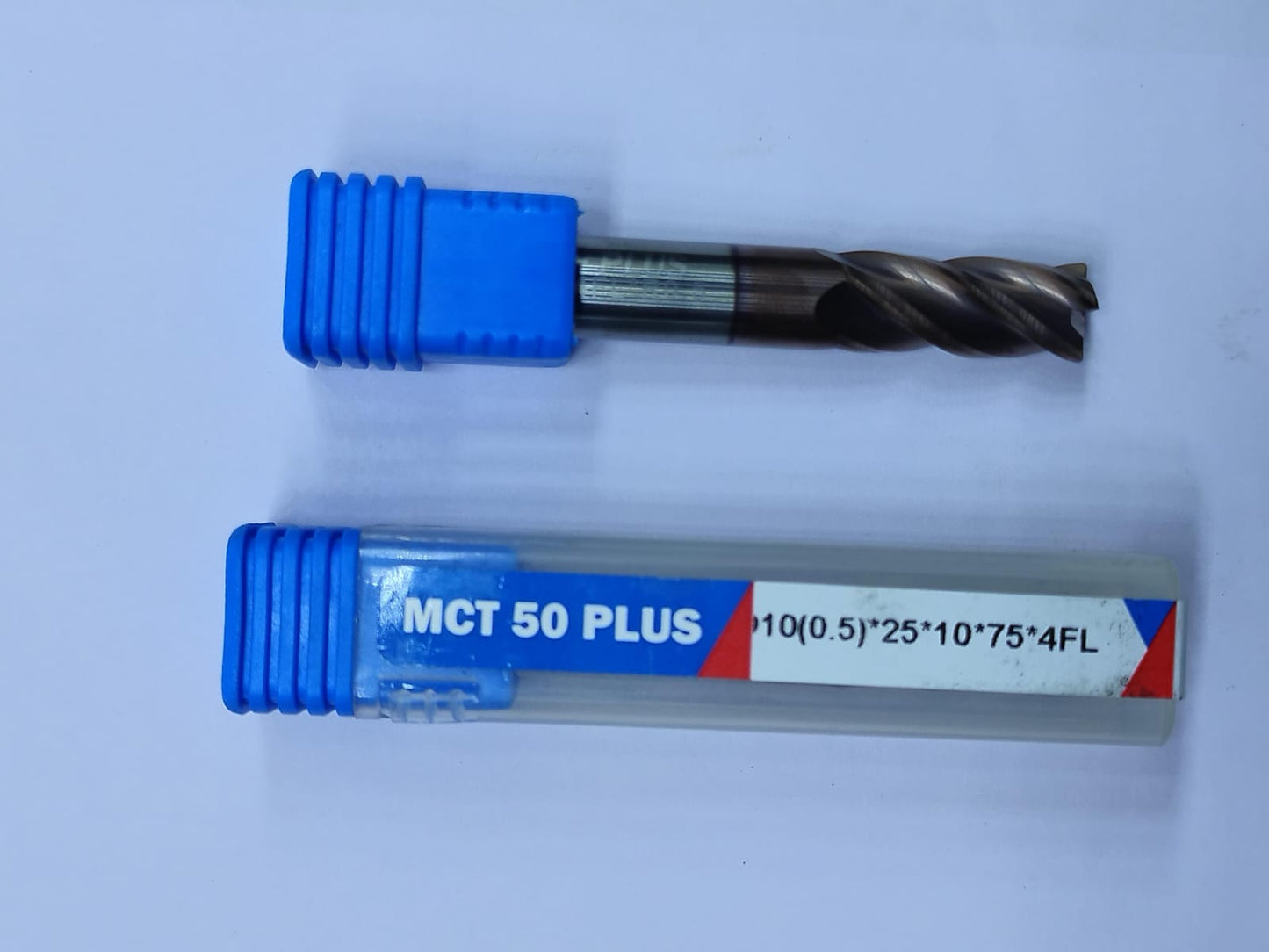

Corner Radius Endmill ( MCT ) HRC 55

Corner Radius Endmill ( MCT ) HRC 55

Rs. 350.00
Rs. 350.00
Sale Sold out
Shipping calculated at checkout.

A Corner radius endmill End Mill is usually used to add a specific radius to a workpiece, operation to remove a sharp edge or burr

or using in some finishing operation

most cutters comes with 0.5 mm and 1 mm  radius please choose as per the requirement.

Diameter Radius Cutting lenght Shank Diameter Length Code
3 R0.5 13 3 50 MCT1838
3 R1 13 3 50 MCT1839
4 R0.5 16 4 50 MCT1840
4 R1 16 4 50 MCT1841

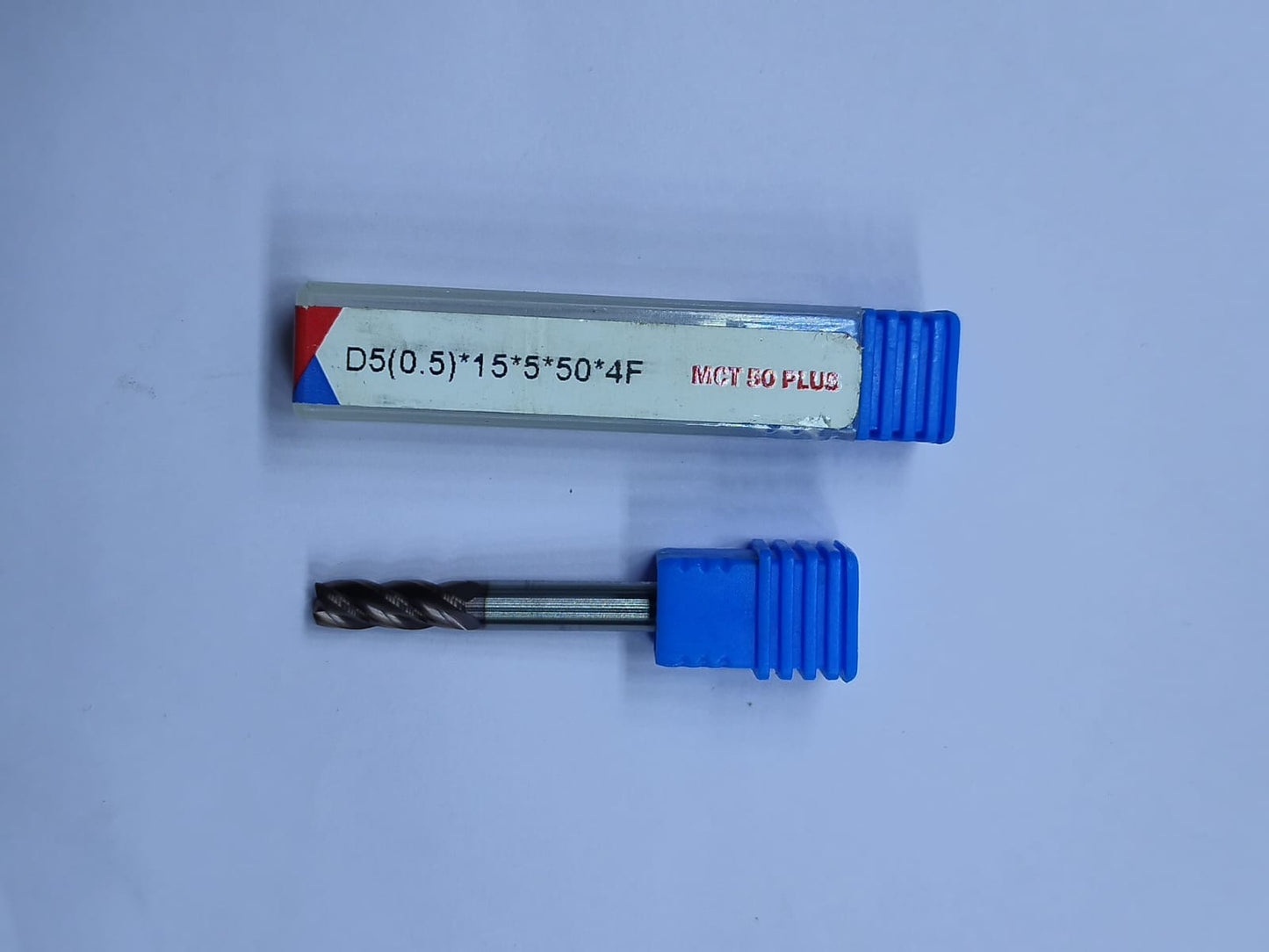

5 R0.5 20 5 50 MCT1842
5 R1 20 5 50 MCT1843
6 R0.5 22 6 50 MCT1844
6 R1 22 6 50 MCT1845
8 R0.5 23 8 60 MCT1846
8 R1 23 8 60 MCT1847
3 R0.5 20 3 75 MCT1848
3 R1 20 3 75 MCT1849

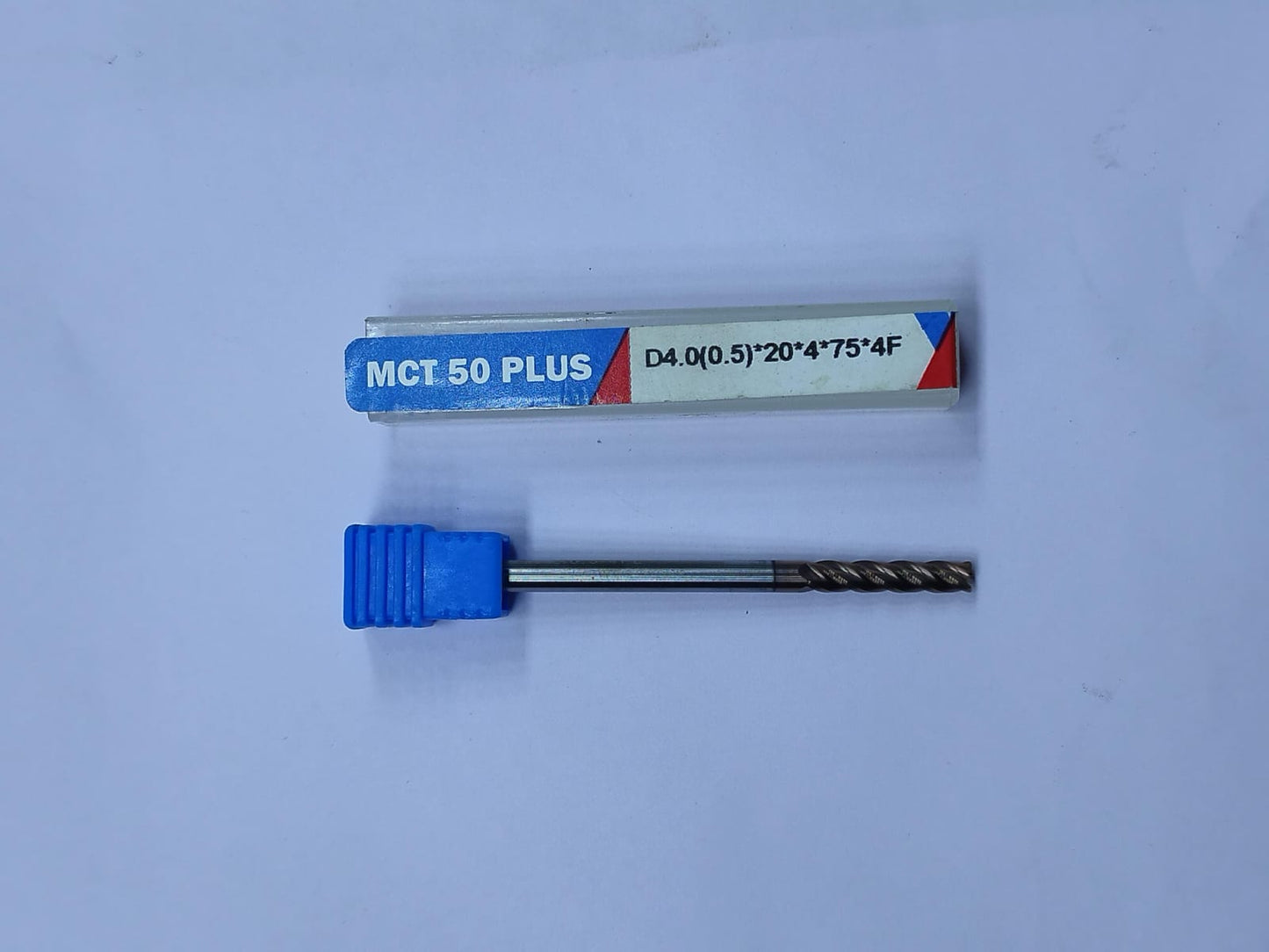

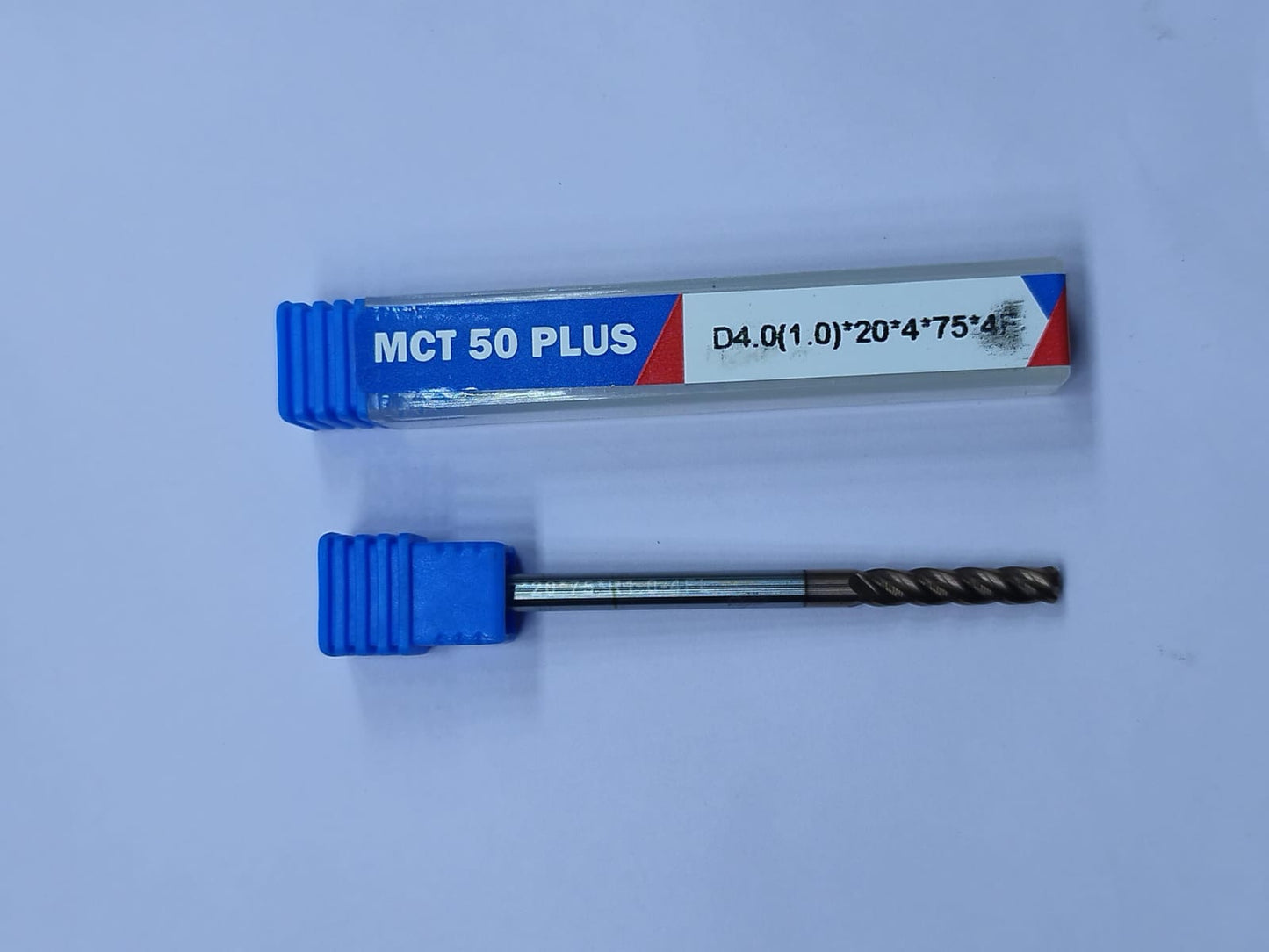

4 R0.5 20 4 75 MCT1850
4 R1 20 4 75 MCT1851
5 R0.5 20 5 75 MCT1852
5 R1 20 5 75 MCT1853

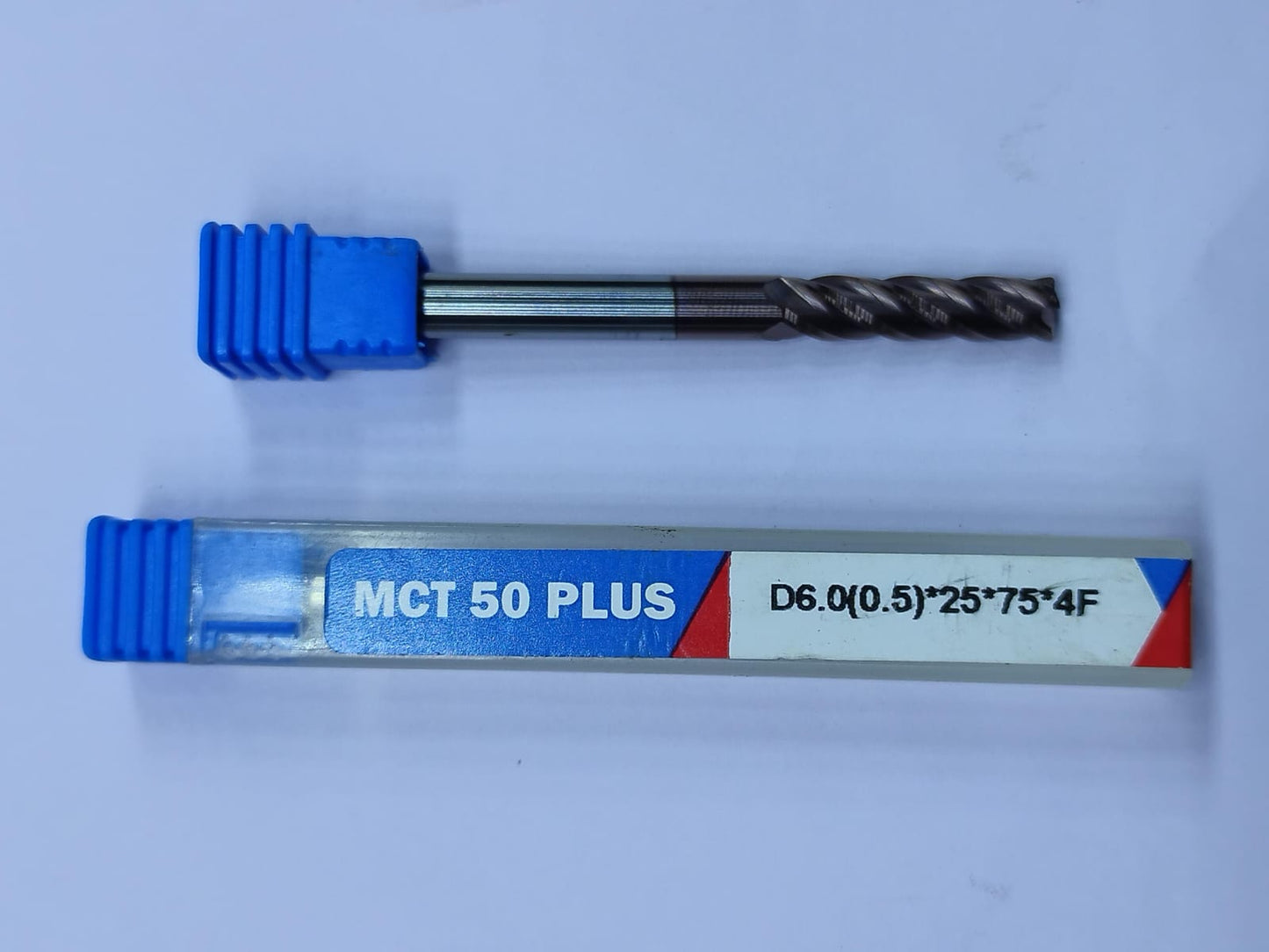

6 R0.5 25 6 75 MCT1854

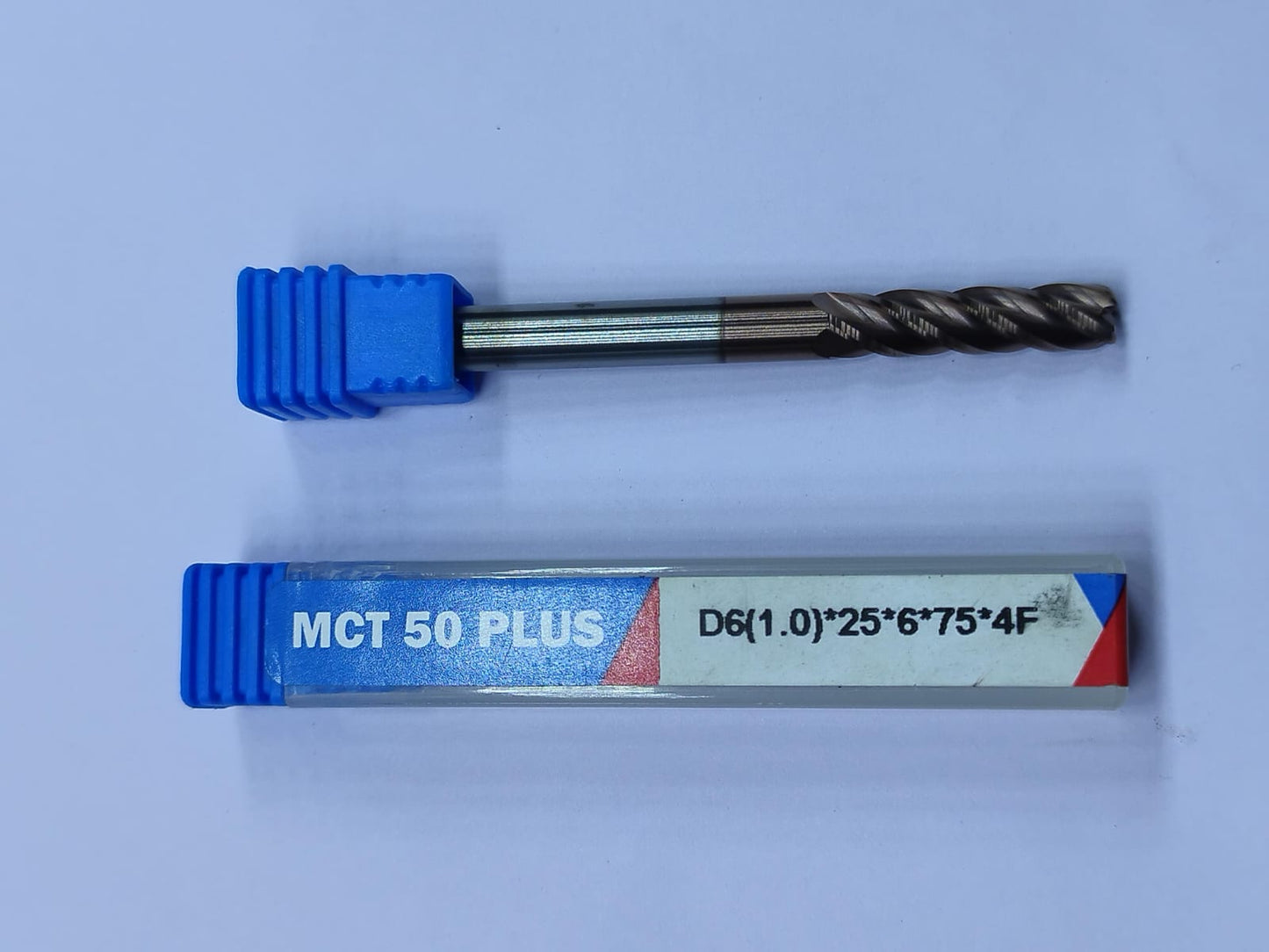

6 R1 25 6 75 MCT1855
8 R0.5 30 8 75 MCT1856

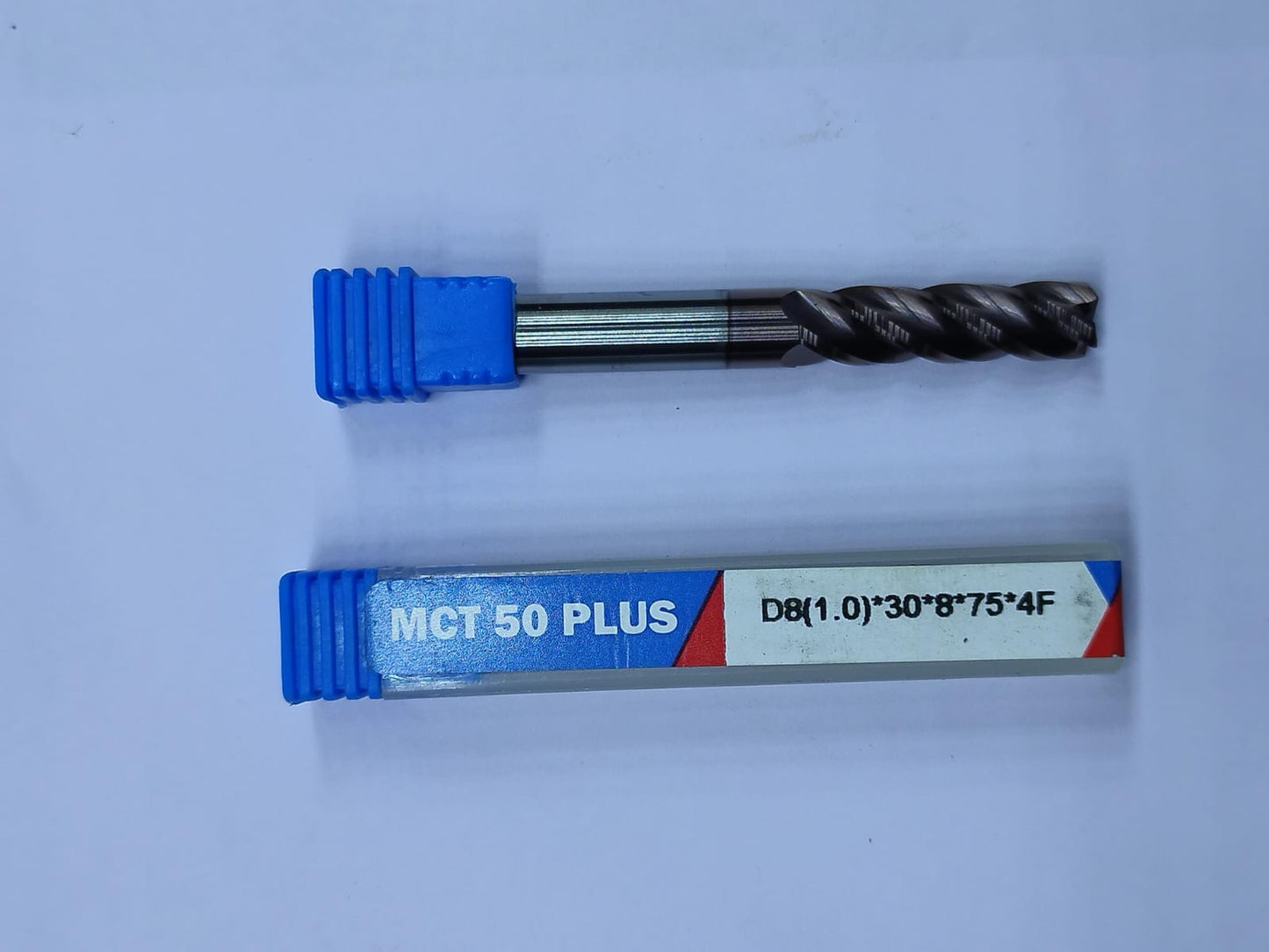

8 R1 30 8 75 MCT1857
10 R0.5 25 10 75 MCT1858
10 R1 25 10 75 MCT1859

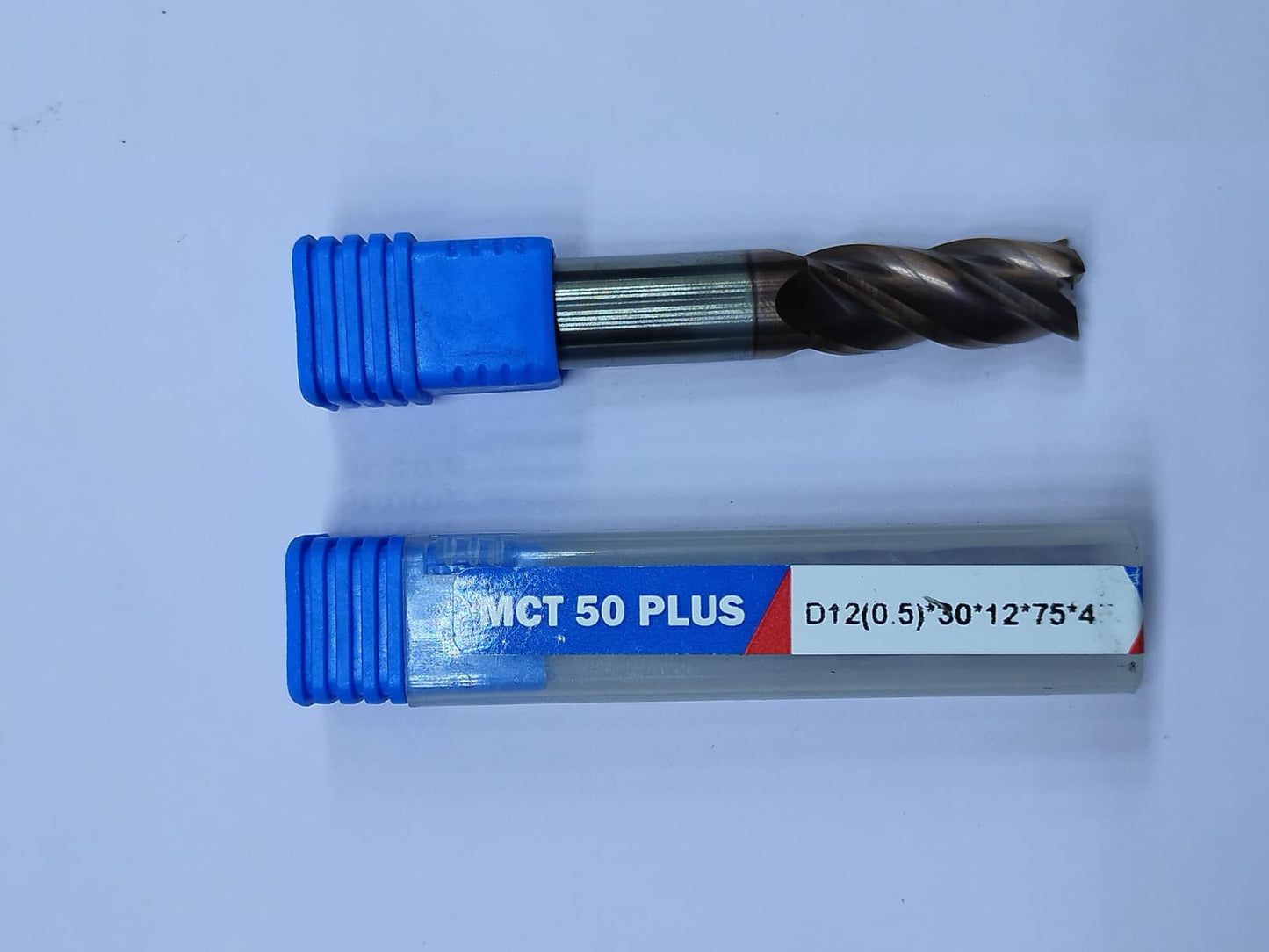

12 R0.5 30 12 75 MCT1860

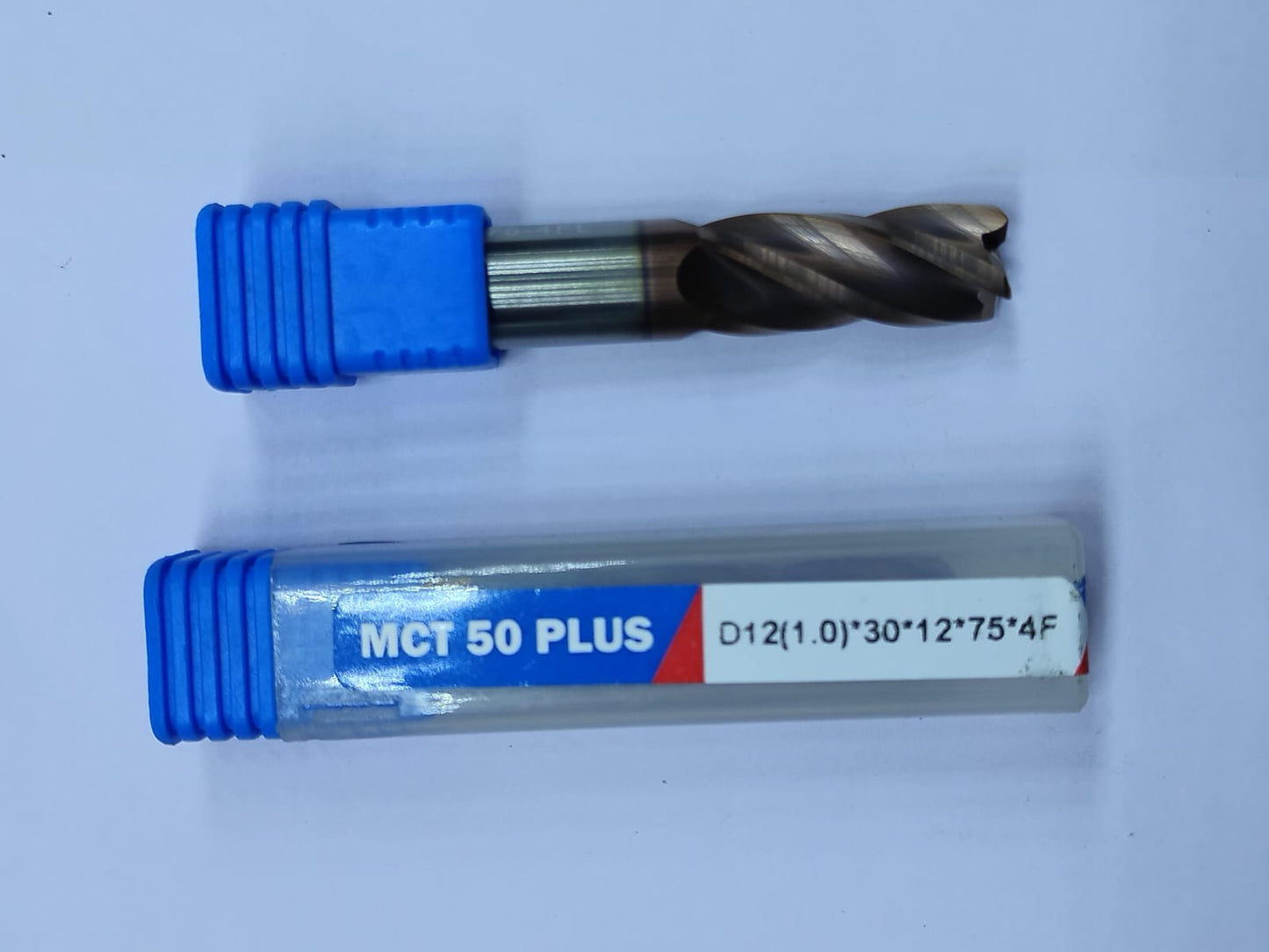

12 R1 30 12 75 MCT1861

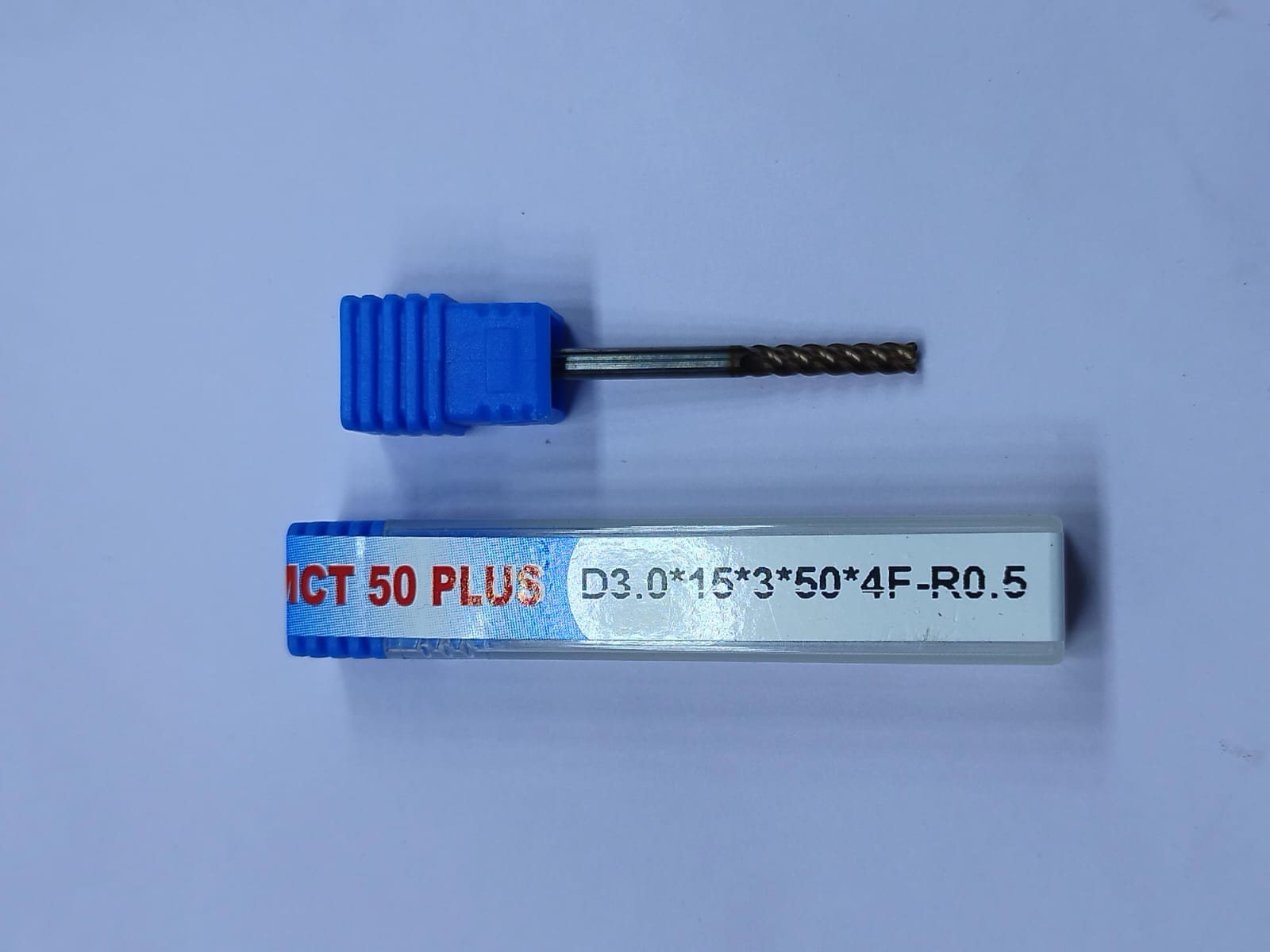

3 R0.5 15 3 100 MCT1862
3 R1 15 3 100 MCT1863
4 R0.5 20 4 100 MCT1864
4 R1 20 4 100 MCT1865

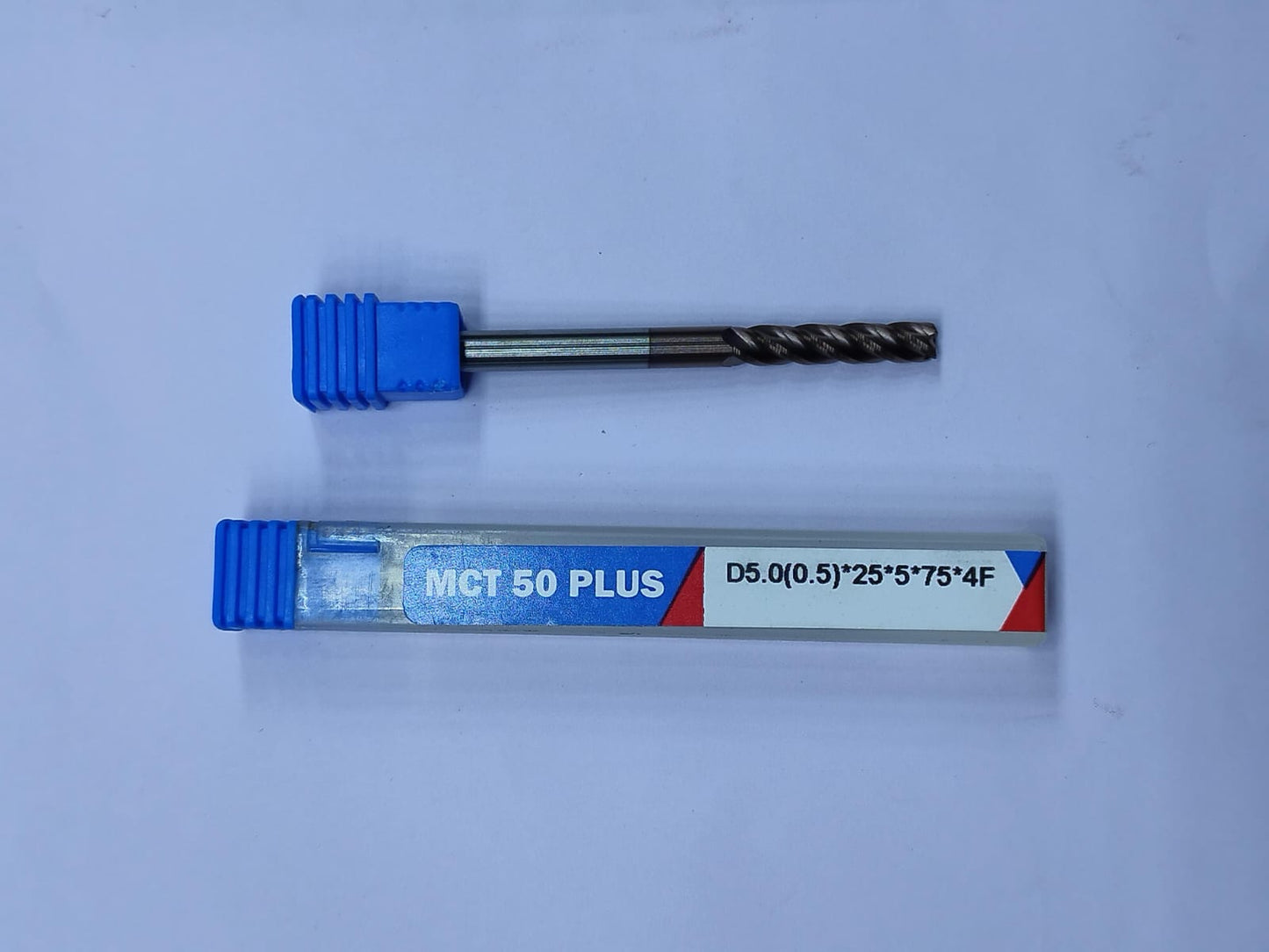

5 R0.5 25 5 100 MCT1866
5 R1 25 5 100 MCT1867

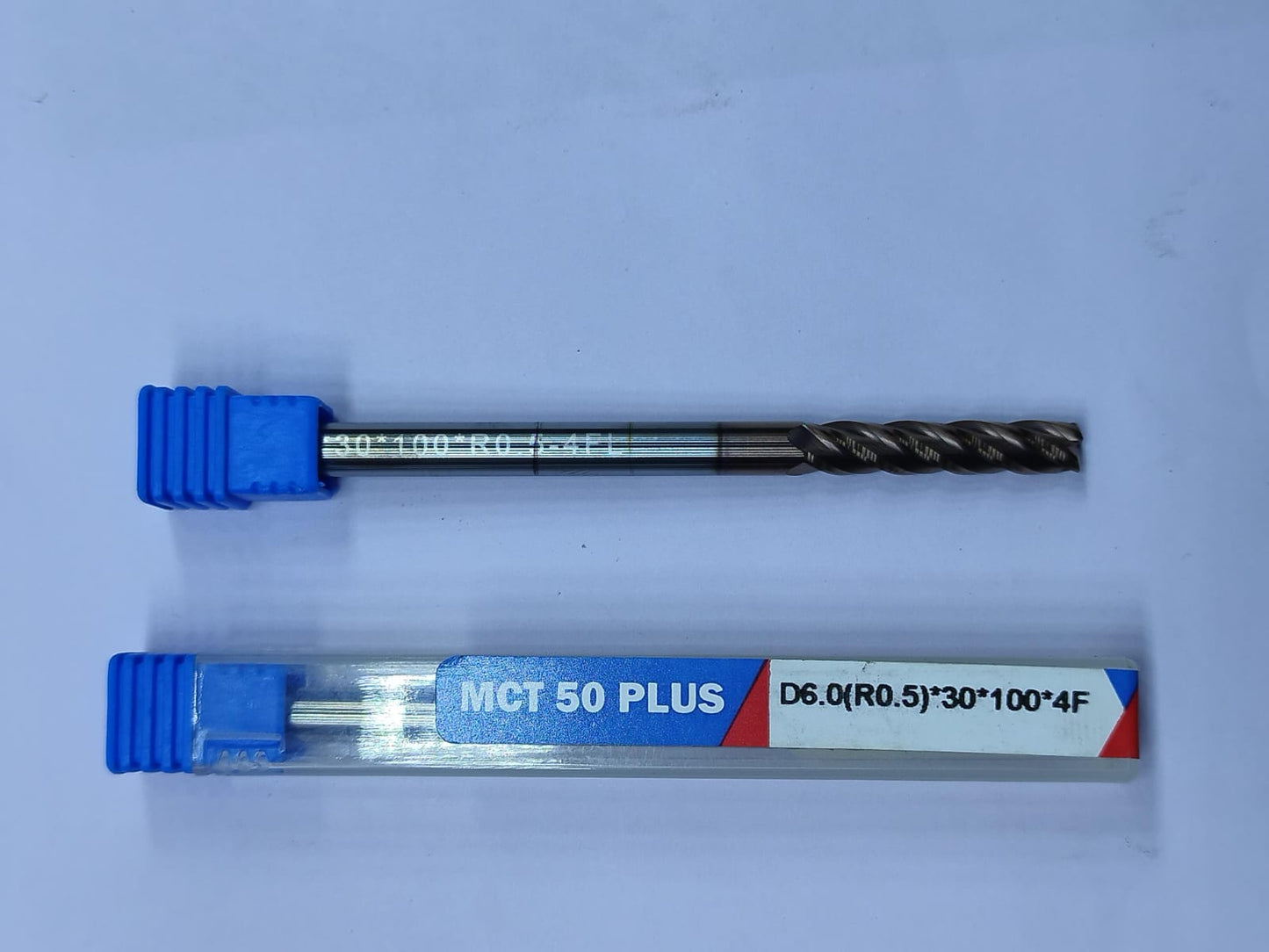

6 R0.5 30 6 100 MCT1868
6 R1 30 6 100 MCT1869

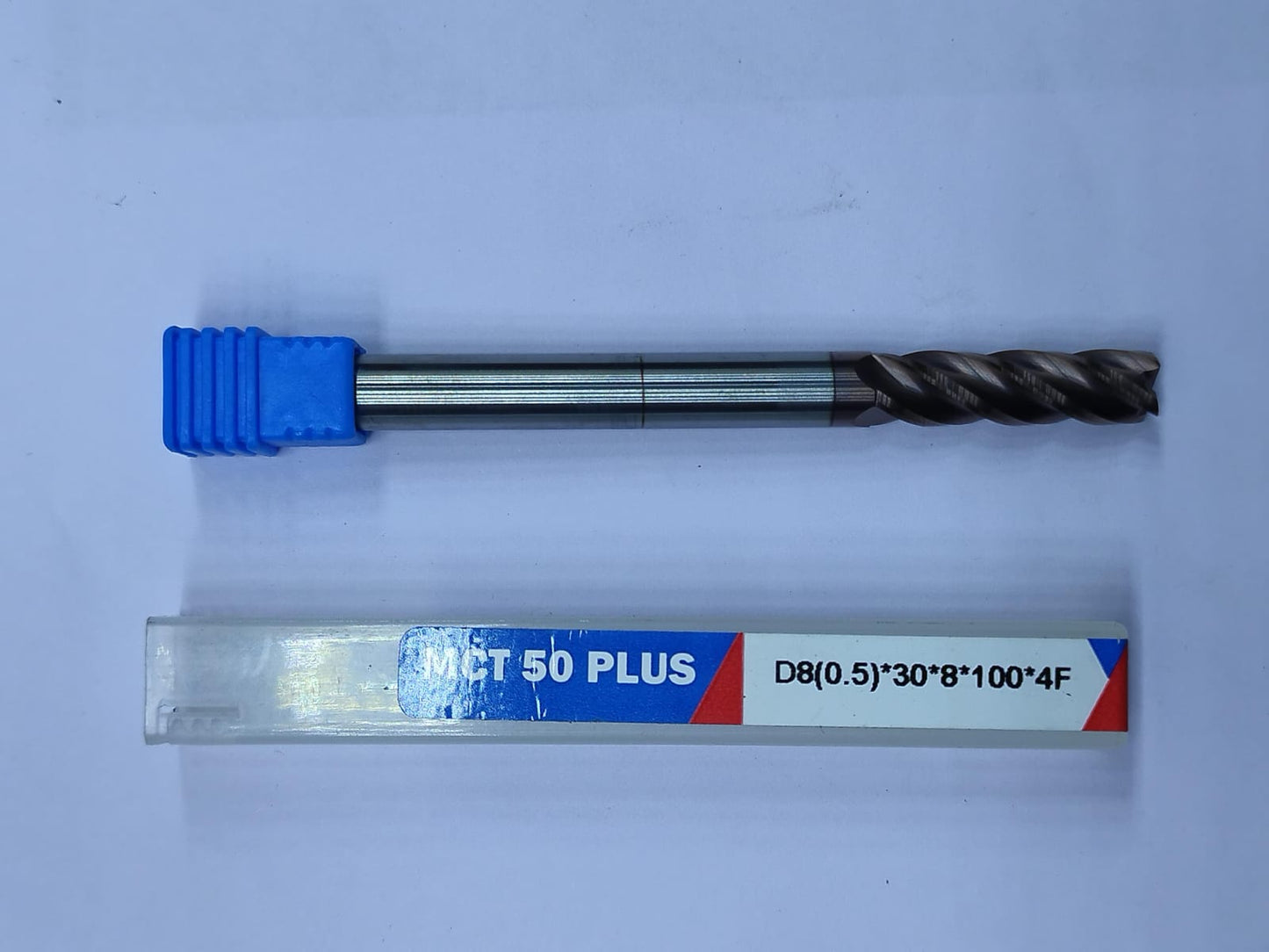

8 R0.5 30 8 100 MCT1870

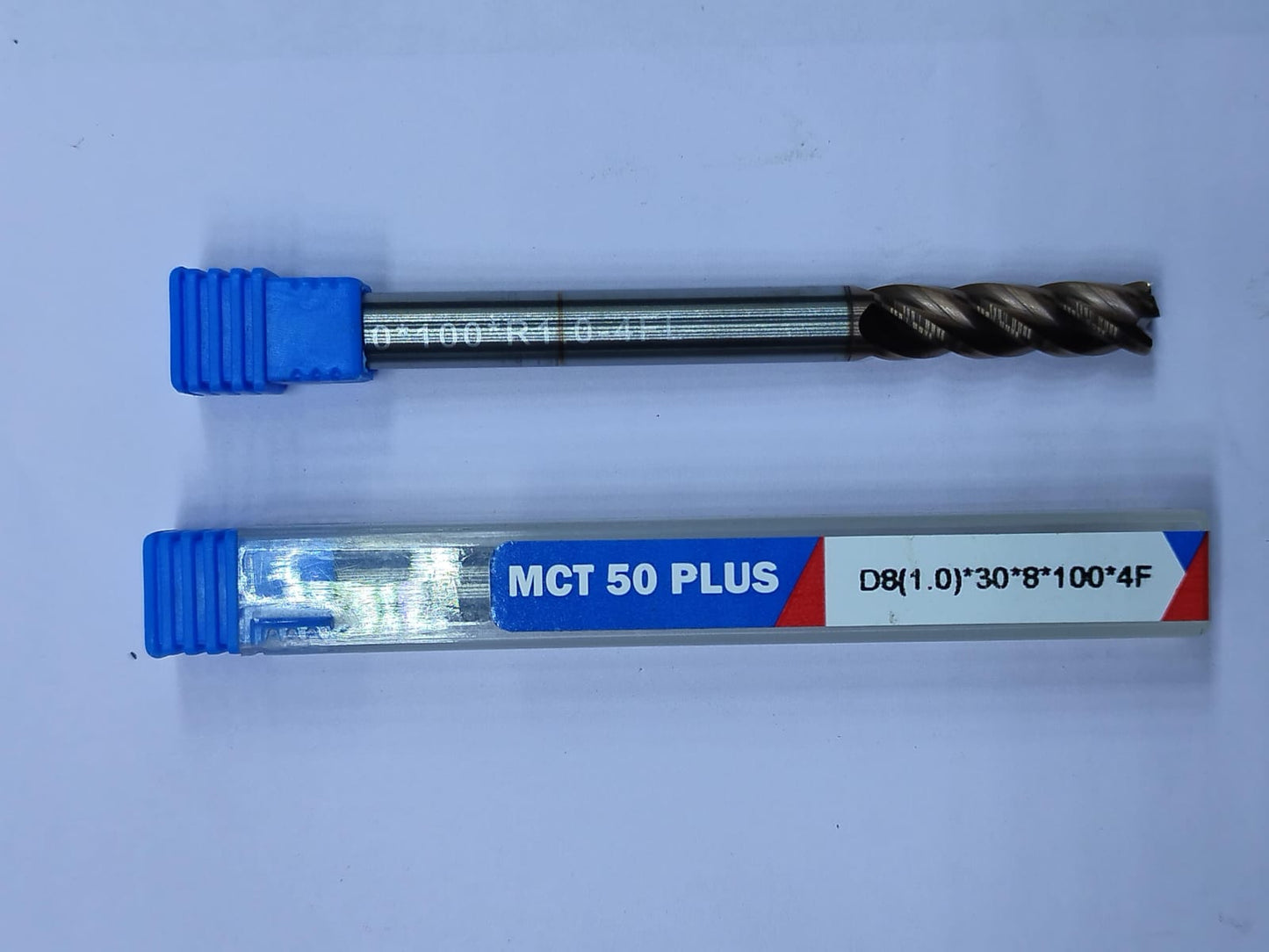

8 R1 30 8 100 MCT1871
10 R0.5 35 10 100 MCT1872
10 R1 35 10 100 MCT1873

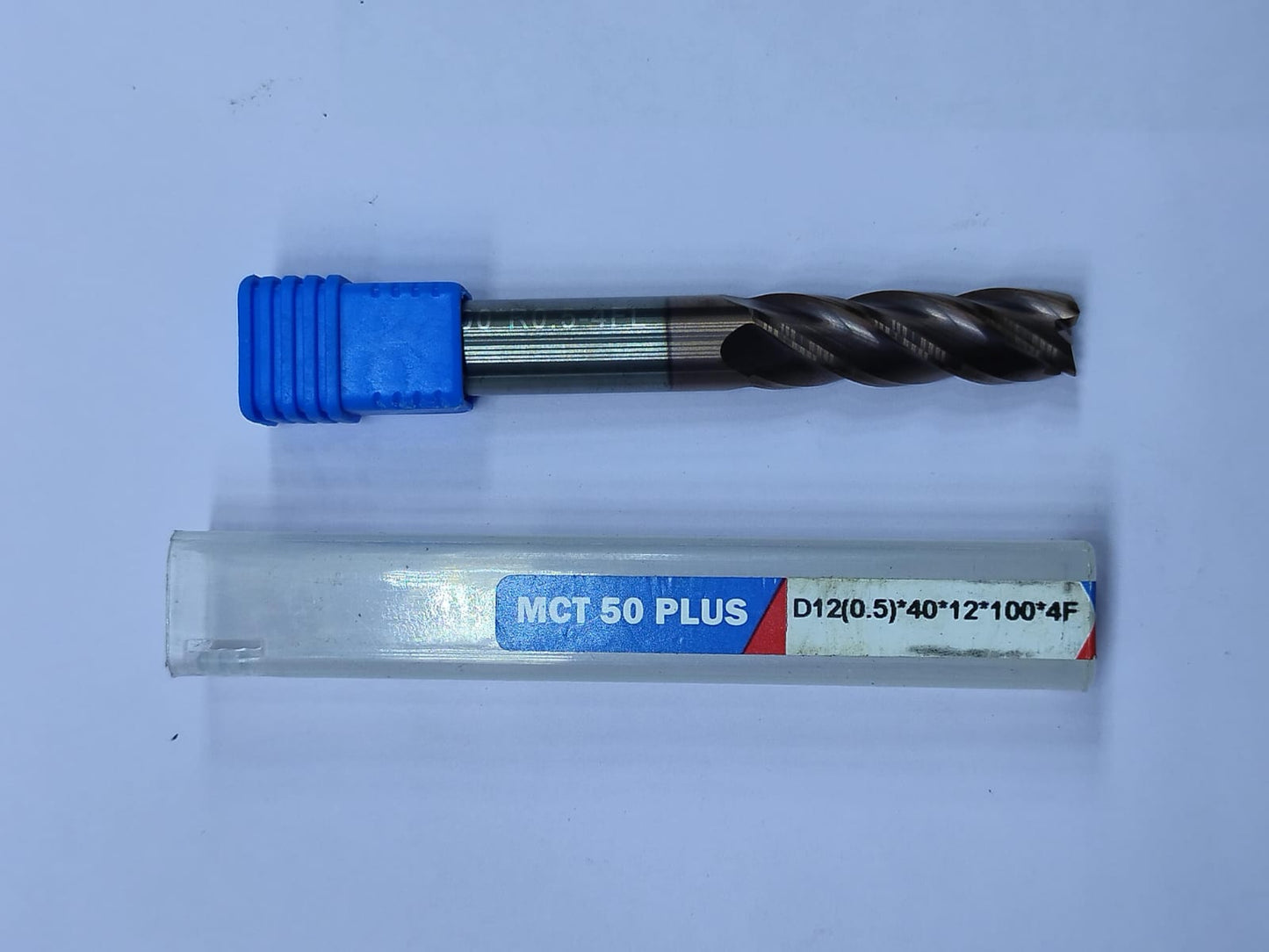

12 R0.5 40 12 100 MCT1874

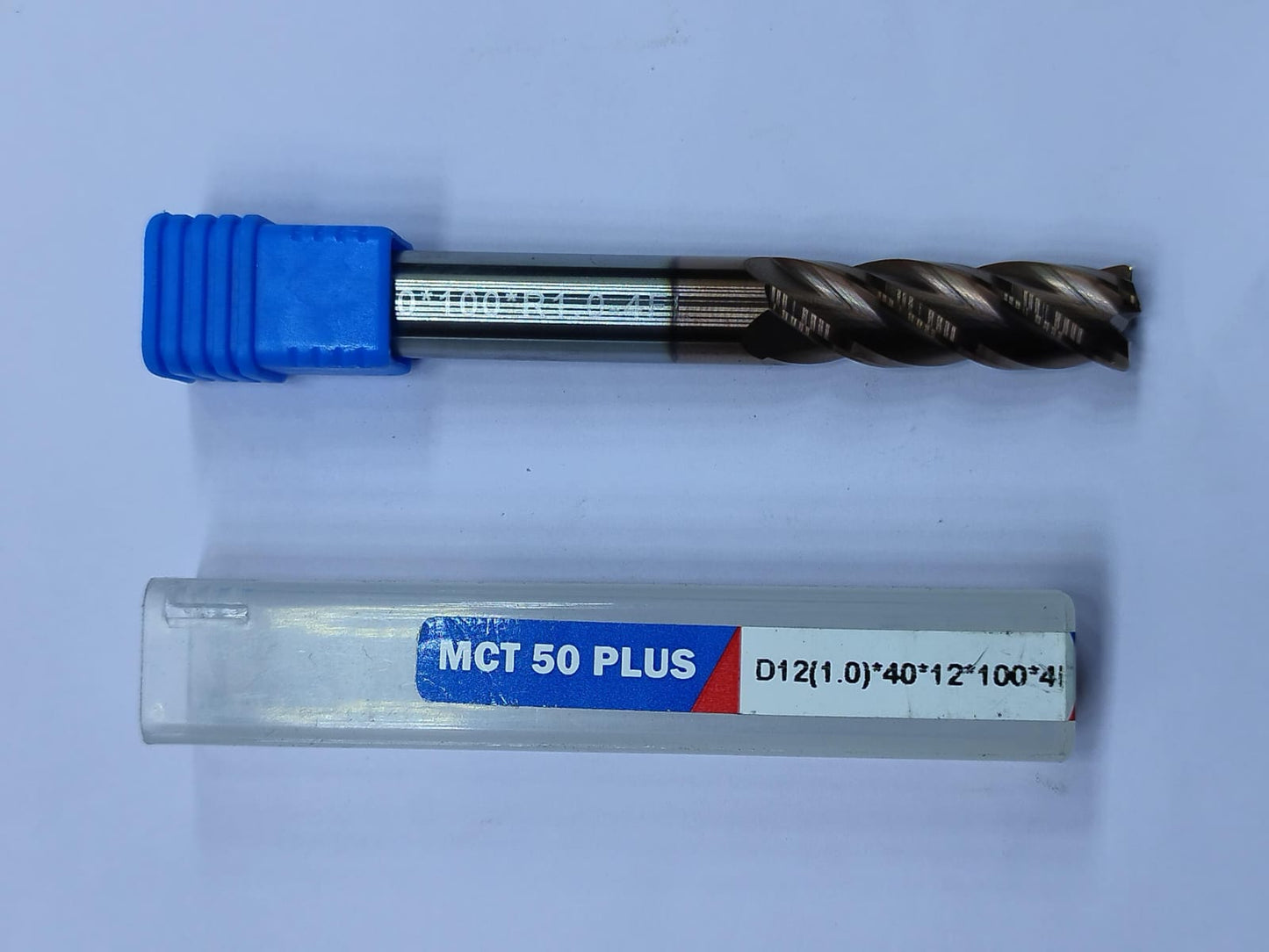

12 R1 40 12 100 MCT1875
16 R0.5 45 16 100 MCT1876

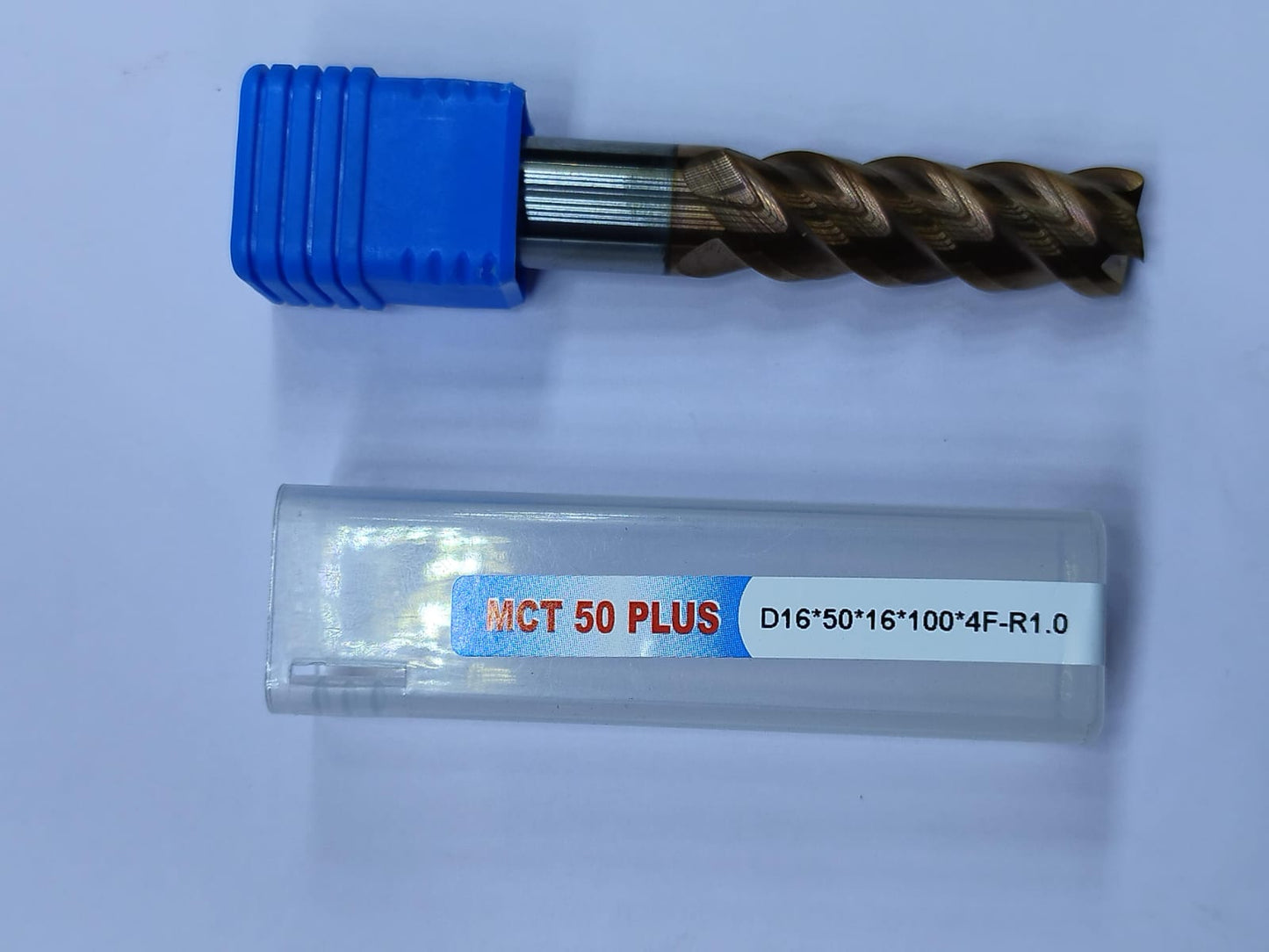

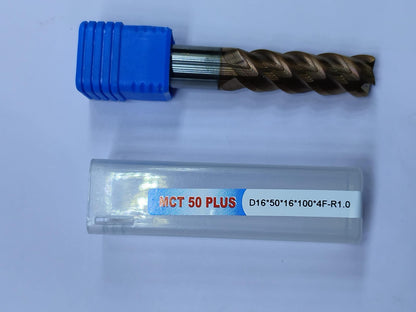

16 R1 50 16 100 MCT1877

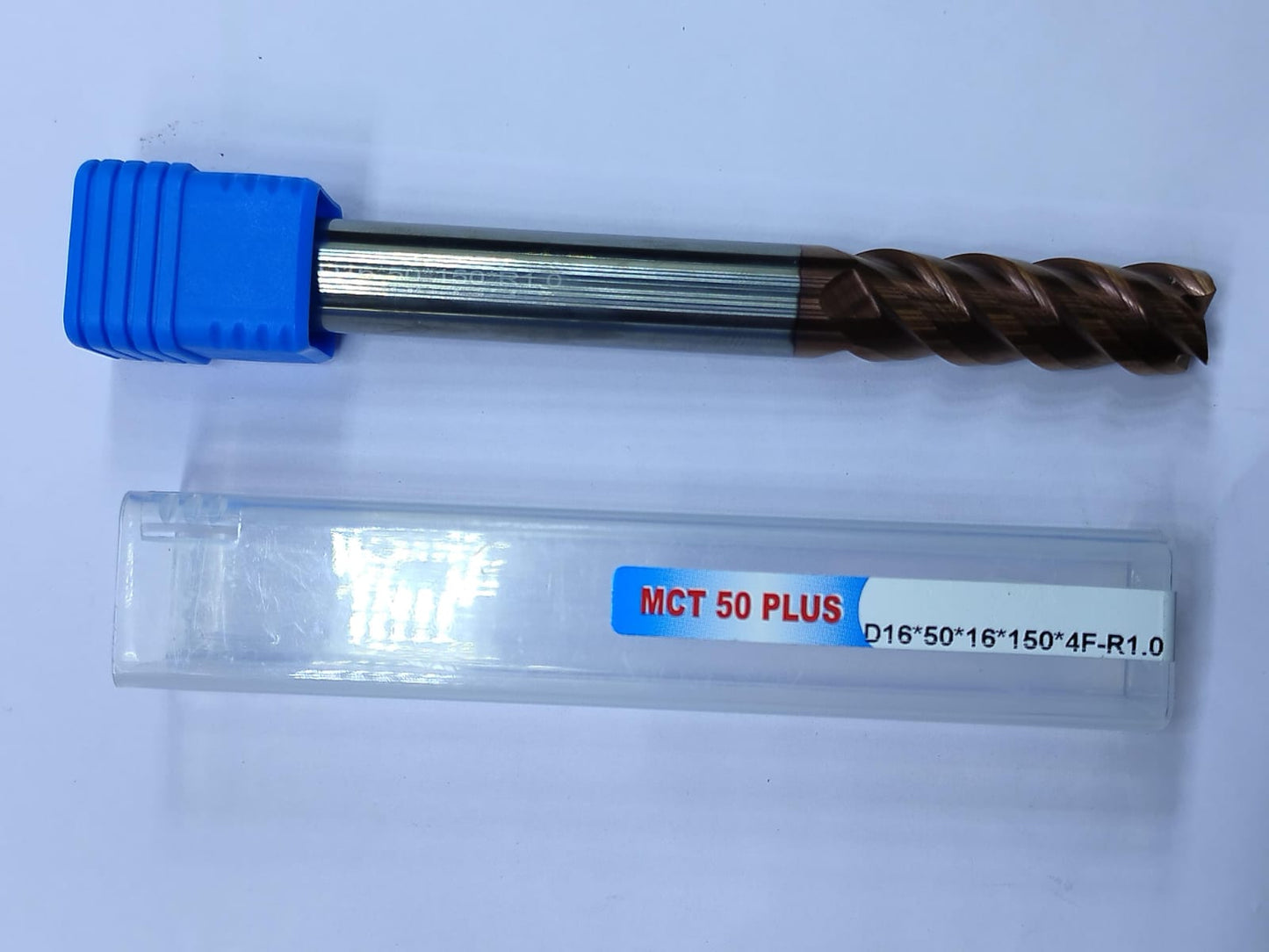

16 R1 50 16 150 MCT1878
20 R1 50 20 100 MCT1879
20 R2 50 20 100 MCT1880
8 R0.5 40 8 100 MCT1881
8 R1 40 8 100 MCT1882
10 R0.5 50 10 100 MCT1883
10 R1 50 10 100 MCT1884
12 R0.5 50 12 100 MCT1885
12 R1 50 12 100 MCT1886
16 R1 50 16 150 MCT1887



Dia
Length
Radius

999 in stock
