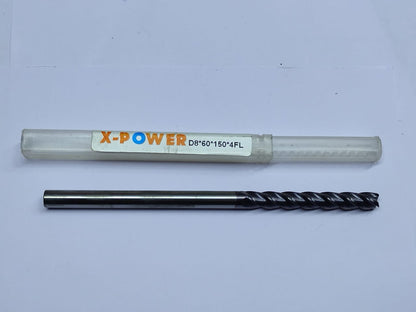

Endmill 4F HRC 45 ( size 1-25 )

Endmill 4F HRC 45 ( size 1-25 )

Rs. 200.00
Rs. 200.00
Sale Sold out
Shipping calculated at checkout.

4 Flute Endmill

Brand : X-power /

HCR 45

Cutting Length : Standard for size.

For special cutting length -> search special size.

Diameter (D) Cutting Length (LC) Shank Diameter (d) Overall Length Flutes Code
1 3 4 50 4 MCT1500

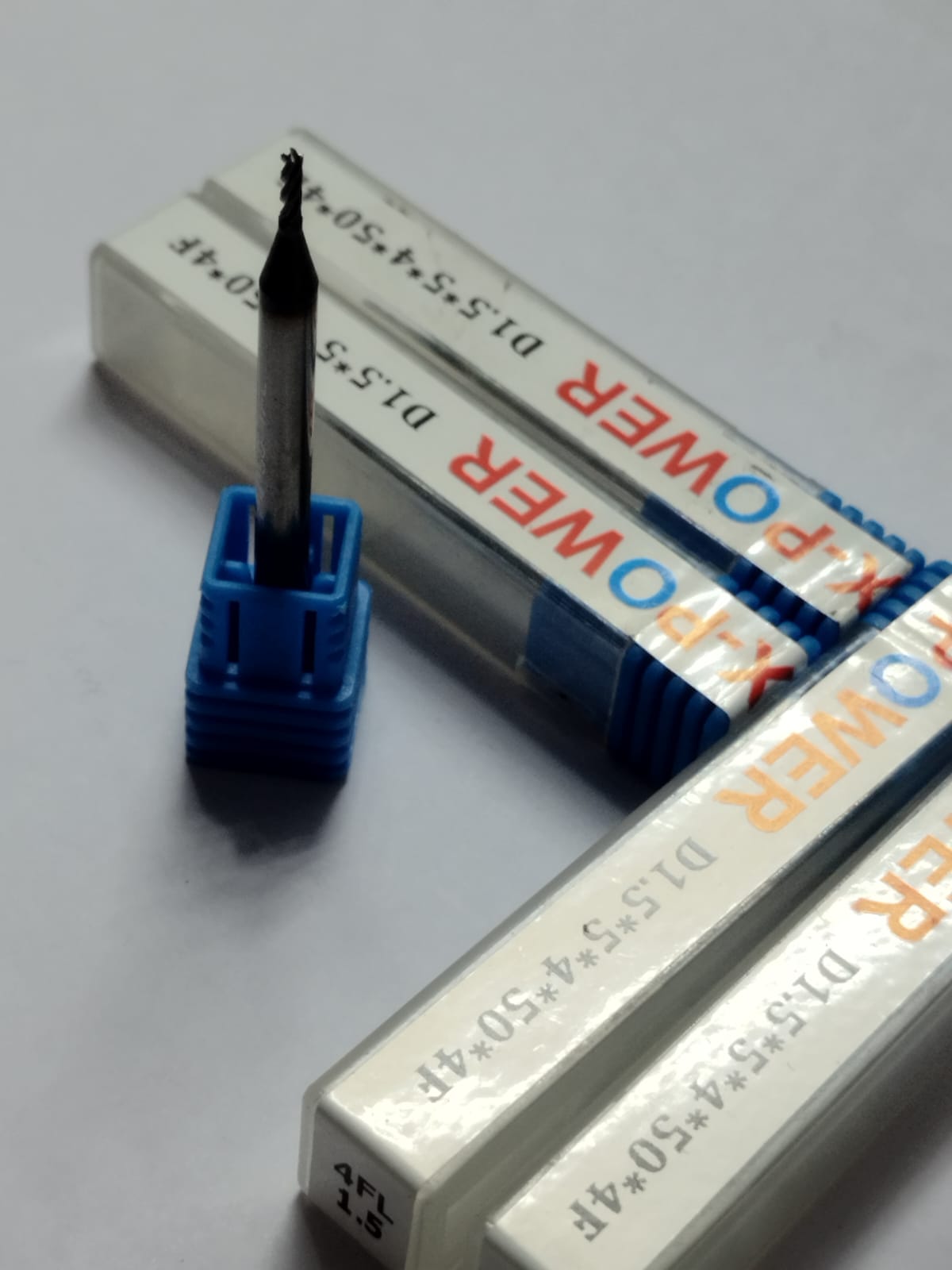

1.5 4 4 50 4 MCT1501

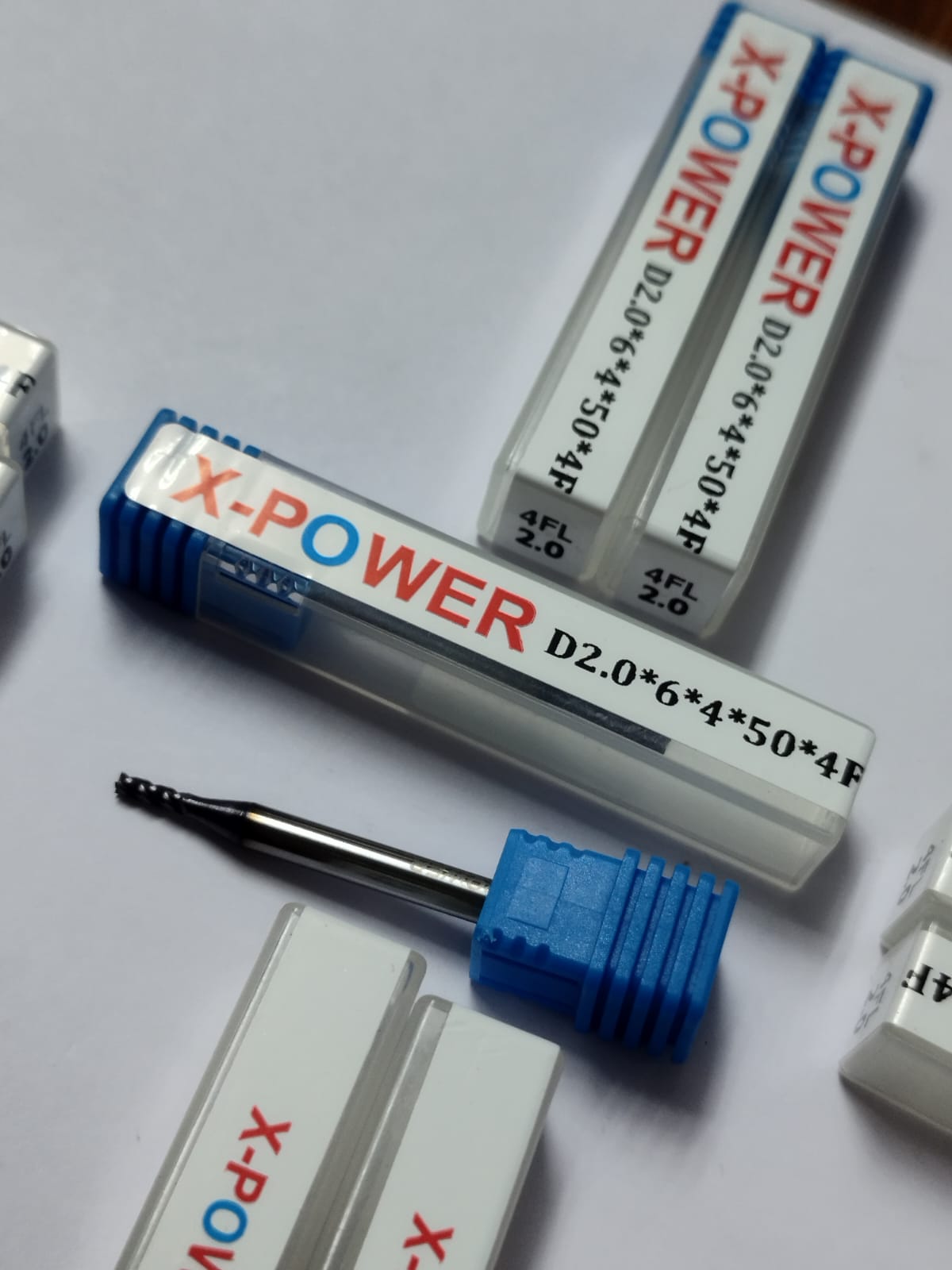

2 6 4 50 4 MCT1502

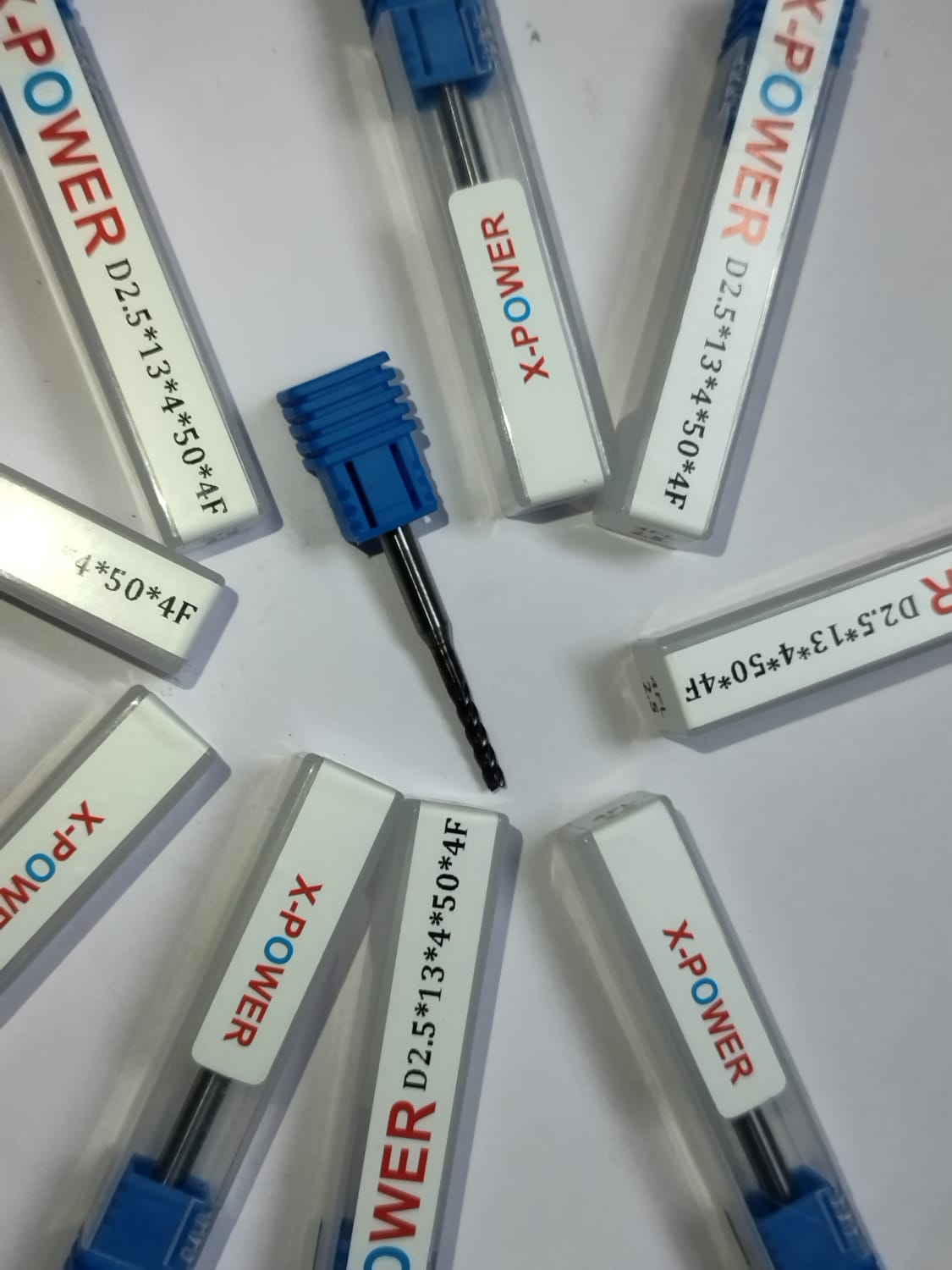

2.5 7 4 50 4 MCT1503

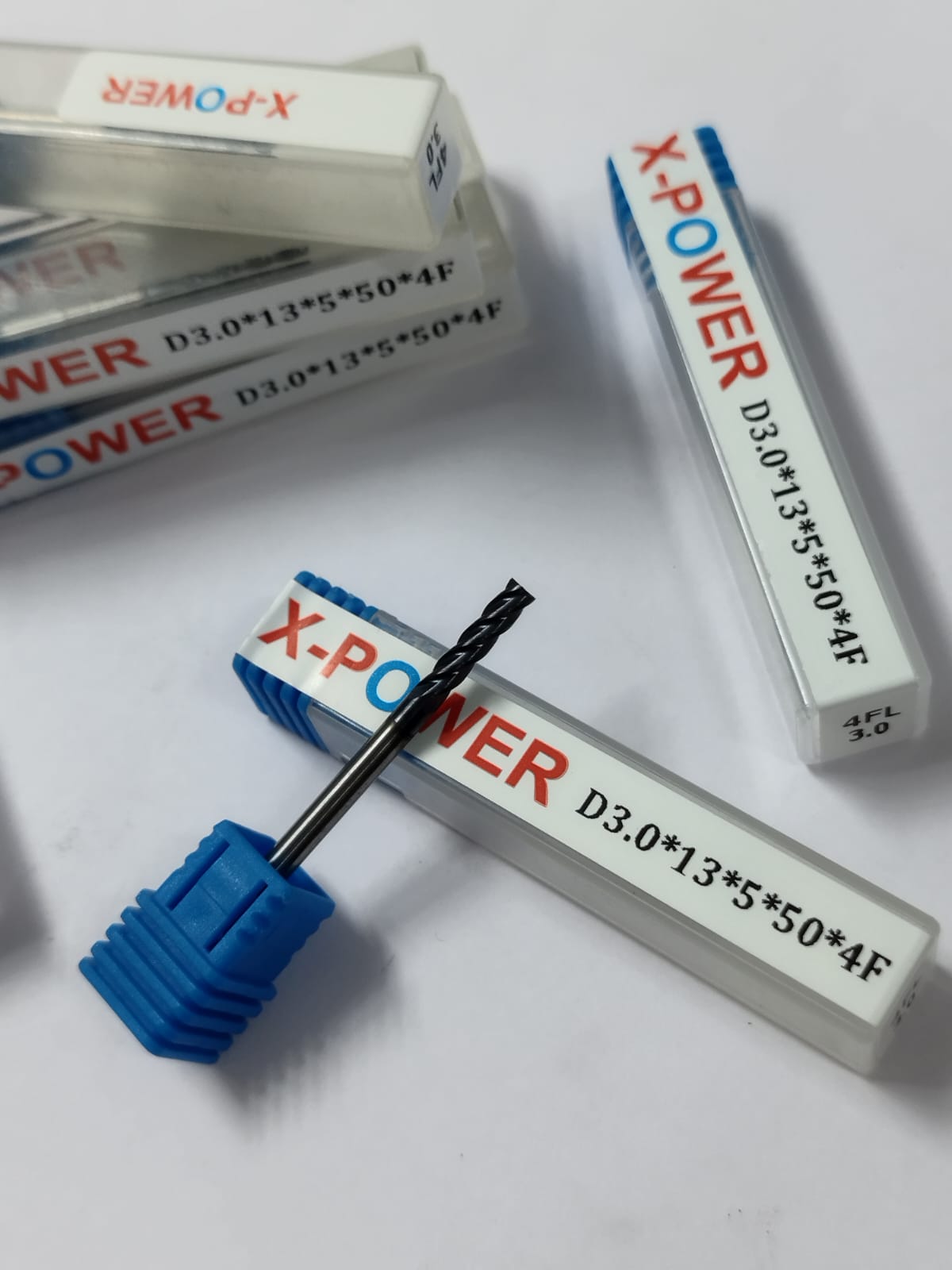

3 13 3 50 4 MCT1504

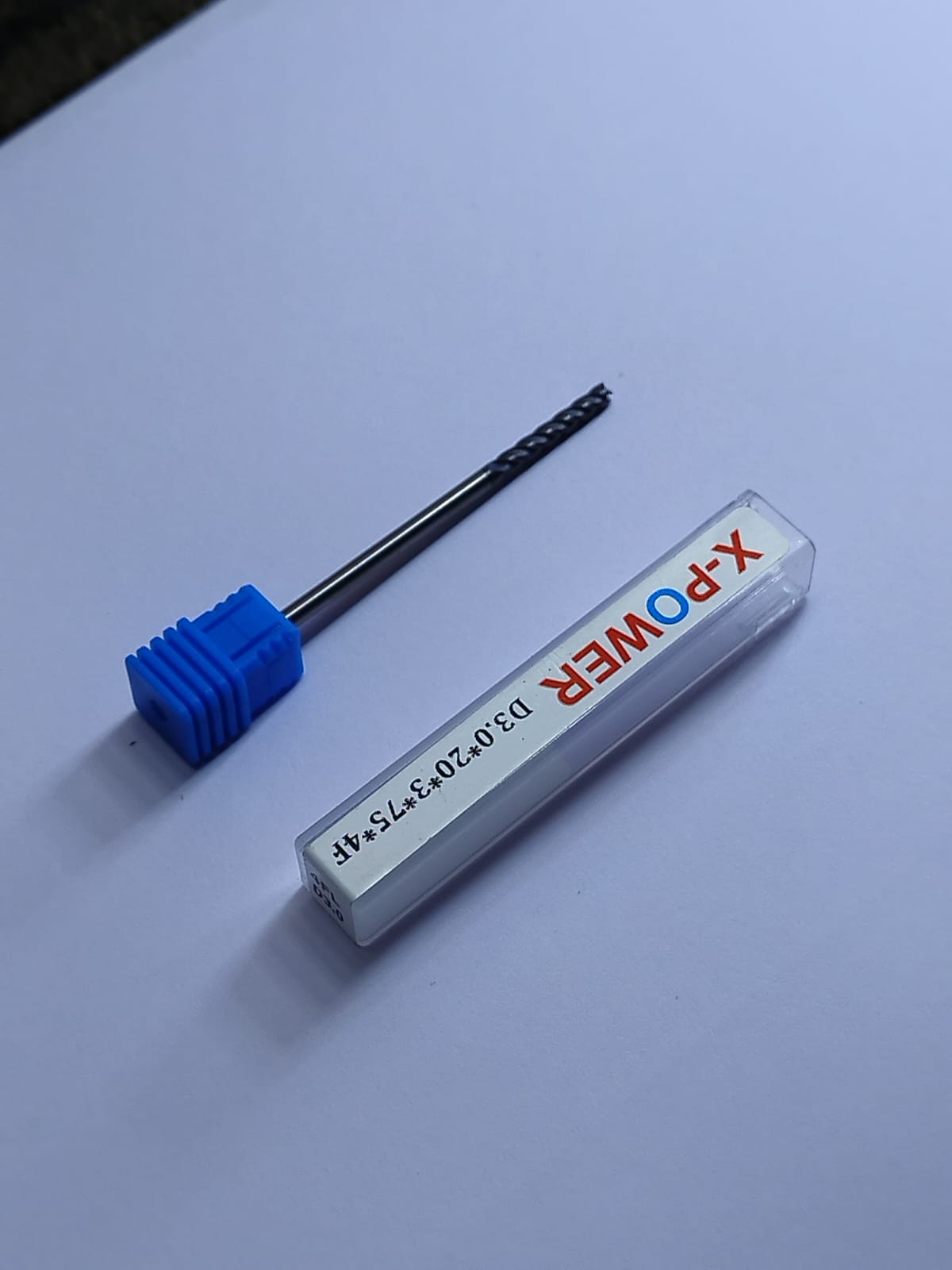

3 20 3 75 4 MCT1505

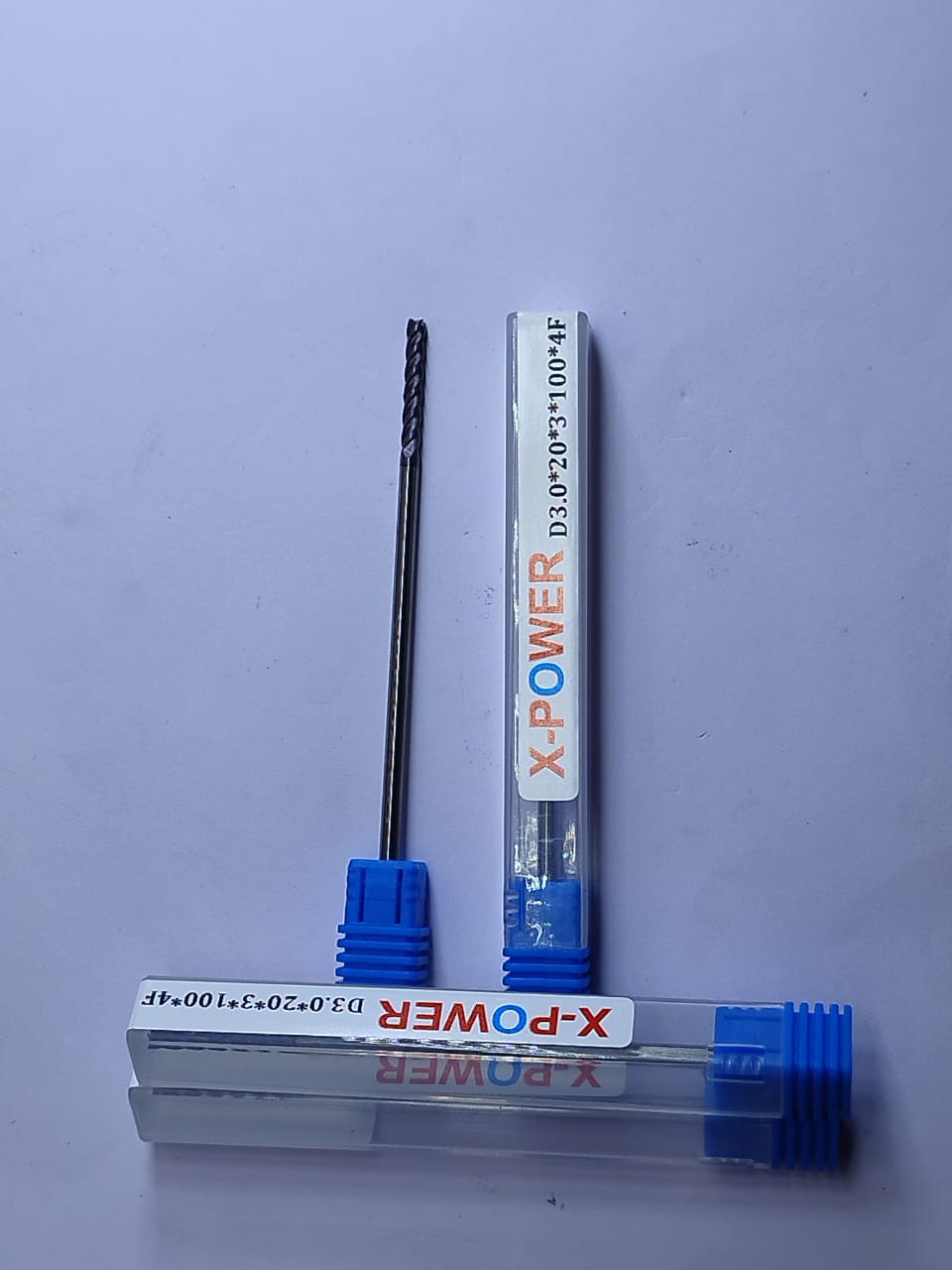

3 20 3 100 4 MCT1506
3.5 12 3.5 50 4 MCT1507
4 16 4 50 4 MCT1508

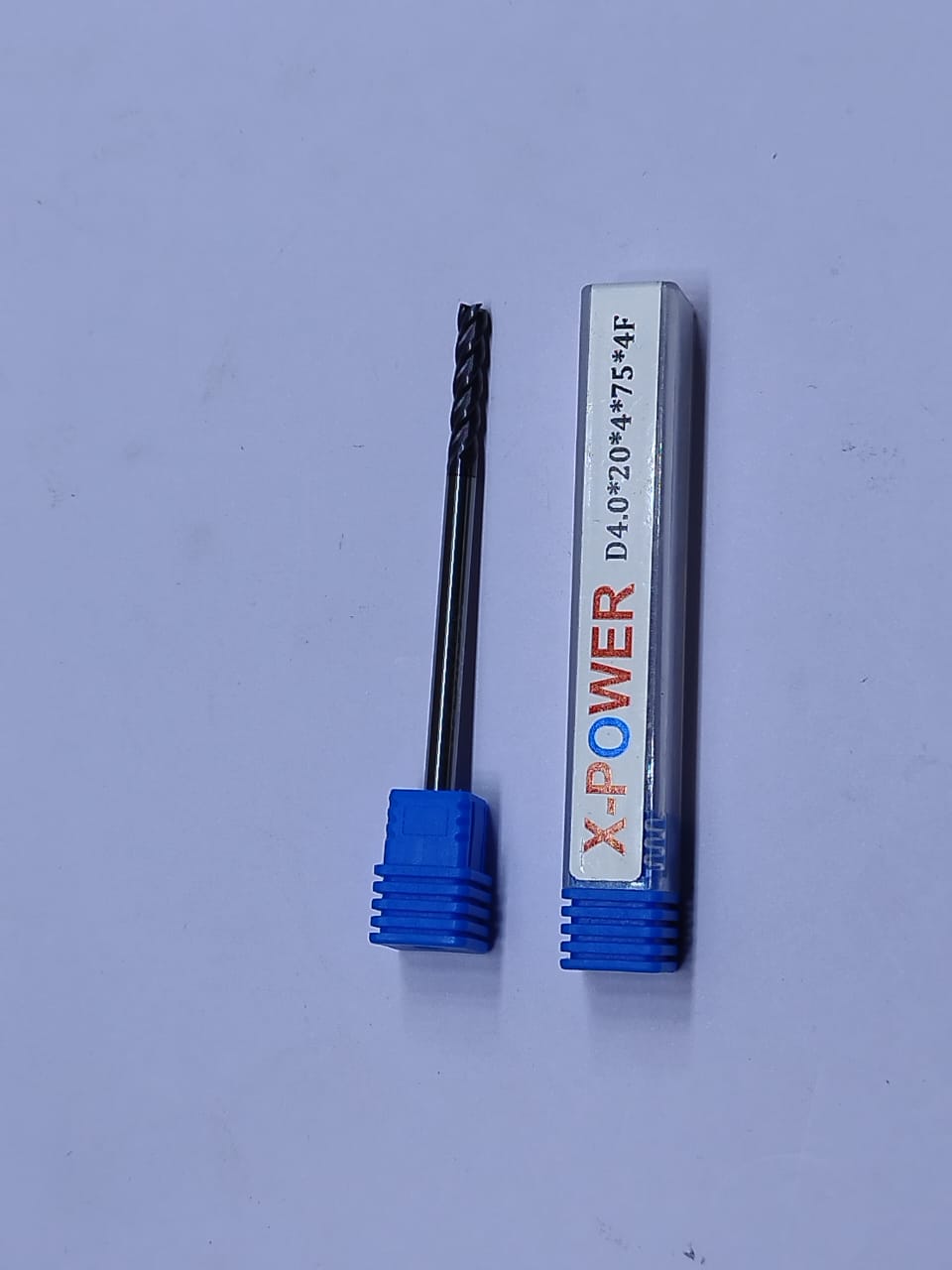

4 20 4 75 4 MCT1509

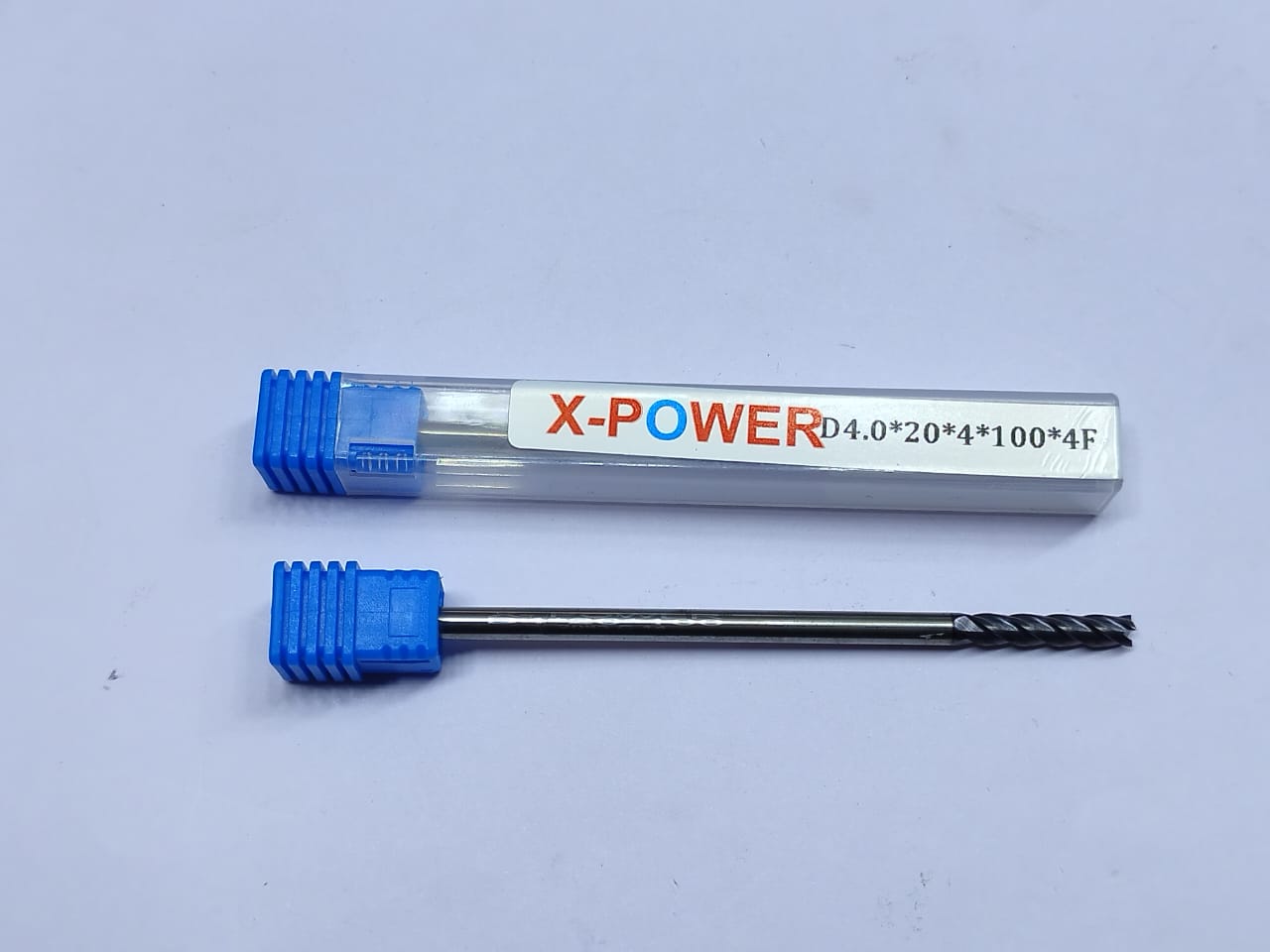

4 20 4 100 4 MCT1510
5 20 4 50 4 MCT1511
5 25 5 75 4 MCT1512
5 50 5 100 4 MCT1513
4.5 12 5 50 4 MCT1514
6 22 6 50 4 MCT1515

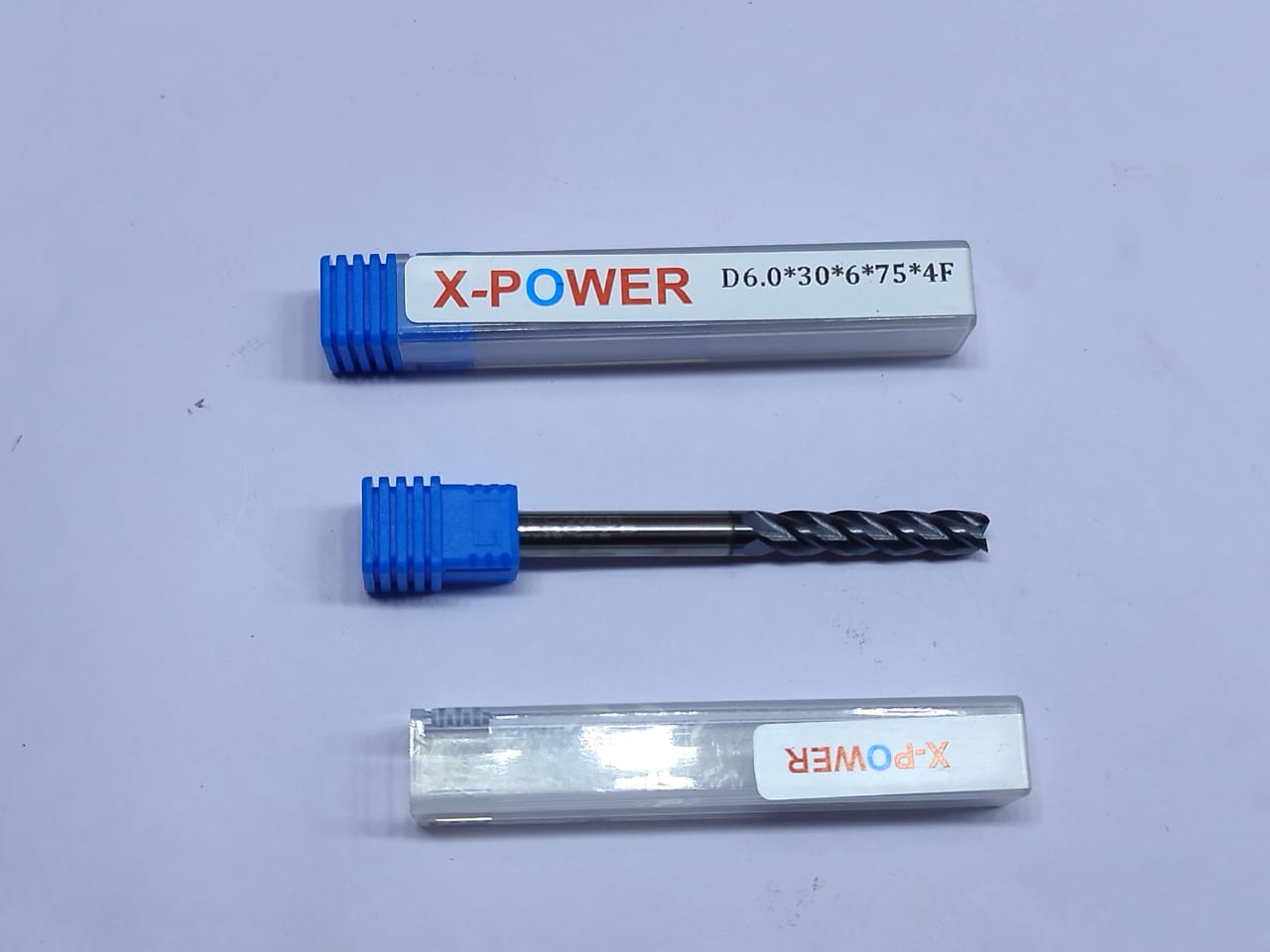

6 30 6 75 4 MCT1516

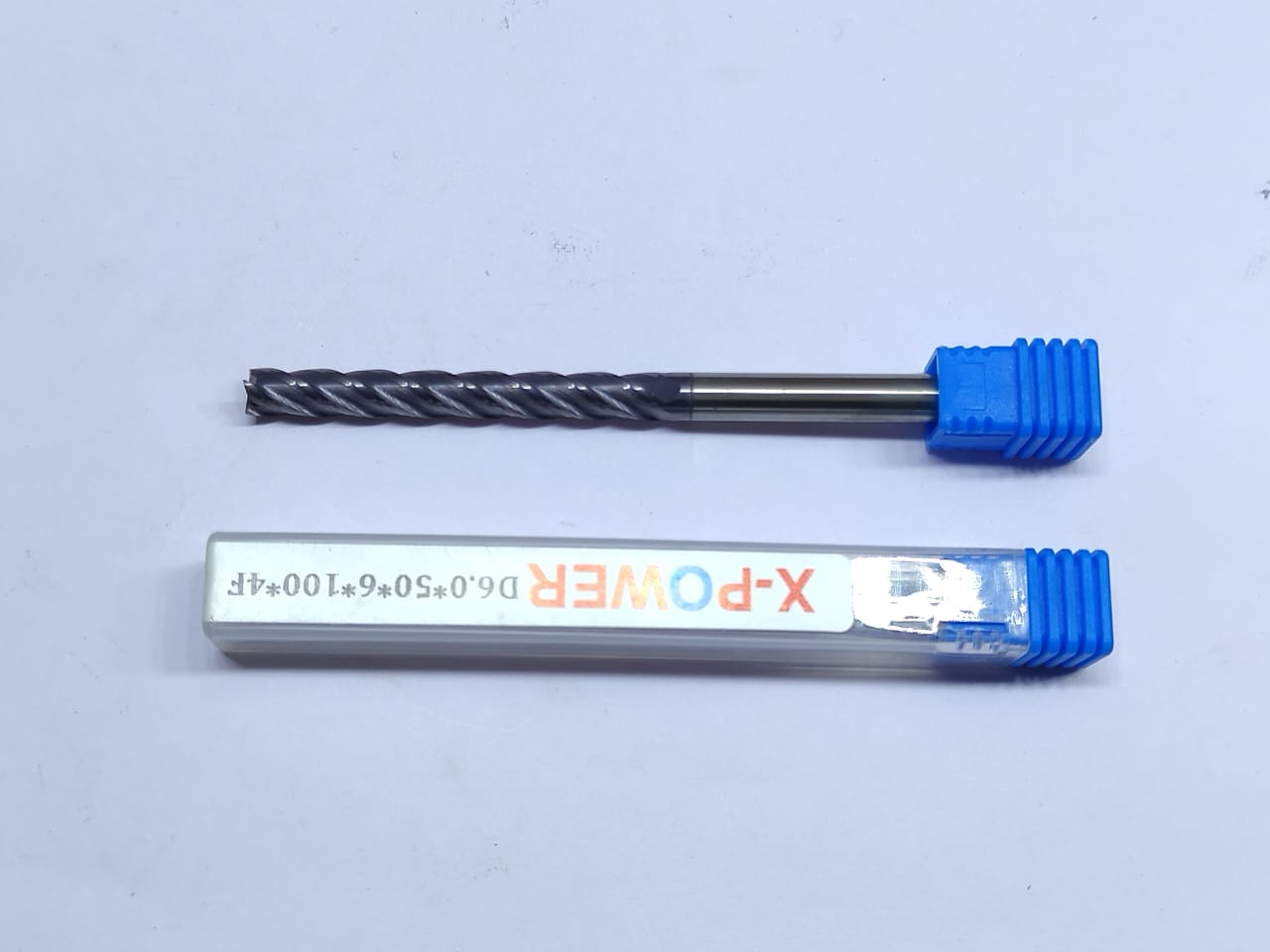

6 50 6 100 4 MCT1517
6 50 6 150 4 MCT1518
7 22 7 60 4 MCT1519
8 23 8 60 4 MCT1520
8 35 8 75 4 MCT1521

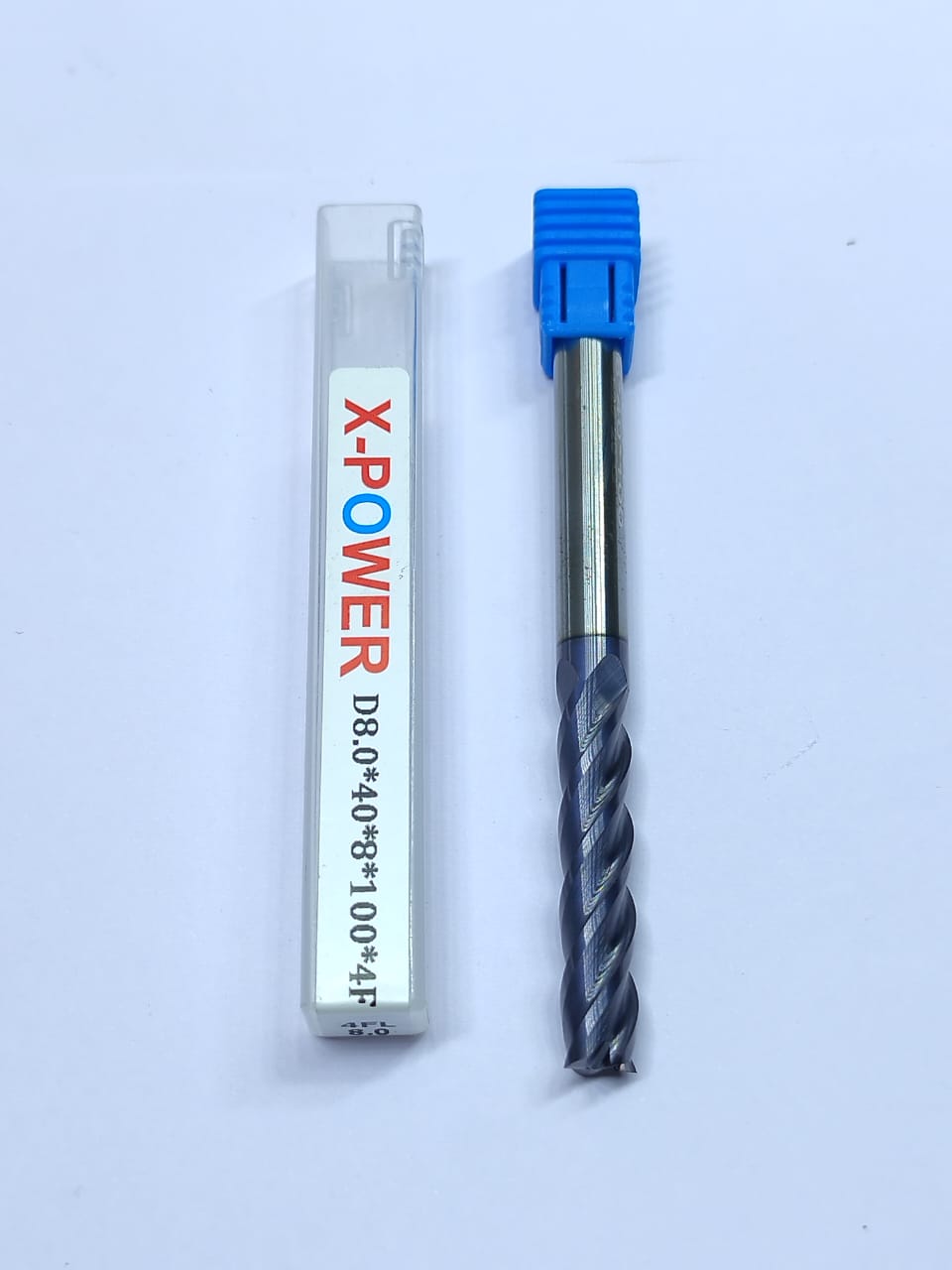

8 40 8 100 4 MCT1522
8 50 8 150 4 MCT1523
9 25 9 70 4 MCT1524

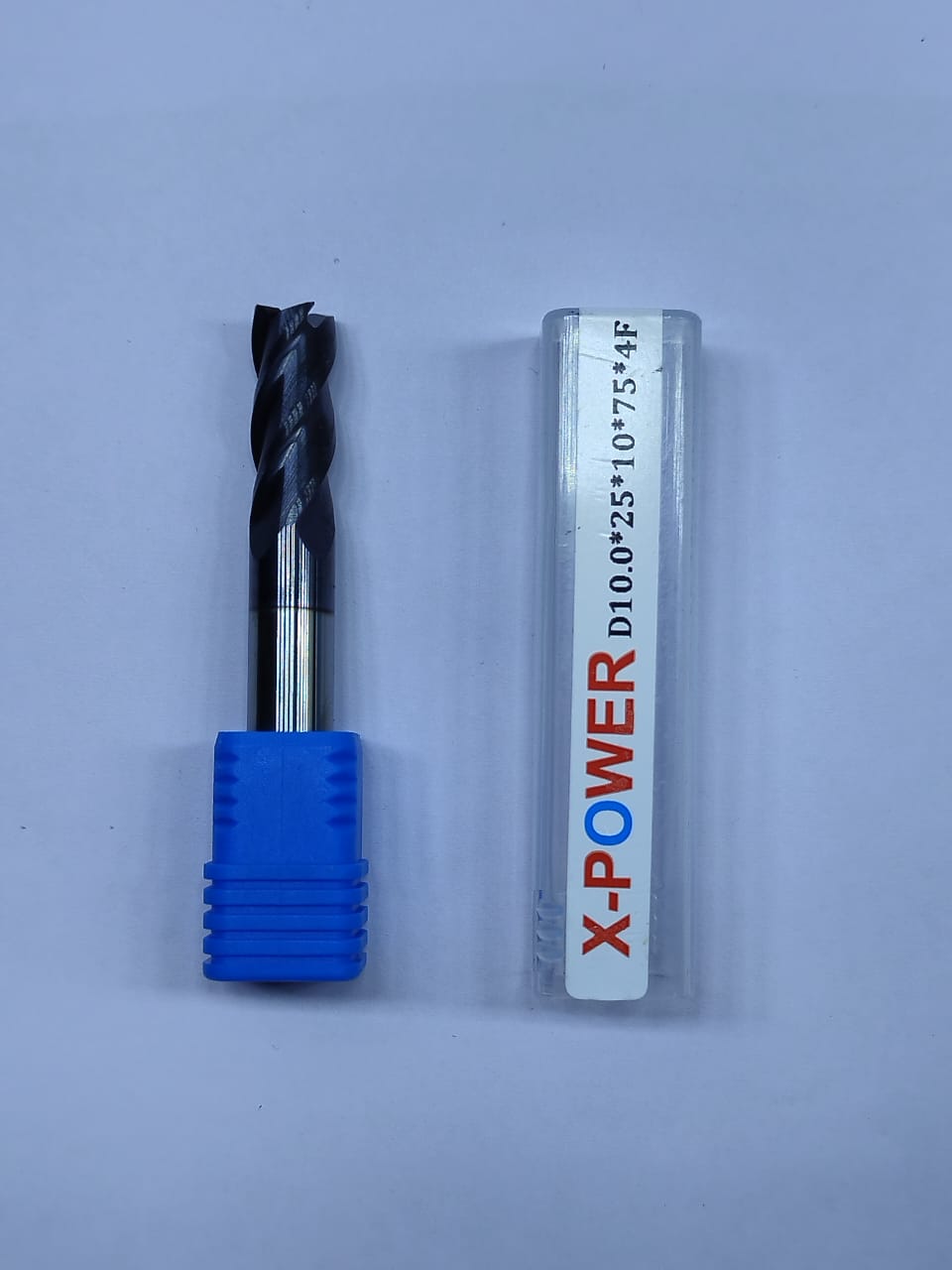

10 25 10 75 4 MCT1525
10 45 10 100 4 MCT1526
10 60 10 150 4 MCT1527
11 25 11 75 4 MCT1528

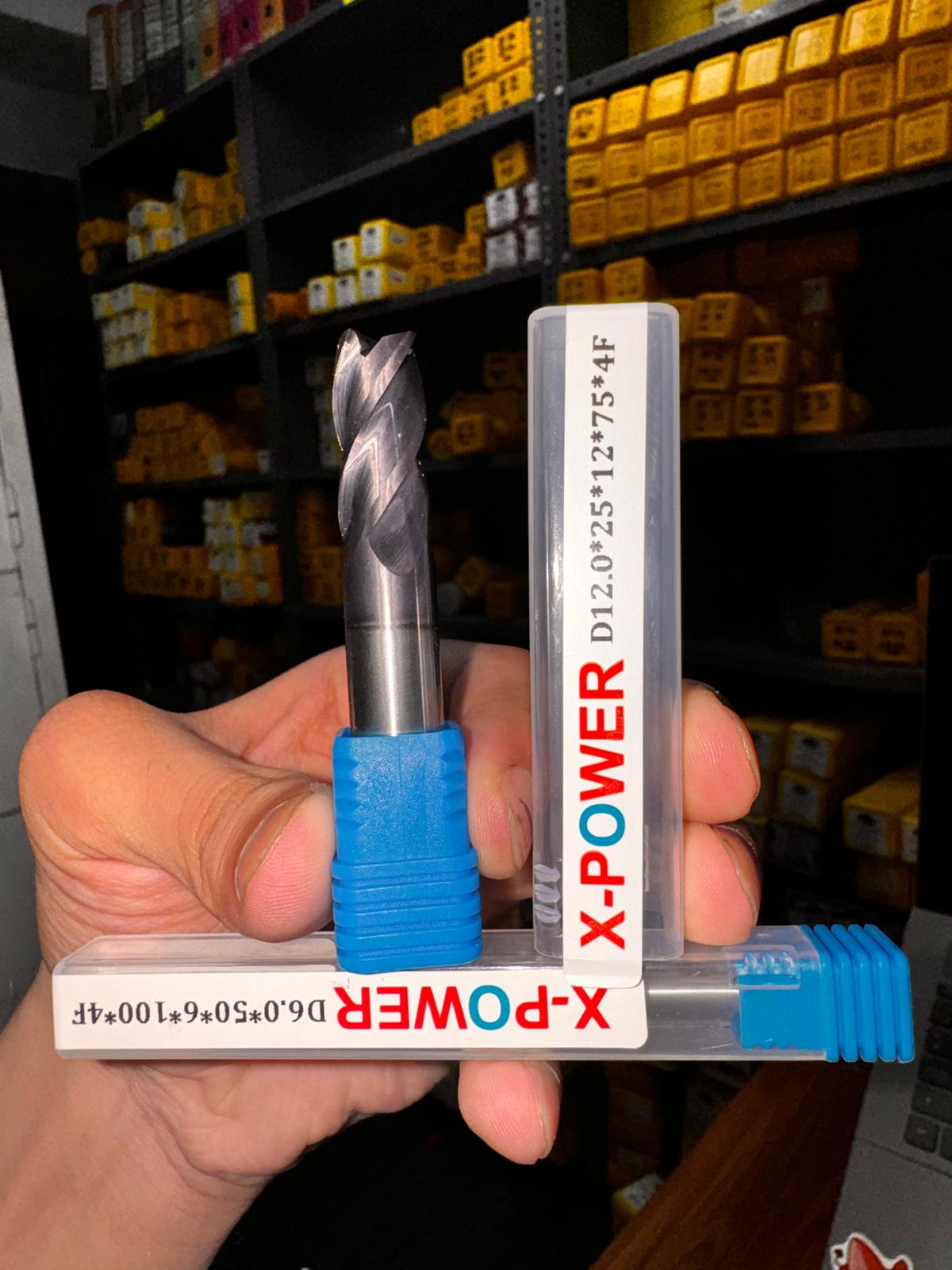

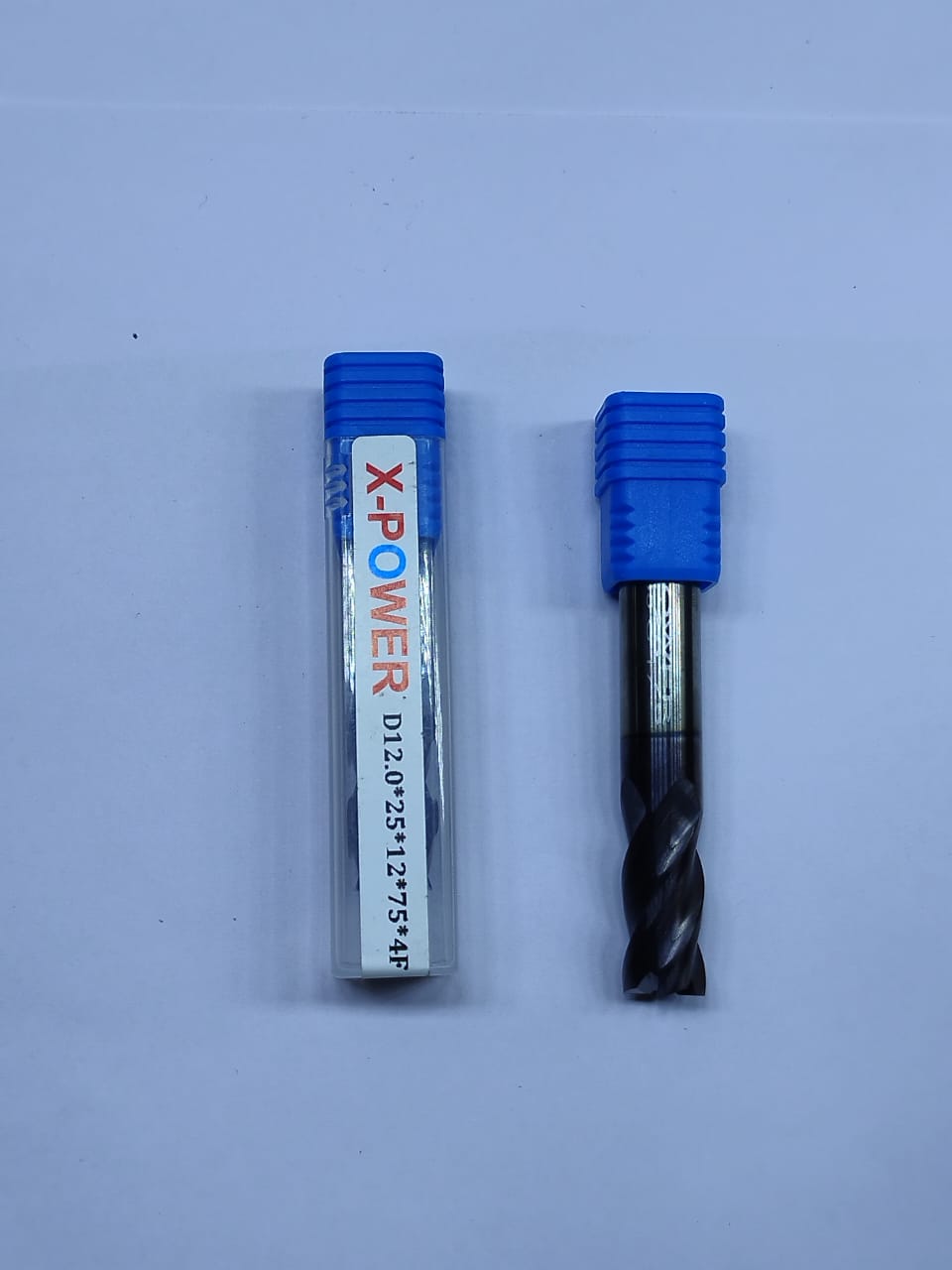

12 25 12 75 4 MCT1529

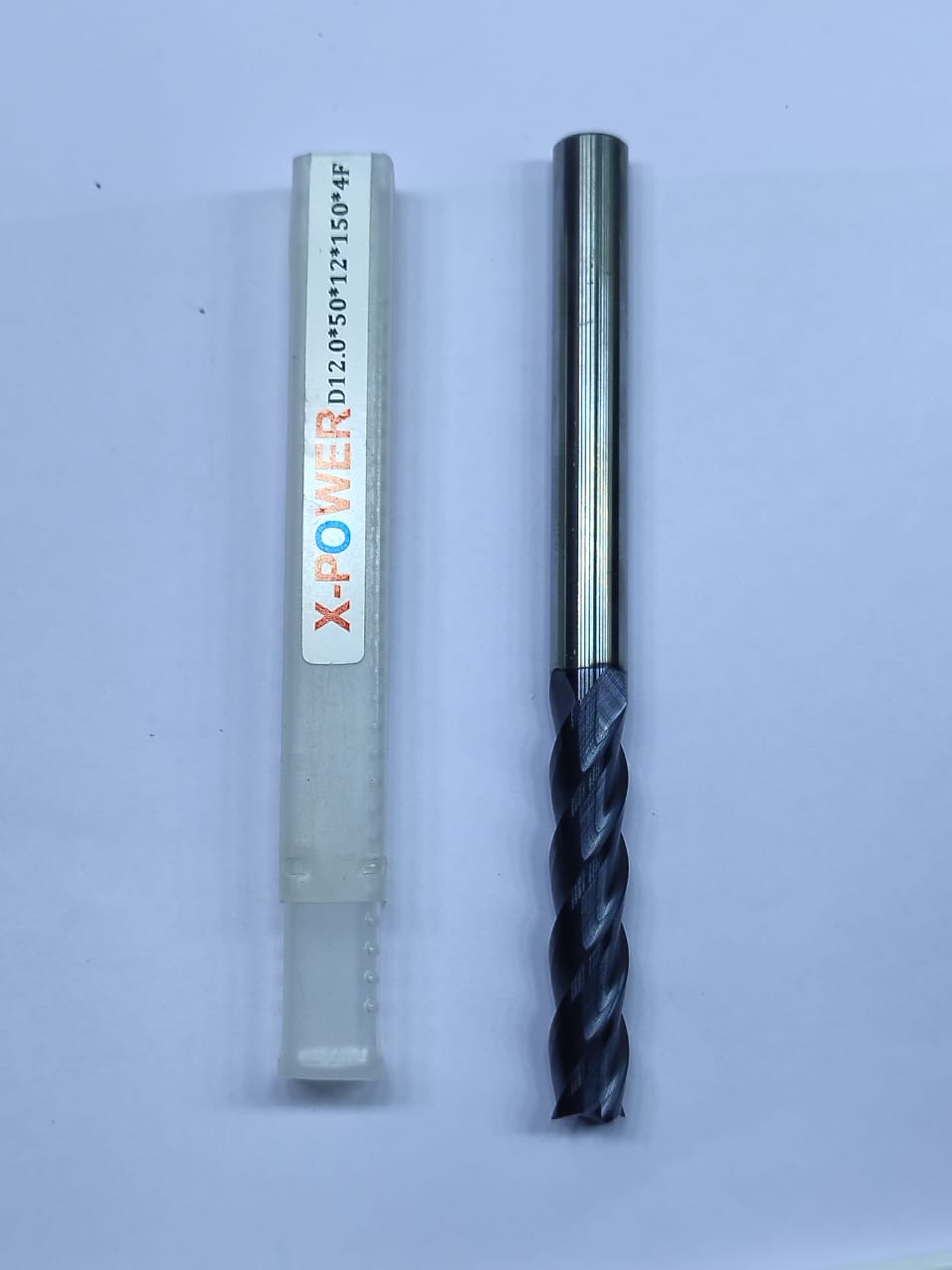

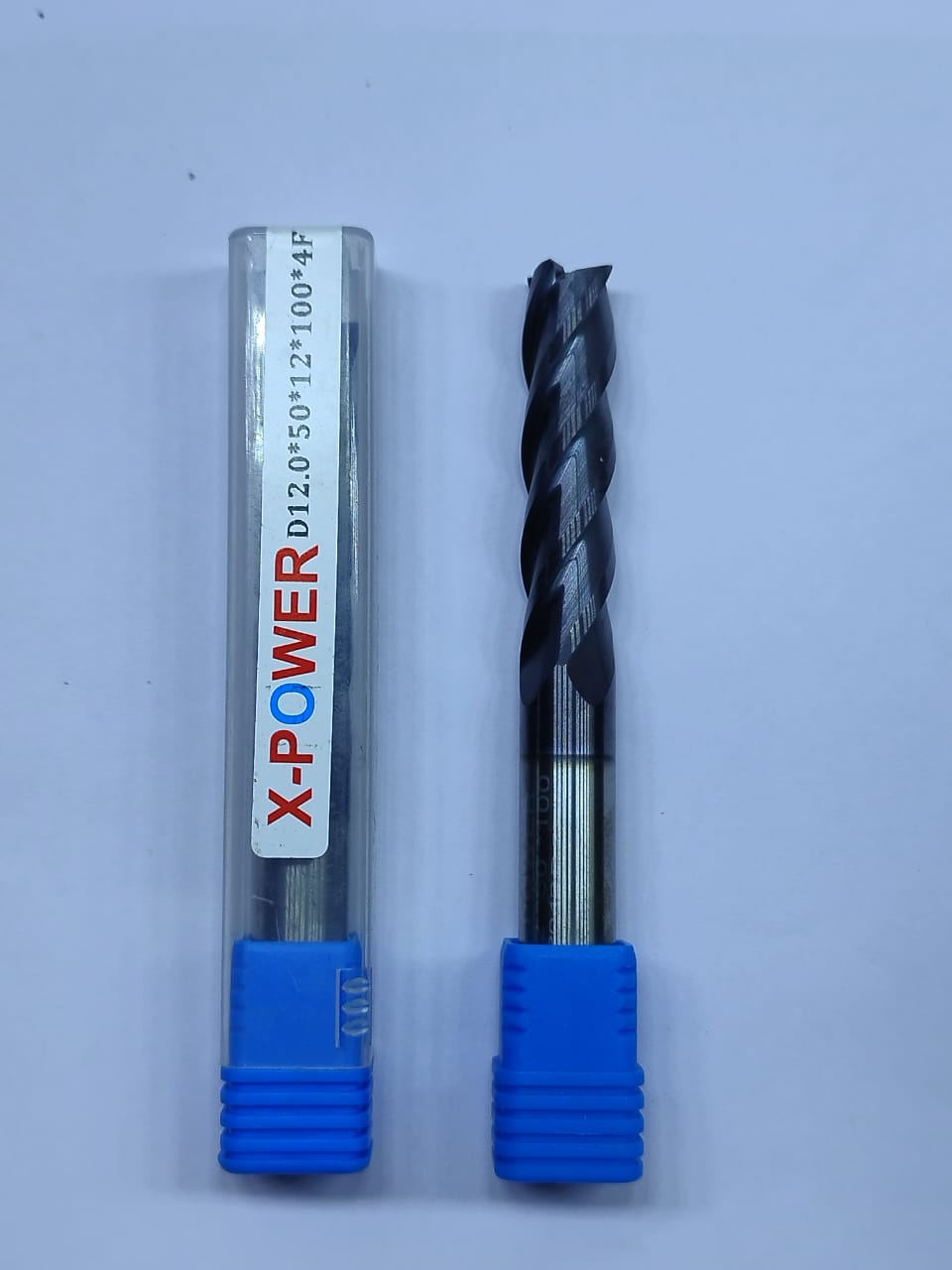

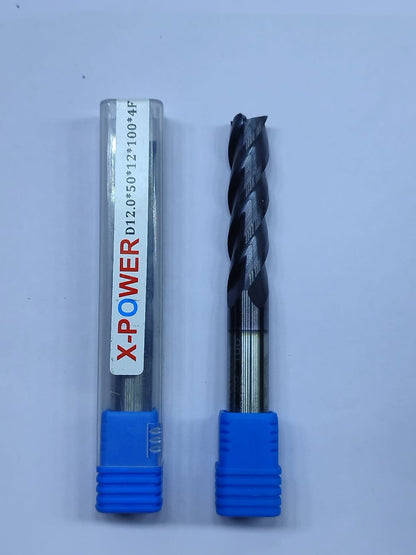

12 50 12 100 4 MCT1530
12 75 12 150 4 MCT1531
13 30 13 85 4 MCT1532
14 50 14 100 4 MCT1533
14 75 14 150 4 MCT1534
16 50 16 100 4 MCT1535

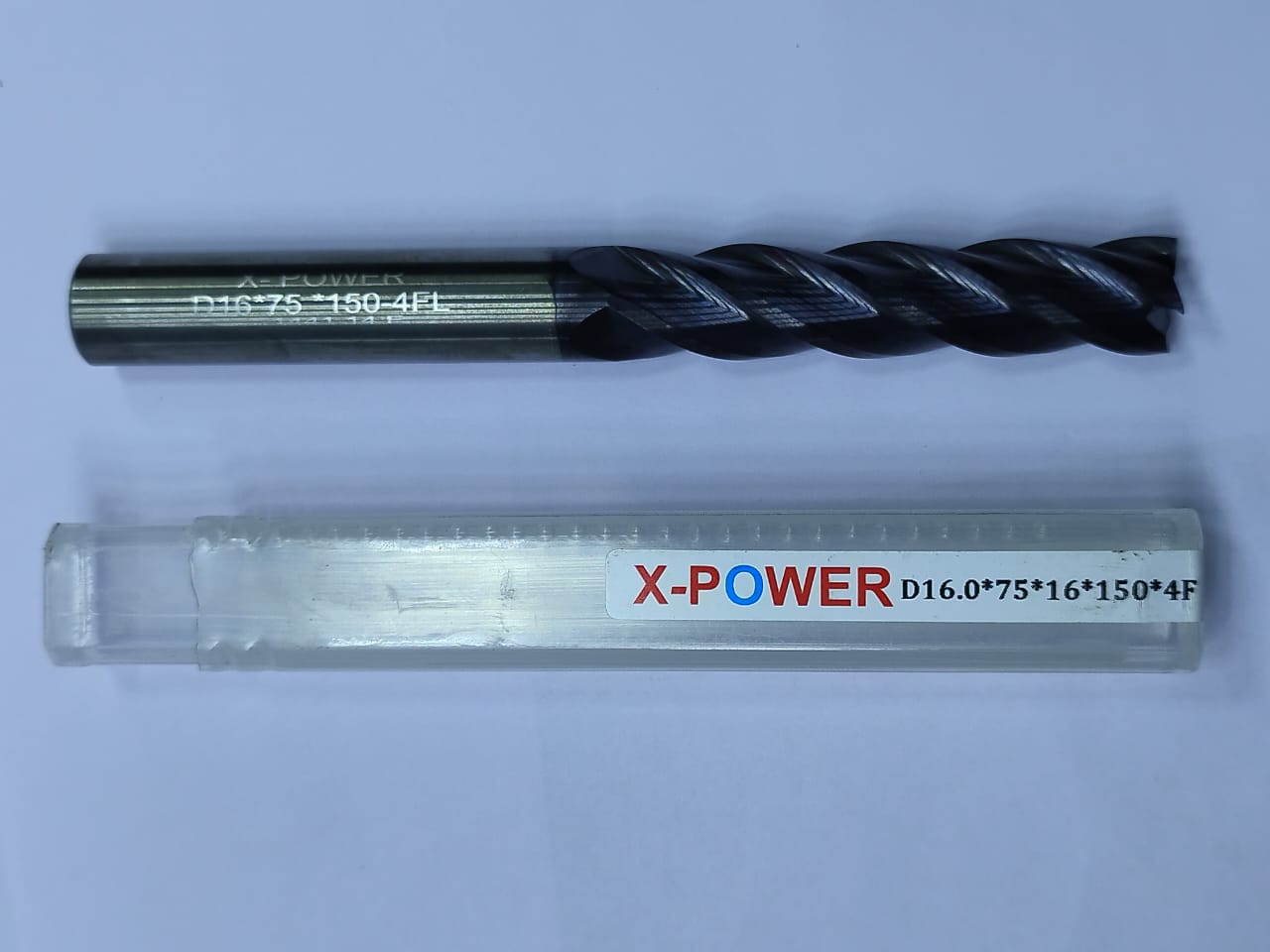

16 75 16 150 4 MCT1536
17 50 18 100 4 MCT1537

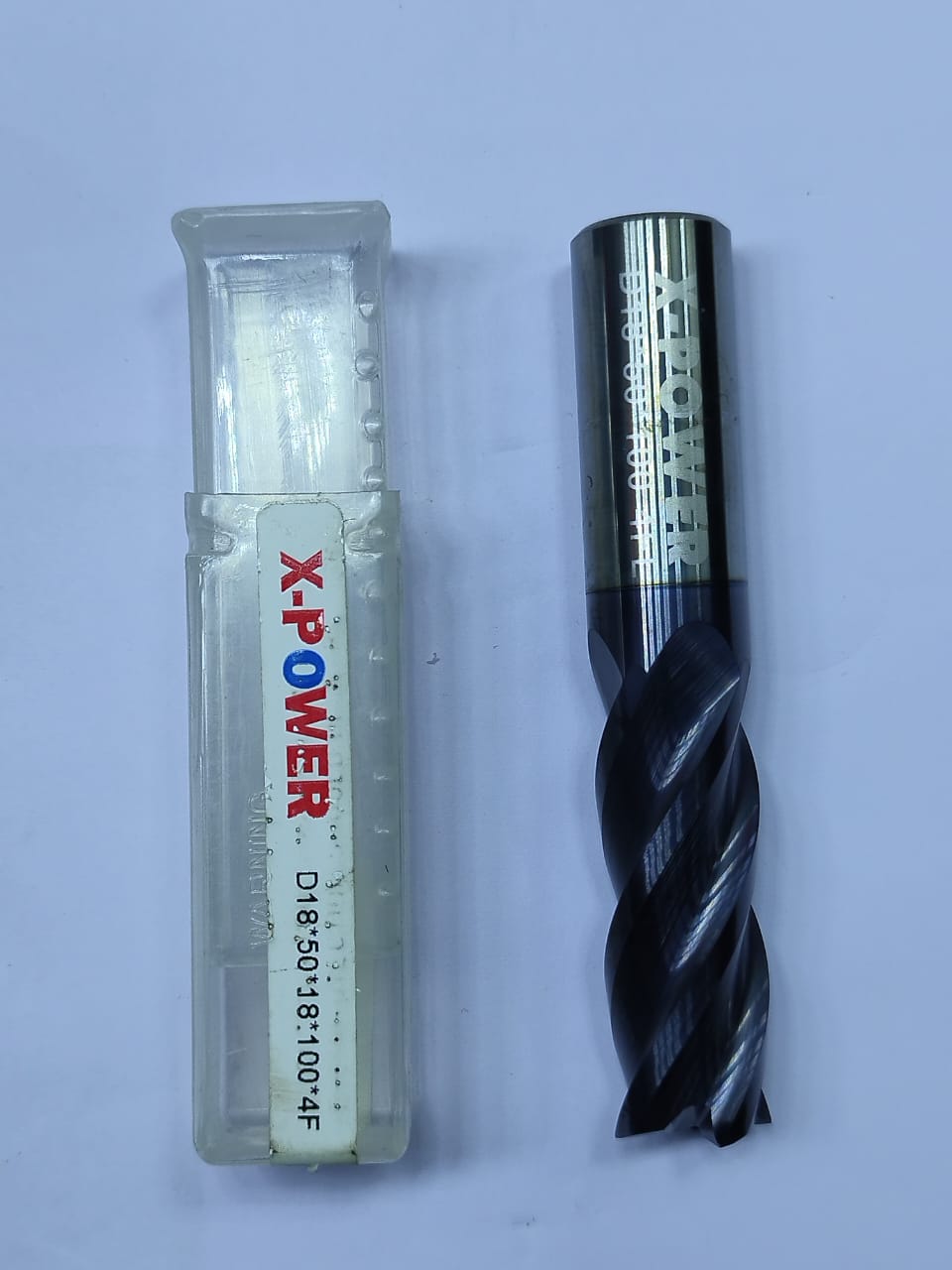

18 50 18 100 4 MCT1538
18 75 18 150 4 MCT1539
20 50 20 100 4 MCT1540
20 75 20 150 4 MCT1541
22 45 22 100 4 MCT1542
24 45 24 100 4 MCT1543

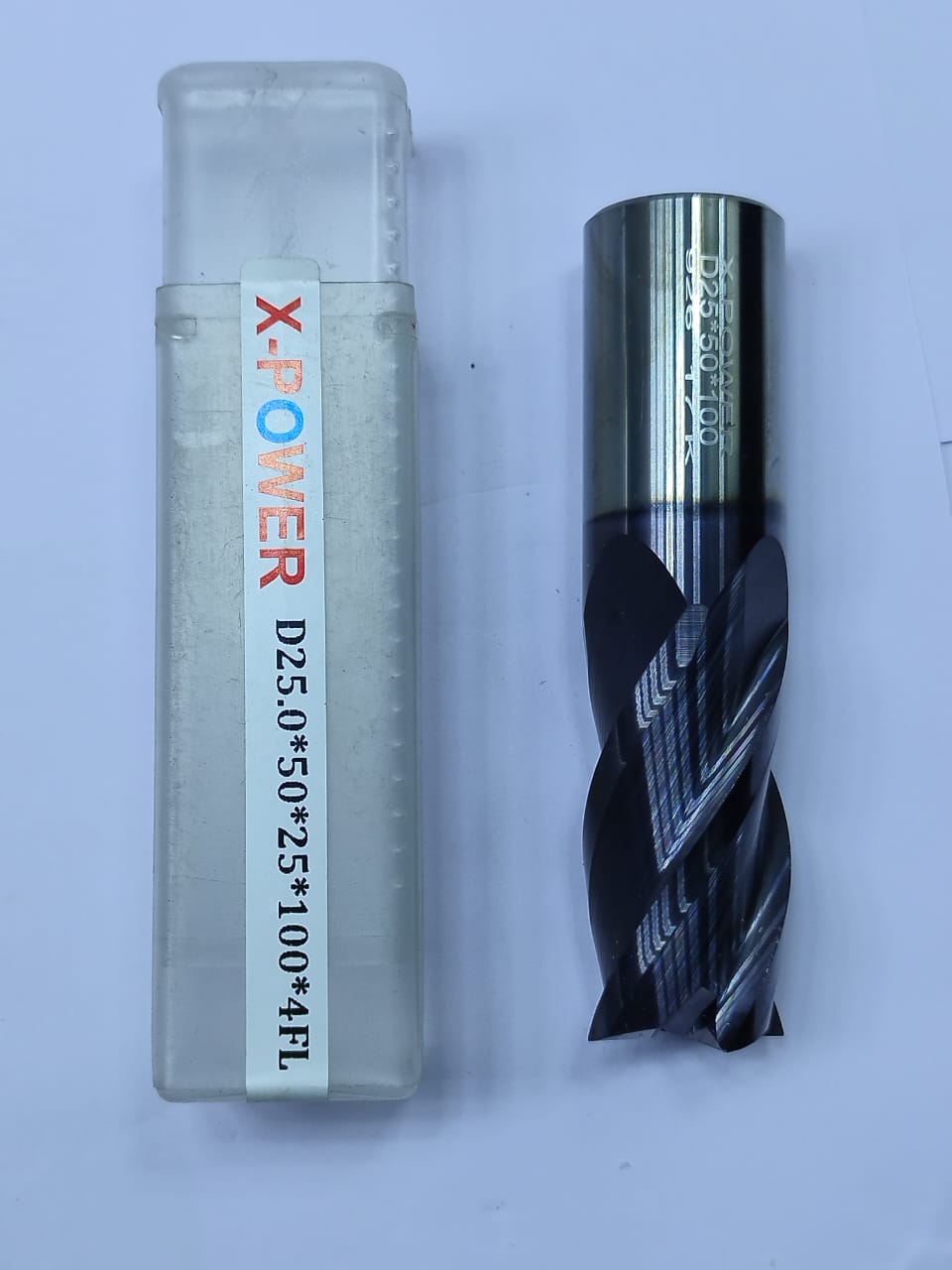

25 50 25 100 4 MCT1544
25 75 25 150 4 MCT1545



Extra Long Series
 Endmill 45 HRC
Diameter (D) Cutting Length (LC) Shank Diameter (d) Overall Length Flutes Code
8 100 8 200 4 MCT1546
10 100 10 200 4 MCT1547
12 100 12 200 4 MCT1548
16 100 16 200 4 MCT1549
20 100 20 200 4 MCT1550
Diameter
Length
