Endmill 4F HRC 55

Endmill 4F HRC 55

Rs. 275.00
Rs. 275.00
Sale Sold out
Shipping calculated at checkout.
Diameter
Length

4 Flute Endmill

Brand : MCT

HCR 55

Cutting Length : Standard for size.

For special cutting length -> check under endmill 4F HRC 45

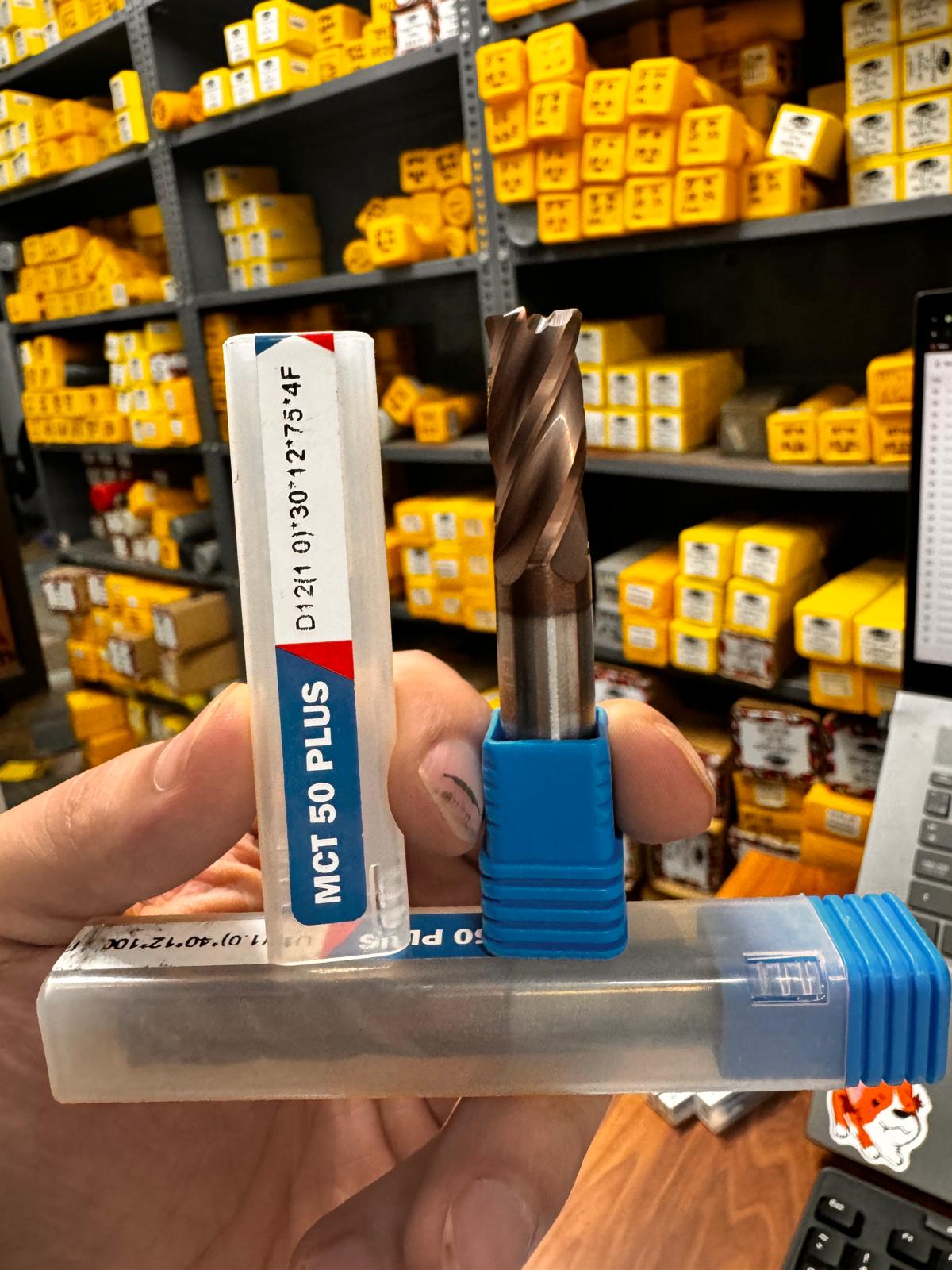

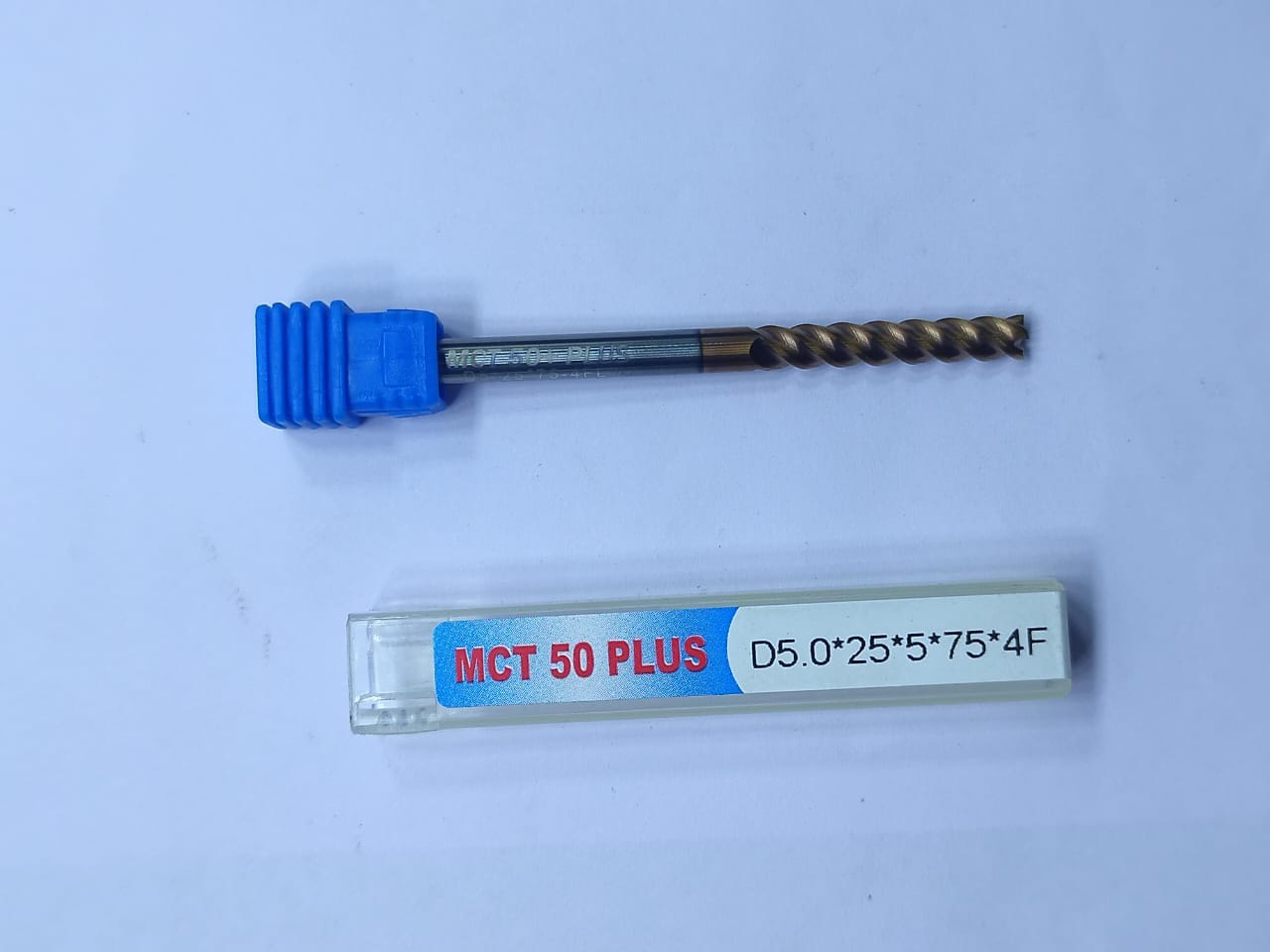

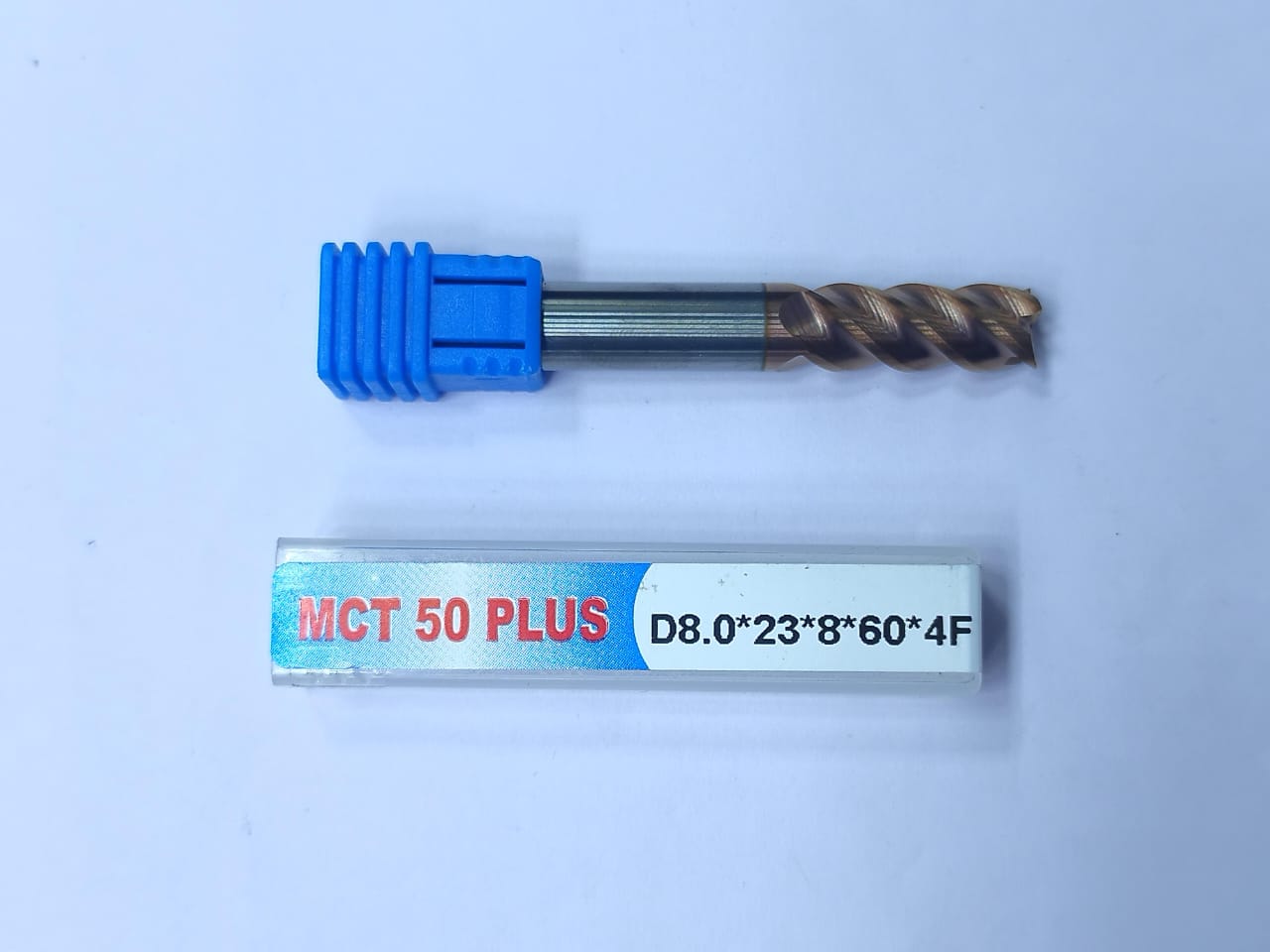

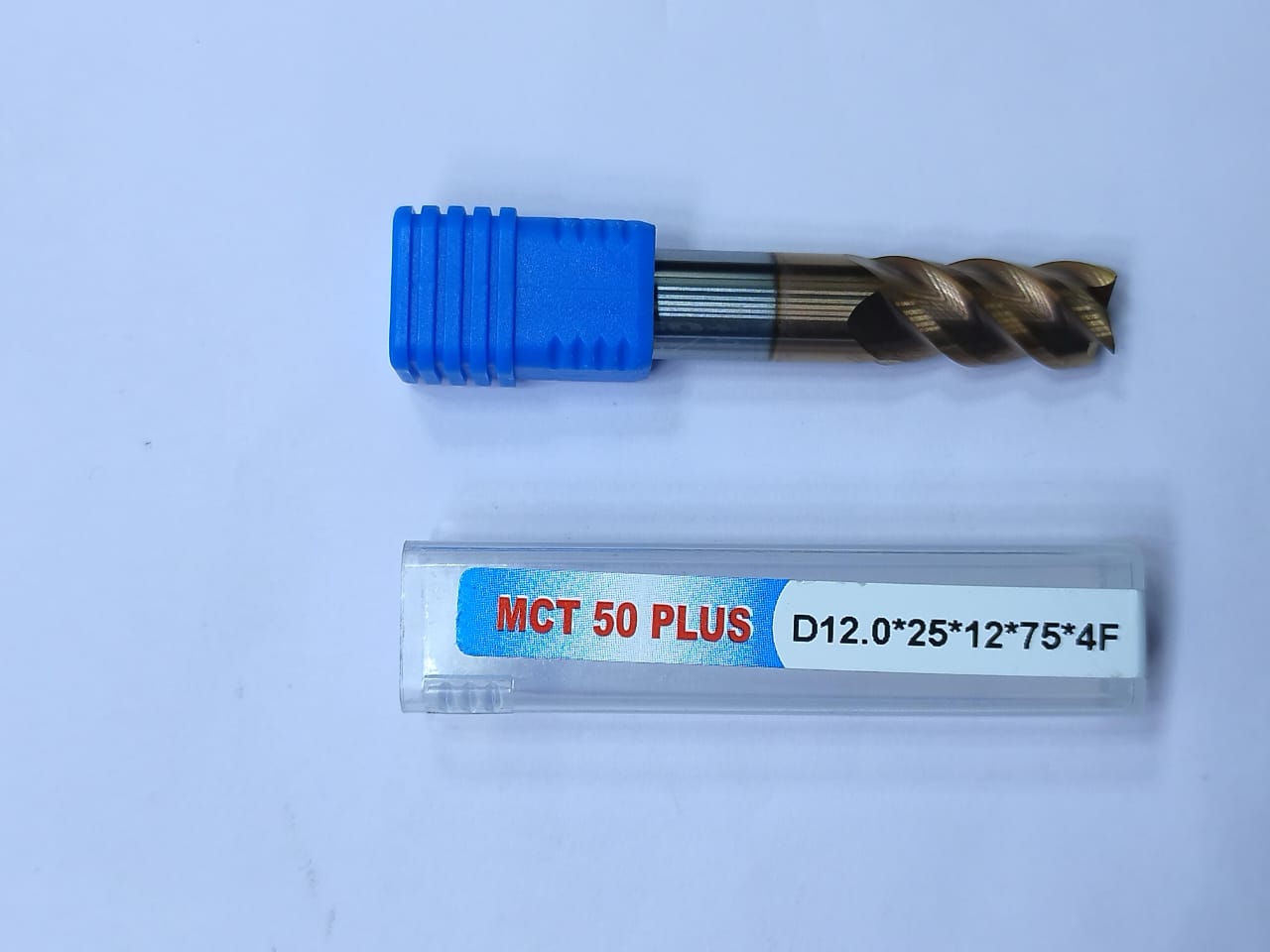

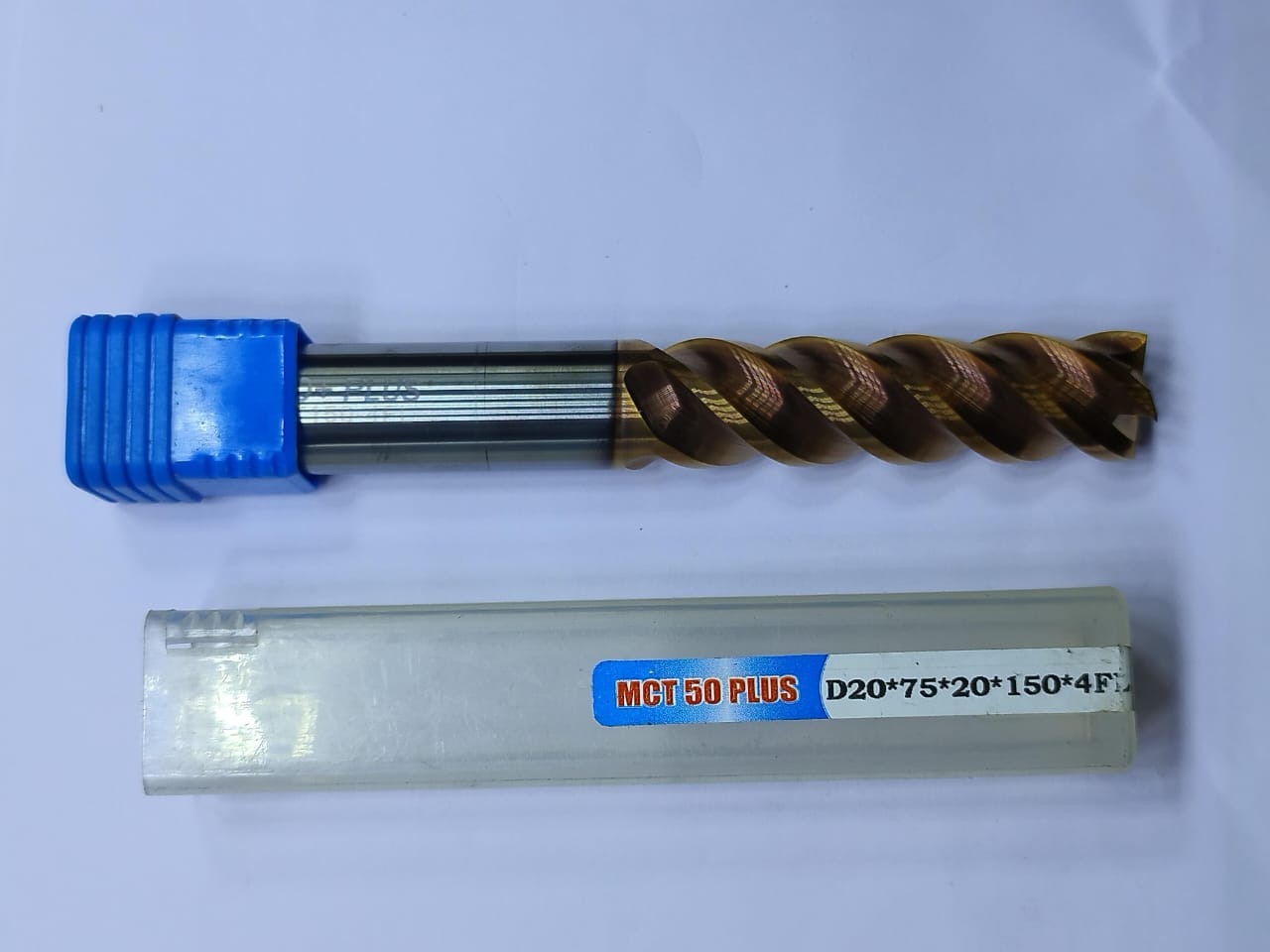

( Photo depicting one piece for 12mm for sample )

Diameter (D) Cutting Length (LC) Shank Diameter (d) Overall Length Flutes Code

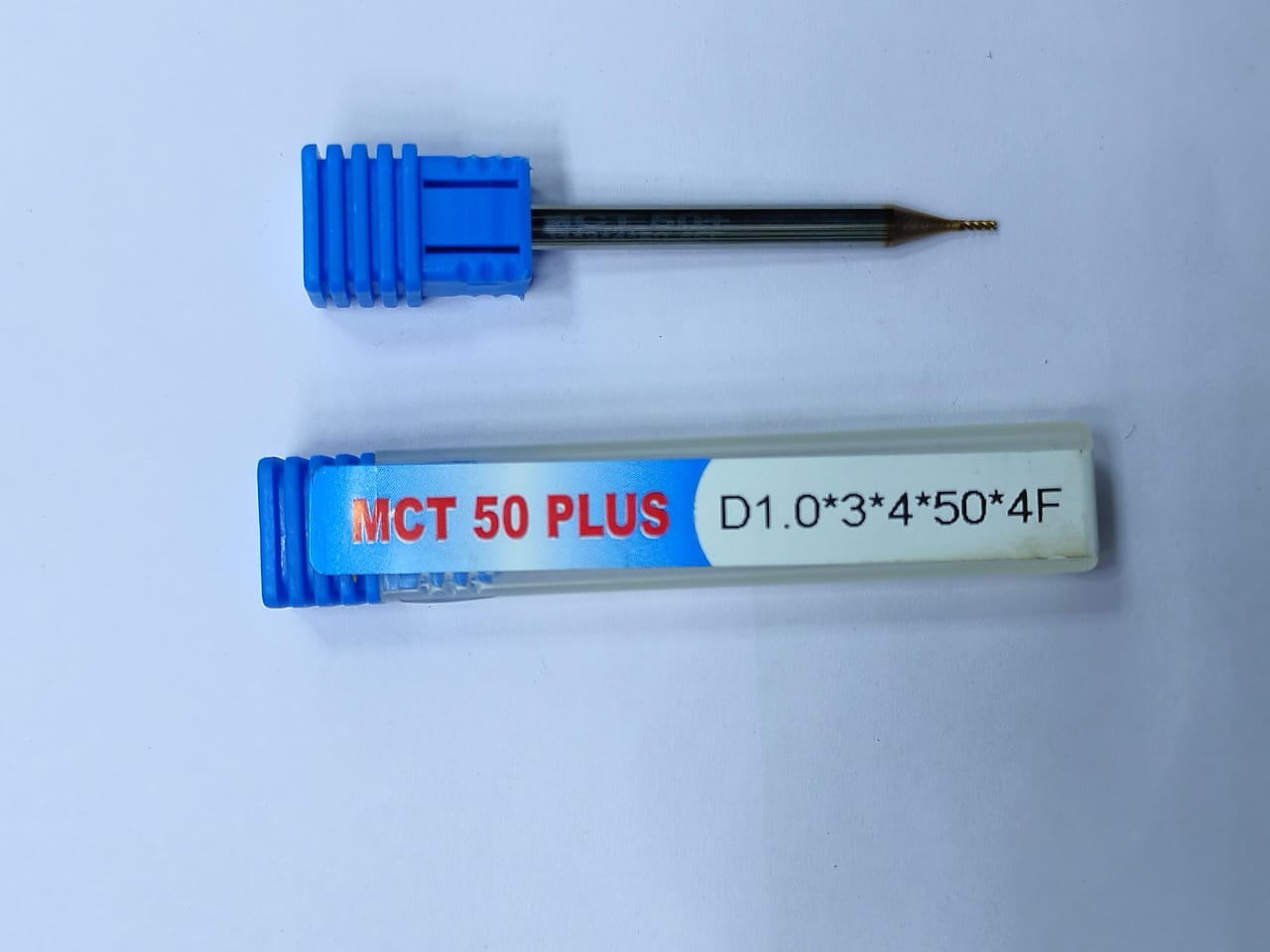

1 3 4 50 4 MCT1594

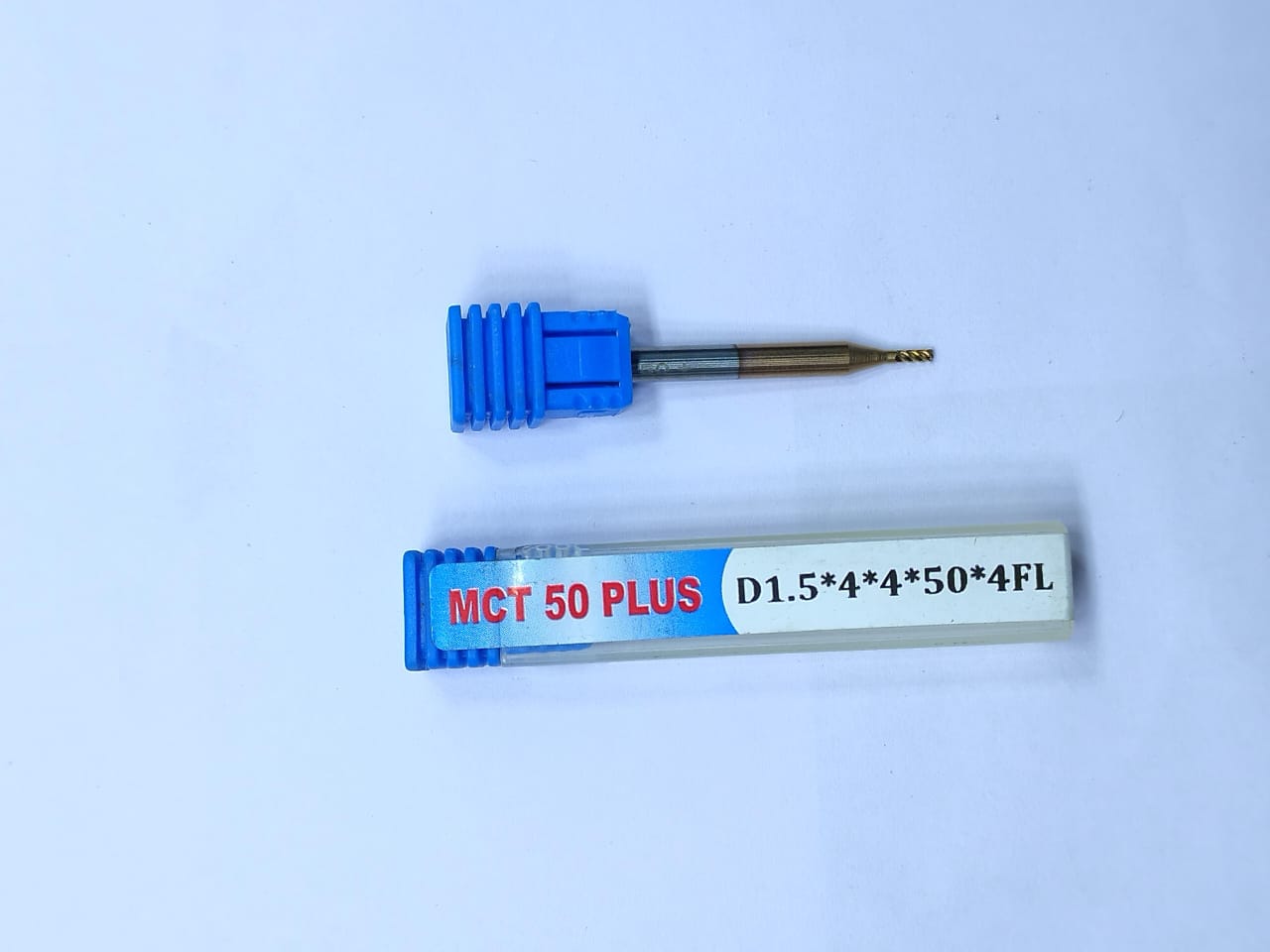

1.5 4 4 50 4 MCT1595

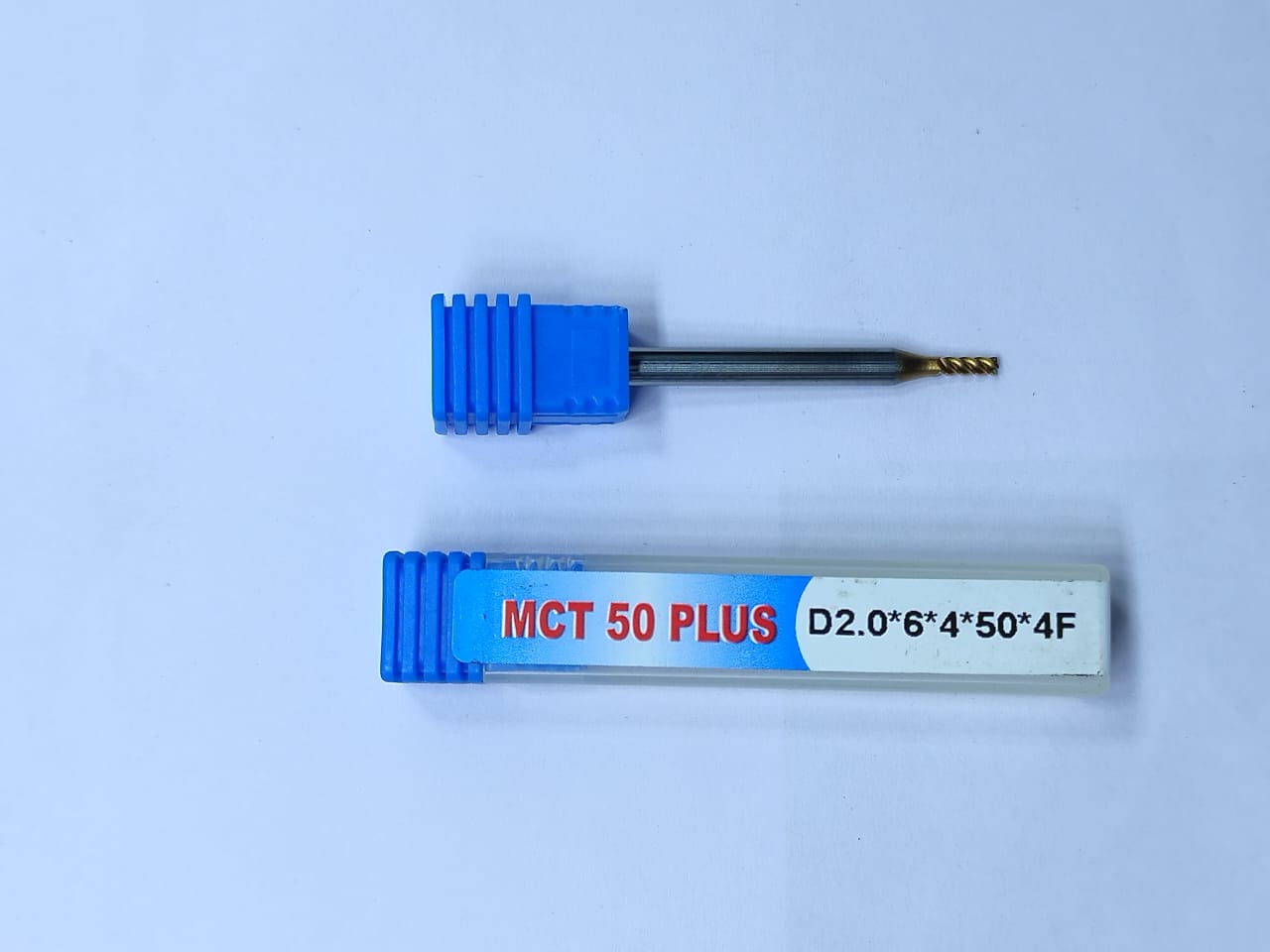

2 6 4 50 4 MCT1596
2.5 7 4 50 4 MCT1597

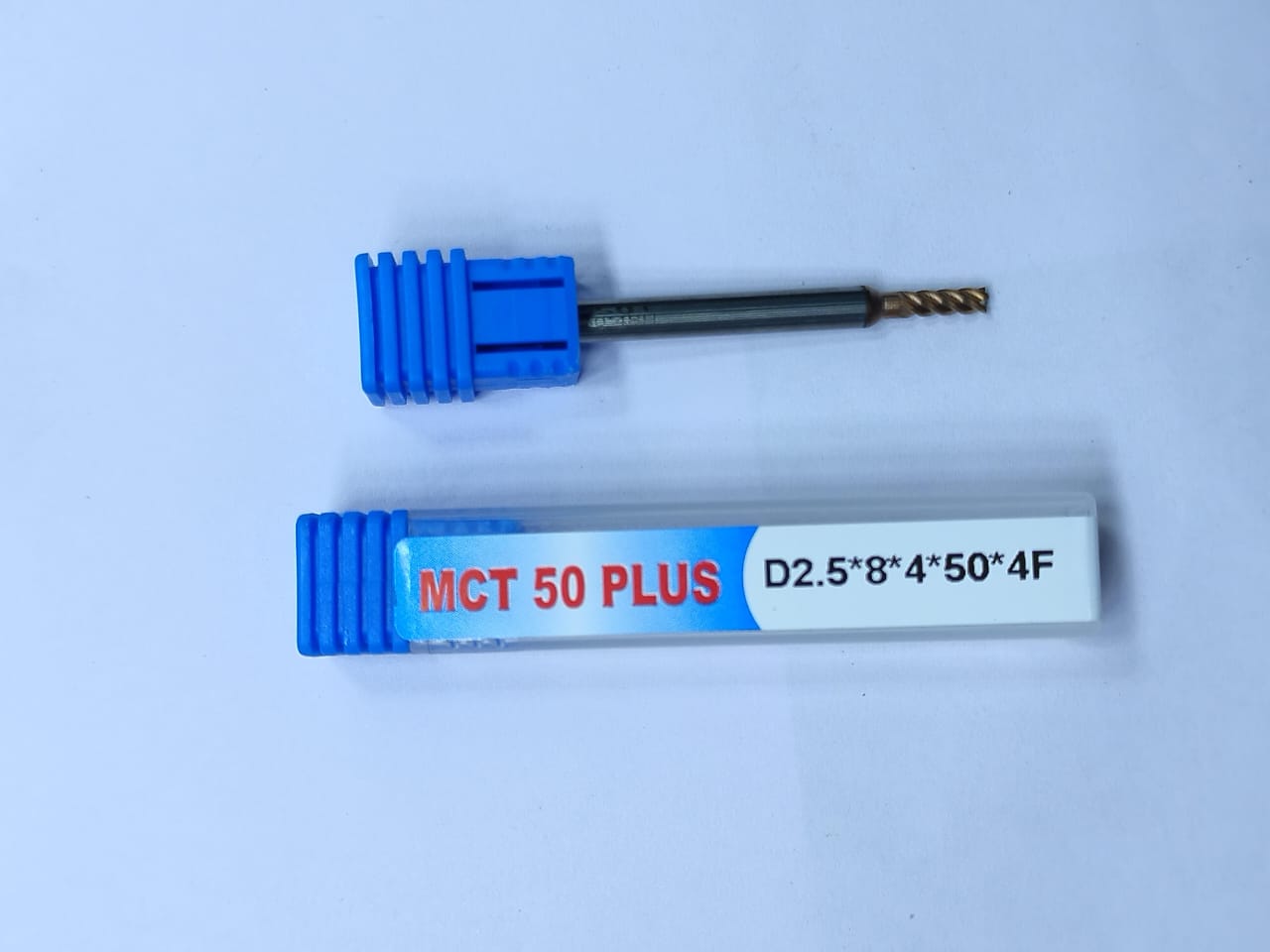

2.5 8 6 50 4 MCT1598

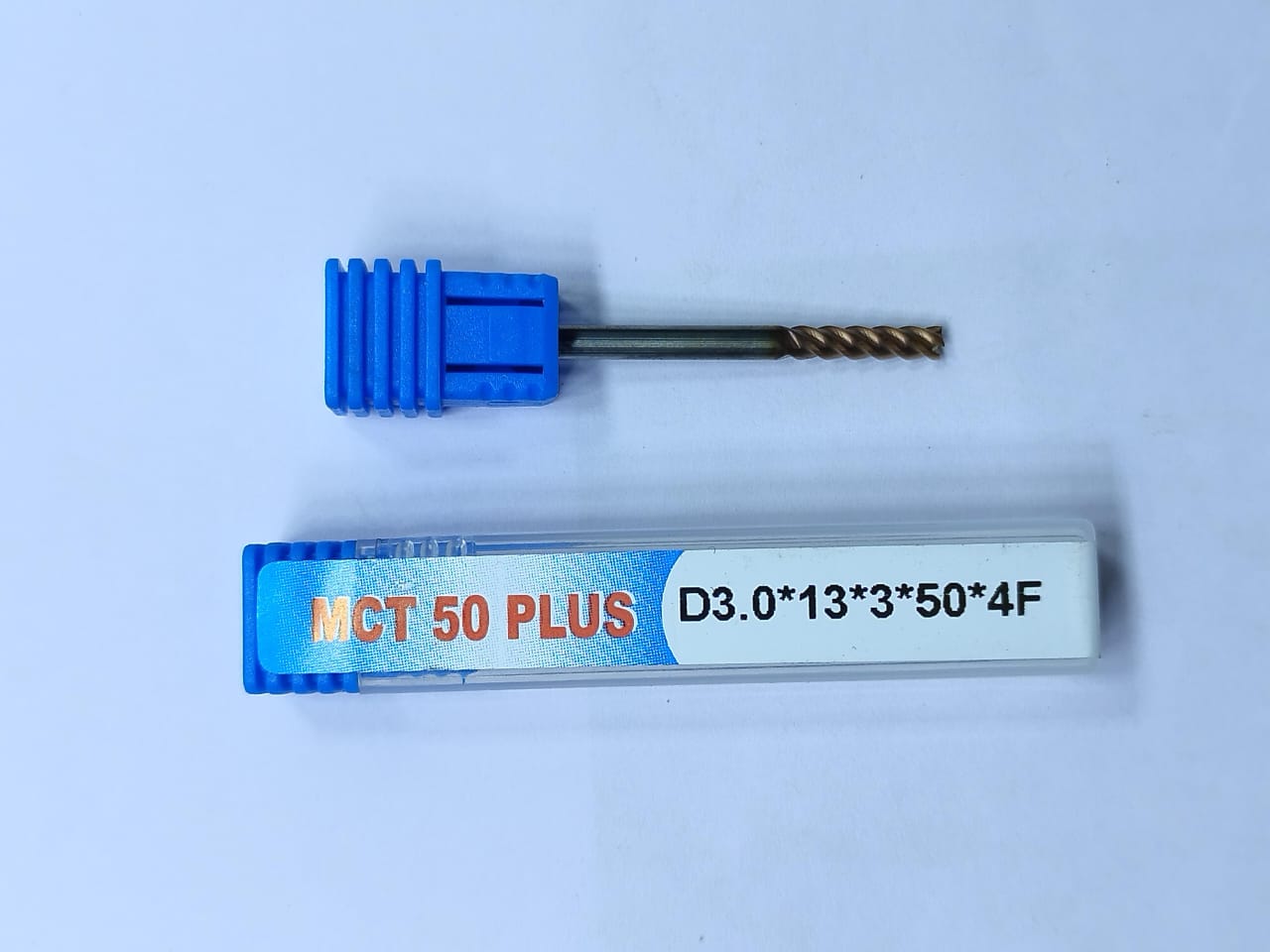

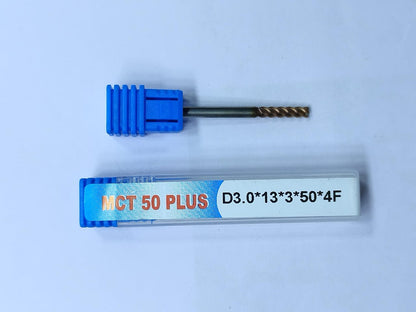

3 13 3 50 4 MCT1599

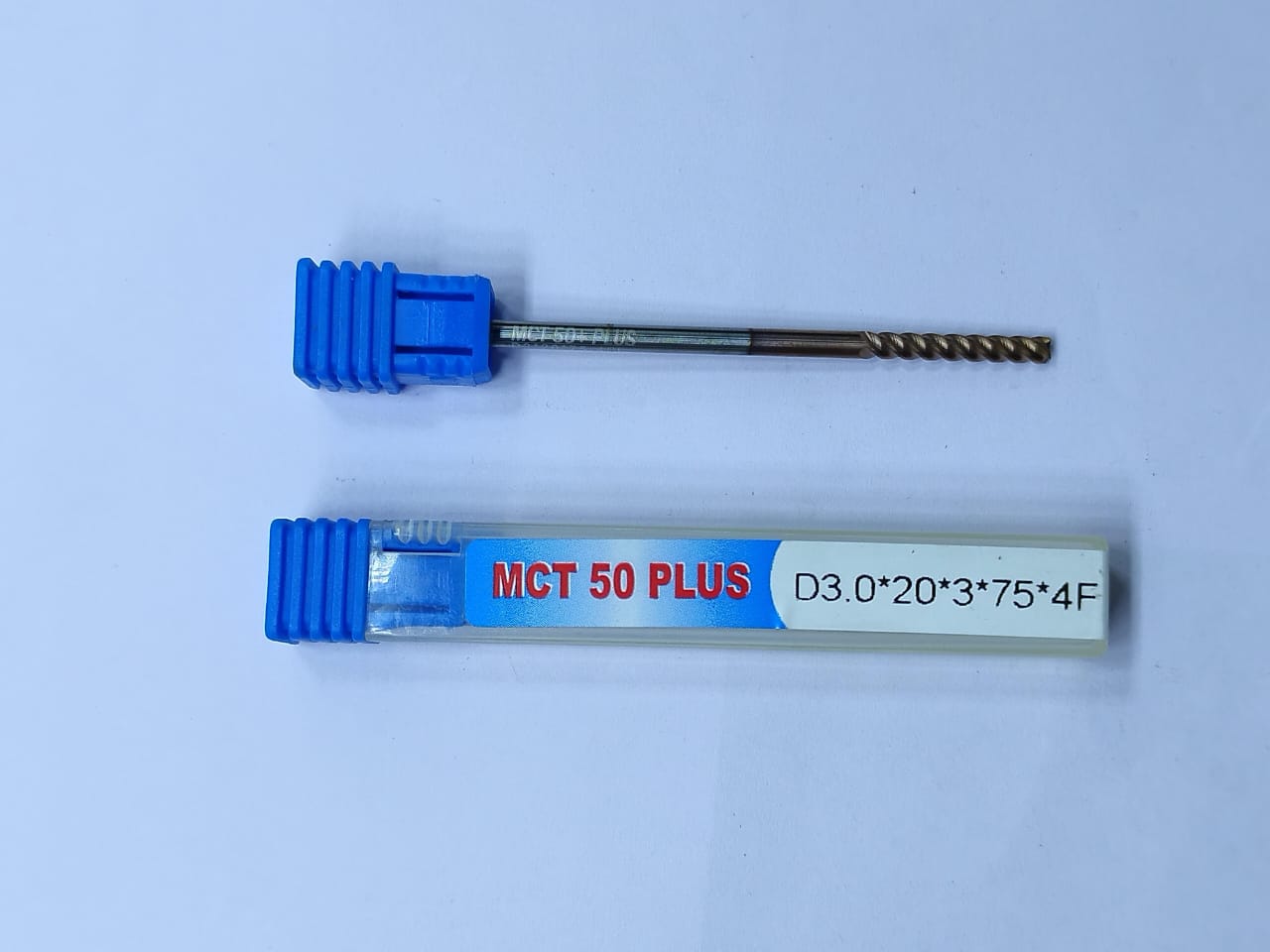

3 16 3 75 4 MCT1600

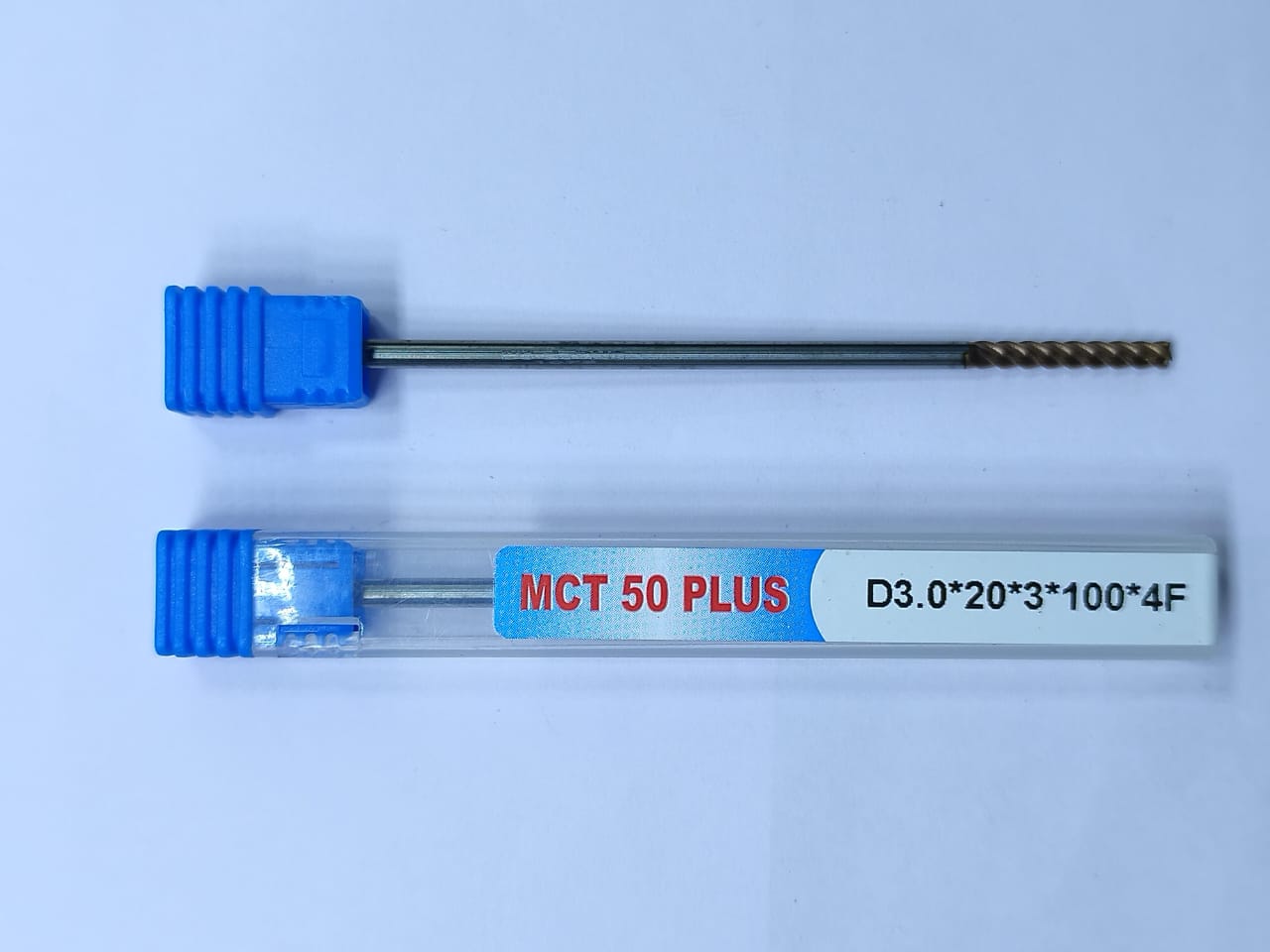

3 20 3 100 4 MCT1601
3 12 6 50 4 MCT1602
3.5 12 6 50 4 MCT1603
4 16 4 50 4 MCT1604

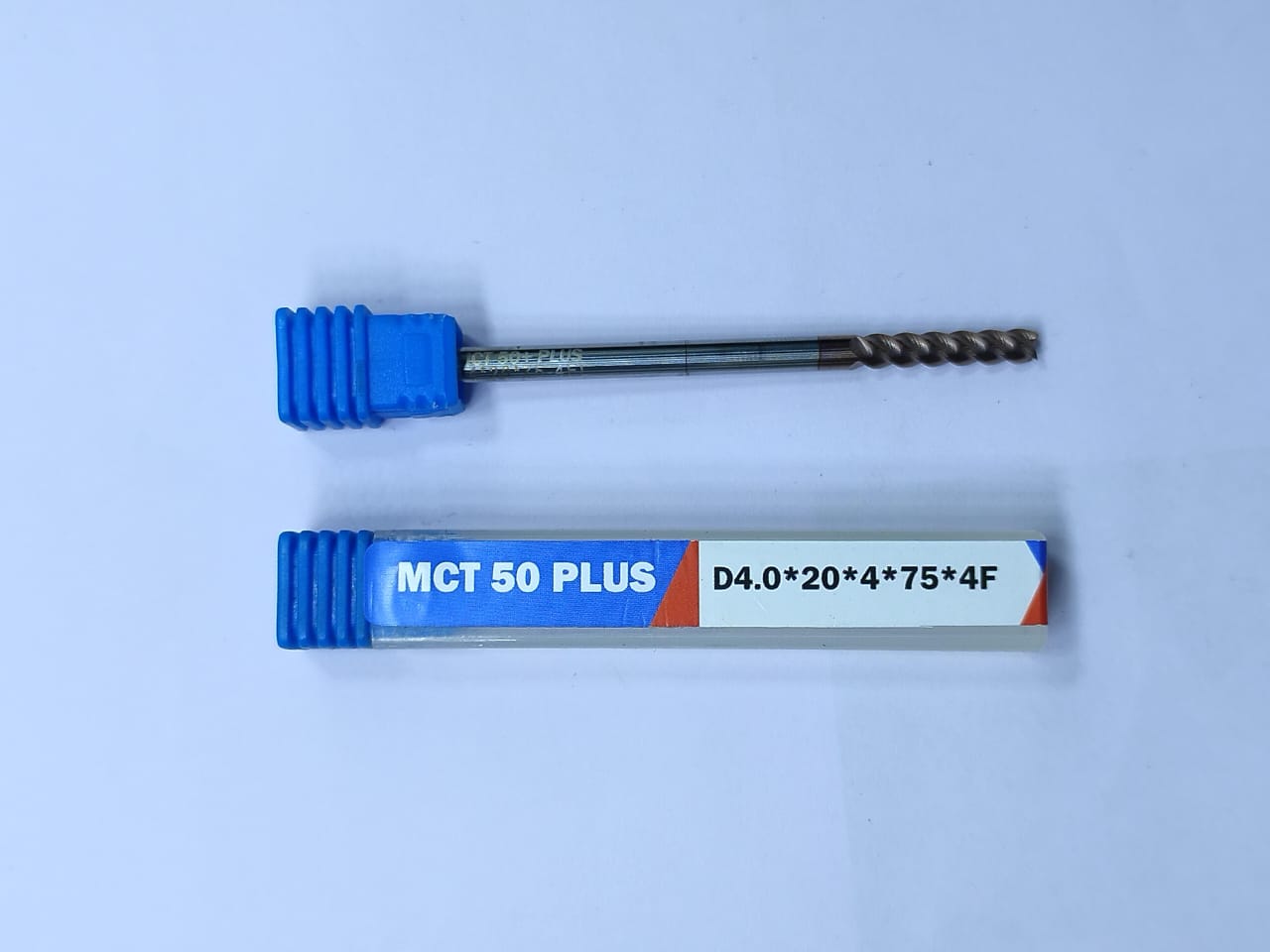

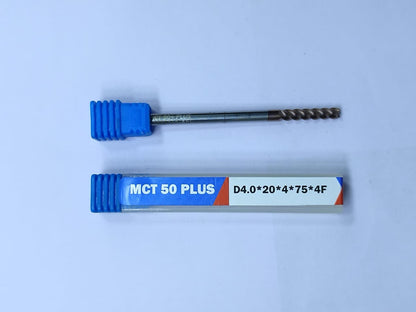

4 20 4 75 4 MCT1605
4 20 4 100 4 MCT1606
4 12 6 50 4 MCT1607
4.5 12 6 50 4 MCT1608
5 20 5 50 4 MCT1609
5 20 5 75 4 MCT1610
5 25 5 100 4 MCT1611
5 20 6 50 4 MCT1612
6 22 6 50 4 MCT1613

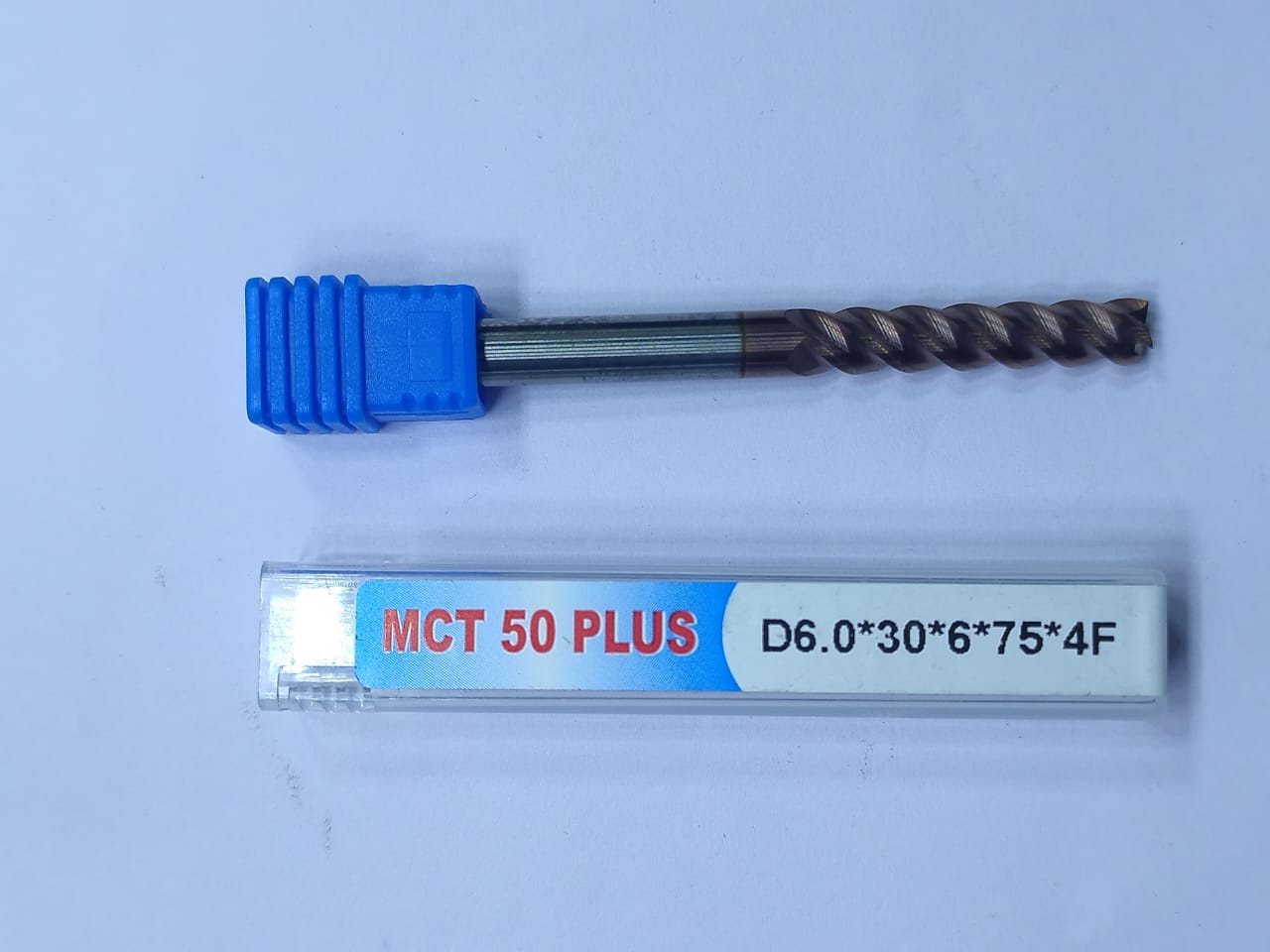

6 30 6 75 4 MCT1614

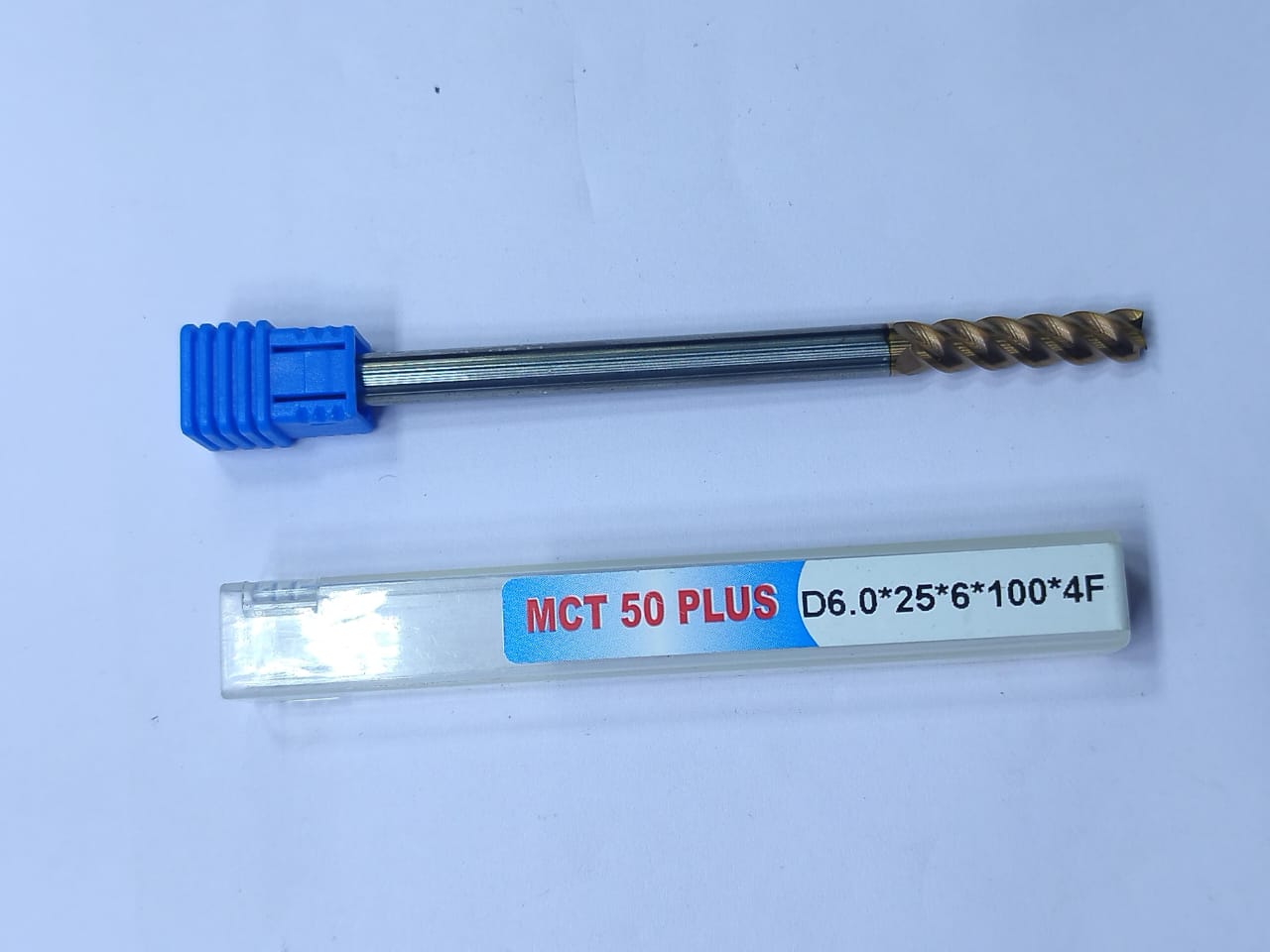

6 25 6 100 4 MCT1615
6 40 6 150 4 MCT1616
7 23 8 60 4 MCT1617
8 23 8 60 4 MCT1618
8 30 8 75 4 MCT1619
8 30 8 100 4 MCT1620

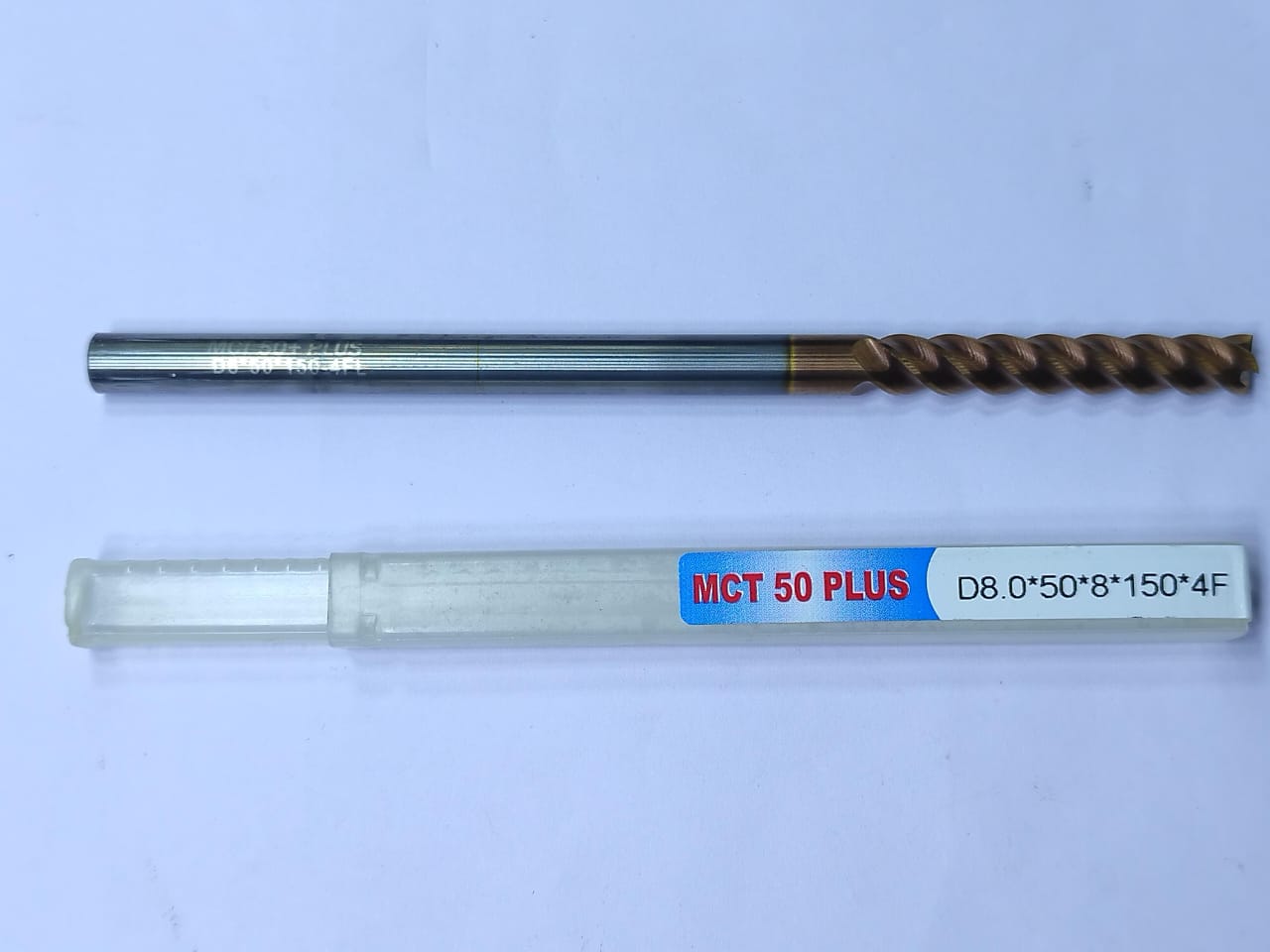

8 40 8 150 4 MCT1621

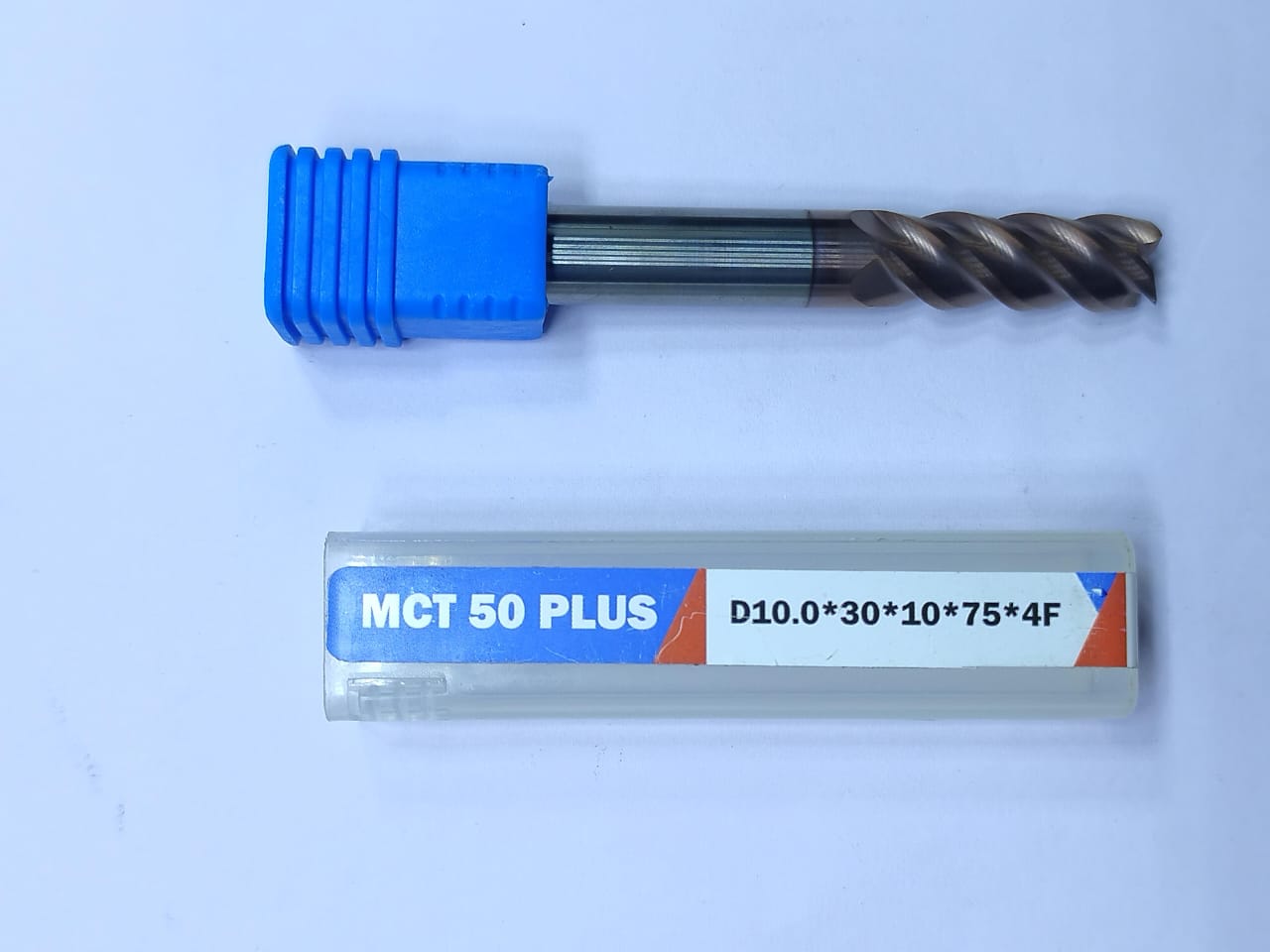

10 25 10 75 4 MCT1622

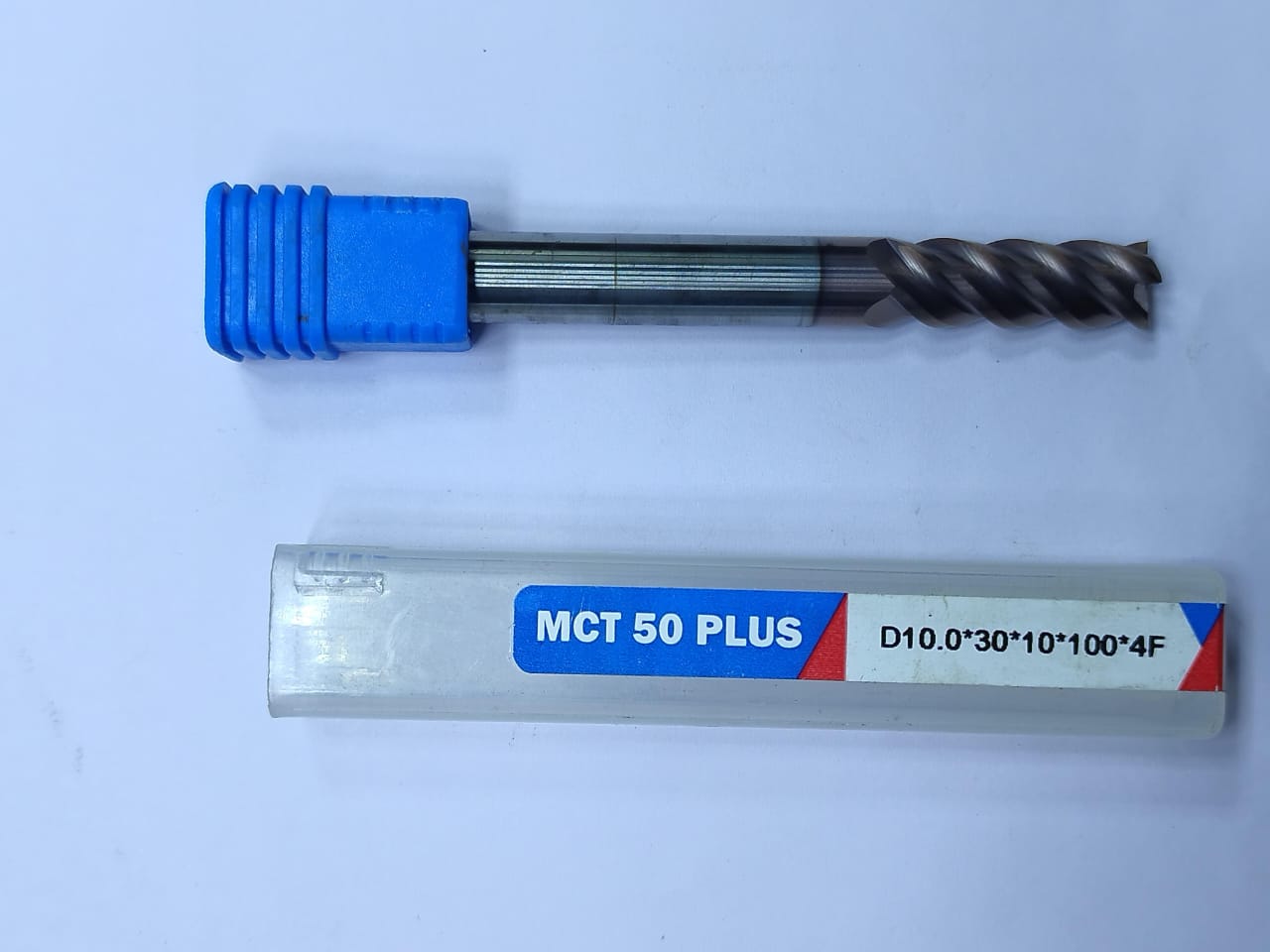

10 30 10 100 4 MCT1623

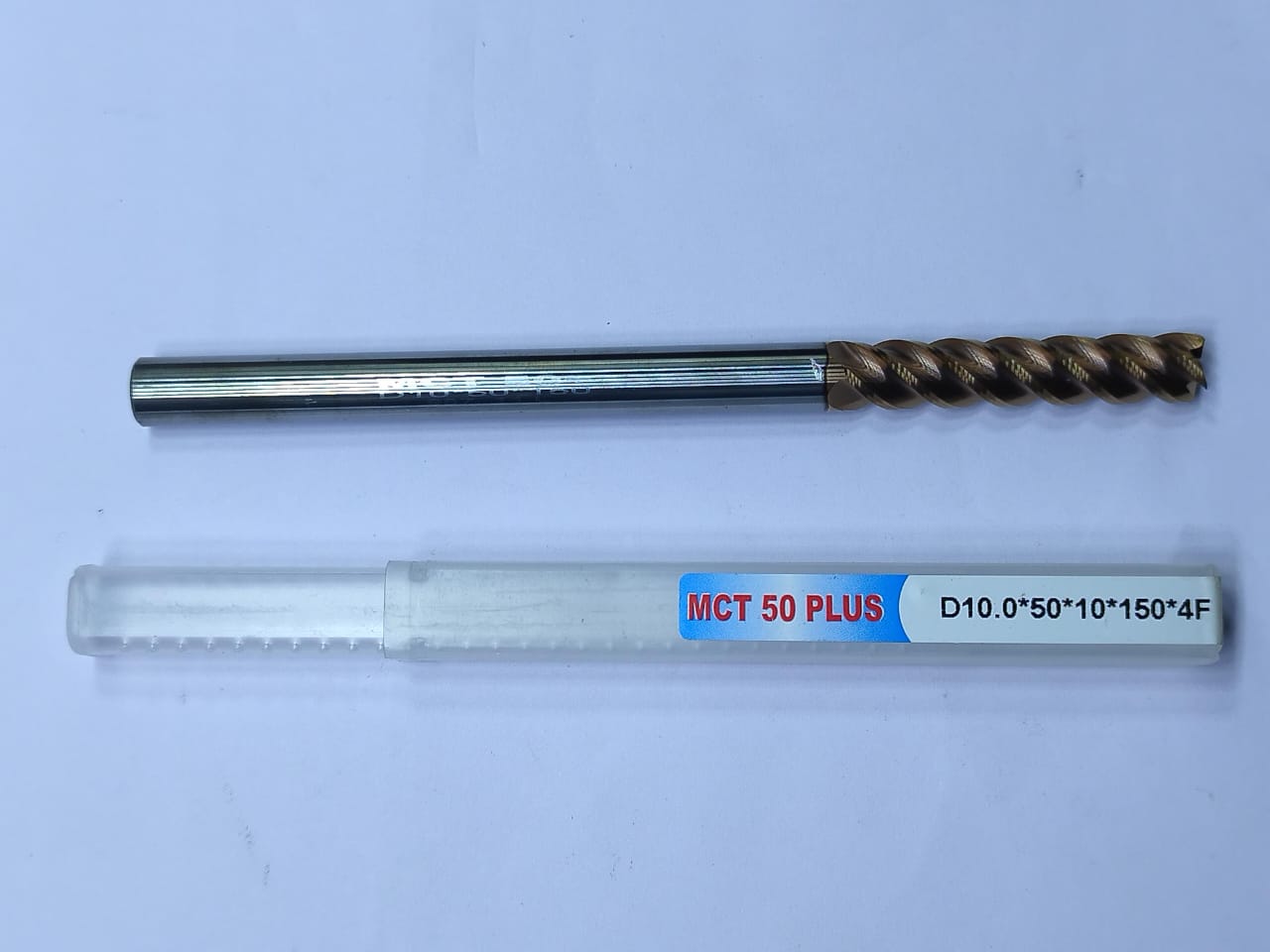

10 50 10 150 4 MCT1624
12 25 12 75 4 MCT1625
12 35 12 100 4 MCT1626

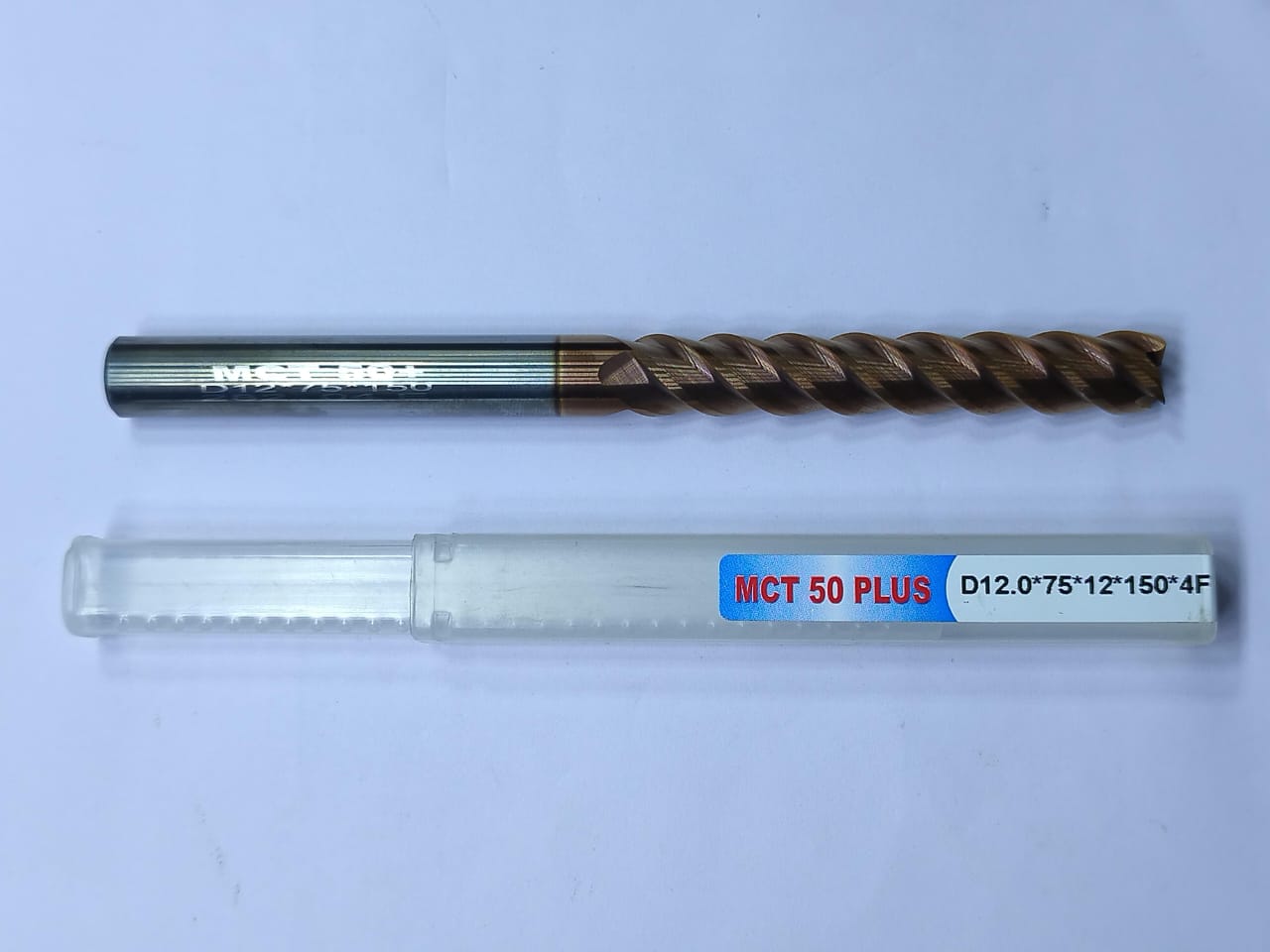

12 50/75 12 150 4 MCT1627
14 50 14 100 4 MCT1628
16 50 16 100 4 MCT1629

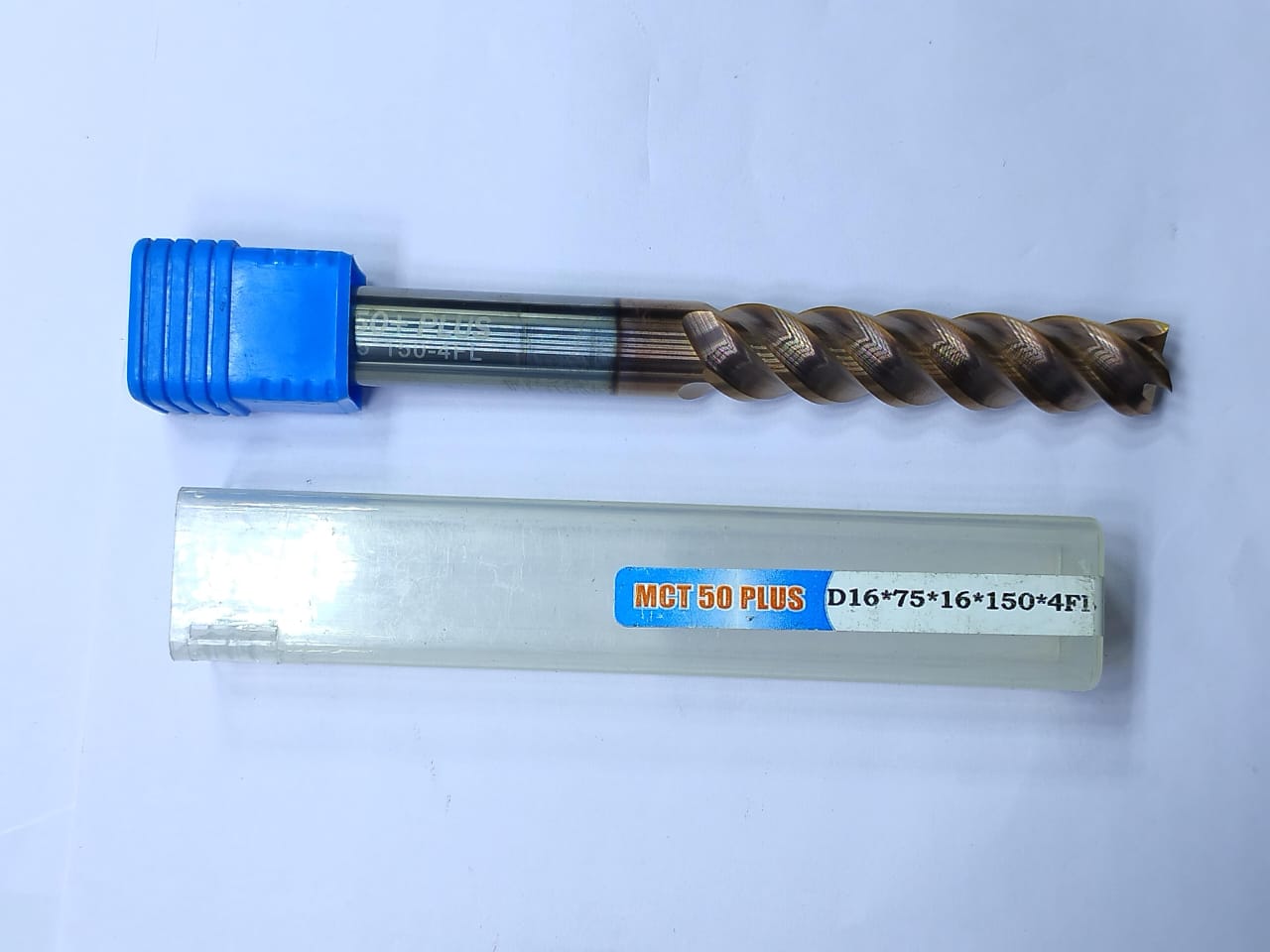

16 50/75 16 150 4 MCT1630
18 60 18 125 4 MCT1631
20 56 20 105 4 MCT1632
25 50 25 100 4 MCT1633

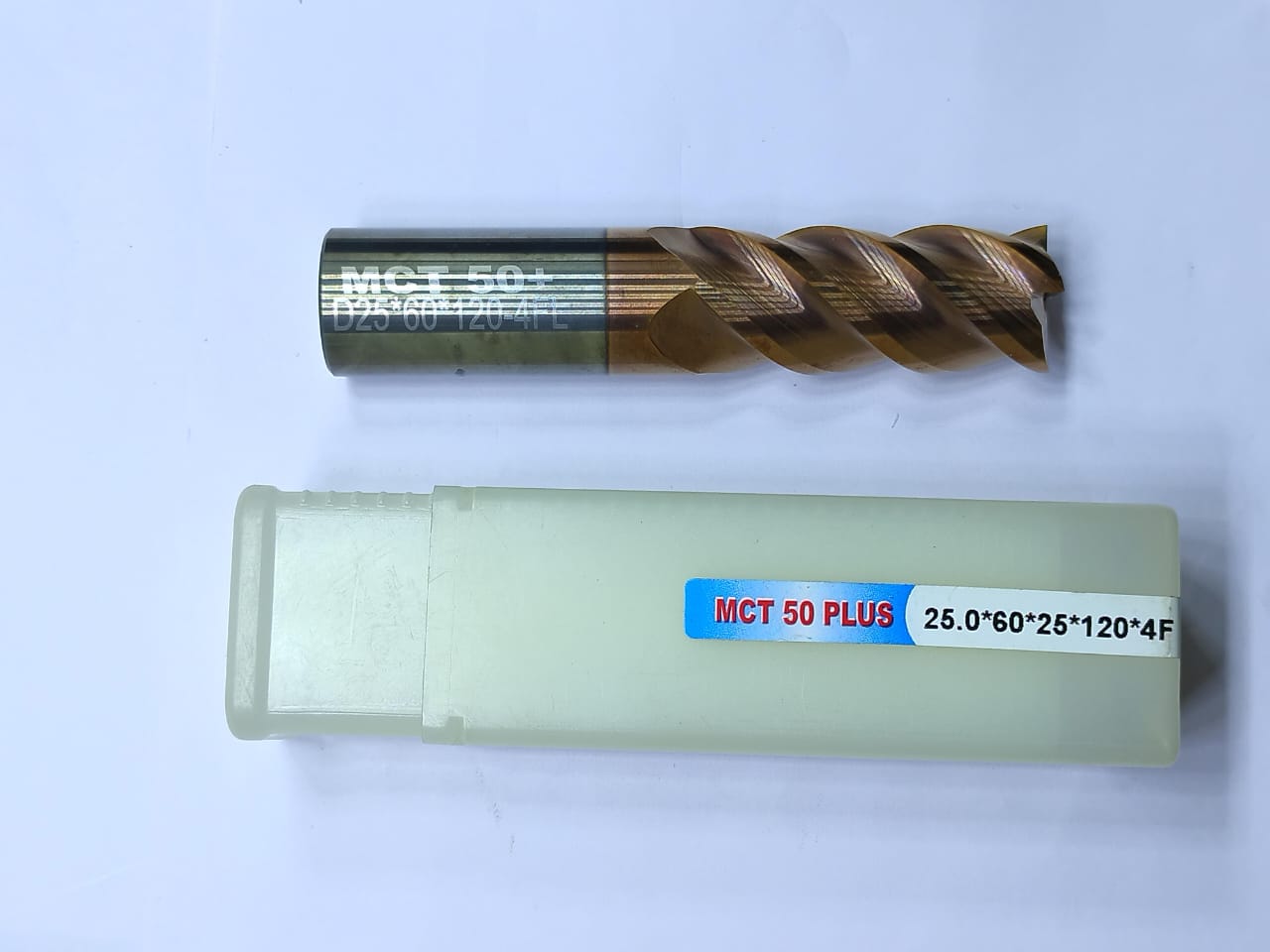

25 60 25 120 4 MCT1634

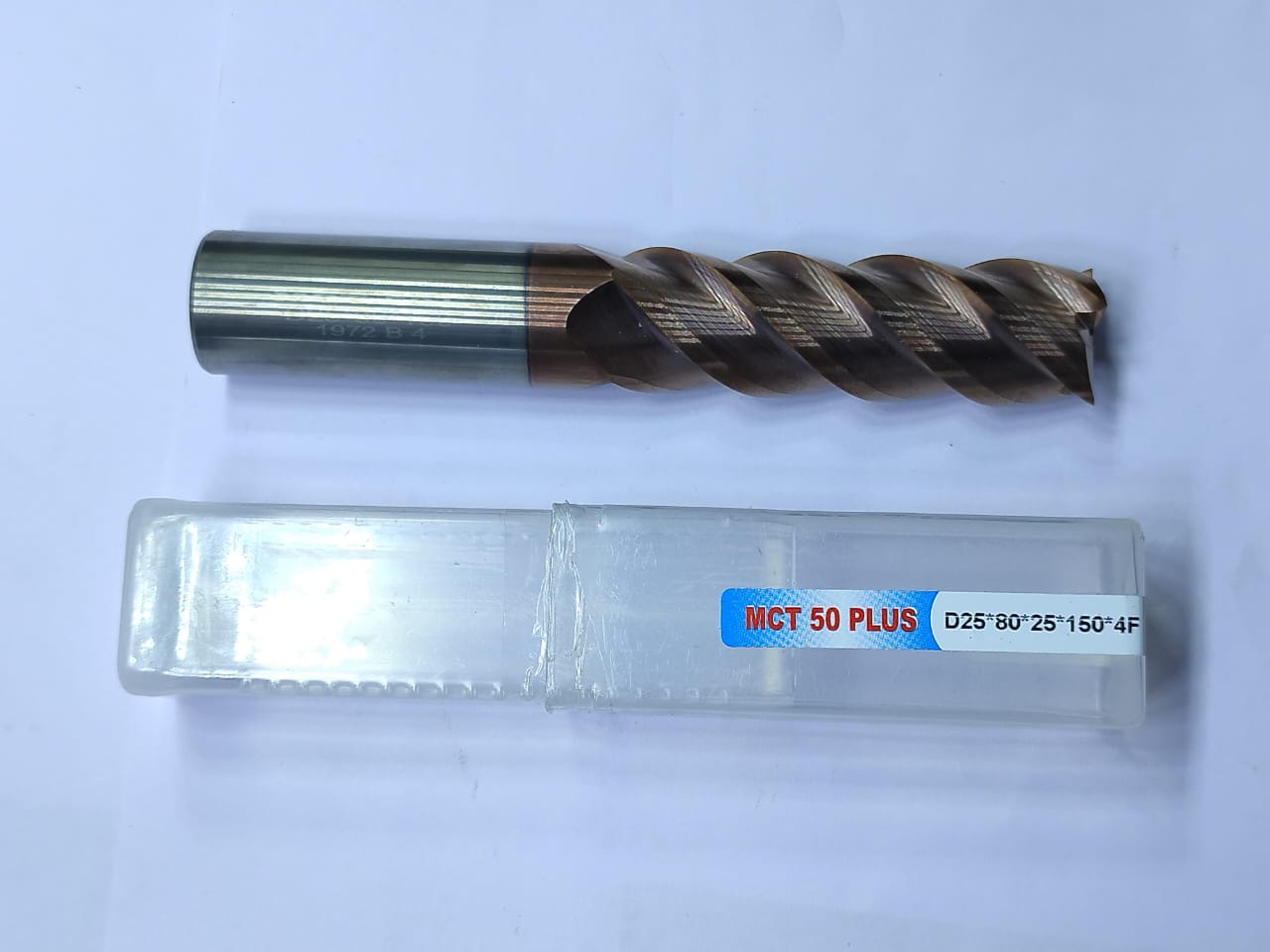

25 80 25 150 4 MCT1635



Extra Long Series HCR 55 Endmill
Diameter (D) Cutting Length (LC) Shank Diameter (d) Overall Length Flutes Code
8 75-100 8 200 4 MCT1636
10 75-100 10 200 4 MCT1637

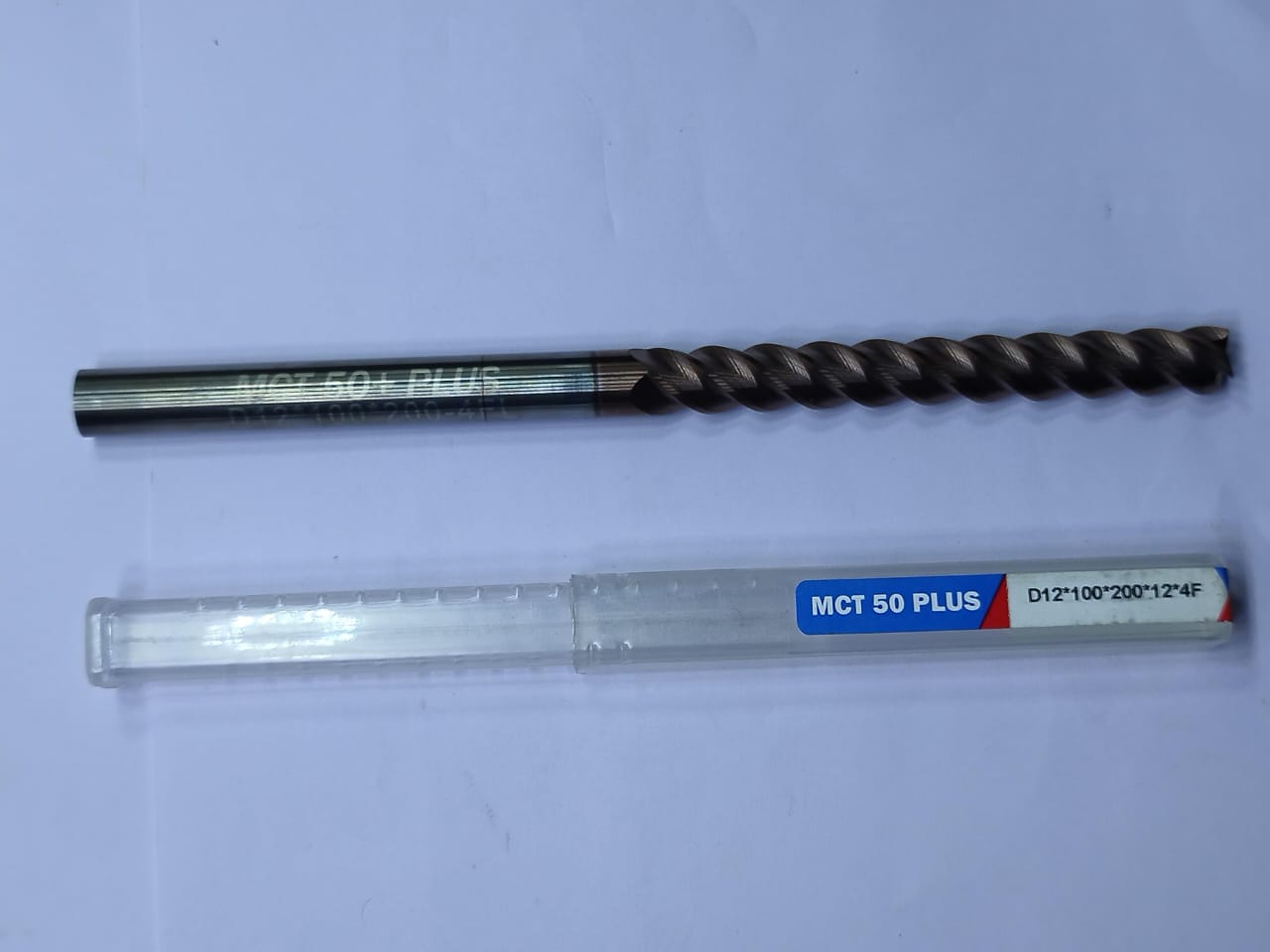

12 75-100 12 200 4 MCT1638
16 75-100 16 200 4 MCT1639

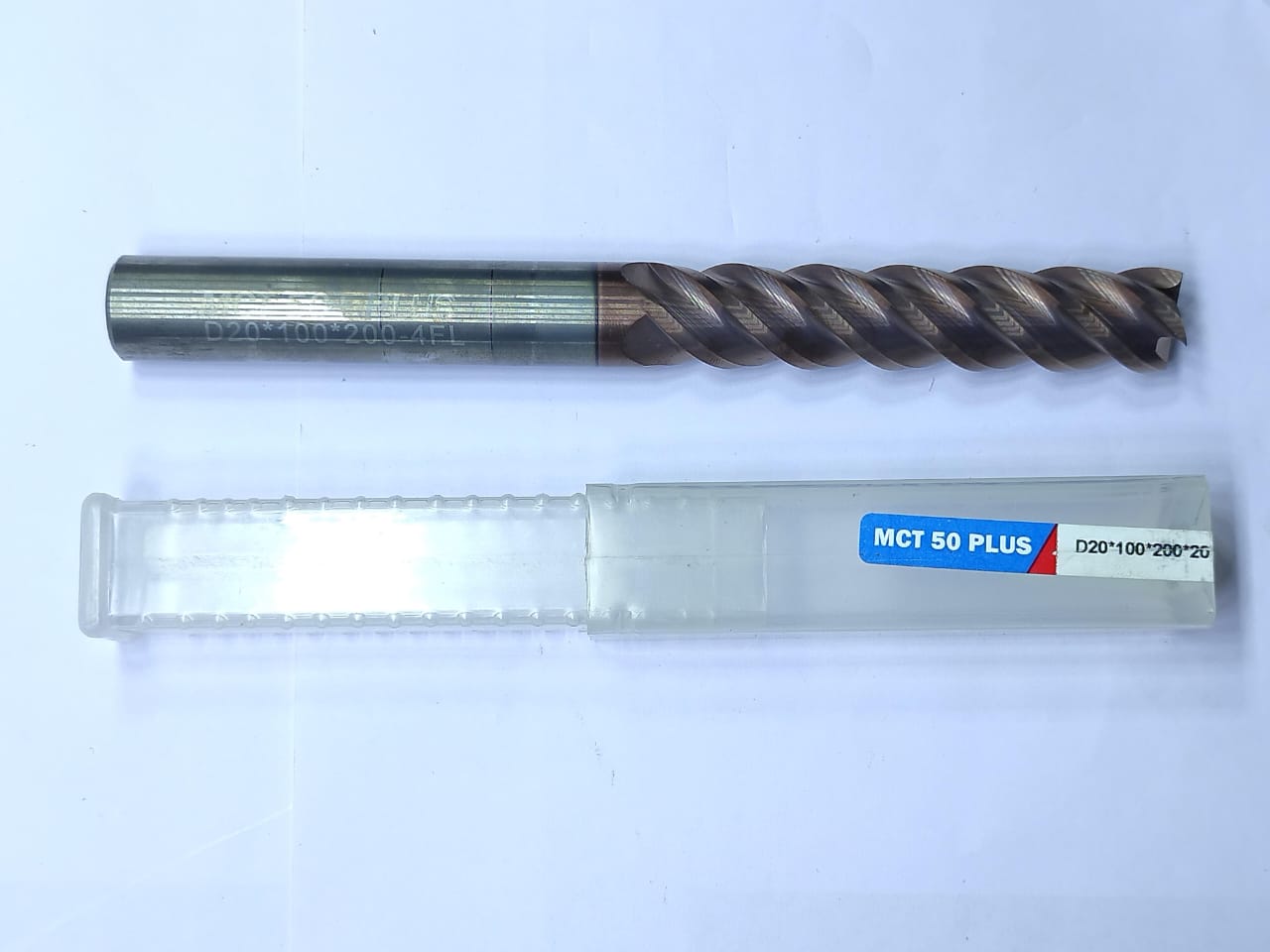

20 75-100 20 200 4 MCT1640
25 120 25 180 4 MCT1641
