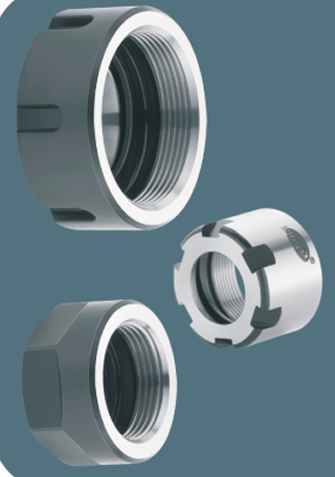

ER NUT SPARES A / M / UM
ER NUT SPARES A / M / UM
Regular price
Rs. 305.00
Regular price
Sale price
Rs. 305.00
Shipping calculated at checkout.
Made from alloy steel hardened to 54 – 56rc
Precision ground ID thread and taper

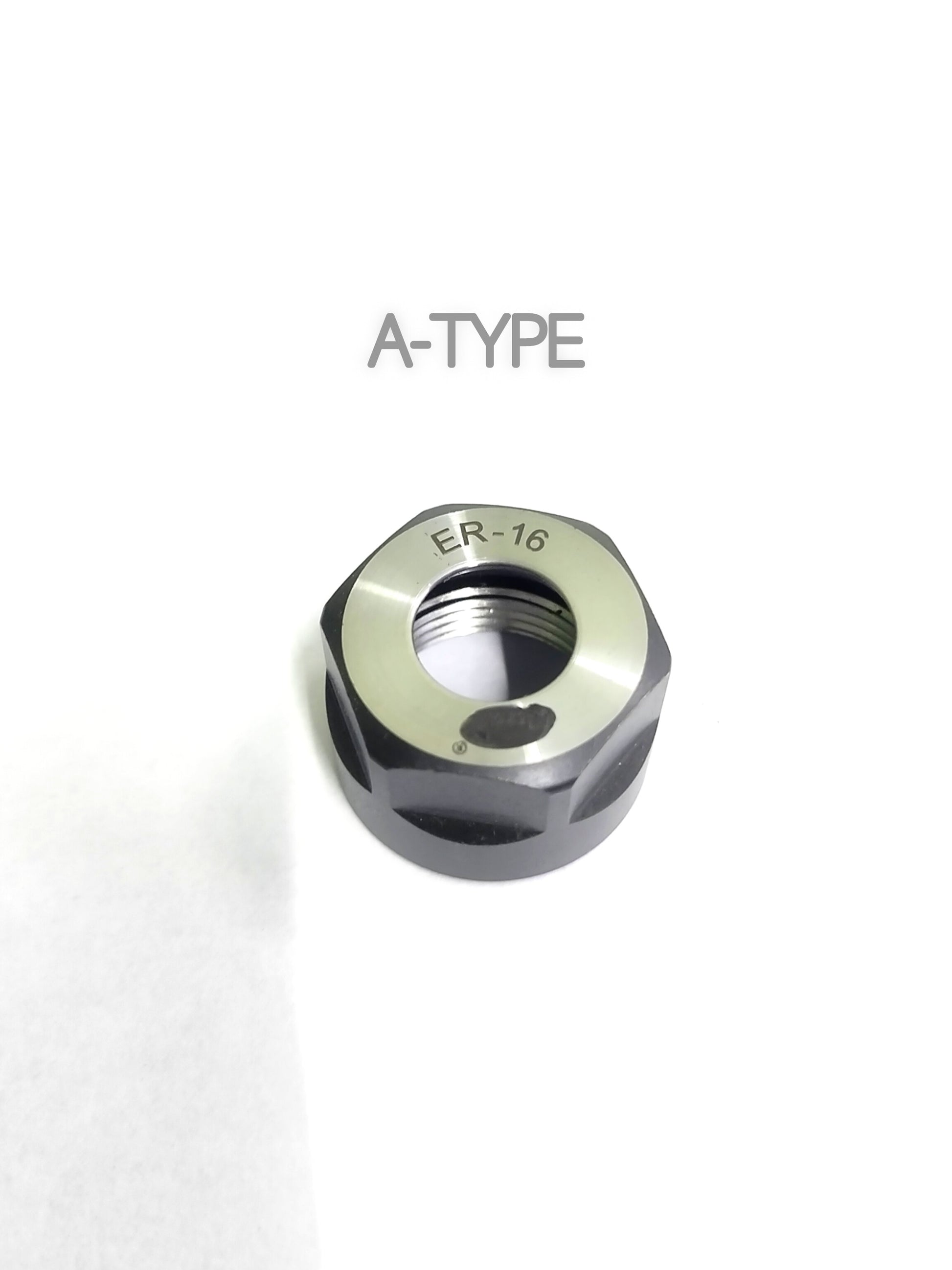

ER16A Has an id thread of – M22*1.5P
ER16A Outside diameter is 28 MM
Normal key to tightening
internal cam removes collet when unscrewed
MARSTECH CODE IS ER16A HEX TYPE NUT

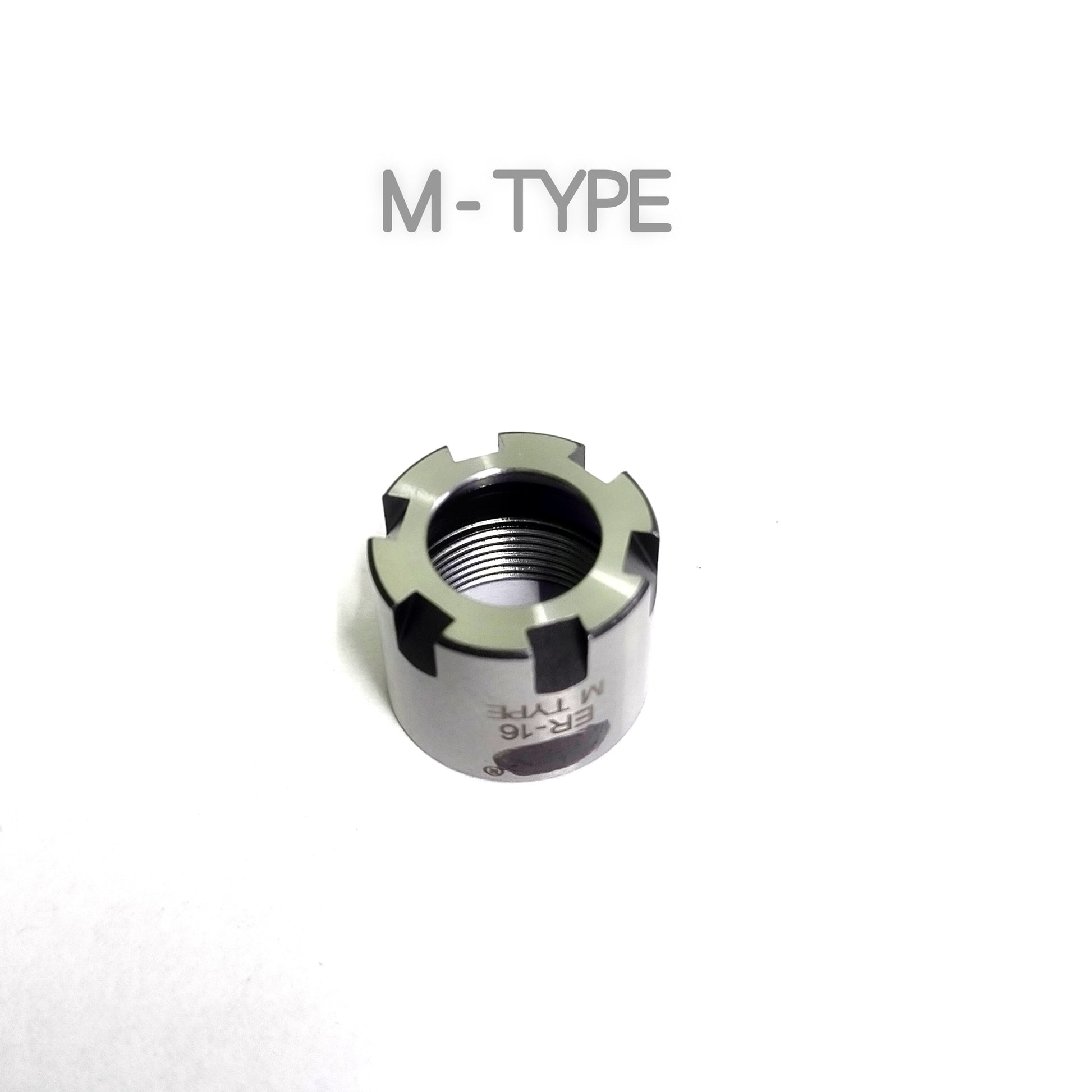

ER16M Collet Nut has an id thread of 19mm X 1.0 pitch
ER16M Outside diameter is .866 inches (22mm)
Outside has castle notches for tightening
ER16M Wrench works on this collet nut
| Model | Length | Outer Dia | Inner radius | MCT code |
| ER8A | 12 | 13.5 | M10 X 7.5P | MCT0190 |
| ER11A | 11.3 | 19 | M14 X 0.75P | MCT0191 |
| ER16A | 17.5 | 28 | M22 X 1.5P | MCT0192 |
| ER20A | 19 | 34 | M22 X 1.5P | MCT0193 |
| ER8M | 12.5 | 10.75 | MCT0194 | |
| ER11M | 12 | 16 | M13 X 0.75P | MCT0195 |
| ER16M | 18 | 22 | M19 X 1.0P | MCT0196 |
| ER20M | 19 | 28 | M24 X 1.0P | MCT0197 |
| ER25M | 20 | 35 | M30 X 1.0P | MCT0198 |

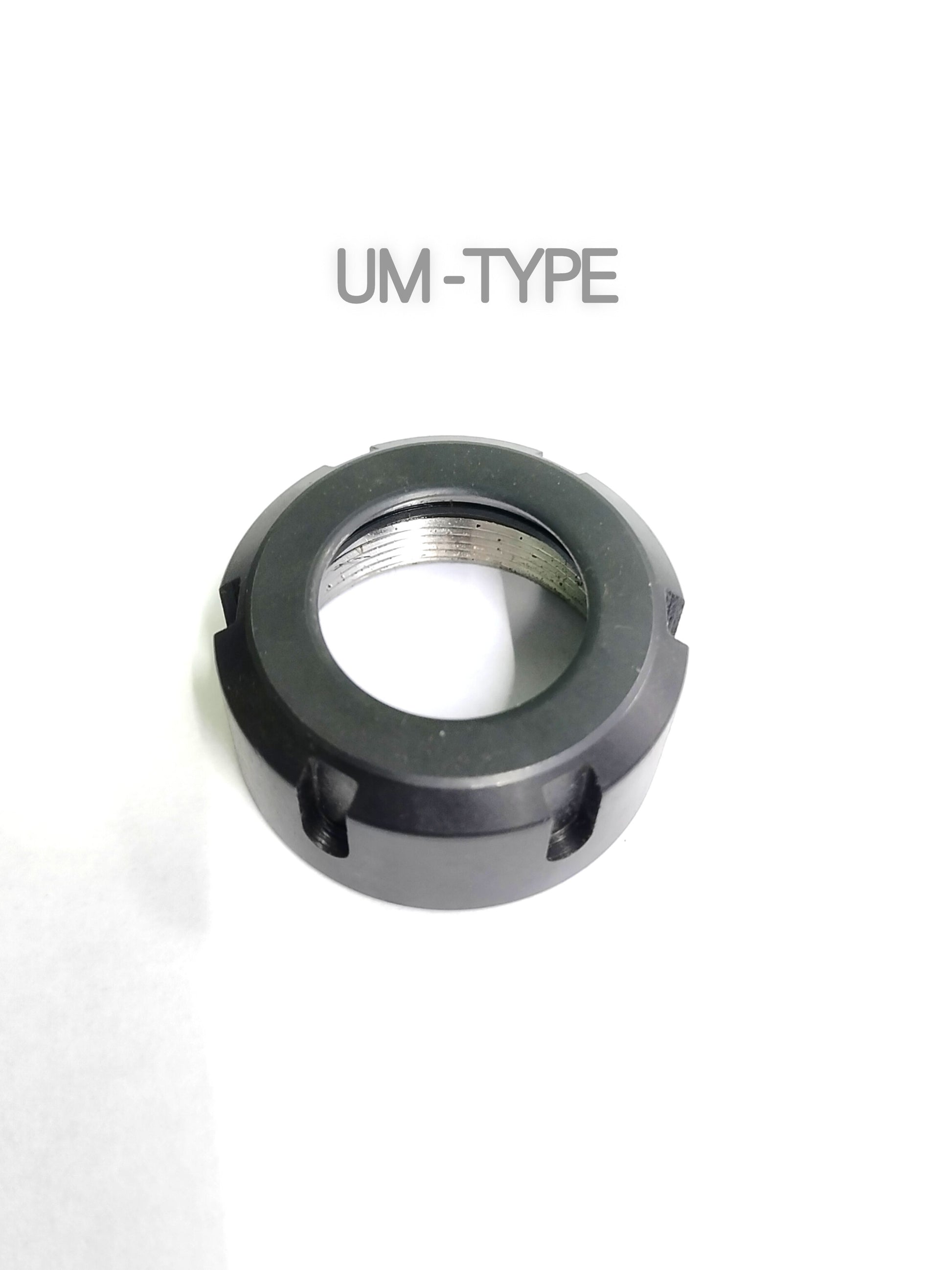

| ER16UM | 18 | 22 | M40 X 1.5P | MCT0199 |
| ER20UM | 19 | 28 | M50 X 1.5P | MCT0200 |
| ER25UM | 20 | 35 | M64 X 2 | MCT0201 |
| ER32UM | MCT0202 | |||
| ER40UM | MCT0203 |
Quantity
Couldn't load pickup availability
1000 in stock
