EXN03R Series High-Feed Face Mill — LNMU0303
EXN03R Series High-Feed Face Mill — LNMU0303
Regular price
Rs. 4,165
(Incl. of all taxes)
Regular price
Sale price
Rs. 4,165
(Incl. of all taxes)
Rs. 3,529.66 + Rs. 635.34 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Free delivery
On orders above Rs. 2,999
Bulk quote
Message us on WhatsApp
EXN03R Series High-Feed Face Mill — LNMU0303
EXN03R high-feed face-mill body listed for the LNMU03/LNMU0303 insert family. Options state cutter diameter, mounting bore, listed body length and insert-pocket count.
How to read the option code
- Example: C50-S22-48L-/LNMU03-T8.
- C50 = 50 mm cutter diameter.
- S22 = 22 mm mounting bore or connection diameter.
- 48L = 48 mm listed length.
- LNMU03 = listed insert family.
- 8T/T8 = 8 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Mounting Bore Or Connection Diameter | Length | Insert | Pockets |
|---|---|---|---|---|---|---|
| C40-S22-48L-/LNMU03-T6 | Face-mill body | 40 mm | 22 mm | 48 mm | LNMU0303 | 6 |

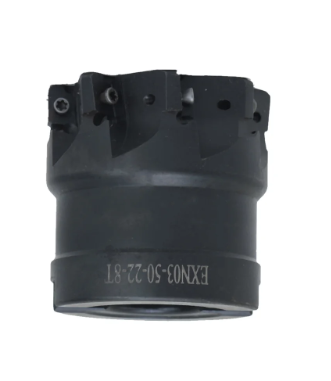

| C50-S22-48L-/LNMU03-T8 | Face-mill body | 50 mm | 22 mm | 48 mm | LNMU0303 | 8 |

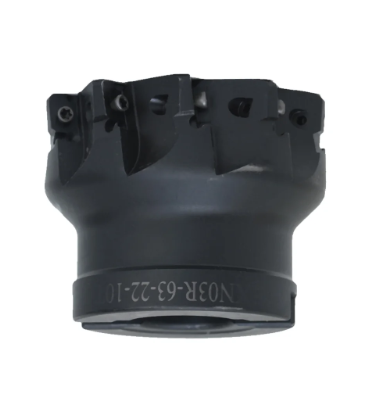

| C63-S22-48L-/LNMU03-T10 | Face-mill body | 63 mm | 22 mm | 48 mm | LNMU0303 | 10 |
How to select
Choose cutter diameter and mounting bore for the arbour or machine setup, then compare the T value for pocket count.
The extra punctuation in the current option labels is retained unchanged. Confirm the exact LNMU0303 insert suffix and package contents before ordering.
