EXN03R Series High-Feed Cutter Body — LNMU0303

EXN03R Series High-Feed Cutter Body — LNMU0303

Rs. 1,664 (Incl. of all taxes)
Rs. 1,664 (Incl. of all taxes)
Rs. 1,410.17 + Rs. 253.83 GST
Sale Sold out
Taxes included. Shipping calculated at checkout.
GST invoice All prices include 18% GST
Delhi dispatch Ships from Chandni Chowk stock
Free delivery On orders above Rs. 2,999
Bulk quote Message us on WhatsApp

EXN03R Series High-Feed Cutter Body — LNMU0303

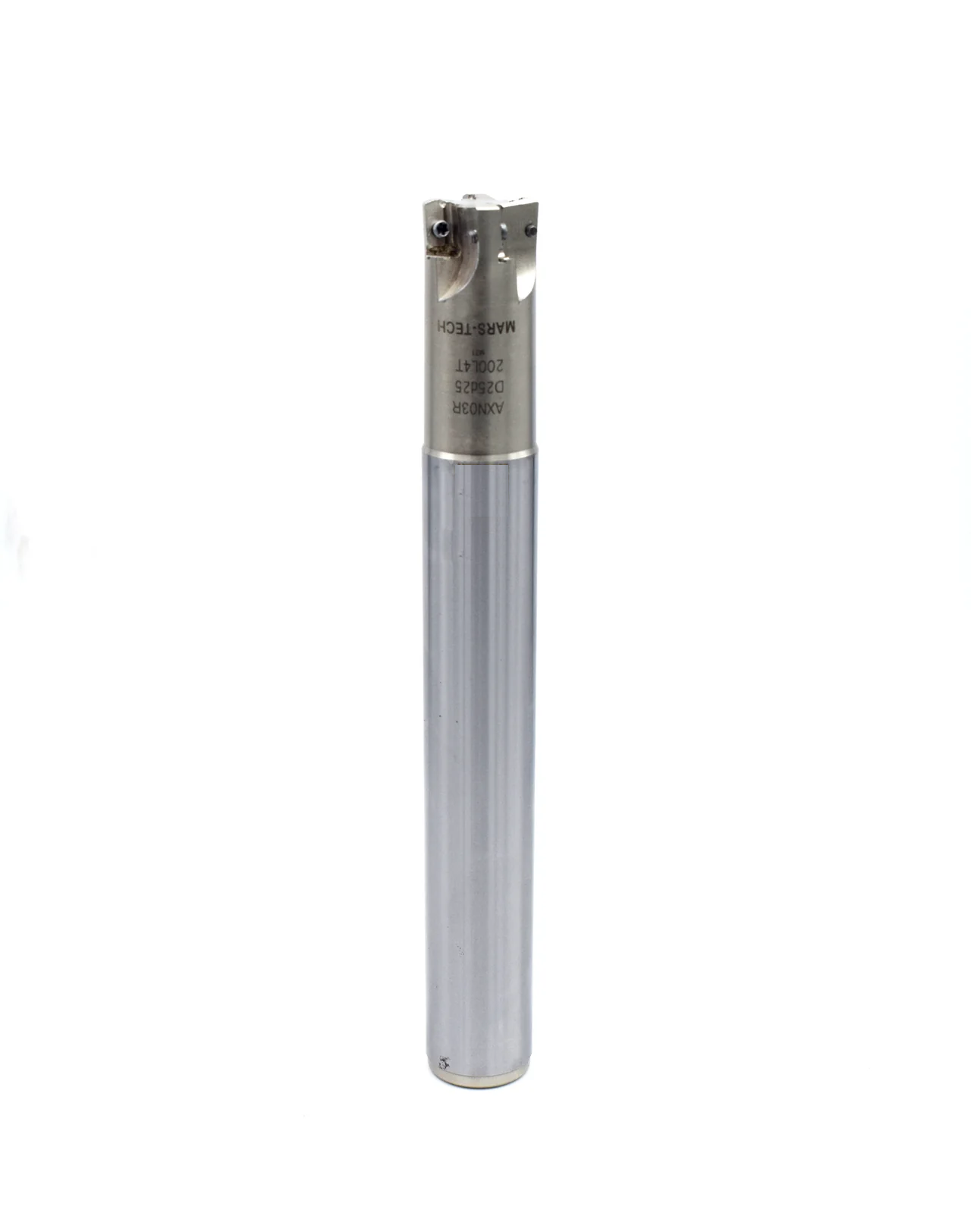

Straight-shank EXN03R high-feed cutter body listed for the LNMU03/LNMU0303 insert family. Options state cutter diameter, shank diameter, overall length and insert-pocket count.

How to read the option code

  • Example: C25-S25-200L/LNMU03-T4.
  • C25 = 25 mm cutter diameter.
  • S25 = 25 mm shank diameter.
  • 200L = 200 mm listed length.
  • LNMU03 = listed insert family.
  • 4T/T4 = 4 insert pockets.

Variant guide

Current option Configuration Cutter dia. Shank Diameter Length Insert Pockets
C16-S16-150L/LNMU03-T2 Straight shank 16 mm 16 mm 150 mm LNMU0303 2
C16-S16-200L/LNMU03-T2 Straight shank 16 mm 16 mm 200 mm LNMU0303 2
C20-S20-150L/LNMU03-T3 Straight shank 20 mm 20 mm 150 mm LNMU0303 3
C20-S20-200L/LNMU03-T3 Straight shank 20 mm 20 mm 200 mm LNMU0303 3
C25-S25-150L/LNMU03-T4 Straight shank 25 mm 25 mm 150 mm LNMU0303 4
C25-S25-200L/LNMU03-T4 Straight shank 25 mm 25 mm 200 mm LNMU0303 4
C32-S32-150L/LNMU03-T5 Straight shank 32 mm 32 mm 150 mm LNMU0303 5
C32-S32-200L/LNMU03-T5 Straight shank 32 mm 32 mm 200 mm LNMU0303 5

How to select

Match the shank diameter to the holder, then choose cutter diameter, overall length and pocket count for the required reach and machining setup.

Confirm the exact LNMU0303 insert suffix, package contents and cutting conditions before ordering.
