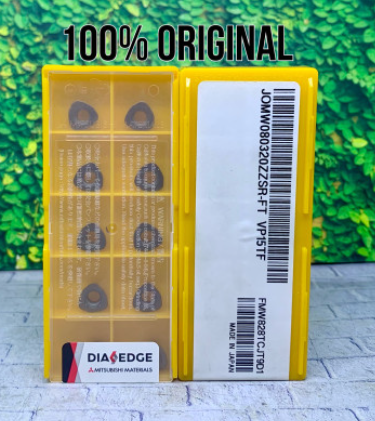

JOMW080320 ZZSR-FT VP15TF MILLING INSERT — Mitsubishi
Mitsubishi JOMW080320 carbide milling insert (J, O clearance) — designed for face milling, shoulder milling and profile machining on CNC machining centres. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.
Also searched as: JOMW080320 insert, JOMW080320 tip, carbide milling bit, JOMW CNC tip.
Specifications
| ISO Code | JOMW080320 |
| Shape | J — J |
| Clearance | O (O) |
| Dimensions | IC 8 mm, thickness 3.18 mm |
| Pack size | Box of 10 pieces |
| Brand | Mitsubishi |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 180–280 | 0.08–0.20 | 0.5–3.0 |
| Stainless steel | 100–180 | 0.06–0.15 | 0.5–2.5 |
| Cast iron | 140–240 | 0.10–0.25 | 0.5–4.0 |
| Aluminium alloy | 400–1200 | 0.10–0.30 | 1.0–5.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
Cross-brand grade equivalents
| Mitsubishi Grade (application) | Equivalents |
|---|---|
|
VP15TF P/K — Steel + cast iron, finishing |
Atomix AX3150 · Korloy PC9030 · Deskar LF6118 · Widia WK10CT |
Directional equivalents by ISO application class. For critical work, verify against current brand datasheets.
