CCMT09T302/04/08 TURNING INSERT (KORLOY)

Name: CCMT09T302/04/08 TURNING INSERT (KORLOY)
Brand: Midland Tools
SKU: 49494902767856
Price: 2255.0 INR
Availability: InStock

Rs. 2,255.00

+ 18% GST → Rs. 2,660.90 incl.

Sale Sold out

Shipping calculated at checkout.

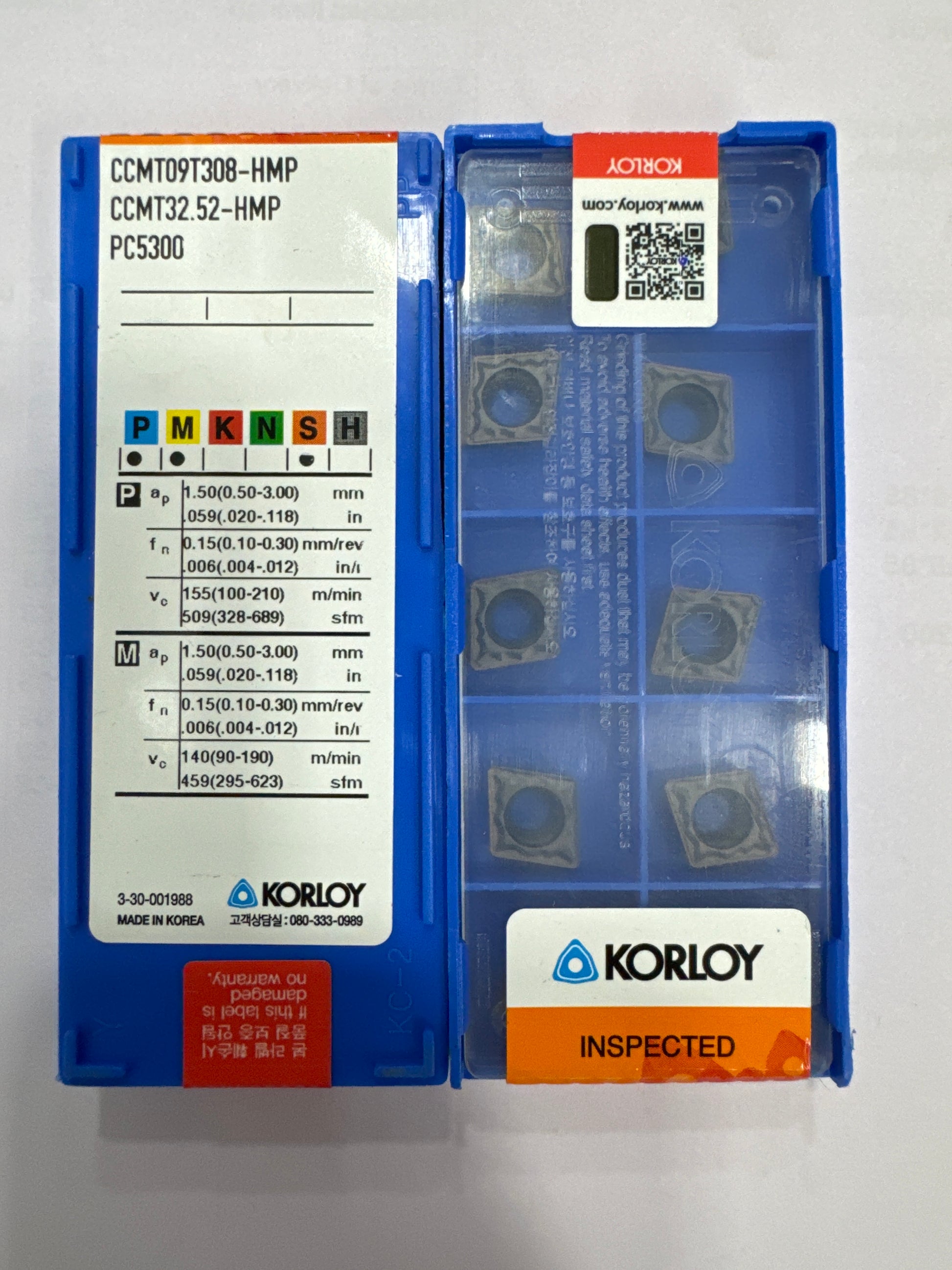

CCMT09T302/04/08 TURNING INSERT — Korloy

Korloy CCMT09T302/04/08 carbide turning insert (80° Diamond, 7° clearance) — designed for CNC lathe turning, boring and facing on shafts, bushings and precision components. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.

Also searched as: CCMT09T302/04/08 insert, CCMT09T302/04/08 tip, carbide turning bit, CCMT CNC tip.

Specifications

ISO Code	CCMT09T302/04/08
Shape	C — 80° Diamond
Clearance	C (7°)
Dimensions	IC 9.525 mm, thickness 3.18 mm, nose radius 0.2 mm
Pack size	Box of 10 pieces
Brand	Korloy

Typical cutting parameters

Workpiece	Vc (m/min)	Fn (mm/rev)	Ap (mm)
Carbon steel	140–220	0.08–0.25	0.3–2.0
Stainless steel	80–160	0.08–0.20	0.3–2.0
Cast iron	100–200	0.10–0.30	0.5–3.0
Hardened steel (HRC 45)	60–120	0.05–0.15	0.2–1.0

Starting values — adjust for rigidity, coolant, and finish requirement.

Cross-brand grade equivalents

Korloy Grade (application)	Equivalents
NC3120 P — Steel finishing, PVD coating	Atomix AX3150 · Deskar LF6118 · Mitsubishi VP15TF · Widia WK10CT
NC3030 P — Steel medium, general purpose	Atomix AX3200 · Deskar LF6018 · Mitsubishi UE6020 · Widia WS10
NC6210 M — Stainless steel, medium cuts	Atomix AX3220 · Deskar LF9018 · Mitsubishi US735 · Widia WS40
PC9030 P/K — General steel + cast iron, finishing	Atomix AX3150 · Deskar LF6118 · Mitsubishi VP15TF · Widia WK10CT
PC5300 P — Steel, high wear resistance	Atomix AX3150 · Deskar LF6118 · Mitsubishi MC5020 · Widia WK15CT
CN2500 P — Steel, VP medium coating	Atomix AX3150 · Deskar LF6018 · Mitsubishi UE6020 · Widia WS10
