TNMG 160404/08/12 TURNING INSERT (KORLOY)

Name: TNMG 160404/08/12 TURNING INSERT (KORLOY)
Brand: Midland Tools
SKU: 49494887137520
Price: 2343.0 INR
Availability: InStock

Rs. 2,343.00

+ 18% GST → Rs. 2,764.74 incl.

Sale Sold out

Shipping calculated at checkout.

TNMG 160404/08/12 TURNING INSERT — Korloy

Korloy TNMG carbide turning insert — designed for CNC lathe turning, boring and facing on shafts, bushings and precision components. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.

Also searched as: TNMG insert, TNMG tip, carbide turning bit, TNMG CNC tip.

Specifications

ISO Code	TNMG
Pack size	Box of 10 pieces
Brand	Korloy

Typical cutting parameters

Workpiece	Vc (m/min)	Fn (mm/rev)	Ap (mm)
Carbon steel	140–220	0.08–0.25	0.3–2.0
Stainless steel	80–160	0.08–0.20	0.3–2.0
Cast iron	100–200	0.10–0.30	0.5–3.0
Hardened steel (HRC 45)	60–120	0.05–0.15	0.2–1.0

Starting values — adjust for rigidity, coolant, and finish requirement.

Cross-brand grade equivalents

Korloy Grade (application)	Equivalents

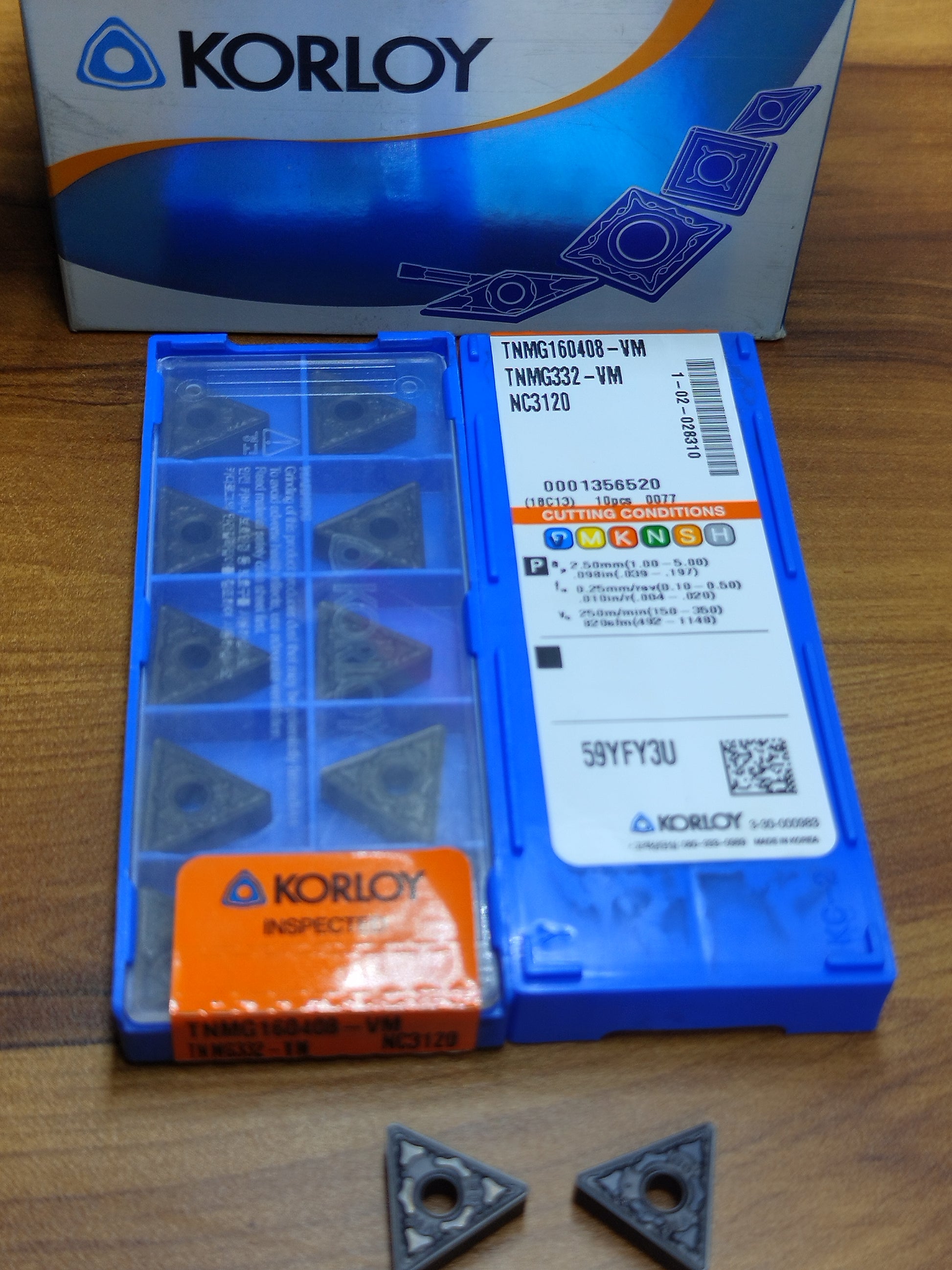

NC3120 P — Steel finishing, PVD coating	Atomix AX3150 · Deskar LF6118 · Mitsubishi VP15TF · Widia WK10CT

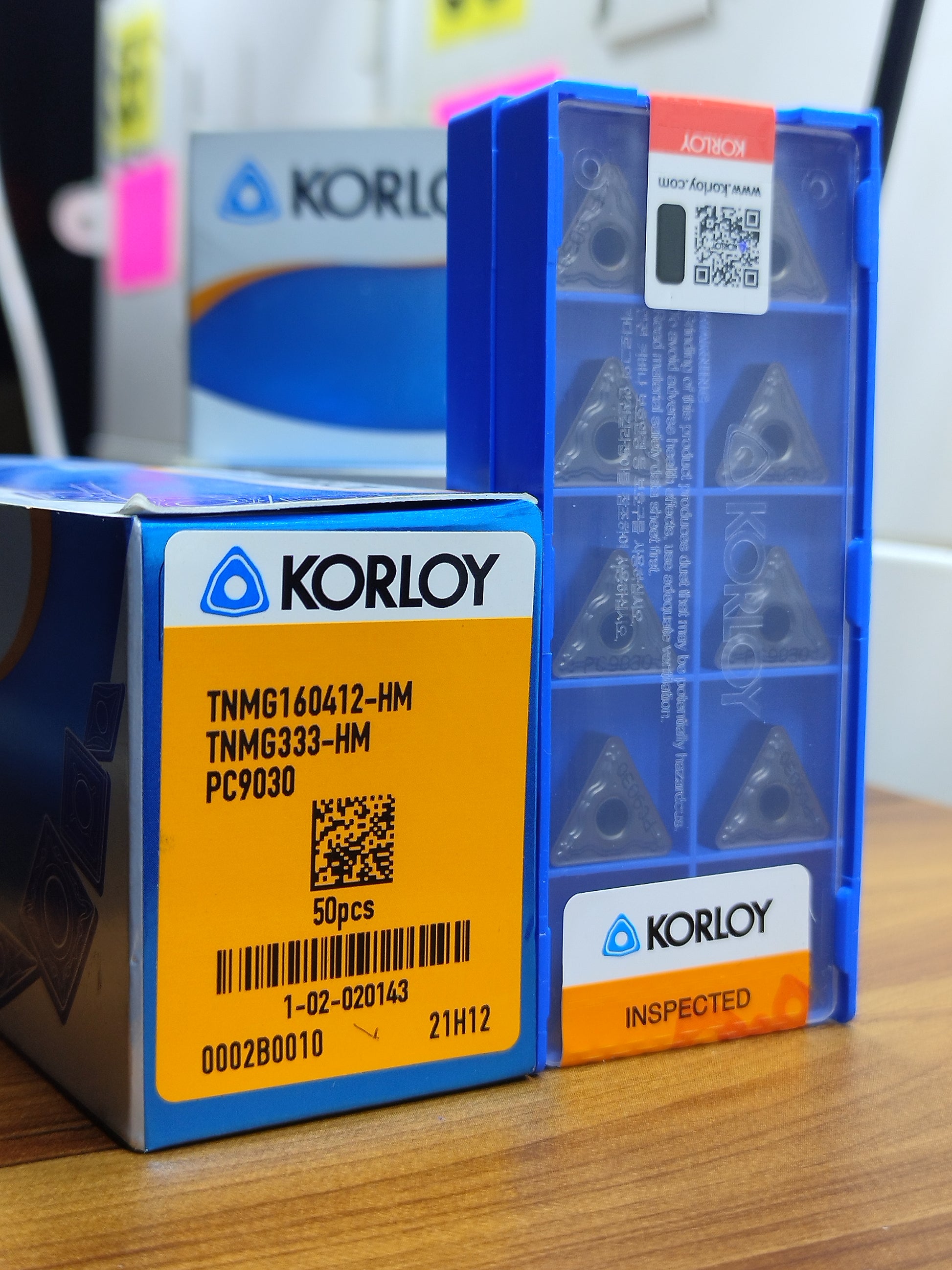

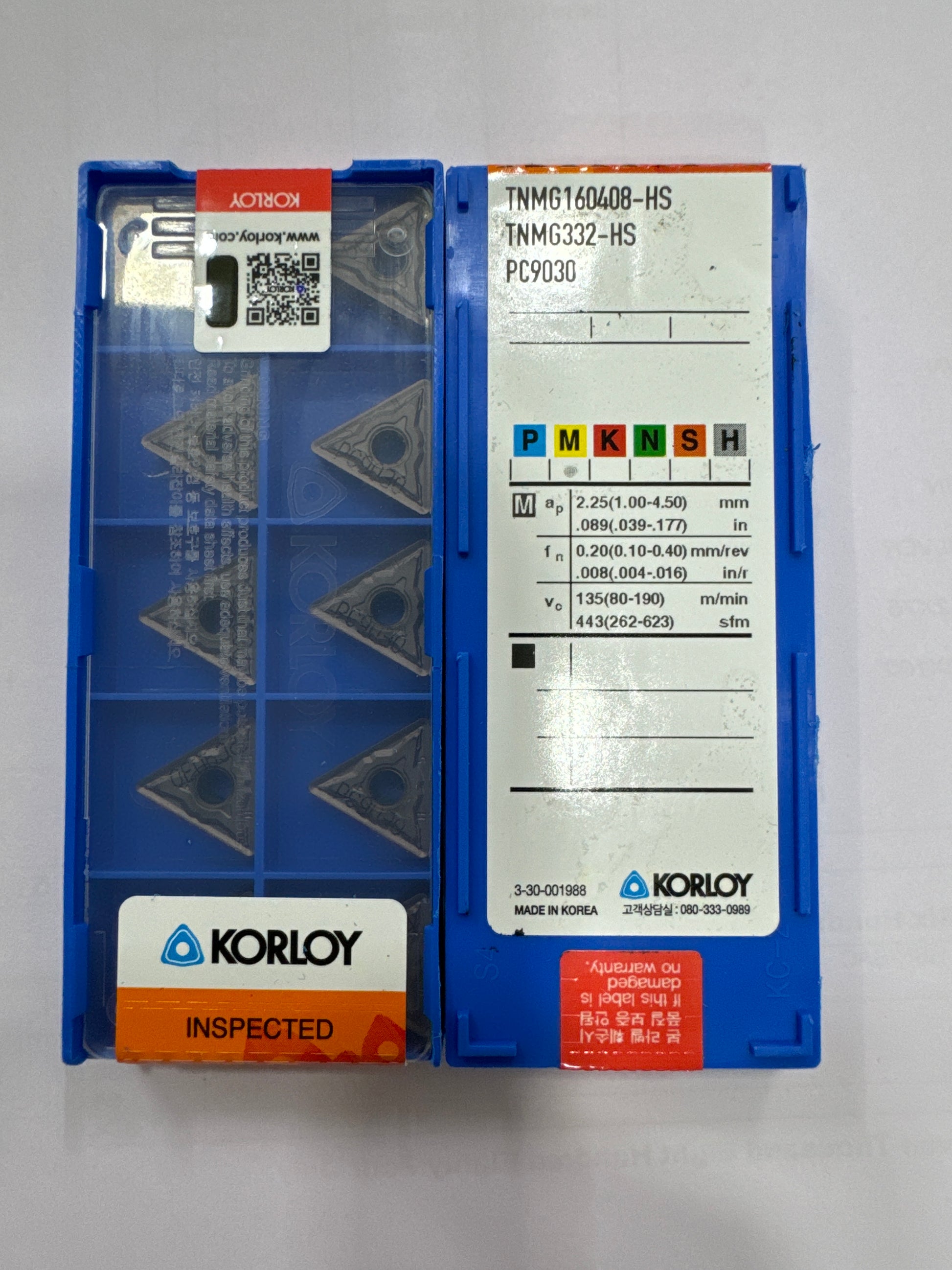

PC9030 P/K — General steel + cast iron, finishing	Atomix AX3150 · Deskar LF6118 · Mitsubishi VP15TF · Widia WK10CT
PC8110 M — Stainless, tougher edge, interrupted cuts	Atomix AX3220A · Deskar LF9118 · Mitsubishi VP15TF · Widia WK15CT
PC5300 P — Steel, high wear resistance	Atomix AX3150 · Deskar LF6118 · Mitsubishi MC5020 · Widia WK15CT
H01 N — Uncoated for aluminium and non-ferrous	Atomix OPD100 · Deskar LDA · Mitsubishi TF15 · Widia K313
CN2500 P — Steel, VP medium coating	Atomix AX3150 · Deskar LF6018 · Mitsubishi UE6020 · Widia WS10
