Midland Tools

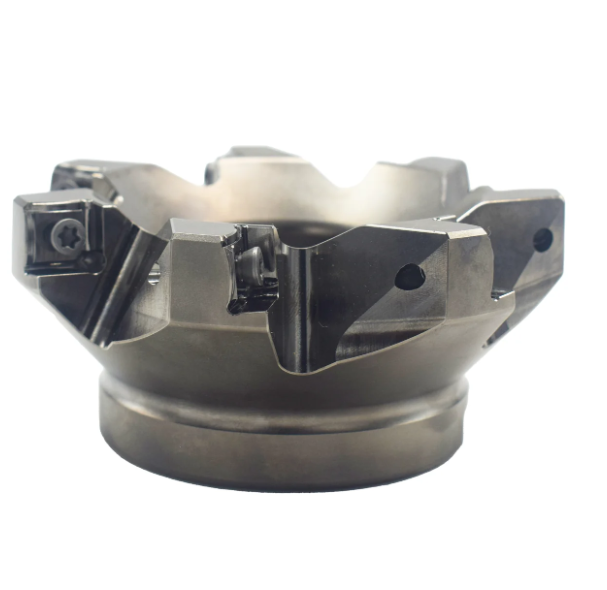

SNMX1206 45° Face Mill Cutter

SNMX1206 45° Face Mill Cutter

Rs. 4,873 (Incl. of all taxes)
Rs. 4,873 (Incl. of all taxes)
Rs. 4,129.66 + Rs. 743.34 GST
Sale Sold out
Taxes included. Shipping calculated at checkout.
GST invoice All prices include 18% GST
Delhi dispatch Ships from Chandni Chowk stock
Free delivery On orders above Rs. 2,999
Bulk quote Message us on WhatsApp

SNMX1206 45° Face Mill Cutter

45° face-mill cutter body listed for SNMX1206 inserts. Options state cutter diameter, mounting bore, listed body length and insert-pocket count.

How to read the option code

  • Example: C125-S40-65L/SNMX1206-8T.
  • C125 = 125 mm cutter diameter.
  • S40 = 40 mm mounting bore or connection diameter.
  • 65L = 65 mm listed length.
  • SNMX1206 = listed insert or cutter-family designation.
  • 8T/T8 = 8 insert pockets.

Variant guide

Current option Configuration Cutter dia. Connection Length Insert / series Pockets

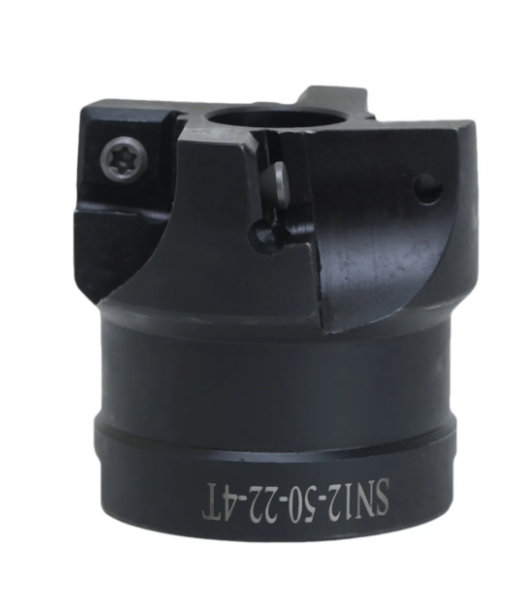

C50-S22-48L/SNMX1206-4T 45° face-mill body 50 mm 22 mm 48 mm SNMX1206 4
C63-S22-48L/SNMX1206-5T 45° face-mill body 63 mm 22 mm 48 mm SNMX1206 5
C80-S27-48L/SNMX1206-6T 45° face-mill body 80 mm 27 mm 48 mm SNMX1206 6
C100-S32-53L/SNMX1206-6T 45° face-mill body 100 mm 32 mm 53 mm SNMX1206 6
C125-S40-65L/SNMX1206-8T 45° face-mill body 125 mm 40 mm 65 mm SNMX1206 8
C160-S40-65L/SNMX1206-8T 45° face-mill body 160 mm 40 mm 65 mm SNMX1206 8

How to select

Match the mounting bore to the arbour, then choose the cutter diameter and pocket count.

The current handle references several brands, so the exact manufacturer is not assumed. Confirm insert geometry and package contents before ordering.
