Midland Tools

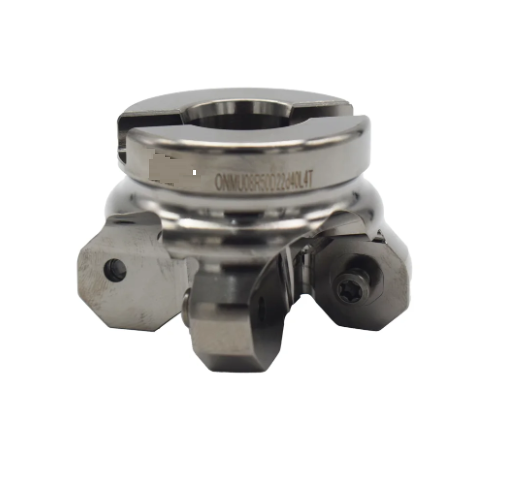

ONMU080608 16-Edge Face Mill Cutter
ONMU080608 16-Edge Face Mill Cutter
Regular price
Rs. 6,549
(Incl. of all taxes)
Regular price
Sale price
Rs. 6,549
(Incl. of all taxes)
Rs. 5,550 + Rs. 999 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Free delivery
On orders above Rs. 2,999
Bulk quote
Message us on WhatsApp
ONMU080608 16-Edge Face Mill Cutter
Face-mill cutter body listed for ONMU080608/ONMU08 inserts and a 16-edge system. Options state cutter diameter, mounting bore, listed body length and insert-pocket count.
How to read the option code
- Example: C100-S32-53L/ONMU08-7T.
- C100 = 100 mm cutter diameter.
- S32 = 32 mm mounting bore or connection diameter.
- 53L = 53 mm listed length.
- ONMU08 = listed insert family.
- 7T/T7 = 7 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Mounting Bore Or Connection Diameter | Length | Insert | Pockets |
|---|---|---|---|---|---|---|
| C63-S22-48L/ONMU08-5T | Face-mill body | 63 mm | 22 mm | 48 mm | ONMU080608 / ONMU08 | 5 |
| C80-S27-48L/ONMU08-6T | Face-mill body | 80 mm | 27 mm | 48 mm | ONMU080608 / ONMU08 | 6 |
| C100-S32-53L/ONMU08-7T | Face-mill body | 100 mm | 32 mm | 53 mm | ONMU080608 / ONMU08 | 7 |
| C125-S40-65L/ONMU08-8T | Face-mill body | 125 mm | 40 mm | 65 mm | ONMU080608 / ONMU08 | 8 |
| C160-S40-65L/ONMU08-10T | Face-mill body | 160 mm | 40 mm | 65 mm | ONMU080608 / ONMU08 | 10 |
How to select
Match the mounting bore to the arbour, then select cutter diameter and pocket count.
The current handle references several brands, so the exact manufacturer is not assumed. Confirm insert geometry, manufacturer and package contents before ordering.
