Midland Tools

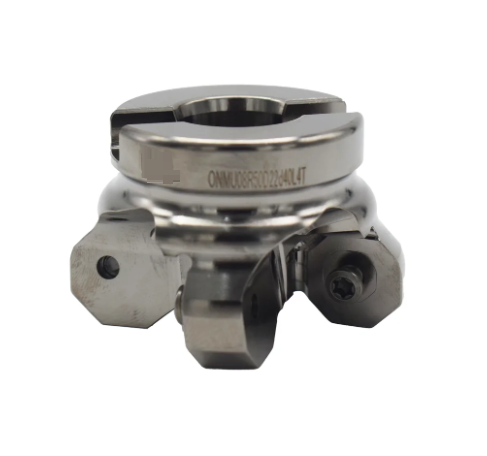

ONMU06 16-Edge Face Mill Cutter — Korloy Style
ONMU06 16-Edge Face Mill Cutter — Korloy Style
Regular price
Rs. 5,192
(Incl. of all taxes)
Regular price
Sale price
Rs. 5,192
(Incl. of all taxes)
Rs. 4,400 + Rs. 792 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Free delivery
On orders above Rs. 2,999
Bulk quote
Message us on WhatsApp
ONMU06 16-Edge Face Mill Cutter — Korloy Style
Face-mill cutter body listed for ONMU06 inserts and described in the current title as a Korloy-style 16-edge system. Options state cutter diameter, mounting bore, listed body length and insert-pocket count.
How to read the option code
- Example: C80-S27-48L/ONMU06-7T.
- C80 = 80 mm cutter diameter.
- S27 = 27 mm mounting bore or connection diameter.
- 48L = 48 mm listed length.
- ONMU06 = listed insert family.
- 7T/T7 = 7 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Mounting Bore Or Connection Diameter | Length | Insert | Pockets |
|---|---|---|---|---|---|---|
| C50-S22-48L/ONMU06-5T | Face-mill body | 50 mm | 22 mm | 48 mm | ONMU06 | 5 |
| C63-S22-48L/ONMU06-6T | Face-mill body | 63 mm | 22 mm | 48 mm | ONMU06 | 6 |
| C80-S27-48L/ONMU06-7T | Face-mill body | 80 mm | 27 mm | 48 mm | ONMU06 | 7 |
| C100-S32-53L/ONMU06-8T | Face-mill body | 100 mm | 32 mm | 53 mm | ONMU06 | 8 |
How to select
Match the mounting bore to the arbour, then select cutter diameter and pocket count.
The 16-edge and Korloy-style designations are retained from the product title; confirm exact manufacturer, insert geometry and package contents before ordering.
