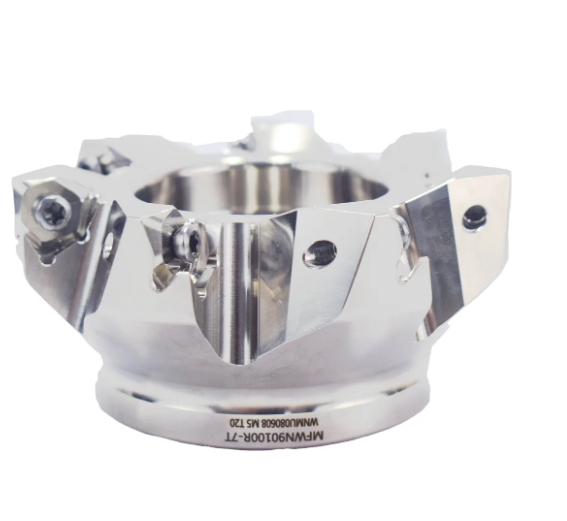

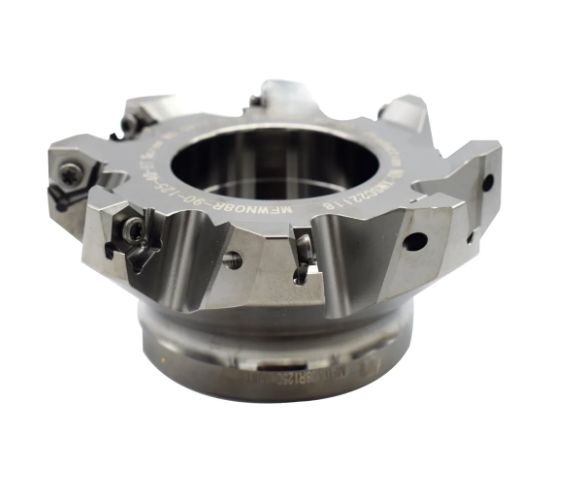

MFWN 90° Face Mill Cutter — WNMU Insert
MFWN 90° face-mill cutter range listed for WNMU inserts. Each option identifies the MFWN08 series, 90° angle, cutter diameter, mounting bore and insert-pocket count.
How to read the option code
- Example: MFWN08-90-100-32-7T.
- MFWN08 = listed cutter-series designation.
- 90 = 90° cutter angle.
- 100 = 100 mm cutter diameter.
- 32 = 32 mm mounting bore.
- 7T = seven insert pockets.
Variant guide
| Current option | Series | Angle | Cutter diameter | Mounting bore | Pockets |
|---|---|---|---|---|---|
| MFWN08-90-50-22-4T | MFWN08 | 90° | 50 mm | 22 mm | 4 |
| MFWN08-90-63-22-4T | MFWN08 | 90° | 63 mm | 22 mm | 4 |
| MFWN08-90-80-27-6T | MFWN08 | 90° | 80 mm | 27 mm | 6 |
| MFWN08-90-100-32-7T | MFWN08 | 90° | 100 mm | 32 mm | 7 |
| MFWN08-90-125-40-8T | MFWN08 | 90° | 125 mm | 40 mm | 8 |
| MFWN08-90-160-40-10T | MFWN08 | 90° | 160 mm | 40 mm | 10 |
How to select
Match the mounting bore to the arbour, then choose cutter diameter and pocket count.
Confirm the exact WNMU insert code, manufacturer and package contents before ordering.
