Midland Tools
Mitsubishi SOMT12T3 90° Face Mill Cutter
Mitsubishi SOMT12T3 90° Face Mill Cutter
Regular price
Rs. 2,537
(Incl. of all taxes)
Regular price
Sale price
Rs. 2,537
(Incl. of all taxes)
Rs. 2,150 + Rs. 387 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Free delivery
On orders above Rs. 2,999
Bulk quote
Message us on WhatsApp

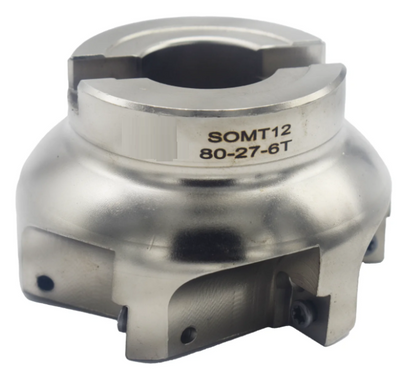

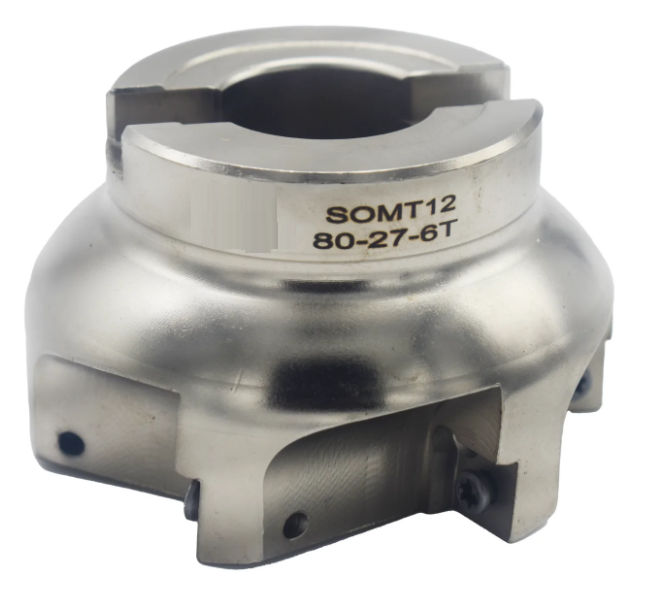

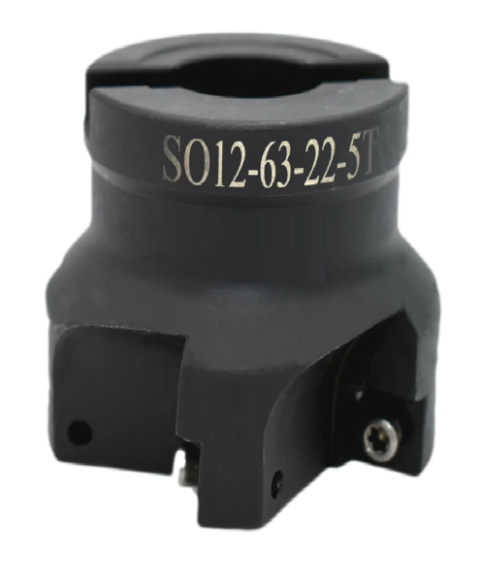

Mitsubishi SOMT12T3 90° Face Mill Cutter
Mitsubishi 90° face-mill cutter range listed for SOMT12/SOMT12T3 inserts. Options state cutter diameter, mounting bore, listed body length and insert-pocket count.
How to read the option code
- Example: C63-S22-48L/SOMT12-5T.
- C63 = 63 mm cutter diameter.
- S22 = 22 mm mounting bore or connection diameter.
- 48L = 48 mm listed length.
- SOMT12 = listed insert family.
- 5T/T5 = 5 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Mounting Bore Or Connection Diameter | Length | Insert | Pockets |
|---|---|---|---|---|---|---|
| C50-S22-48L/SOMT12-4T | 90° face-mill body | 50 mm | 22 mm | 48 mm | SOMT12 / SOMT12T3 | 4 |
| C63-S22-48L/SOMT12-5T | 90° face-mill body | 63 mm | 22 mm | 48 mm | SOMT12 / SOMT12T3 | 5 |
| C80-S27-48L/SOMT12-6T | 90° face-mill body | 80 mm | 27 mm | 48 mm | SOMT12 / SOMT12T3 | 6 |
| C100-S32-48L/SOMT12-7T | 90° face-mill body | 100 mm | 32 mm | 48 mm | SOMT12 / SOMT12T3 | 7 |
How to select
Match the mounting bore to the arbour, then choose cutter diameter and pocket count.
Confirm the exact Mitsubishi cutter model, SOMT insert suffix and package contents before ordering.
