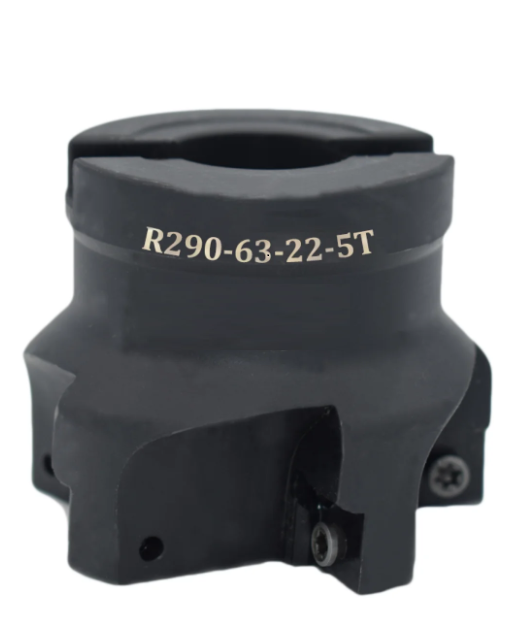

Sandvik R290 12T3 90° Face Mill Cutter
Sandvik-titled R290 90° face-mill cutter range associated in the title with 12T3 inserts. Options state cutter diameter, mounting bore, listed body length and pocket count.
How to read the option code
- Example: C63-S22-48L/R290-5T.
- C63 = 63 mm cutter diameter.
- S22 = 22 mm mounting bore or connection diameter.
- 48L = 48 mm listed length.
- R290 / 12T3 title family = listed insert or cutter-family designation.
- 5T/T5 = 5 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Connection | Length | Insert / series | Pockets |
|---|---|---|---|---|---|---|
| C50-S22-48L/R290-4T | 90° face-mill body | 50 mm | 22 mm | 48 mm | R290 / 12T3 title family | 4 |
| C63-S22-48L/R290-5T | 90° face-mill body | 63 mm | 22 mm | 48 mm | R290 / 12T3 title family | 5 |
| C80-S27-48L/R290-6T | 90° face-mill body | 80 mm | 27 mm | 48 mm | R290 / 12T3 title family | 6 |
| C100-S32-53L/R290-6T | 90° face-mill body | 100 mm | 32 mm | 53 mm | R290 / 12T3 title family | 6 |
How to select
Match the mounting bore to the arbour, then select cutter diameter and pocket count.
Confirm the exact Sandvik R290 cutter model and compatible 12T3 insert code before ordering.
