Midland Tools

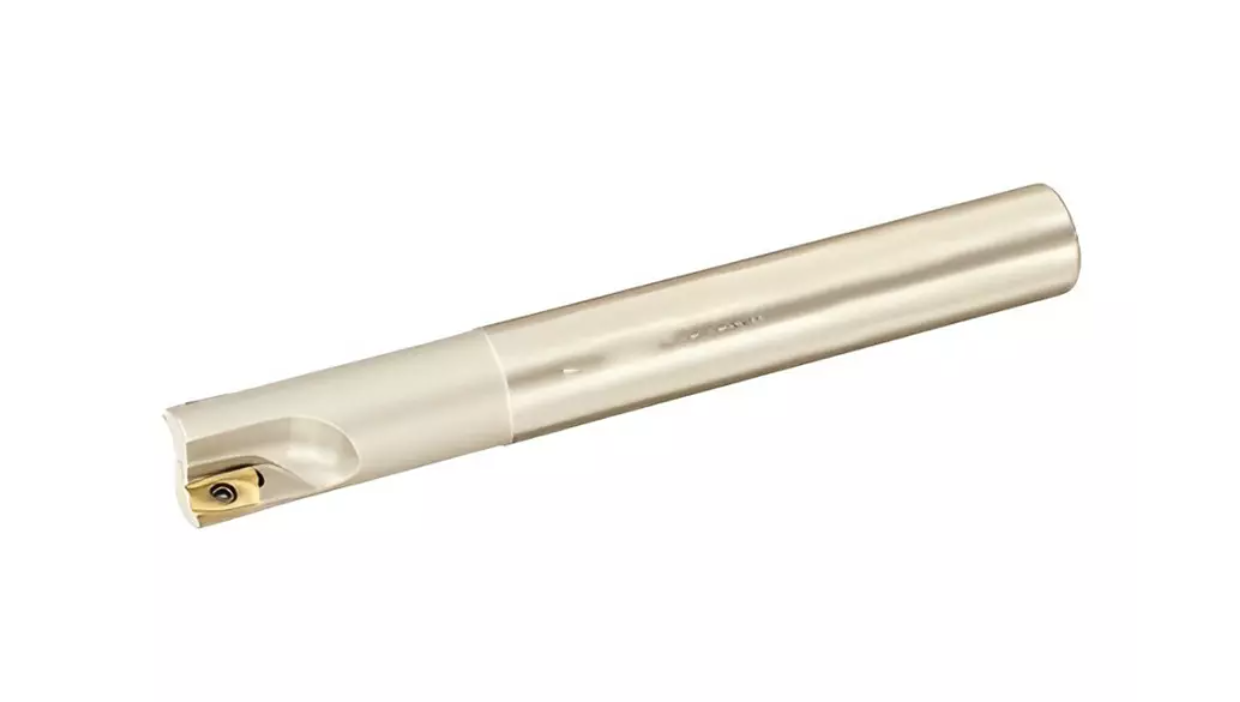

Sandvik R390 Series Cutter Body
Sandvik R390 Series Cutter Body
Regular price
Rs. 1,664
(Incl. of all taxes)
Regular price
Sale price
Rs. 1,664
(Incl. of all taxes)
Rs. 1,410.17 + Rs. 253.83 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Free delivery
On orders above Rs. 2,999
Bulk quote
Message us on WhatsApp
Sandvik R390 Series Cutter Body
Sandvik-titled R390 straight-shank milling-cutter range. Options identify cutter diameter, shank diameter, overall length, R390 insert-size family and pocket count.
How to read the option code
- Example: C25-S25-200L/R390-17-2T.
- C25 = 25 mm cutter diameter.
- S25 = 25 mm shank diameter.
- 200L = 200 mm listed length.
- R390-17 = listed insert or cutter-family designation.
- 2T/T2 = 2 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Connection | Length | Insert / series | Pockets |
|---|---|---|---|---|---|---|
| C16-S16-200L-R390-11-2T | Straight shank | 16 mm | 16 mm | 200 mm | R390-11 | 2 |
| C20-S20-200L-R390-11-2T | Straight shank | 20 mm | 20 mm | 200 mm | R390-11 | 2 |
| C25-S25-200L-R390-11-3T | Straight shank | 25 mm | 25 mm | 200 mm | R390-11 | 3 |
| C25-S25-200L/R390-17-2T | Straight shank | 25 mm | 25 mm | 200 mm | R390-17 | 2 |
| C32-S32-200L/R390-17-3T | Straight shank | 32 mm | 32 mm | 200 mm | R390-17 | 3 |
How to select
Match the shank diameter to the holder, then choose cutter diameter, R390 insert-size family and pocket count.
Confirm the exact CoroMill 390 cutter model and matching insert code before ordering.
