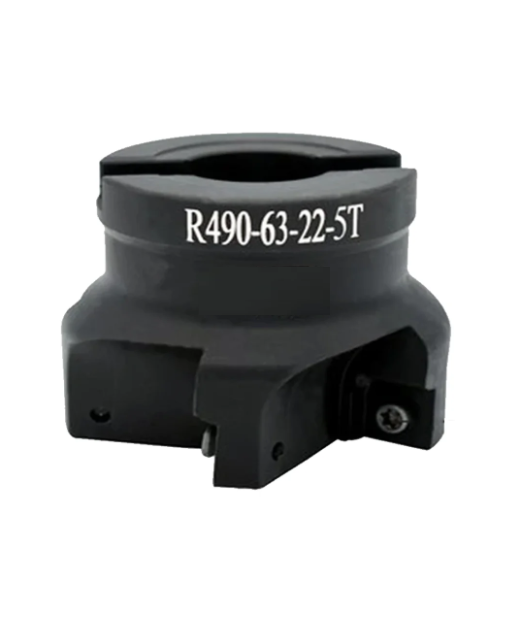

Sandvik R490 1404 90° Face Mill Cutter
Sandvik-titled R490 90° face-mill or shoulder-milling cutter range associated in the title with 1404 inserts. Options state cutter diameter, mounting bore, listed body length and pocket count.
How to read the option code
- Example: C63-S22-48L/R490-5T.
- C63 = 63 mm cutter diameter.
- S22 = 22 mm mounting bore or connection diameter.
- 48L = 48 mm listed length.
- R490 / 1404 title family = listed insert or cutter-family designation.
- 5T/T5 = 5 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Connection | Length | Insert / series | Pockets |
|---|---|---|---|---|---|---|
| C50-S22-48L/R490-4T | 90° face-mill body | 50 mm | 22 mm | 48 mm | R490 / 1404 title family | 4 |
| C63-S22-48L/R490-5T | 90° face-mill body | 63 mm | 22 mm | 48 mm | R490 / 1404 title family | 5 |
| C80-S27-48L/R490-6T | 90° face-mill body | 80 mm | 27 mm | 48 mm | R490 / 1404 title family | 6 |
How to select
Match the mounting bore to the arbour, then select cutter diameter and pocket count.
Confirm the exact CoroMill R490 cutter model and compatible 1404 insert code before ordering.
