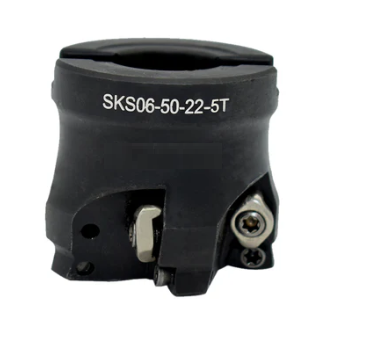

SKS Series High-Feed Face Mill — WDMW06/08
SKS high-feed face-mill body range listed for WDMW06 and WDMW08 inserts. Options state cutter diameter, mounting bore, listed body length and insert-pocket count.
How to read the option code
- Example: C50-S22-48L/WDMW06-5T.
- C50 = 50 mm cutter diameter.
- S22 = 22 mm mounting bore or connection diameter.
- 48L = 48 mm listed length.
- WDMW06 = listed insert family.
- 5T/T5 = 5 insert pockets.
Variant guide
| Current option | Configuration | Cutter dia. | Mounting Bore Or Connection Diameter | Length | Insert | Pockets |
|---|---|---|---|---|---|---|
| C50-S22-48L/WDMW06-5T | Face-mill body | 50 mm | 22 mm | 48 mm | WDMW06 | 5 |
| C50-S22-48L/WDMW08-4T | Face-mill body | 50 mm | 22 mm | 48 mm | WDMW08 | 4 |
| C63-S22-48L/WDMW08-4T | Face-mill body | 63 mm | 22 mm | 48 mm | WDMW08 | 4 |
How to select
Match the mounting bore to the arbour or machine setup, then choose cutter diameter and insert family.
Confirm the exact SKS model, insert suffix and package contents before ordering.
