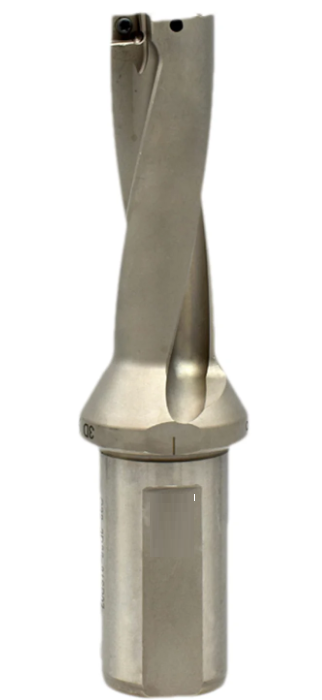

U Drill 3D SPMG Type

U Drill 3D SPMG Type

Rs. 1,000.00
Rs. 1,000.00
Sale Sold out
Shipping calculated at checkout.
Dia

Diameter 13 mm to 17.5 mm comes in 2 shank 20 mm and 25 mm please select from drop down menu

All Size comes in 2D 3D 4D 5D and Suitable Inserts SPMG AND WCMX please check from drop down menu .

DIA ΦDS SPECIFICATION / ITEM L DC l1 ls APPLICABLE INSERT CODE
12.5 25 C20-3D-12.5-30 SP04 102 37.5 30 50 SPMG..060402 MCT2004
13 25 C25-3D13-42SP05 113 49.5 68 56 SPMG..050404 MCT2019
13.5 25 3D13.5-44SP05 115 51 69 56 SPMG..050404 MCT2020
14 25 3D14-45SP05 116 39 57 56 SPMG..050404 MCT2021
14.5 25 3D14.5-47SP05 118 40.5 59 56 SPMG..050404 MCT2022
15 25 3D15-48SP05 119 42 60 56 SPMG..050404 MCT2023
15.5 25 3D15.5-50SP06 121 43.5 62 56 SPMG..060404 MCT2024
16 25 3D16-51SP06 122 45 63 56 SPMG..060404 MCT2025
16.5 25 3D16.5-53SP06 124 46.5 65 56 SPMG..060404 MCT2026
17 25 3D17-54SP06 125 48 66 56 SPMG..060404 MCT2027
17.5 25 3D17.5-56SP06 127 49.5 68 56 SPMG..060404 MCT2028
18 25 C25-3D18-39SP06 128 51 69 58 SPMG..060404 MCT2029
18.5 25 3D18.5-59SP06 130 52.5 71 58 SPMG..060404 MCT2030
19 25 3D19-60SP06 131 54 72 58 SPMG..060404 MCT2031
19.5 25 3D19.5-62SP06 133 55.5 74 58 SPMG..060404 MCT2032
20 25 3D20-63SP06 134 57 75 58 SPMG..060404 MCT2033
20.5 25 3D20.5-65SP06 136 58.5 77 58 SPMG..060404 MCT2034
21 25 3D21-66SP06 137 60 78 58 SPMG..060404 MCT2035
21.5 25 3D21.5-68SP06 139 61.5 67 58 SPMG..060404 MCT2036
22 25 3D22-69SP07 140 63 80 58 SPMG..060404 MCT2037
22.5 25 3D22.5-71SP07 142 64.5 81 58 SPMG..060404 MCT2038
23 25 3D23-72SP07 146 66 83 58 SPMG..060404 MCT2039
23.5 25 3D23.5-74SP07 148 70.5 92 58 SPMG..060404 MCT2040
DIA ΦDS SPECIFICATION / ITEM L DC l1 ls APPLICABLE INSERT CODE
24 25 3D24-75SP07 149 72 93 56 SPMG 07T308 MCT2043
24.5 25 3D24.5-77SP07 151 73.5 95 56 SPMG 07T308 MCT2044
25 25 3D25-78SP07 152 75 96 56 SPMG 07T308 MCT2045
25.5 32 C32-3D25.5-80SP07 160 76.5 100 60 SPMG 07T308 MCT2046
26 32 3D26-81SP07 161 78 101 60 SPMG 07T308 MCT2047
26.5 32 3D26.5-83SP07 163 79.5 103 60 SPMG 07T308 MCT2048
27 32 3D27-84SP07 164 81 104 60 SPMG 07T308 MCT2049
27.5 32 3D27.5-86SP07 166 82.5 108 60 SPMG 07T308 MCT2050
28 32 3D28-87SP09 167 84 107 60 SPMG 090408 MCT2051
28.5 32 3D28.5-89SP09 169 85.5 109 60 SPMG 090408 MCT2052
29 32 C32-3D29-91SP09 172 87 112 60 SPMG 090408 MCT2053
29.5 32 3D29.5-93SP09 174 88.5 114 60 SPMG 090408 MCT2054
30 32 3D30-94SP09 178 90 118 60 SPMG 090408 MCT2055
30.5 32 3D30.5-96SP09 180 91.5 120 60 SPMG 090408 MCT2056
31 32 3D31-97SP09 181 93 121 60 SPMG 090408 MCT2057
31.5 32 3D31.5-99SP09 183 94.5 123 60 SPMG 090408 MCT2058
32 32 3D32-100SP09 184 96 124 60 SPMG 090408 MCT2059
32.5 32 3D32.5-102SP09 186 97.5 126 60 SPMG 090408 MCT2060
33 32 3D33-103SP09 187 99 127 60 SPMG 090408 MCT2061
33.5 32 3D33.5-105SP09 189 100.5 129 60 SPMG 090408 MCT2062
34 32 3D34-106SP11 190 102 130 60 SP..110408 MCT2063
34.5 32 3D34.5-108SP11 192 103.5 132 60 SP..110408 MCT2064
35 32 C32-3D35-109SP11 193 105 133 60 SP..110408 MCT2065
35.5 32 3D35.5-111SP11 195 106.5 135 60 SP..110408 MCT2066
36 32 3D36-112SP11 196 108 136 60 SP..110408 MCT2067
36.5 32 3D36.5-114SP11 198 109.5 138 60 SP..110408 MCT2068
37 32 3D37-116SP11 206 111 146 60 SP..110408 MCT2069
37.5 32 3D37.5-118SP11 208 112.5 148 60 SP..110408 MCT2070
38 32 3D38-119SP11 207 114 149 60 SP..110408 MCT2071
38.5 32 3D38.5-121SP11 211 115.5 151 60 SP..110408 MCT2072
39 32 C40-3D39-122SP11 222 117 152 70 SP..110408 MCT2073
39.5 32 3D39.5-124SP11 224 118.5 154 70 SP..110408 MCT2074
40 40 3D40-125SP11 225 120 155 70 SP..110408 MCT2075
40.5 40 3D40.5-125SP11 70 SP..110408 MCT2076
41 40 3D41-128SP11 228 123 158 70 SP..110408 MCT2077
41.5 40 3D41.5-128SP11 70 SP..110408 MCT2078
42 40 3D42-131SP14 231 126 161 70 SP..110408 MCT2079
DIA ΦDS SPECIFICATION / ITEM L DC l1 ls APPLICABLE INSERT CODE
42.5 40 3D42.5-131SP14 70 SP..140512 MCT2082
43 40 3D43-134SP14 234 129 164 70 SP..140512 MCT2083
43.5 40 3D43.5-134SP14 70 SP..140512 MCT2084
44 40 3D44-137SP14 237 132 167 70 SP..140512 MCT2085
44.5 40 3D44.5-137SP14 70 SP..140512 MCT2086
45 40 3D45-140SP14 240 135 170 70 SP..140512 MCT2087
45.5 40 3D45.5-140SP14 56 SP..140512 MCT2088
46 40 C40-3D46-143SP14 243 138 173 56 SP..140512 MCT2089
46.5 40 C40-3D46.5-143SP14 56 SP..140512 MCT2090
47 40 3D47-146SP14 246 141 176 56 SP..140512 MCT2091
47.5 40 3D47.5-146SP14 56 SP..140512 MCT2092
48 40 3D48-149SP14 249 144 179 56 SP..140512 MCT2093
48.5 40 3D48.5-149SP14 56 SP..140512 MCT2094
49 40 3D49-152SP14 252 147 182 56 SP..140512 MCT2095
50 40 3D50-155SP14 255 150 185 56 SP..140512 MCT2096
51 40 C40-3D51-158SP09 258 153 188 70 SP..090408 MCT2097
52 40 3D52-161SP09 261 156 191 70 SP..090408 MCT2098
53 40 3D53-164SP09 264 159 194 70 SP..090408 MCT2099
54 40 3D54-167SP09 267 161 197 70 SP..090408 MCT2100
55 40 3D55-170SP09 270 163 200 70 SP..090408 MCT2101
56 40 C40-3D56-176SP09 278 166 208 70 SP..090408 MCT2102
57 40 3D57-179SP09 281 169 211 70 SP..090408 MCT2103
58 40 3D58-182SP09 284 171 214 70 SP..090408 MCT2104
59 40 3D59-185SP09 287 174 217 70 SP..090408 MCT2105
60 40 3D60-188SP09 290 177 220 70 SP..090408 MCT2106
