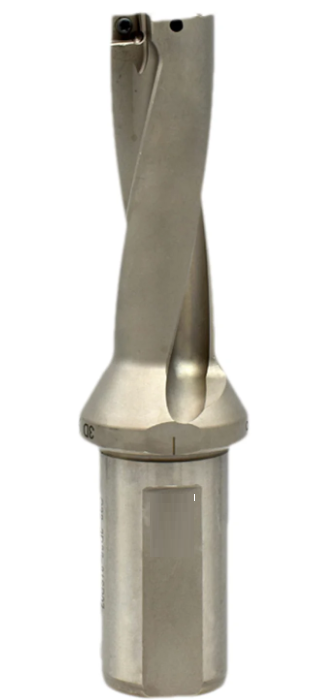

U Drill 4D SPMG Type
Indexable U-drill body in the listed 4D depth series, designed around SPMG-type replaceable inserts. The selector combines drill diameter and shank diameter.
How to read the selector
- Example: 25.5 / 32MM Shank.
- 25.5 = listed drill diameter in millimetres.
- 32MM Shank = listed shank diameter.

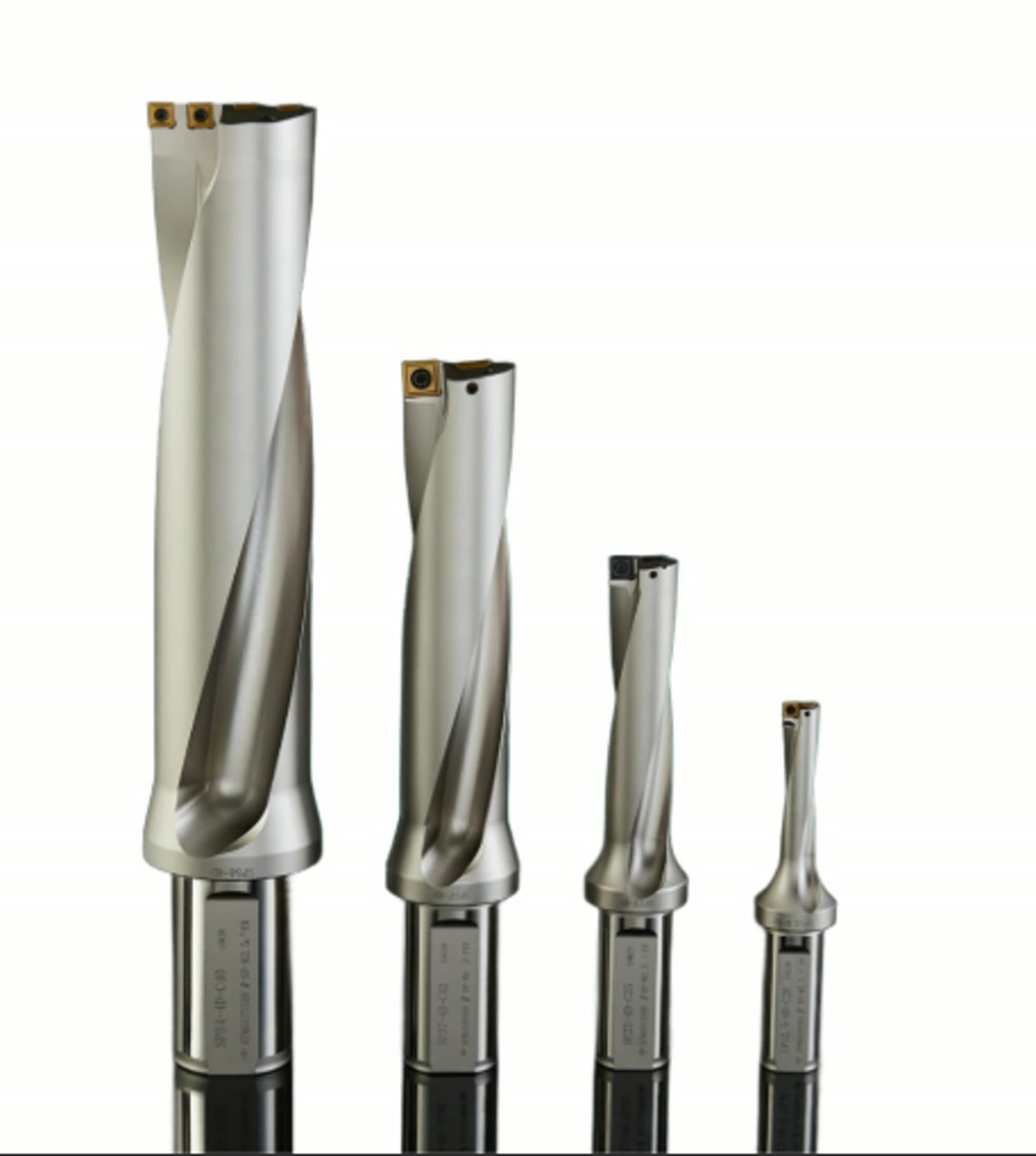

- 4D = the catalogue depth-series designation.
Current diameter-to-shank grouping
| Drill-diameter range | Listed shank diameter |
|---|---|
| 10–12 mm | 20 mm |
| 12.5–25 mm | 25 mm |
| 25.5–38.5 mm | 32 mm |
| 39–60 mm | 40 mm |
How to select
Select the required hole diameter, then match the shank diameter to the machine holder and confirm the compatible SPMG insert size.
Exact usable drilling depth, compatible SPMG insert code, screws, coolant arrangement and cutting conditions require supplier verification.
