Midland Tools

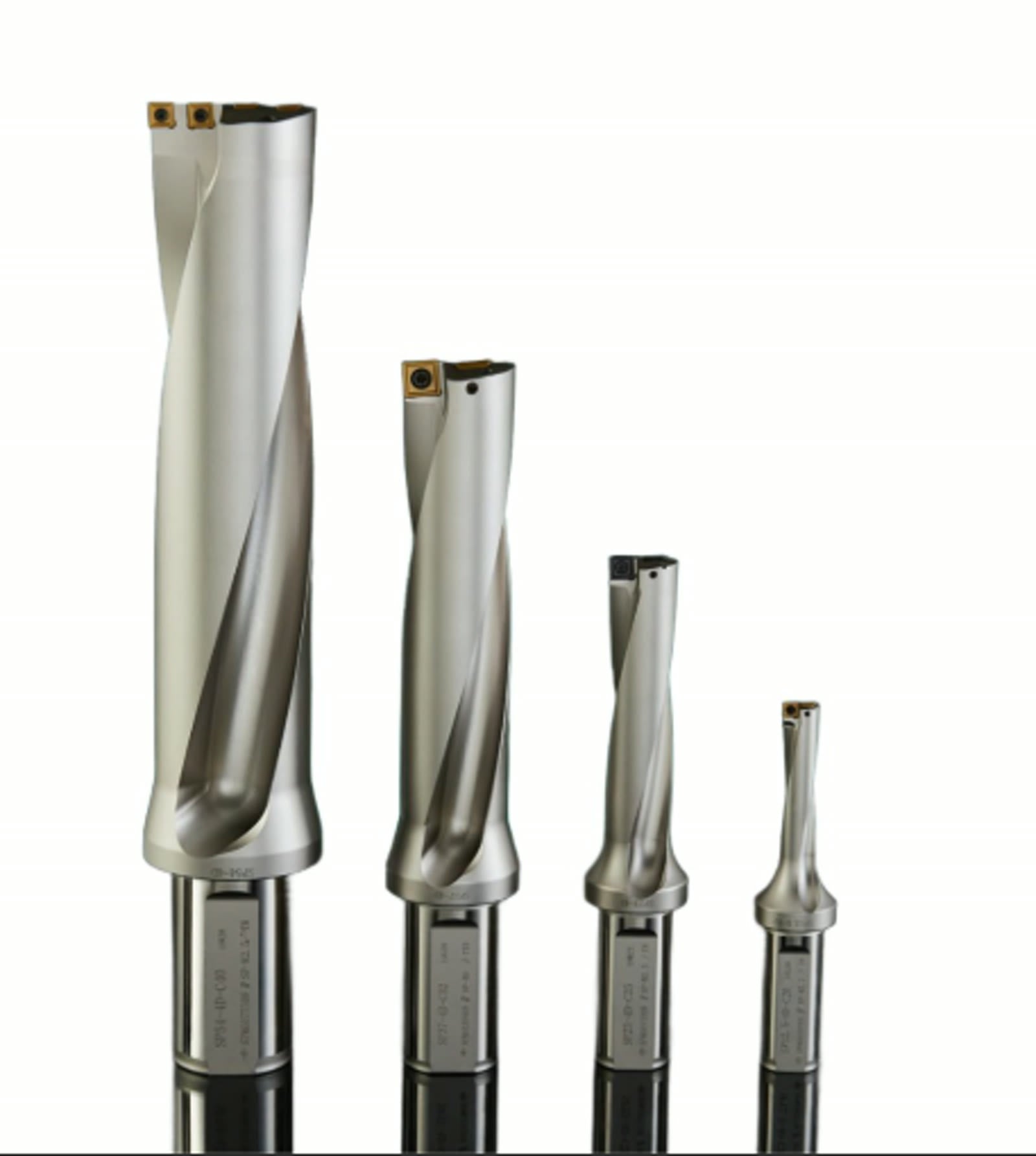

U Drill 5D SPMG Type
U Drill 5D SPMG Type
Regular price
Rs. 2,213
(Incl. of all taxes)
Regular price
Sale price
Rs. 2,213
(Incl. of all taxes)
Rs. 1,875.42 + Rs. 337.58 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Free delivery
On orders above Rs. 2,999
Bulk quote
Message us on WhatsApp
U Drill 5D SPMG Type
Indexable U-drill body in the listed 5D depth series, designed around SPMG-type replaceable inserts. The selector combines drill diameter and shank diameter.
How to read the selector
- Example: 25.5 / 32MM Shank.
- 25.5 = listed drill diameter in millimetres.
- 32MM Shank = listed shank diameter.
- 5D = the catalogue depth-series designation.
Current diameter-to-shank grouping
| Drill-diameter range | Listed shank diameter |
|---|---|
| 10–12 mm | 20 mm |
| 12.5–25 mm | 25 mm |
| 25.5–38.5 mm | 32 mm |
| 39–60 mm | 40 mm |
How to select
Select the required hole diameter, then match the shank diameter to the machine holder and confirm the compatible SPMG insert size.
Exact usable drilling depth, compatible SPMG insert code, screws, coolant arrangement and cutting conditions require supplier verification.
