VNMG1602/04/08/12 TURNING INSERT (MITSUBISHI)

Name: VNMG1602/04/08/12 TURNING INSERT (MITSUBISHI)
Brand: Midland Tools
SKU: 46472321237232
Price: 1950.0 INR
Availability: InStock

Price on request

Shipping calculated at checkout.

💬 Price on request Message us on WhatsApp
(WhatsApp icon at bottom-right of your screen)

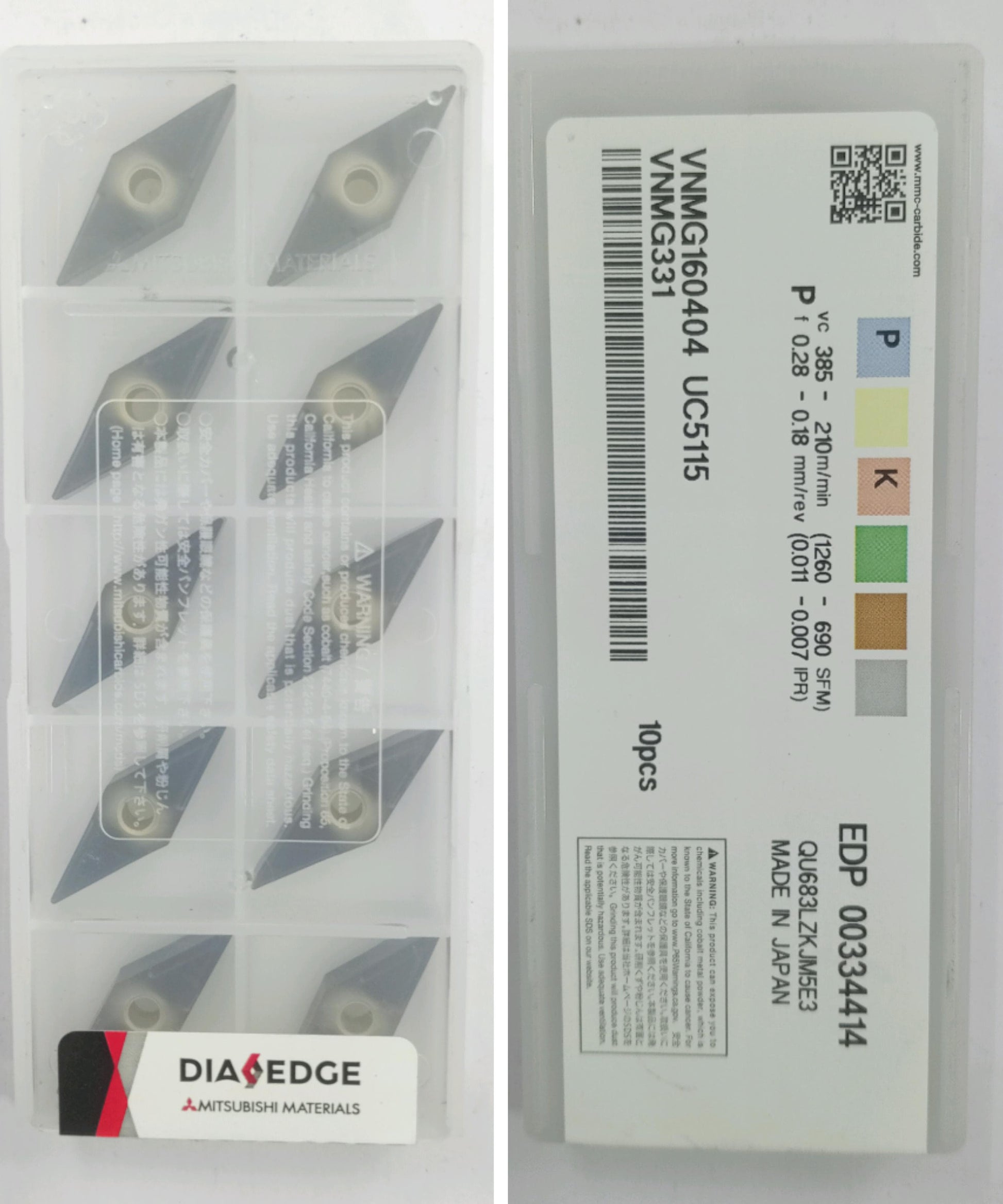

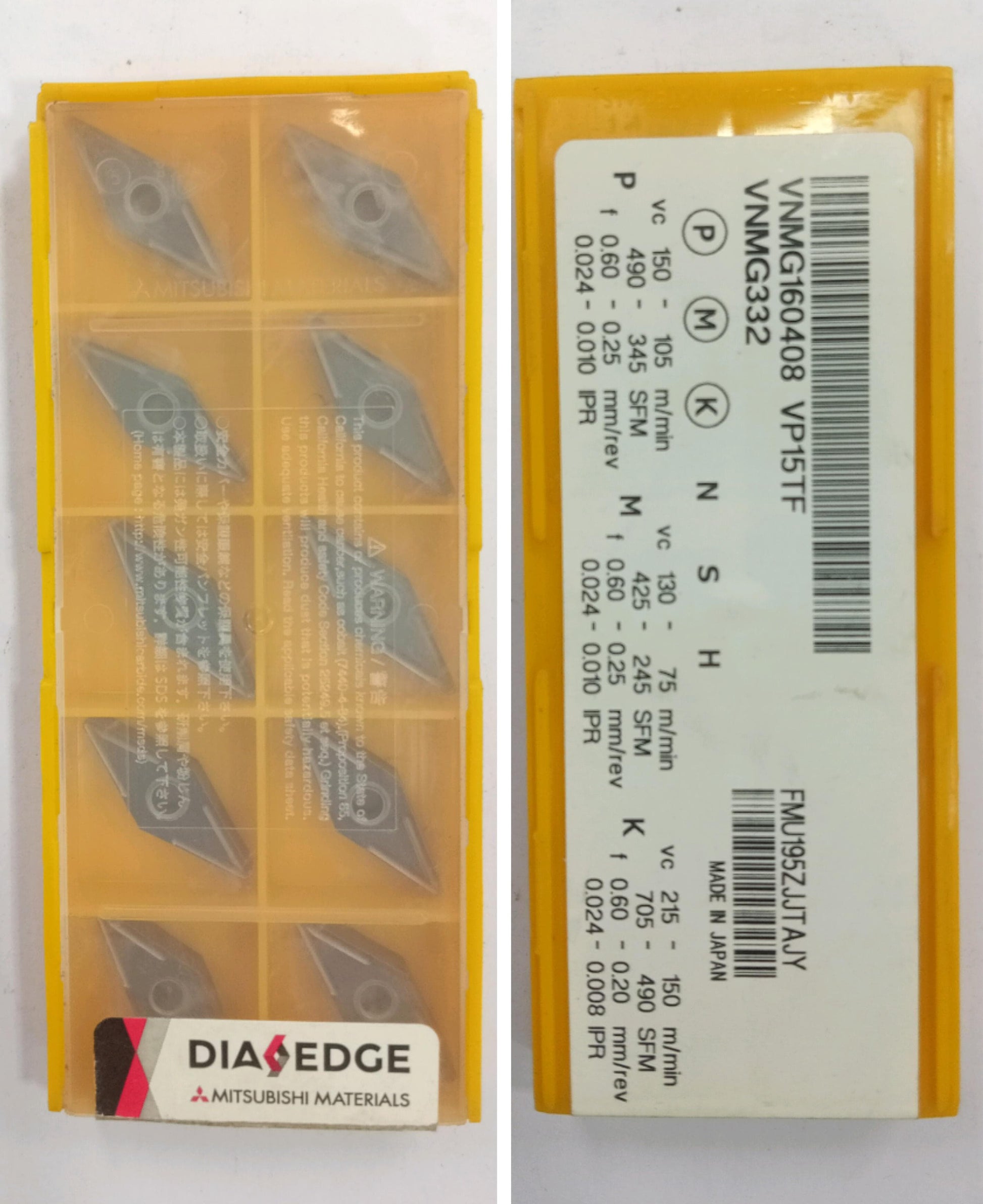

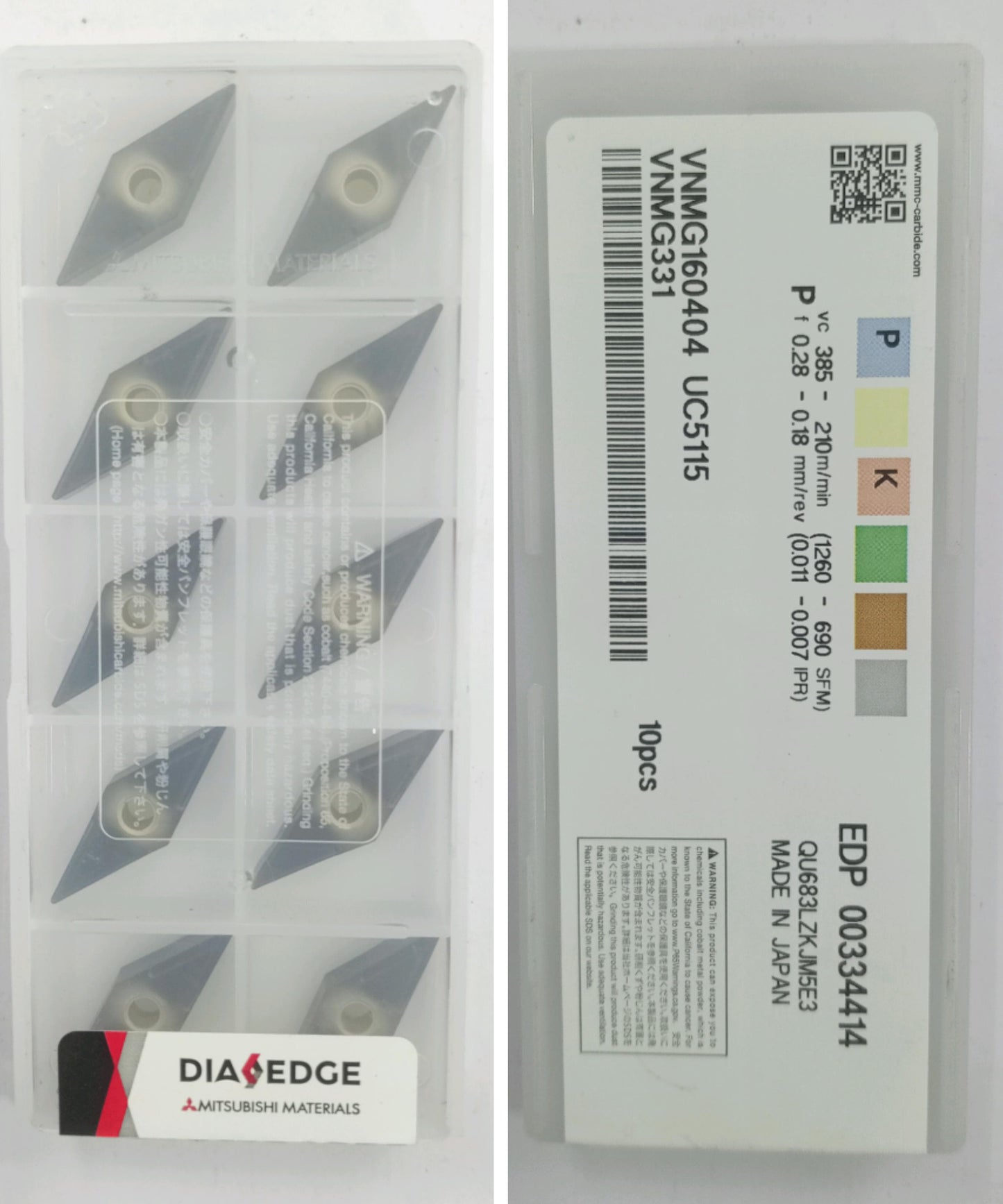

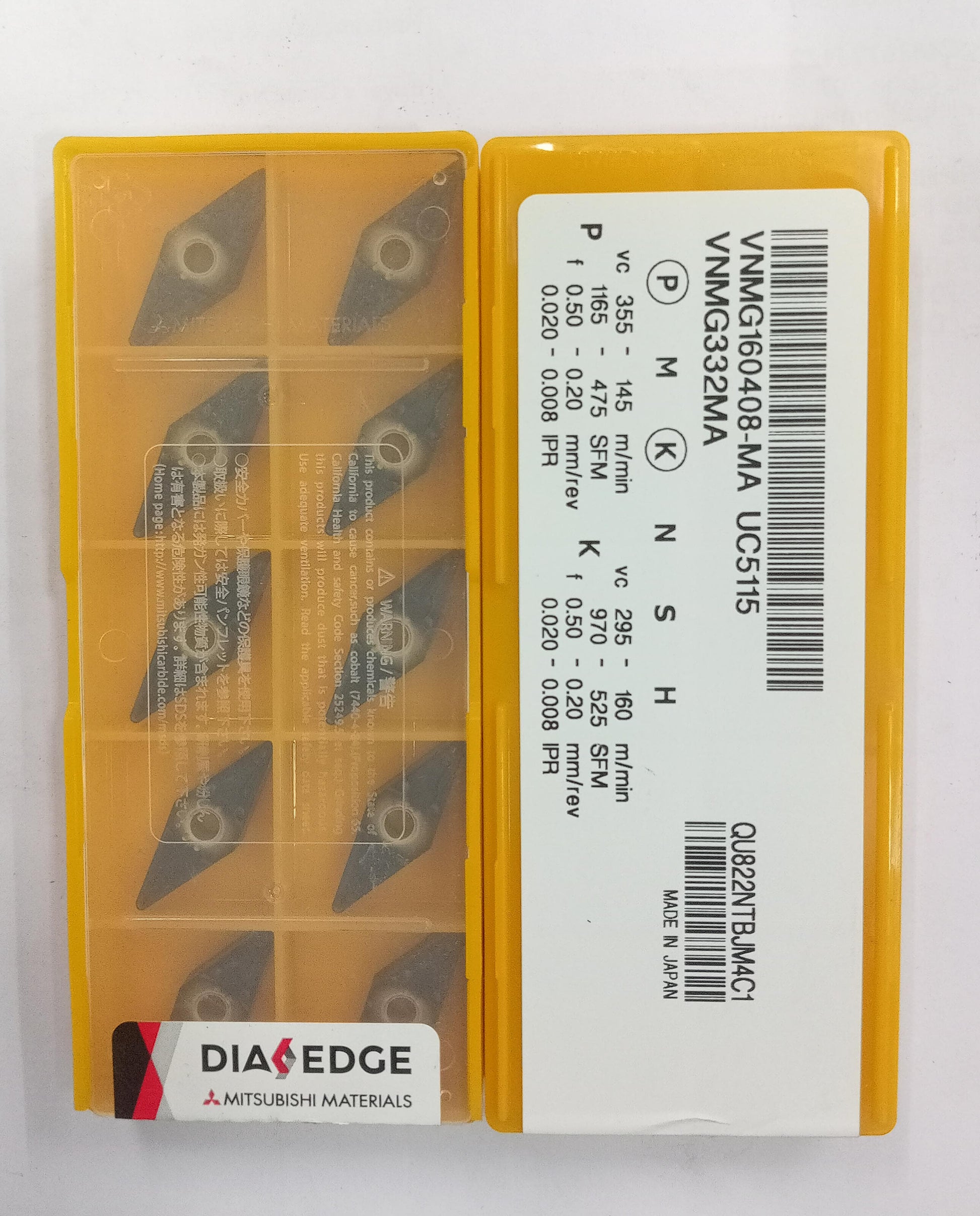

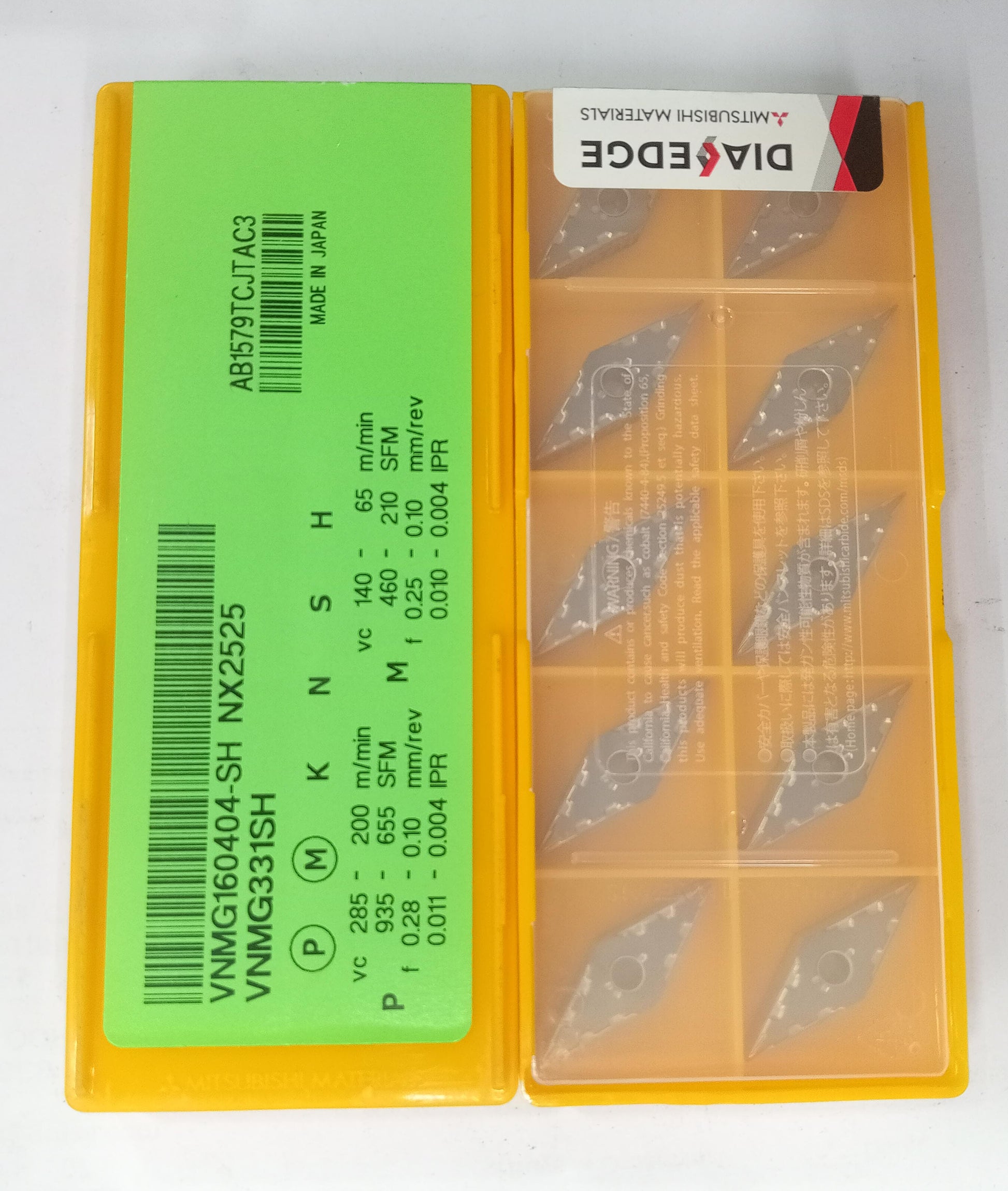

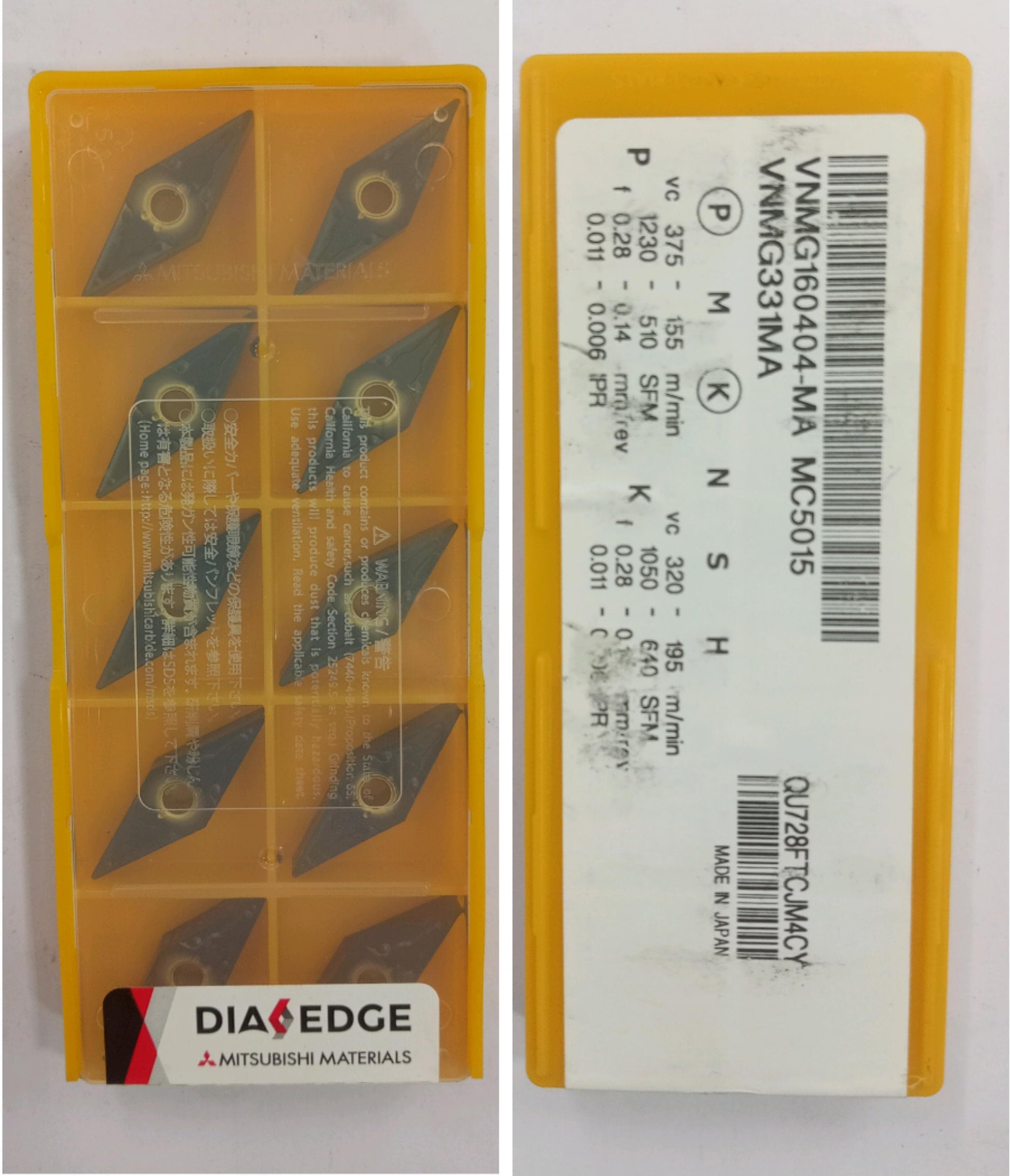

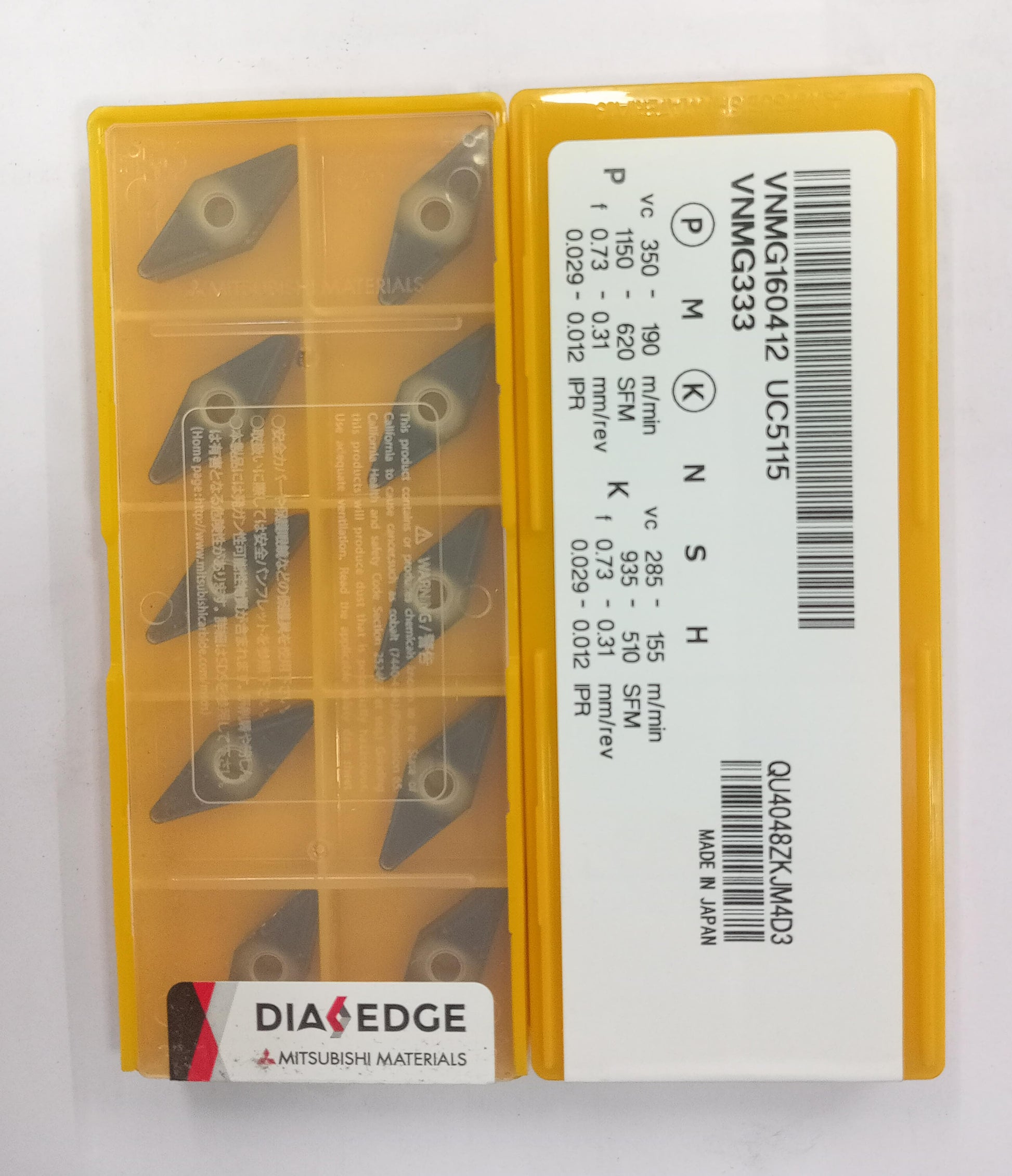

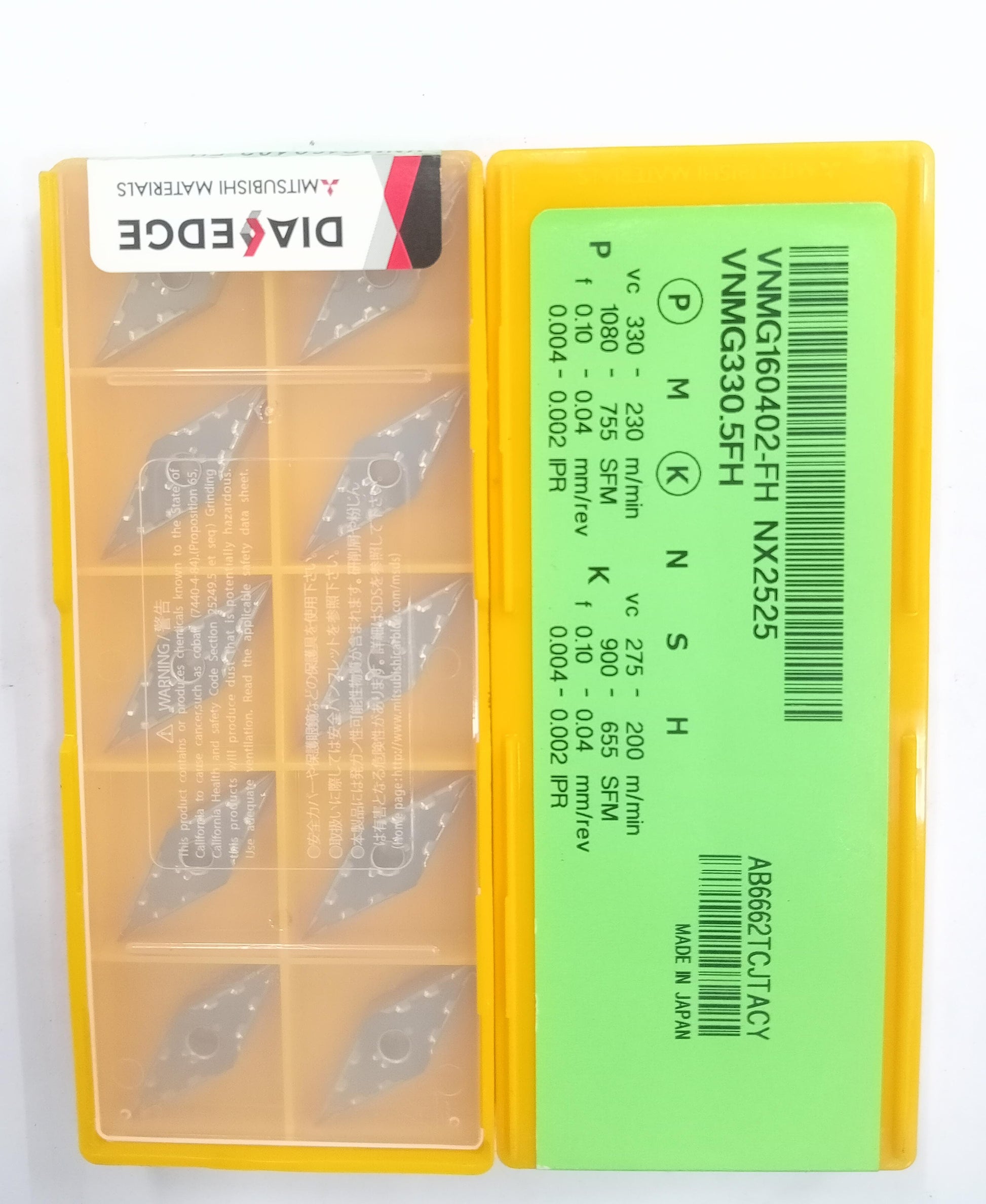

VNMG1602/04/08/12 TURNING INSERT — Mitsubishi

Mitsubishi VNMG1602/04/08/12 carbide turning insert — designed for CNC lathe turning, boring and facing on shafts, bushings and precision components. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.

Also searched as: VNMG1602/04/08/12 insert, VNMG1602/04/08/12 tip, carbide turning bit, VNMG CNC tip.

Specifications

ISO Code	VNMG1602/04/08/12
Pack size	Box of 10 pieces
Brand	Mitsubishi

Typical cutting parameters

Workpiece	Vc (m/min)	Fn (mm/rev)	Ap (mm)
Carbon steel	140–220	0.08–0.25	0.3–2.0
Stainless steel	80–160	0.08–0.20	0.3–2.0
Cast iron	100–200	0.10–0.30	0.5–3.0
Hardened steel (HRC 45)	60–120	0.05–0.15	0.2–1.0

Starting values — adjust for rigidity, coolant, and finish requirement.

Cross-brand grade equivalents

Mitsubishi Grade (application)	Equivalents
VP15TF P/K — Steel + cast iron, finishing	Atomix AX3150 · Korloy PC9030 · Deskar LF6118 · Widia WK10CT
MC6025 M — Stainless, interrupted cuts	Atomix AX3220A · Korloy PC8110 · Deskar LF9218 · Widia WK15CT
