Midland Tools
WNMA060412 MC5015 TURNING INSERT (MITSUBISHI)
WNMA060412 MC5015 TURNING INSERT (MITSUBISHI)
Price on request
Shipping calculated at checkout.
Quantity
💬 Price on request
Message us on WhatsApp ↘
(WhatsApp icon at bottom-right of your screen)
(WhatsApp icon at bottom-right of your screen)
Couldn't load pickup availability

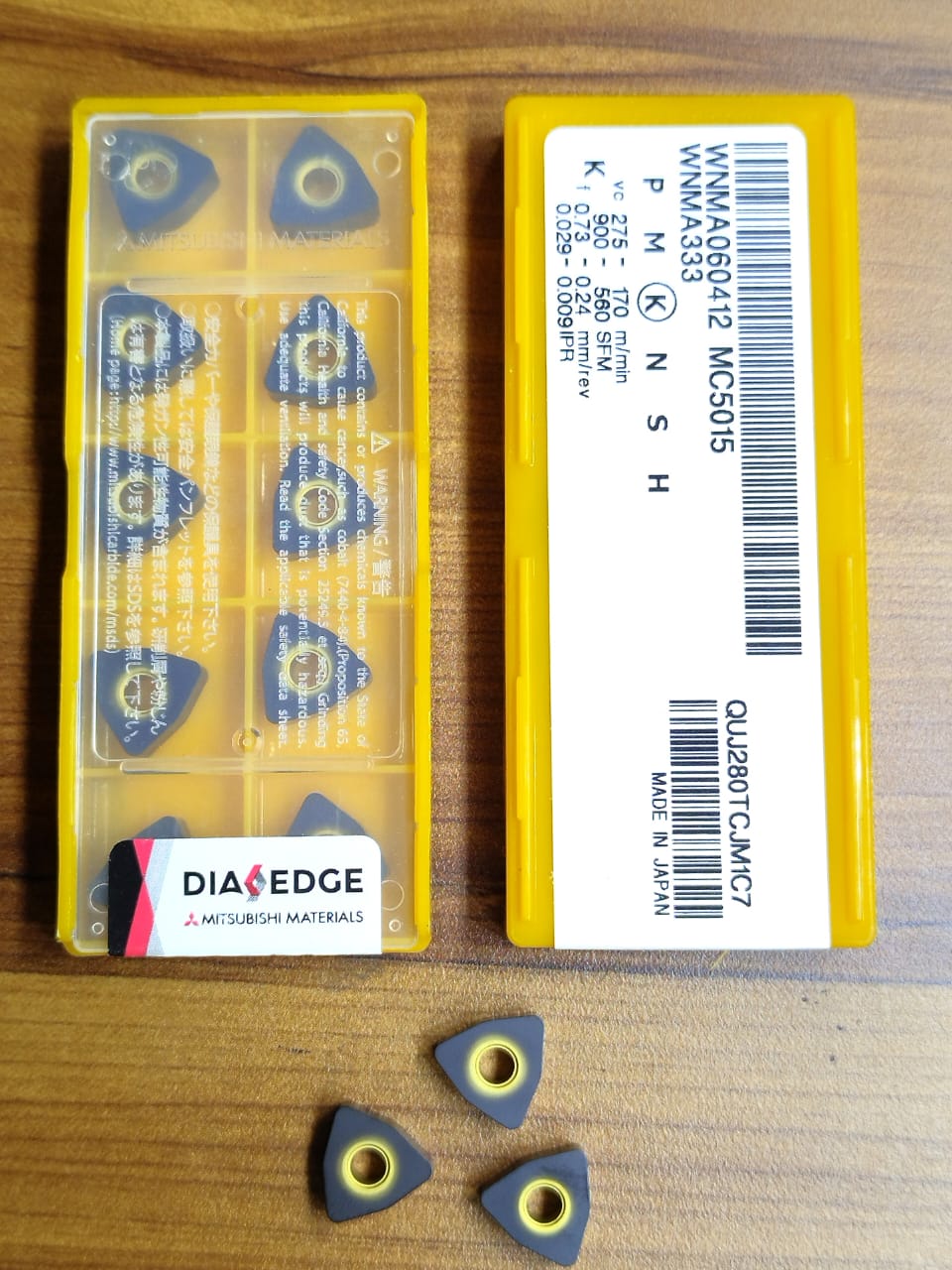

WNMA060412 MC5015 TURNING INSERT — Mitsubishi
Mitsubishi WNMA060412 carbide turning insert (80° Trigon, 0° clearance) — designed for CNC lathe turning, boring and facing on shafts, bushings and precision components. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.
Also searched as: WNMA060412 insert, WNMA060412 tip, carbide turning bit, WNMA CNC tip.
Specifications
| ISO Code | WNMA060412 |
| Shape | W — 80° Trigon |
| Clearance | N (0°) |
| Dimensions | IC 6.35 mm, thickness 4.76 mm, nose radius 1.2 mm |
| Pack size | Box of 10 pieces |
| Brand | Mitsubishi |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 140–220 | 0.08–0.25 | 0.3–2.0 |
| Stainless steel | 80–160 | 0.08–0.20 | 0.3–2.0 |
| Cast iron | 100–200 | 0.10–0.30 | 0.5–3.0 |
| Hardened steel (HRC 45) | 60–120 | 0.05–0.15 | 0.2–1.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
Dispatch: Same day from Chandni Chowk, Delhi. India-wide shipping.
Need a grade not listed, cross-brand help, or a bulk quote? WhatsApp us at +91 70111 82829 — typical reply within 30 minutes during shop hours.
