WNMU080608 EN-GM LF6018 MILLING INSERT (DESKAR)
WNMU080608 EN-GM LF6018 MILLING INSERT (DESKAR)
(WhatsApp icon at bottom-right of your screen)
Couldn't load pickup availability

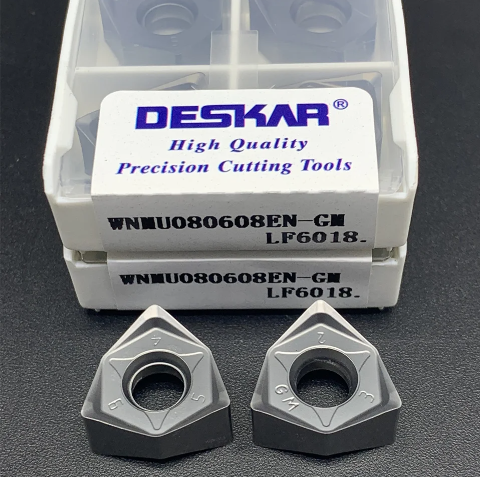

WNMU080608 EN-GM LF6018 MILLING INSERT — Deskar
Deskar WNMU080608 carbide milling insert (80° Trigon, 0° clearance) — designed for face milling, shoulder milling and profile machining on CNC machining centres. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.
Also searched as: WNMU080608 insert, WNMU080608 tip, carbide milling bit, WNMU CNC tip.
Specifications
| ISO Code | WNMU080608 |
| Shape | W — 80° Trigon |
| Clearance | N (0°) |
| Dimensions | IC 8 mm, thickness 6.35 mm, nose radius 0.8 mm |
| Pack size | Box of 10 pieces |
| Brand | Deskar |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 180–280 | 0.08–0.20 | 0.5–3.0 |
| Stainless steel | 100–180 | 0.06–0.15 | 0.5–2.5 |
| Cast iron | 140–240 | 0.10–0.25 | 0.5–4.0 |
| Aluminium alloy | 400–1200 | 0.10–0.30 | 1.0–5.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
Cross-brand grade equivalents
| Deskar Grade (application) | Equivalents |
|---|---|
|
LF6018 P — Steel medium, general purpose |
Atomix AX3200 · Korloy NC3030 · Mitsubishi UE6020 · Widia WS10 |
Directional equivalents by ISO application class. For critical work, verify against current brand datasheets.
Dispatch: Same day from Chandni Chowk, Delhi. India-wide shipping.
Need a grade not listed, cross-brand help, or a bulk quote? WhatsApp us at +91 70111 82829 — typical reply within 30 minutes during shop hours.
