DCMT11T302-MV Turning Insert — Atomix

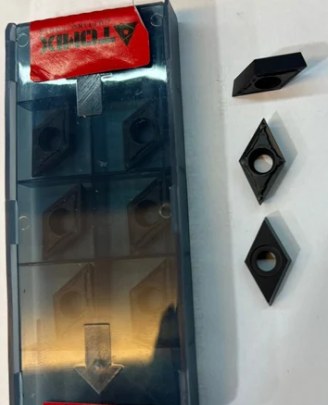

Atomix DCMT11T302-MV carbide turning insert (55° Diamond, 7° clearance) — designed for CNC lathe turning, boring and facing on shafts, bushings and precision components. Positive rake geometry and precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Loose single insert piece.
Also searched as: DCMT11T302-MV insert, DCMT11T302-MV tip, carbide turning bit, DCMT CNC tip.
Specifications
| ISO Code | DCMT11T302-MV |
| Shape | D — 55° Diamond |
| Clearance | C (7°) |
| Dimensions | IC 11 mm, thickness 3.18 mm, nose radius 0.2 mm |
| Pack size | Loose single insert piece |
| Brand | Atomix |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 140–220 | 0.08–0.25 | 0.3–2.0 |
| Stainless steel | 80–160 | 0.08–0.20 | 0.3–2.0 |
| Cast iron | 100–200 | 0.10–0.30 | 0.5–3.0 |
| Hardened steel (HRC 45) | 60–120 | 0.05–0.15 | 0.2–1.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
Chipbreaker suffix guide
| Suffix | Use case |
|---|---|
| HQ | High-quality finishing geometry — low feeds, best surface finish. |
| MV | Medium-versatile — forgiving on mixed steel/stainless shops. |
| WM | Wide-medium for heavy duty, deeper cuts. |
| EM | General medium cutting — good chip control over wide feed range. |
| FG / FM | Fine finishing — excellent surface finish at low feeds. |
| HM | Hard-material chipbreaker — short chips in HRC 40+ work. |
