SPMG090408-DG Drilling Insert — Atomix
SPMG090408-DG Drilling Insert — Atomix
Price shown is for 1 loose insert piece.
Couldn't load pickup availability
Sold loose: price shown is for 1 insert piece.
Buy any 20 or more eligible Atomix insert pieces priced Rs. 200+ in one order and get 10% off automatically at checkout. Lower-priced variants are excluded.

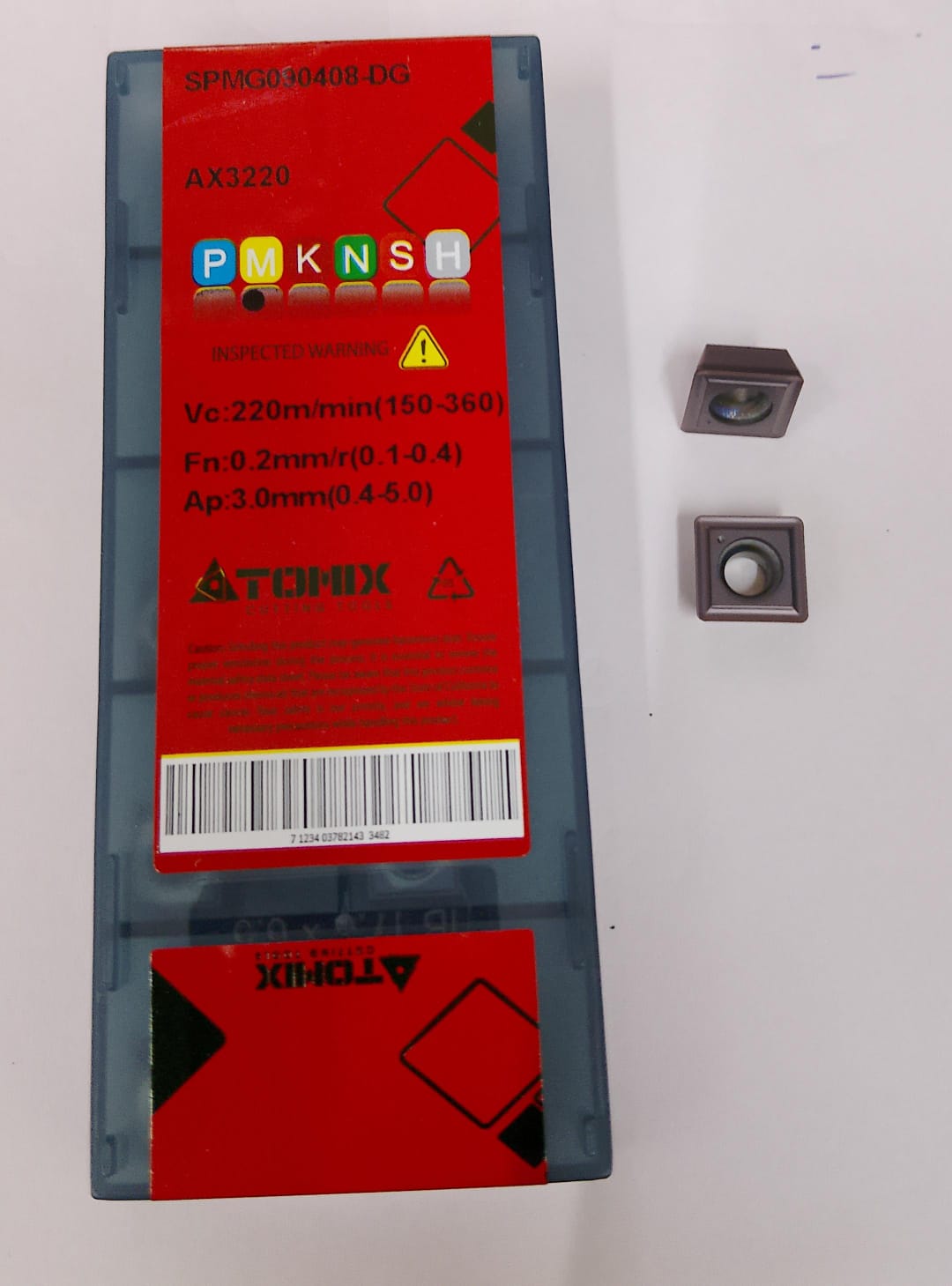

SPMG090408-DG Drilling Insert — Atomix
Atomix SPMG090408-DG carbide drilling insert (Square, 11° clearance) — designed for indexable-insert drilling on CNC mills and lathes. Positive rake geometry and precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Loose single insert piece.
Also searched as: SPMG090408-DG insert, SPMG090408-DG tip, carbide drilling bit, SPMG CNC tip.
Specifications
| ISO Code | SPMG090408-DG |
| Shape | S — Square |
| Clearance | P (11°) |
| Dimensions | IC 9.525 mm, thickness 4.76 mm, nose radius 0.8 mm |
| Pack size | Loose single insert piece |
| Brand | Atomix |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | |
|---|---|---|---|
| Carbon steel | 80–150 | 0.08–0.20 | — |
| Stainless steel | 60–120 | 0.06–0.15 | — |
| Cast iron | 80–140 | 0.10–0.25 | — |
Starting values — adjust for rigidity, coolant, and finish requirement.
Cross-brand grade equivalents
| Atomix Grade (application) | Equivalents |
|---|---|
|
AX3220 M — Stainless steel, medium cuts, anti-BUE coating |
Korloy NC6210/PC8110 · Deskar LF9018 · Mitsubishi US735 · Widia WS40 |
|
AX3220A M — Stainless, tougher edge for interrupted cuts |
Korloy PC8110 · Deskar LF9118 · Mitsubishi VP15TF · Widia WK15CT |
Directional equivalents by ISO application class. For critical work, verify against current brand datasheets.
Dispatch: Same day from Chandni Chowk, Delhi. India-wide shipping.
Need a grade not listed, cross-brand help, or a bulk quote? WhatsApp us at +91 70111 82829 — typical reply within 30 minutes during shop hours.
