WNMU080608EN-GM Milling Insert — Atomix

Name: WNMU080608EN-GM Milling Insert — Atomix
Brand: Midland Tools
SKU: 49419709546736
Price: 450.0 INR
Availability: InStock

Rs. 450.00

+ 18% GST → Rs. 531.00 incl.

Sale Sold out

Price shown is for 1 loose insert piece.

Shipping calculated at checkout.

Sold loose: price shown is for 1 insert piece.

Buy any 20 or more eligible Atomix insert pieces priced Rs. 200+ in one order and get 10% off automatically at checkout. Lower-priced variants are excluded.

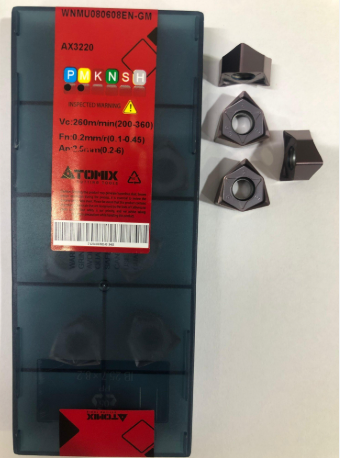

WNMU080608EN-GM Milling Insert — Atomix

Atomix WNMU080608EN-GM carbide milling insert (80° Trigon, 0° clearance) — designed for face milling, shoulder milling and profile machining on CNC machining centres. Positive rake geometry and precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Loose single insert piece.

Also searched as: WNMU080608EN-GM insert, WNMU080608EN-GM tip, carbide milling bit, WNMU CNC tip.

Specifications

ISO Code	WNMU080608EN-GM
Shape	W — 80° Trigon
Clearance	N (0°)
Dimensions	IC 8 mm, thickness 6.35 mm, nose radius 0.8 mm
Pack size	Loose single insert piece
Brand	Atomix

Typical cutting parameters

Workpiece	Vc (m/min)	Fn (mm/rev)	Ap (mm)
Carbon steel	180–280	0.08–0.20	0.5–3.0
Stainless steel	100–180	0.06–0.15	0.5–2.5
Cast iron	140–240	0.10–0.25	0.5–4.0
Aluminium alloy	400–1200	0.10–0.30	1.0–5.0

Starting values — adjust for rigidity, coolant, and finish requirement.

Cross-brand grade equivalents

Atomix Grade (application)	Equivalents
AX3220 M — Stainless steel, medium cuts, anti-BUE coating	Korloy NC6210/PC8110 · Deskar LF9018 · Mitsubishi US735 · Widia WS40
AX3200 P/K — General purpose, wide application range	Korloy PC9030/NC3030 · Deskar LF6118 · Mitsubishi UE6020 · Widia WK10CT
