SDXT 09M405R MILLING INSERT (KORLOY)
SDXT 09M405R MILLING INSERT (KORLOY)
Couldn't load pickup availability

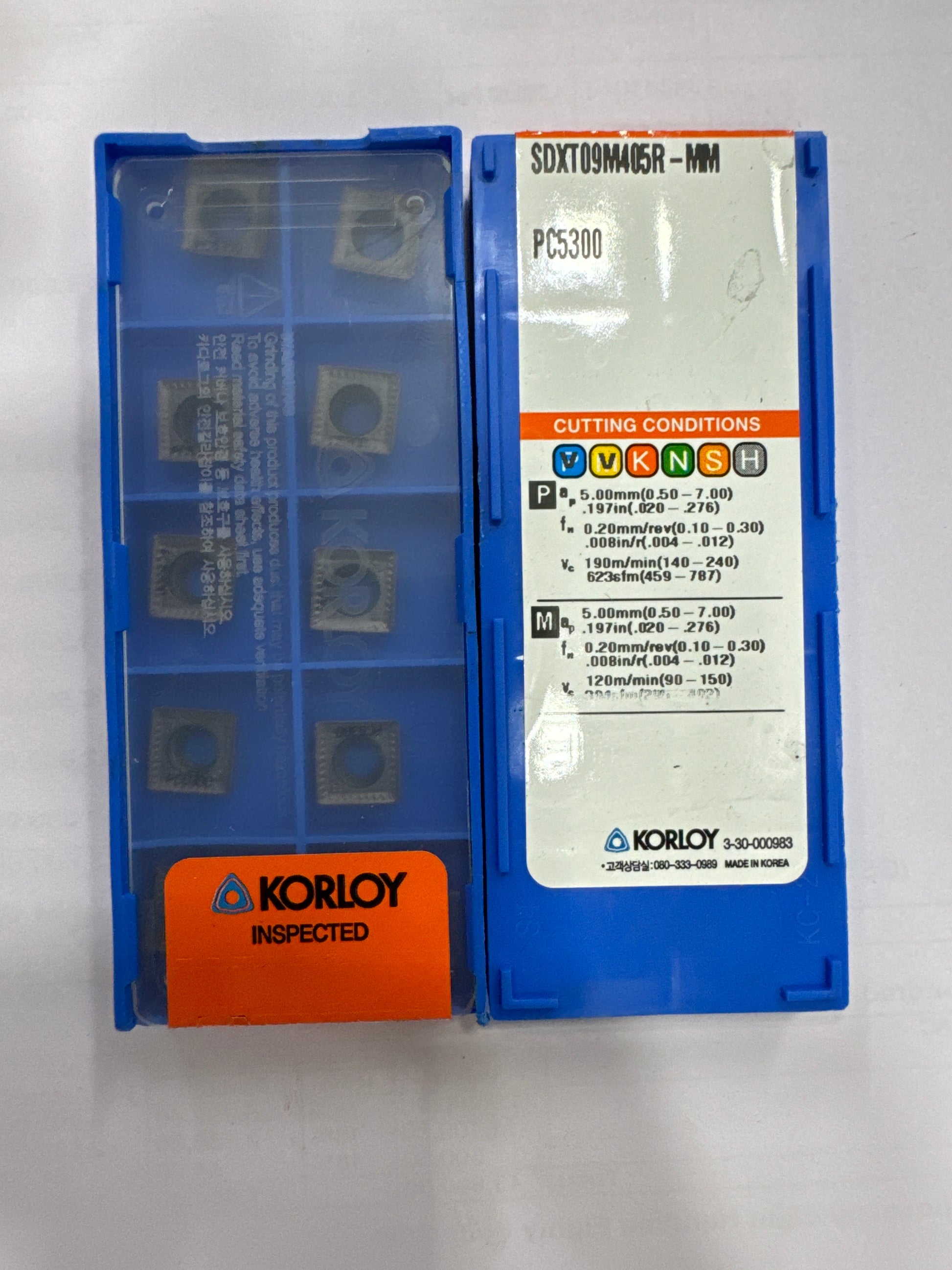

SDXT 09M405R MILLING INSERT — Korloy
Korloy SDXT carbide milling insert — designed for face milling, shoulder milling and profile machining on CNC machining centres. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.
Also searched as: SDXT insert, SDXT tip, carbide milling bit, SDXT CNC tip.
Specifications
| ISO Code | SDXT |
| Pack size | Box of 10 pieces |
| Brand | Korloy |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 180–280 | 0.08–0.20 | 0.5–3.0 |
| Stainless steel | 100–180 | 0.06–0.15 | 0.5–2.5 |
| Cast iron | 140–240 | 0.10–0.25 | 0.5–4.0 |
| Aluminium alloy | 400–1200 | 0.10–0.30 | 1.0–5.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
Cross-brand grade equivalents
| Korloy Grade (application) | Equivalents |
|---|---|
|
PC5300 P — Steel, high wear resistance |
Atomix AX3150 · Deskar LF6118 · Mitsubishi MC5020 · Widia WK15CT |
Directional equivalents by ISO application class. For critical work, verify against current brand datasheets.
Dispatch: Same day from Chandni Chowk, Delhi. India-wide shipping.
Need a grade not listed, cross-brand help, or a bulk quote? WhatsApp us at +91 70111 82829 — typical reply within 30 minutes during shop hours.
