WNMG080404/08/12 TURNING INSERT (KORLOY)
WNMG080404/08/12 TURNING INSERT (KORLOY)
Couldn't load pickup availability

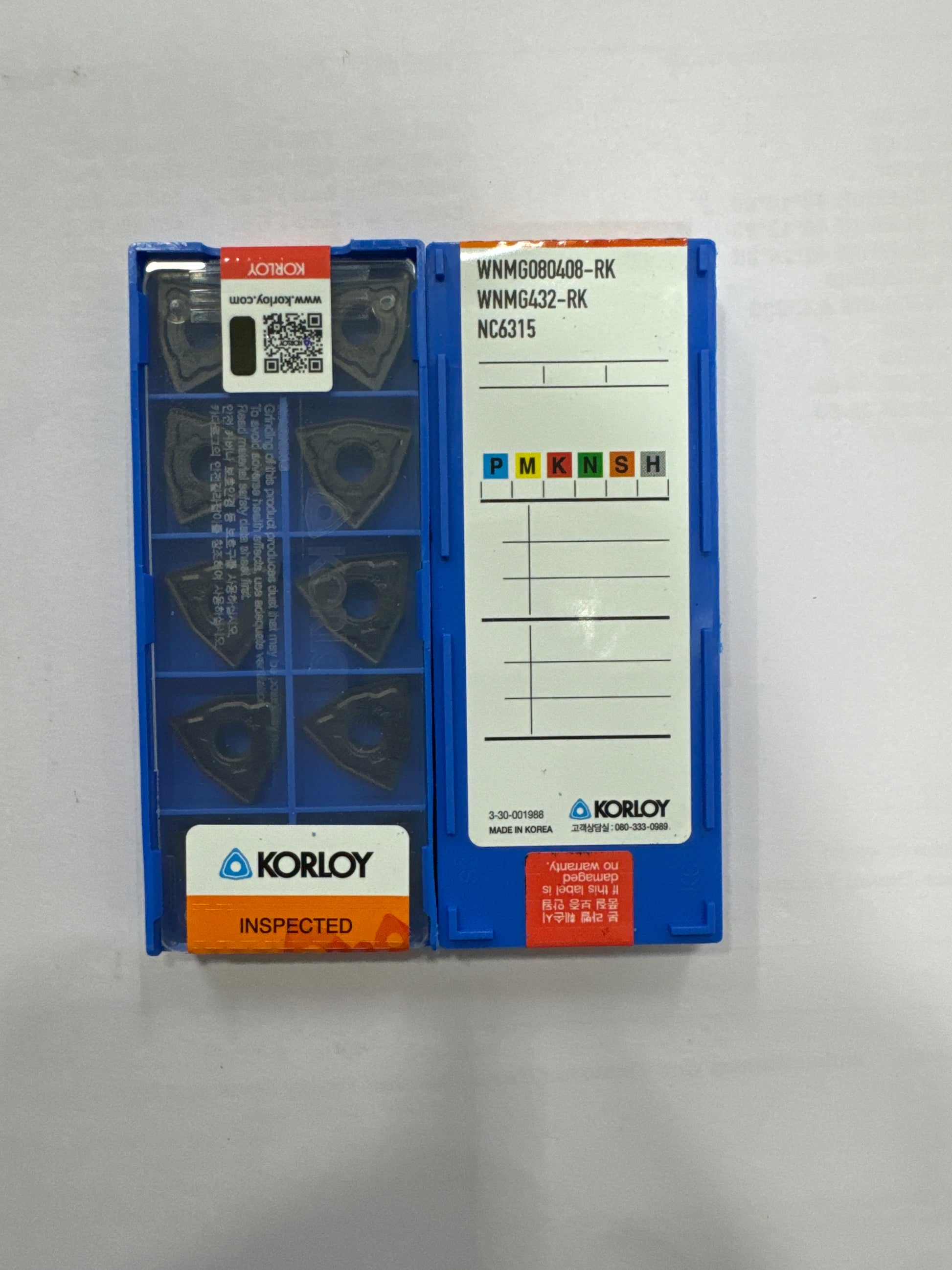

WNMG080404/08/12 TURNING INSERT — Korloy
Korloy WNMG080404/08/12 carbide turning insert (80° Trigon, 0° clearance) — designed for CNC lathe turning, boring and facing on shafts, bushings and precision components. Precision-ground edges cut cleanly through carbon steel, stainless steel, cast iron, and hardened materials up to HRC 45. Box of 10 pieces.
Also searched as: WNMG080404/08/12 insert, WNMG080404/08/12 tip, carbide turning bit, WNMG CNC tip.
Specifications
| ISO Code | WNMG080404/08/12 |
| Shape | W — 80° Trigon |
| Clearance | N (0°) |
| Dimensions | IC 8 mm, thickness 4.76 mm, nose radius 0.4 mm |
| Pack size | Box of 10 pieces |
| Brand | Korloy |
Typical cutting parameters
| Workpiece | Vc (m/min) | Fn (mm/rev) | Ap (mm) |
|---|---|---|---|
| Carbon steel | 140–220 | 0.08–0.25 | 0.3–2.0 |
| Stainless steel | 80–160 | 0.08–0.20 | 0.3–2.0 |
| Cast iron | 100–200 | 0.10–0.30 | 0.5–3.0 |
| Hardened steel (HRC 45) | 60–120 | 0.05–0.15 | 0.2–1.0 |
Starting values — adjust for rigidity, coolant, and finish requirement.
Cross-brand grade equivalents
| Korloy Grade (application) | Equivalents |
|---|---|
|
NC3120 P — Steel finishing, PVD coating |
Atomix AX3150 · Deskar LF6118 · Mitsubishi VP15TF · Widia WK10CT |
|
PC9030 P/K — General steel + cast iron, finishing |
Atomix AX3150 · Deskar LF6118 · Mitsubishi VP15TF · Widia WK10CT |
|
PC5300 P — Steel, high wear resistance |
Atomix AX3150 · Deskar LF6118 · Mitsubishi MC5020 · Widia WK15CT |
Directional equivalents by ISO application class. For critical work, verify against current brand datasheets.
Dispatch: Same day from Chandni Chowk, Delhi. India-wide shipping.
Need a grade not listed, cross-brand help, or a bulk quote? WhatsApp us at +91 70111 82829 — typical reply within 30 minutes during shop hours.
