Midland Tools
XMR SERIES ZCC SDMT HI FEED 15* Cutter Body / Endmill
XMR SERIES ZCC SDMT HI FEED 15* Cutter Body / Endmill
Regular price
Rs. 2,360
(Incl. of all taxes)
Regular price
Sale price
Rs. 2,360
(Incl. of all taxes)
Rs. 2,000 + Rs. 360 GST
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GST invoice
All prices include 18% GST
Delhi dispatch
Ships from Chandni Chowk stock
Shipping
Standard Rs. 70 below Rs. 2,999 · Free standard delivery on Rs. 2,999+ · Express Rs. 120
Bulk quote
Message us on WhatsApp

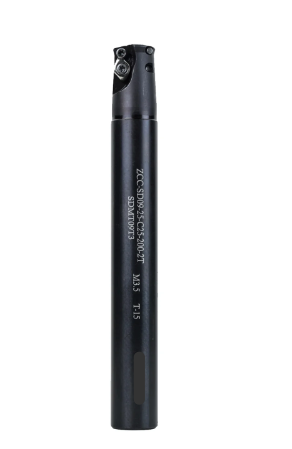

XMR Series ZCC SDMT High-Feed Cutter Body
XMR Series high-feed milling cutter body listed for SDMT09T3 inserts and a 15° approach-angle system. The selector identifies cutter diameter, shank diameter, overall length and insert-pocket count.
How to read the option code
- Example: C25-S25-200L / SDMT09T3-2T.
- C25 = 25 mm cutter diameter.
- S25 = 25 mm shank diameter.
- 200L = 200 mm overall length.
- SDMT09T3 = listed insert family.
- 2T = two insert pockets.
Variant guide
| Current option | Cutter dia. | Shank dia. | Length | Insert | Pockets |
|---|---|---|---|---|---|
| C25-S25-200L / SDMT09T3-2T | 25 mm | 25 mm | 200 mm | SDMT09T3 | 2 |
| C32-S32-200L / SDMT09T3-3T | 32 mm | 32 mm | 200 mm | SDMT09T3 | 3 |
Match the shank size to the holder and use only the listed SDMT09T3 insert family.
